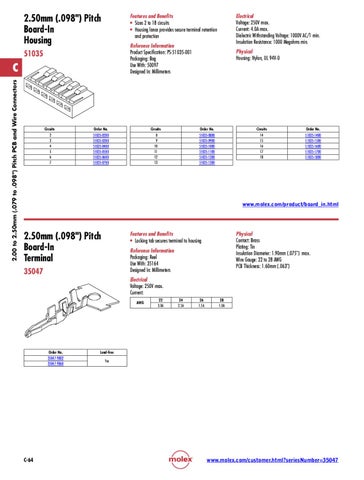

2.50mm (.098") Pitch Board-In Housing
Features and Benefits • Sizes 2 to 18 circuits • Housing lance provides secure terminal retention and protection Reference Information Product Specification: PS-51035-001 Packaging: Bag Use With: 50097 Designed In: Millimeters
51035
2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
C
Circuits 2 3 4 5 6 7
Order No. 51035-0200 51035-0300 51035-0400 51035-0500 51035-0600 51035-0700
Circuits 8 9 10 11 12 13
Electrical Voltage: 250V max. Current: 4.0A max. Dielectric Withstanding Voltage: 1000V AC/1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Nylon, UL 94V-0
Order No. 51035-0800 51035-0900 51035-1000 51035-1100 51035-1200 51035-1300
Circuits 14 15 16 17 18
Order No. 51035-1400 51035-1500 51035-1600 51035-1700 51035-1800
www.molex.com/product/board_in.html
2.50mm (.098") Pitch Board-In Terminal
Features and Benefits • Locking tab secures terminal to housing Reference Information Packaging: Reel Use With: 35164 Designed In: Millimeters
35047
Electrical Voltage: 250V max. Current: AWG
Order No. 35047-9802 35047-9860
C-64
Physical Contact: Brass Plating: Tin Insulation Diameter: 1.90mm (.075") max. Wire Gauge: 22 to 28 AWG PCB Thickness: 1.60mm (.063")
22 3.0A
24 2.5A
26 1.5A
28 1.0A
Lead-free Yes
www.molex.com/customer.html?seriesNumber=35047
