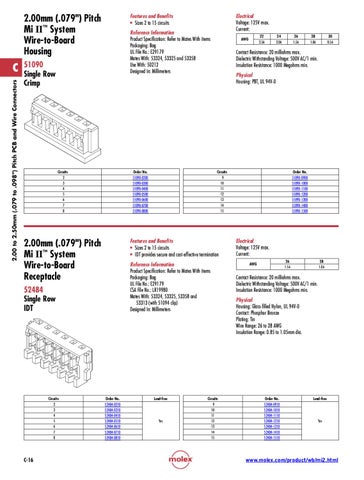

2.00mm (.079") Pitch Mi II™ System Wire-to-Board Housing 2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
C
Features and Benefits • Sizes 2 to 15 circuits Reference Information Product Specification: Refer to Mates With items Packaging: Bag UL File No.: E29179 Mates With: 53324, 53325 and 53358 Use With: 50212 Designed In: Millimeters
51090 Single Row Crimp
Circuits 2 3 4 5 6 7 8
Order No. 51090-0200 51090-0300 51090-0400 51090-0500 51090-0600 51090-0700 51090-0800
2.00mm (.079") Pitch Mi II™ System Wire-to-Board Receptacle
C-16
24 2.0A
26 1.5A
Yes
30 0.5A
Physical Housing: PBT, UL 94V-0
Circuits 9 10 11 12 13 14 15
Lead-free
28 1.0A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min.
Reference Information Product Specification: Refer to Mates With items Packaging: Bag UL File No.: E29179 CSA File No.: LR19980 Mates With: 53324, 53325, 53358 and 53313 (with 51094 clip) Designed In: Millimeters
Order No. 52484-0210 52484-0310 52484-0410 52484-0510 52484-0610 52484-0710 52484-0810
22 2.5A
AWG
Features and Benefits • Sizes 2 to 15 circuits • IDT provides secure and cost-effective termination
52484 Single Row IDT
Circuits 2 3 4 5 6 7 8
Electrical Voltage: 125V max. Current:
Circuits 9 10 11 12 13 14 15
Order No. 51090-0900 51090-1000 51090-1100 51090-1200 51090-1300 51090-1400 51090-1500
Electrical Voltage: 125V max. Current: 26 1.5A
AWG
28 1.0A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Glass-filled Nylon, UL 94V-0 Contact: Phosphor Bronze Plating: Tin Wire Range: 26 to 28 AWG Insulation Range: 0.85 to 1.05mm dia.
Order No. 52484-0910 52484-1010 52484-1110 52484-1210 52484-1310 52484-1410 52484-1510
Lead-free
Yes
www.molex.com/product/wb/mi2.html
