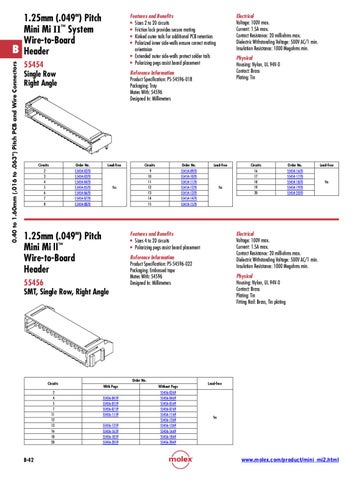

0.40 to 1.60mm (.016 to .063") Pitch PCB and Wire Connectors
1.25mm (.049") Pitch Mini Mi II™ System Wire-to-Board B Header
Features and Benefits • Sizes 2 to 20 circuits • Friction lock provides secure mating • Kinked outer tails for additional PCB retention • Polarized inner side-walls ensure correct mating orientaion • Extended outer side-walls protect solder tails • Polarizing pegs assist board placement
55454 Single Row Right Angle
Circuits 2 3 4 5 6 7 8
Lead-free
Yes
1.25mm (.049") Pitch Mini Mi II™ Wire-to-Board Header
B-42
Circuits 9 10 11 12 13 14 15
Order No. 55454-0970 55454-1070 55454-1170 55454-1270 55454-1370 55454-1470 55454-1570
Lead-free
Yes
Features and Benefits • Sizes 4 to 20 circuits • Polarizing pegs assist board placement
55456 SMT, Single Row, Right Angle
2 4 5 7 11 12 13 16 18 20
Physical Housing: Nylon, UL 94V-0 Contact: Brass Plating: Tin
Reference Information Product Specification: PS-54596-018 Packaging: Tray Mates With: 54596 Designed In: Millimeters
Order No. 55454-0270 55454-0370 55454-0470 55454-0570 55454-0670 55454-0770 55454-0870
Circuits
Electrical Voltage: 100V max. Current: 1.5A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min.
55456-0459 55456-0559 55456-0759 55456-1159 55456-1359 55456-1659 55456-1859 55456-2059
Without Pegs 55456-0269 55456-0469 55456-0569 55456-0769 55456-1169 55456-1269 55456-1369 55456-1669 55456-1869 55456-2069
Order No. 55454-1670 55454-1770 55454-1870 55454-1970 55454-2070
Lead-free
Yes
Electrical Voltage: 100V max. Current: 1.5A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min.
Reference Information Product Specification: PS-54596-022 Packaging: Embossed tape Mates With: 54596 Designed In: Millimeters
Order No. With Pegs
Circuits 16 17 18 19 20
Physical Housing: Nylon, UL 94V-0 Contact: Brass Plating: Tin Fitting Nail: Brass, Tin plating
Lead-free
Yes
www.molex.com/product/mini_mi2.html
