Brad HarshIO Safety Solutions Safety plug and play infrastructure solution To simplify the integration of a high diversity of safety devices, Molex provides a range of Safety Passive components as adapters and splitters, for dedicated manufacturer and wiring standards. An overview of the solutions available is listed in the Safety Integration Manual of our IO module or can be found on the Molex web site: www.molex.com/link/brad_support.html

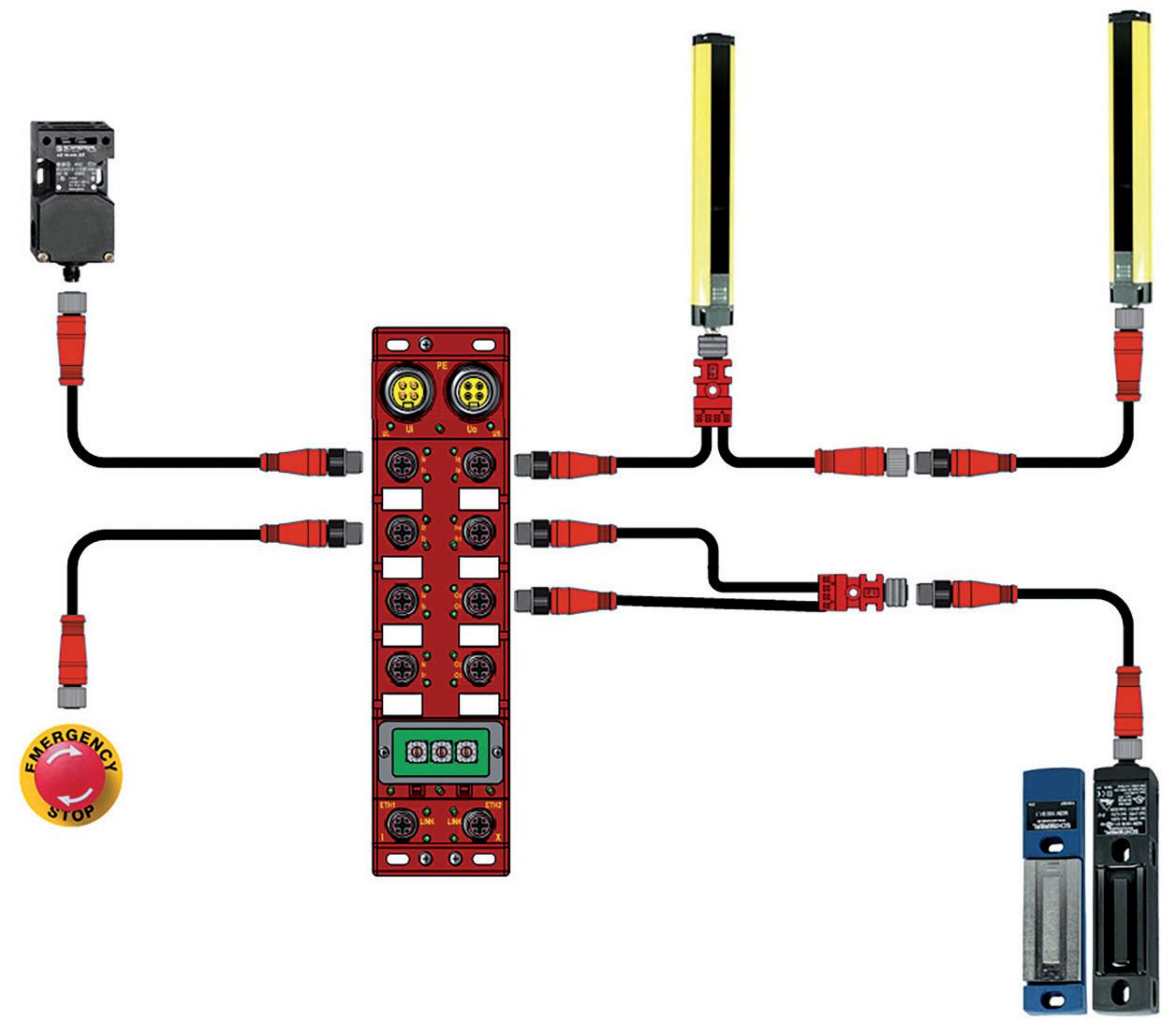

Adapters and splitters for dedicated interconnection Adapter cordsets convert different pinout to the standard Safety HarshIO port configuration through wire crossing or wire bridging.
5 poles straight cordset
5 poles extender cordset
Light curtain power splitter
8 to 5 poles Adapter cordset
Splitter cordsets allow the dispatch of different signals from sensors to multiple ports or the distribution of power in case of light curtains
8 poles splitter cordset
8 poles extender cordset

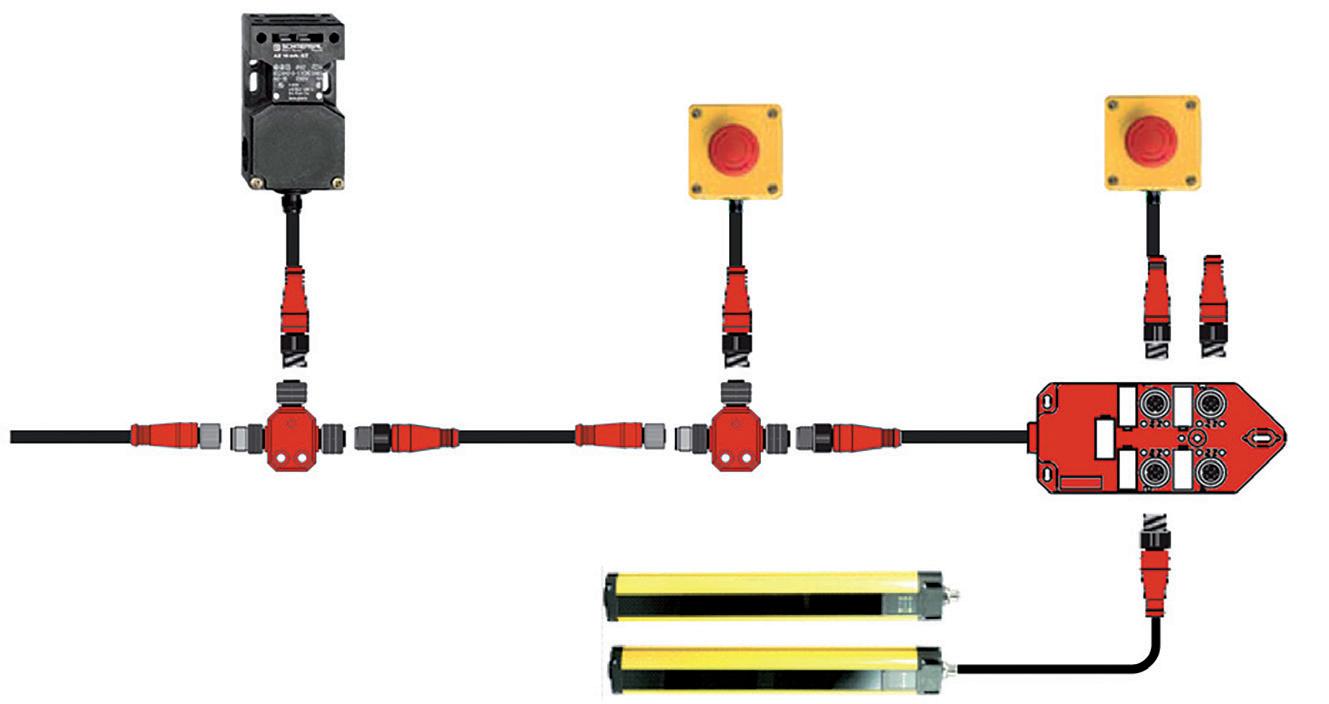

Increase input sensors by serialisation Safety Tee and Safety MPIS (Multiport Passive Interconnection Systems) allow the integration of several sensors in a single safety loop. Different wiring is available according to the safety signals (N.O., N.C., OSSD, etc.)
Safety Tee Serialising
Safety Tee Serialising
Safety Cordsets
Safety MPIS Serialising
Shorting Plug
Shorting Plug
Safety Devices

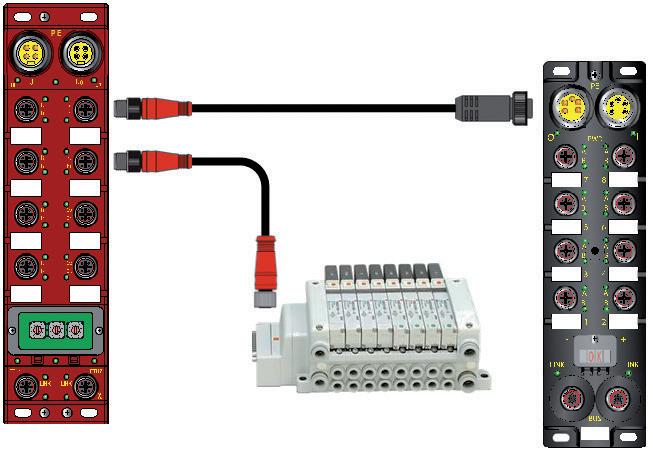

Safe control of multiple output signals Allows for power supply, cordset adapters as well as further automation equipment or digital output signals through one single Safe Output device.
