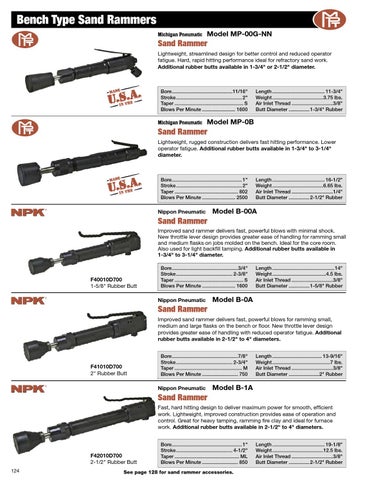

Bench Type Sand Rammers Michigan Pneumatic
Model MP-00G-NN
Sand Rammer Lightweight, streamlined design for better control and reduced operator fatigue. Hard, rapid hitting performance ideal for refractory sand work. Additional rubber butts available in 1-3/4" or 2-1/2" diameter.
. U.S.A MADE
E IN TH
Bore ............................................11/16" Stroke ................................................2" Taper .................................................. S Blows Per Minute ........................ 1600
Michigan Pneumatic
Length ...................................... 11-3/4" Weight .....................................3.75 lbs. Air Inlet Thread ..............................3/8" Butt Diameter ............... 1-3/4" Rubber
Model MP-0B
Sand Rammer Lightweight, rugged construction delivers fast hitting performance. Lower operator fatigue. Additional rubber butts available in 1-3/4" to 3-1/4" diameter.
. U.S.A MADE
E IN TH
Bore ...................................................1" Stroke ................................................2" Taper .............................................. 802 Blows Per Minute ........................ 2500
Nippon Pneumatic
Length ...................................... 16-1/2" Weight .....................................6.65 lbs. Air Inlet Thread ..............................1/4" Butt Diameter ............... 2-1/2" Rubber
Model B-00A
Sand Rammer Improved sand rammer delivers fast, powerful blows with minimal shock. New throttle lever design provides greater ease of handling for ramming small and medium flasks on jobs molded on the bench. Ideal for the core room. Also used for light backfill tamping. Additional rubber butts available in 1-3/4" to 3-1/4" diameter.
F40010D700 1-5/8" Rubber Butt
Bore ................................................3/4" Stroke ......................................... 2-3/8" Taper .................................................. S Blows Per Minute ........................ 1600
Nippon Pneumatic
Length .............................................14" Weight .......................................4.5 lbs. Air Inlet Thread ..............................3/8" Butt Diameter ............... 1-5/8" Rubber
Model B-0A
Sand Rammer Improved sand rammer delivers fast, powerful blows for ramming small, medium and large flasks on the bench or floor. New throttle lever design provides greater ease of handling with reduced operator fatigue. Additional rubber butts available in 2-1/2" to 4" diameters.
F41010D700 2" Rubber Butt
Bore ................................................7/8" Stroke ......................................... 2-3/4" Taper ................................................. M Blows Per Minute .......................... 750
Nippon Pneumatic
Length .................................... 13-9/16" Weight ..........................................7 lbs. Air Inlet Thread ..............................3/8" Butt Diameter ......................2" Rubber
Model B-1A
Sand Rammer Fast, hard hitting design to deliver maximum power for smooth, efficient work. Lightweight, improved construction provides ease of operation and control. Great for heavy tamping, ramming fire clay and ideal for furnace work. Additional rubber butts available in 2-1/2" to 4" diameters.
F42010D700 2-1/2" Rubber Butt 124
Bore ...................................................1" Stroke ......................................... 4-1/2" Taper ............................................... ML Blows Per Minute .......................... 850
See page 128 for sand rammer accessories.
Length ...................................... 19-1/8" Weight .....................................12.5 lbs. Air Inlet Thread ..............................3/8" Butt Diameter ............... 2-1/2" Rubber
