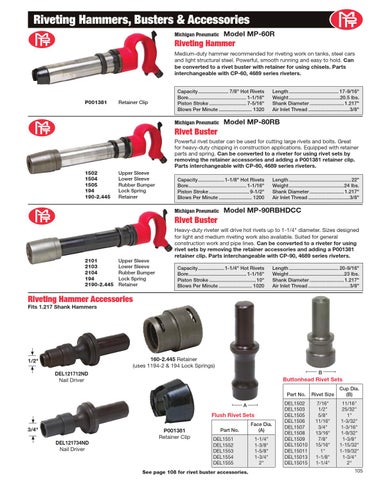

Riveting Hammers, Busters & Accessories Michigan Pneumatic
Model MP-60R
Riveting Hammer Medium-duty hammer recommended for riveting work on tanks, steel cars and light structural steel. Powerful, smooth running and easy to hold. can be converted to a rivet buster with retainer for using chisels. Parts interchangeable with cP-60, 4689 series riveters.
P001381
Retainer Clip
Capacity ...................... 7/8" Hot Rivets Bore .......................................... 1-1/16" Piston Stroke ........................... 7-5/16" Blows Per Minute ........................ 1320
Michigan Pneumatic
Length .................................... 17-9/16" Weight .....................................20.5 lbs. Shank Diameter .........................1.217" Air Inlet Thread ..............................3/8"
Model MP-80RB
Rivet Buster Powerful rivet buster can be used for cutting large rivets and bolts. Great for heavy-duty chipping in construction applications. Equipped with retainer parts and spring. can be converted to a riveter for using rivet sets by removing the retainer accessories and adding a P001381 retainer clip. Parts interchangeable with cP-80, 4689 series riveters. 1502 1504 1505 194 190-2.445
upper Sleeve Lower Sleeve Rubber Bumper Lock Spring Retainer
Capacity ................... 1-1/8" Hot Rivets Bore .......................................... 1-1/16" Piston Stroke ............................. 9-1/2" Blows Per Minute ........................ 1200
Michigan Pneumatic
Length .............................................22" Weight ........................................24 lbs. Shank Diameter .........................1.217" Air Inlet Thread ..............................3/8"
Model MP-90RBHDcc
Rivet Buster
2101 2103 2104 194 2190-2.445
upper Sleeve Lower Sleeve Rubber Bumper Lock Spring Retainer
Heavy-duty riveter will drive hot rivets up to 1-1/4" diameter. Sizes designed for light and medium riveting work also available. Suited for general construction work and pipe lines. can be converted to a riveter for using rivet sets by removing the retainer accessories and adding a P001381 retainer clip. Parts interchangeable with cP-90, 4689 series riveters. Capacity ................... 1-1/4" Hot Rivets Bore .......................................... 1-1/16" Piston Stroke ..................................10" Blows Per Minute ........................ 1020
Length .................................... 20-9/16" Weight ........................................23 lbs. Shank Diameter .........................1.217" Air Inlet Thread ..............................3/8"
Riveting Hammer Accessories Fits 1.217 Shank Hammers
160-2.445 Retainer (uses 1194-2 & 194 Lock Springs)
1/2"
B
DEL121712ND Nail Driver
Buttonhead Rivet Sets
A
Flush Rivet Sets 3/4" DEL121734ND Nail Driver
P001381 Retainer Clip
Part No. DEL1551 DEL1552 DEL1553 DEL1554 DEL1555
See page 108 for rivet buster accessories.
Face Dia. (A) 1-1/4" 1-3/8" 1-5/8" 1-3/4" 2"
Part No.
Rivet Size
Cup Dia. (B)
DEL1502 DEL1503 DEL1505 DEL1506 DEL1507 DEL1508 DEL1509 DEL15010 DEL15011 DEL15013 DEL15015
7/16" 1/2" 5/8" 11/16" 3/4" 13/16" 7/8" 15/16" 1" 1-1/8" 1-1/4"
11/16" 25/32" 1" 1-3/32" 1-3/16" 1-9/32" 1-3/8" 1-15/32" 1-19/32" 1-3/4" 2" 105
