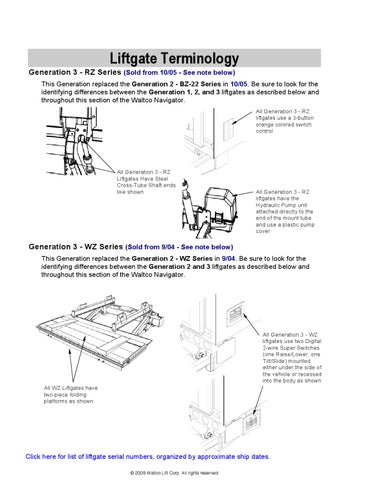

Liftgate Terminology Generation 3 - RZ Series (Sold from 10/05 - See note below) This Generation replaced the Generation 2 - BZ-22 Series in 10/05. Be sure to look for the identifying differences between the Generation 1, 2, and 3 liftgates as described below and throughout this section of the Waltco Navigator. All Generation 3 - RZ liftgates use a 3-button orange colored switch control
All Generation 3 - RZ Liftgates Have Steel Cross-Tube Shaft ends like shown
All Generation 3 - RZ liftgates have the Hydraulic Pump unit attached directly to the end of the mount tube and use a plastic pump cover
Generation 3 - WZ Series (Sold from 9/04 - See note below) This Generation replaced the Generation 2 - WZ Series in 9/04. Be sure to look for the identifying differences between the Generation 2 and 3 liftgates as described below and throughout this section of the Waltco Navigator.
All Generation 3 - WZ liftgates use two Digital 2-wire Super Switches (one Raise/Lower, one Tilt/Slide) mounted either under the side of the vehicle or recessed into the body as shown All WZ Liftgates have two piece folding platforms as shown
Click here for list of liftgate serial numbers, organized by approximate ship dates. Š 2009 Waltco Lift Corp. All rights reserved
