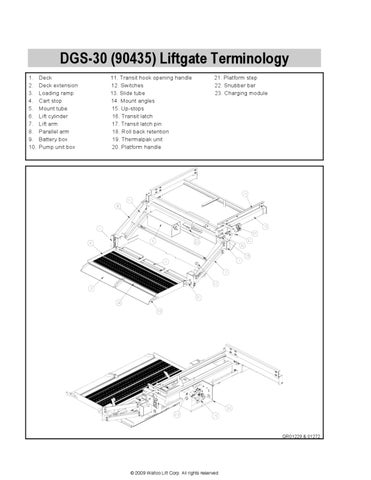

DGS-30 (90435) Liftgate Terminology 1. 2. 3. 4. 5. 6. 7. 8. 9. 10.
Deck Deck extension Loading ramp Cart stop Mount tube Lift cylinder Lift arm Parallel arm Battery box Pump unit box
11. Transit hook opening handle 12. Switches 13. Slide tube 14. Mount angles 15. Up-stops 16. Transit latch 17. Transit latch pin 18. Roll back retention 19. Thermalpak unit 20. Platform handle
21. Platform step 22. Snubber bar 23. Charging module
GR01229 & 01272
