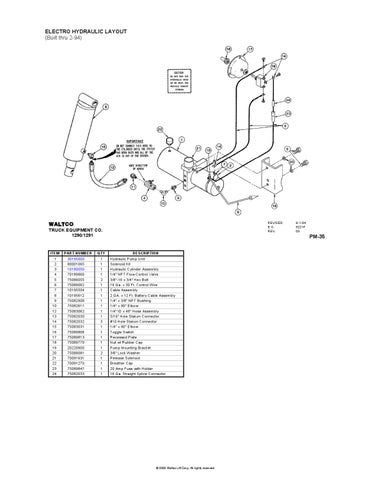

ELECTRO HYDRAULIC LAYOUT (Built thru 2-94)
WALTCO
REVISED: E.O. REV.
TRUCK EQUIPMENT CO. 1290/1291
ITEM 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 22 23 24
PART NUMBER 30195000 80001065 10180050 70189860 75086055 75089062 10195504 10195612 75082908 75082611 75083062 75082030 75082032 75083031 75089808 75089813 75089770 20220900 75088081 70091631 70091270 75089847 75082033
QTY 1 1 1 1 2 1 1 1 1 1 1 1 5 1 1 1 1 1 2 1 1 1 1
9-1-04 5221F 03
PM-35 DESCRIPTION Hydraulic Pump Unit Solenoid Kit Hydraulic Cylinder Assembly 1/4" NPT Flow Control Valve 3/8"-16 x 3/4" Hex Bolt 16 Ga. x 30 Ft. Control Wire Cable Assembly 2 GA. x 12 Ft. Battery Cable Assembly 1/4" x 3/8" NPT Bushing 1/4" x 90° Elbow 1/4" ID x 48" Hose Assembly 5/16" Hole Stakon Connector #10 Hole Stakon Connector 1/4" x 90° Elbow Toggle Switch Recessed Plate Nut w/ Rubber Cap Pump Mounting Bracket 3/8" Lock Washer Release Solenoid Breather Cap 20 Amp Fuse with Holder 16 Ga. Straight Splice Connector
© 2009 Waltco Lift Corp. All rights reserved
