The Spotlight

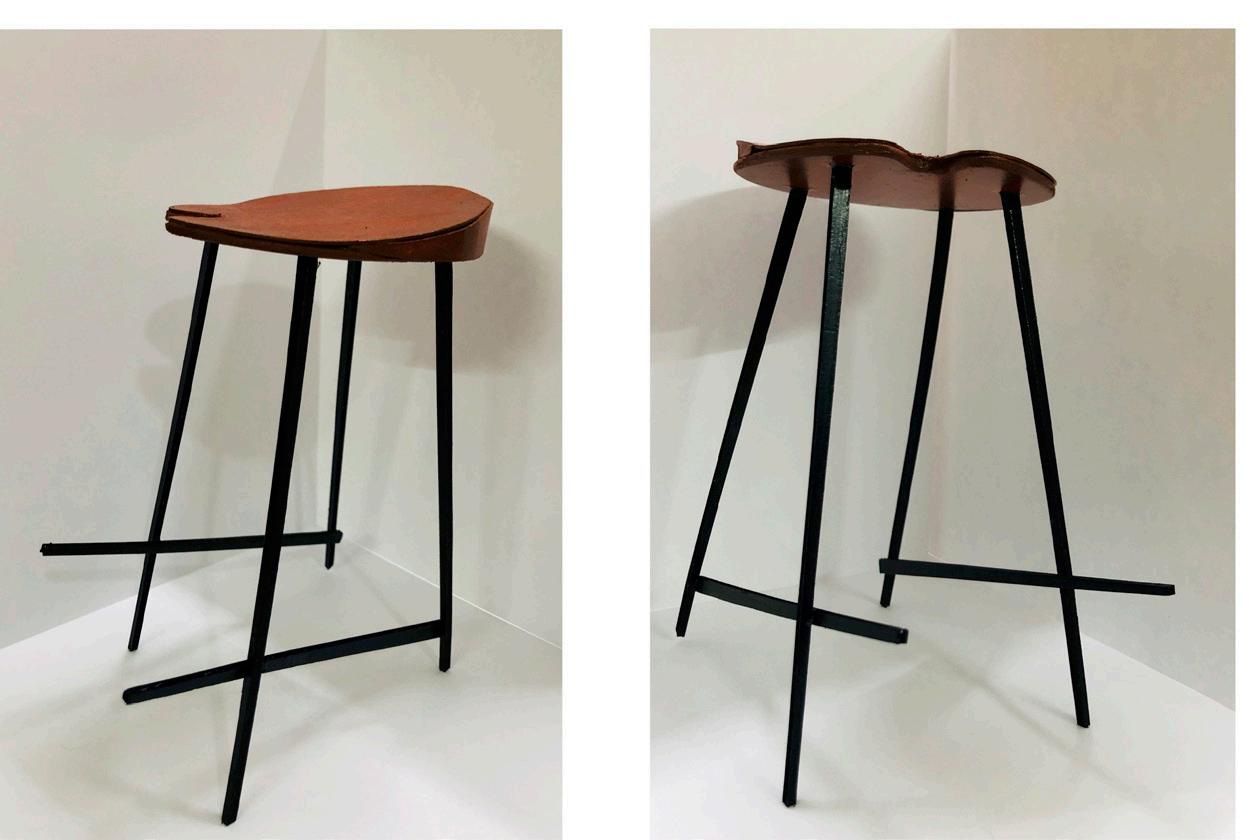

Knockdown Furniture

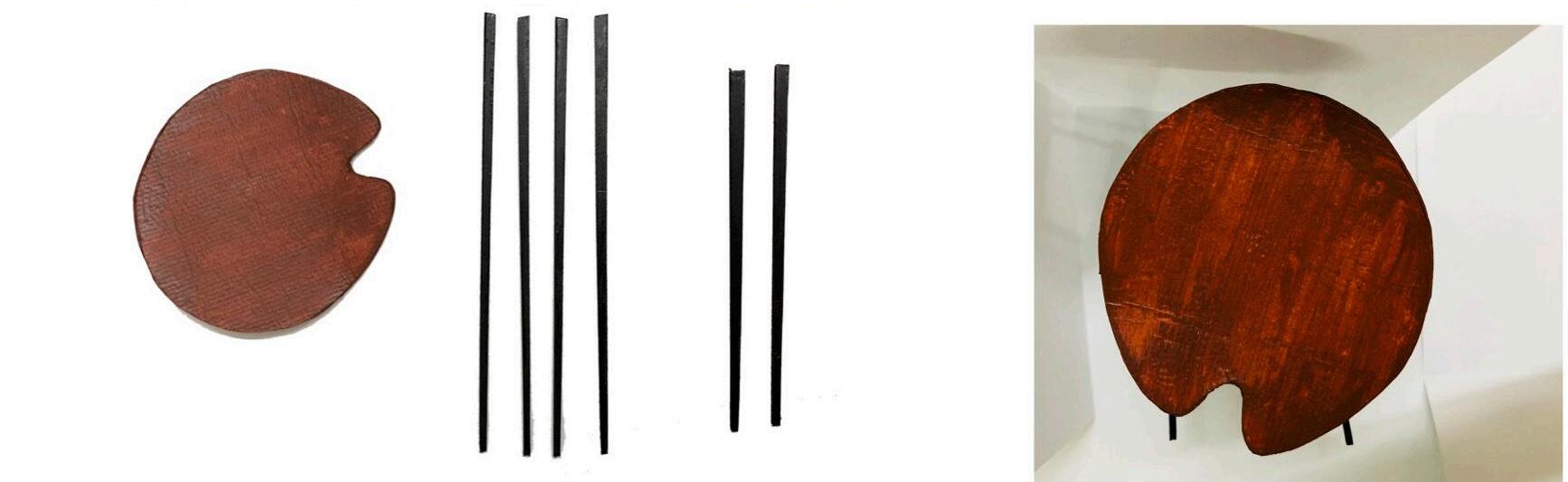

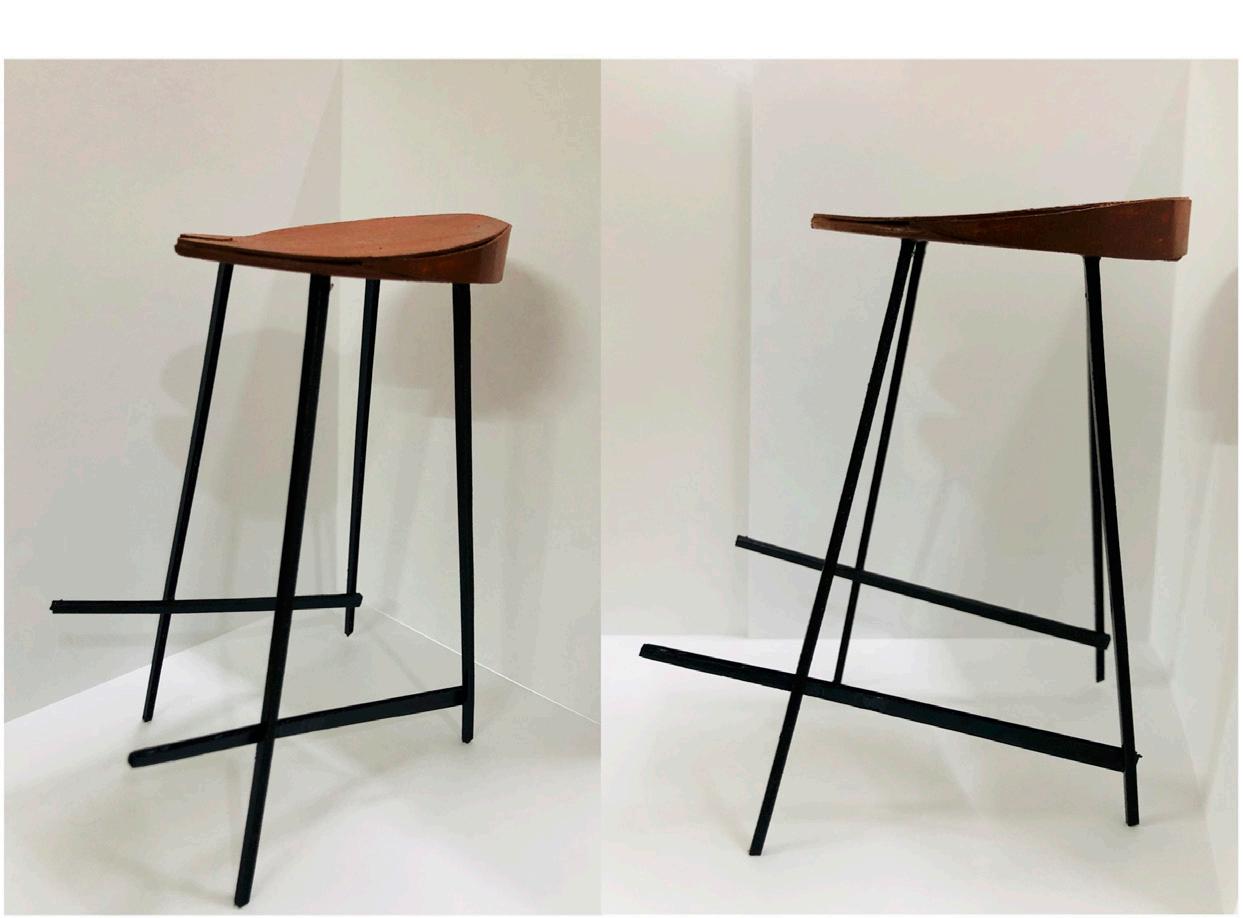

The Spotlight is specifically designed for musicians who require a sturdy, knockdown pice of furniture that can function as both an instrument stand (mainly, a Guitar) and a stool. The design allows them to sit and play their instrument anywhere they want. The form and the materials used are inspired from musicial instruments including the wood and the colour palette. The entire furniture can be dismatled easily and carried anywhere, leaving the 4 legs, 2 foot rests and the seat.
Advertisement

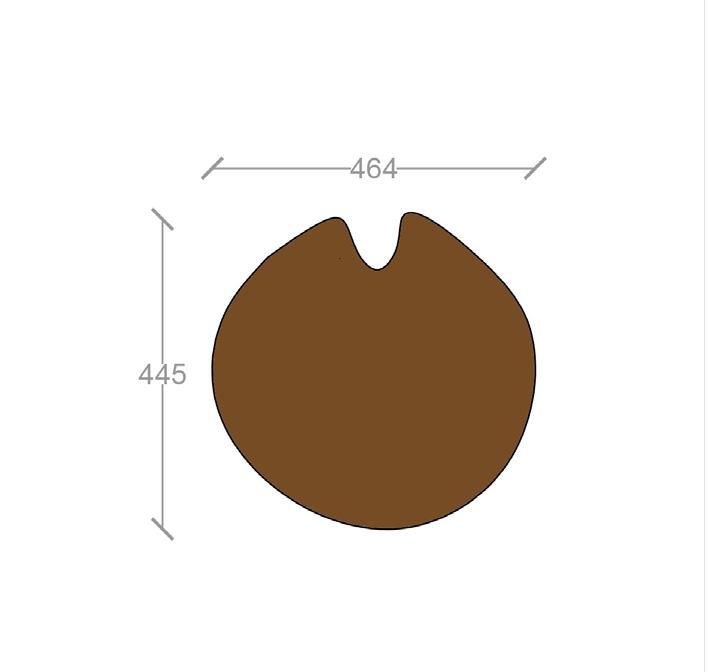

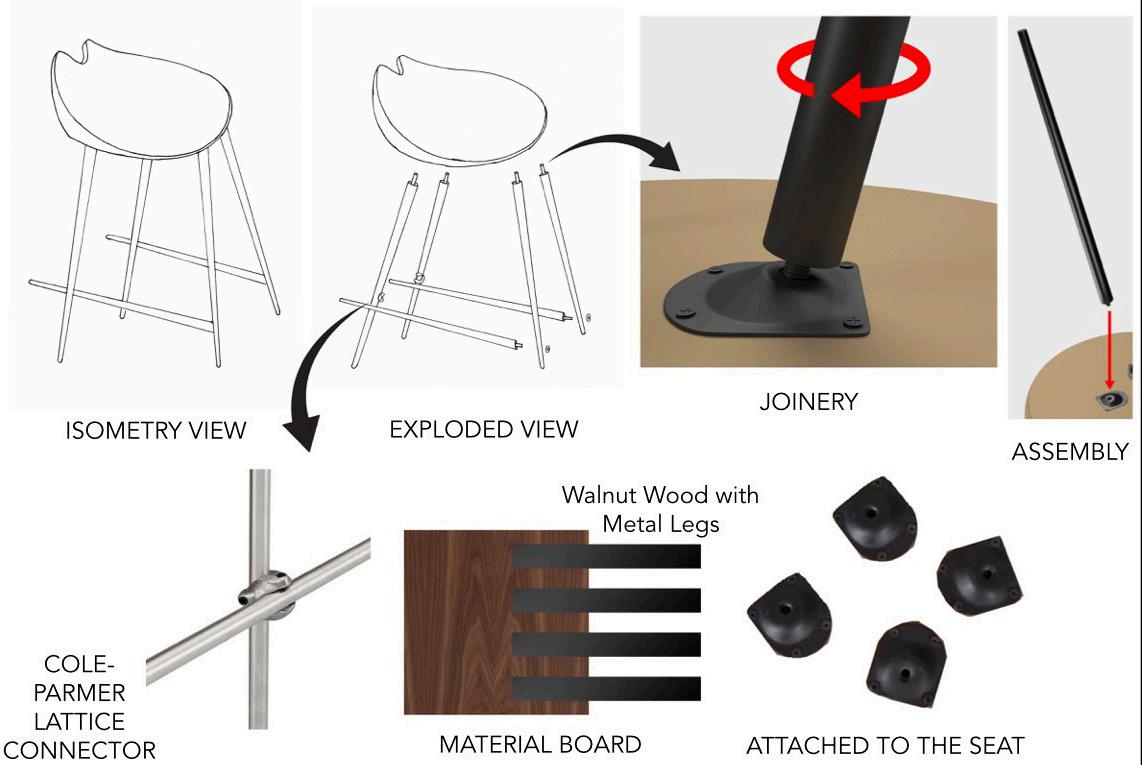

Details

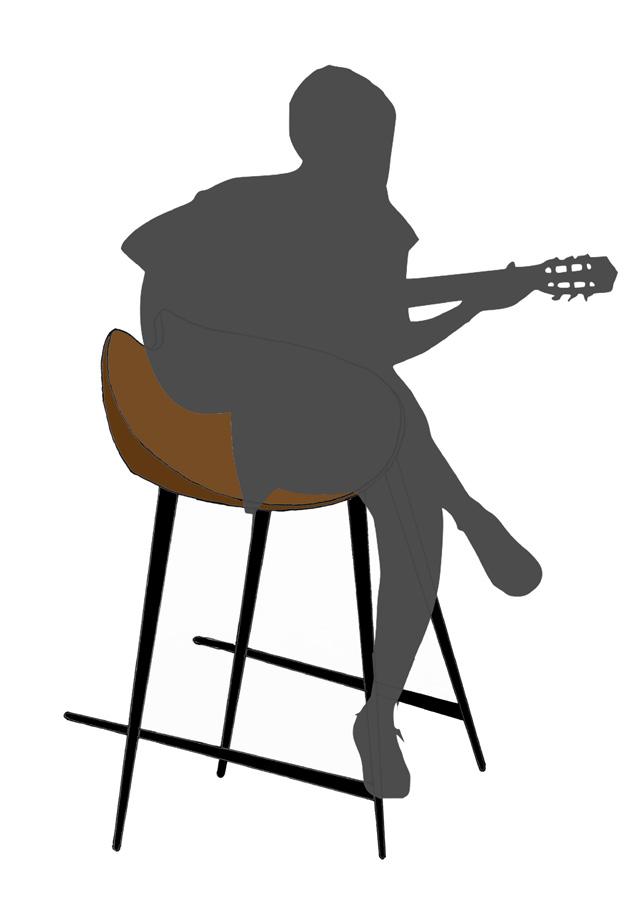

3D Model

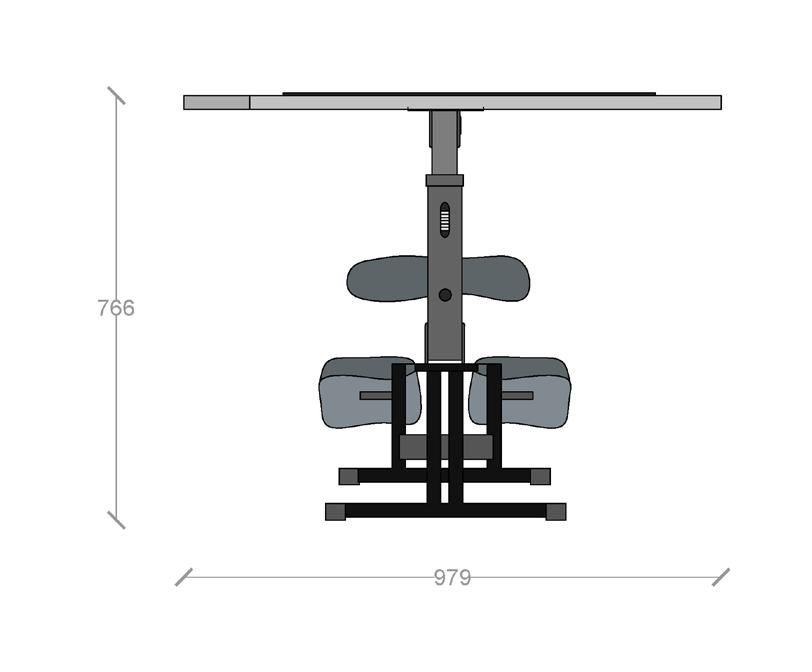

Front Elevation
Artists’ Easel-chair


Mechanism Based Furniture

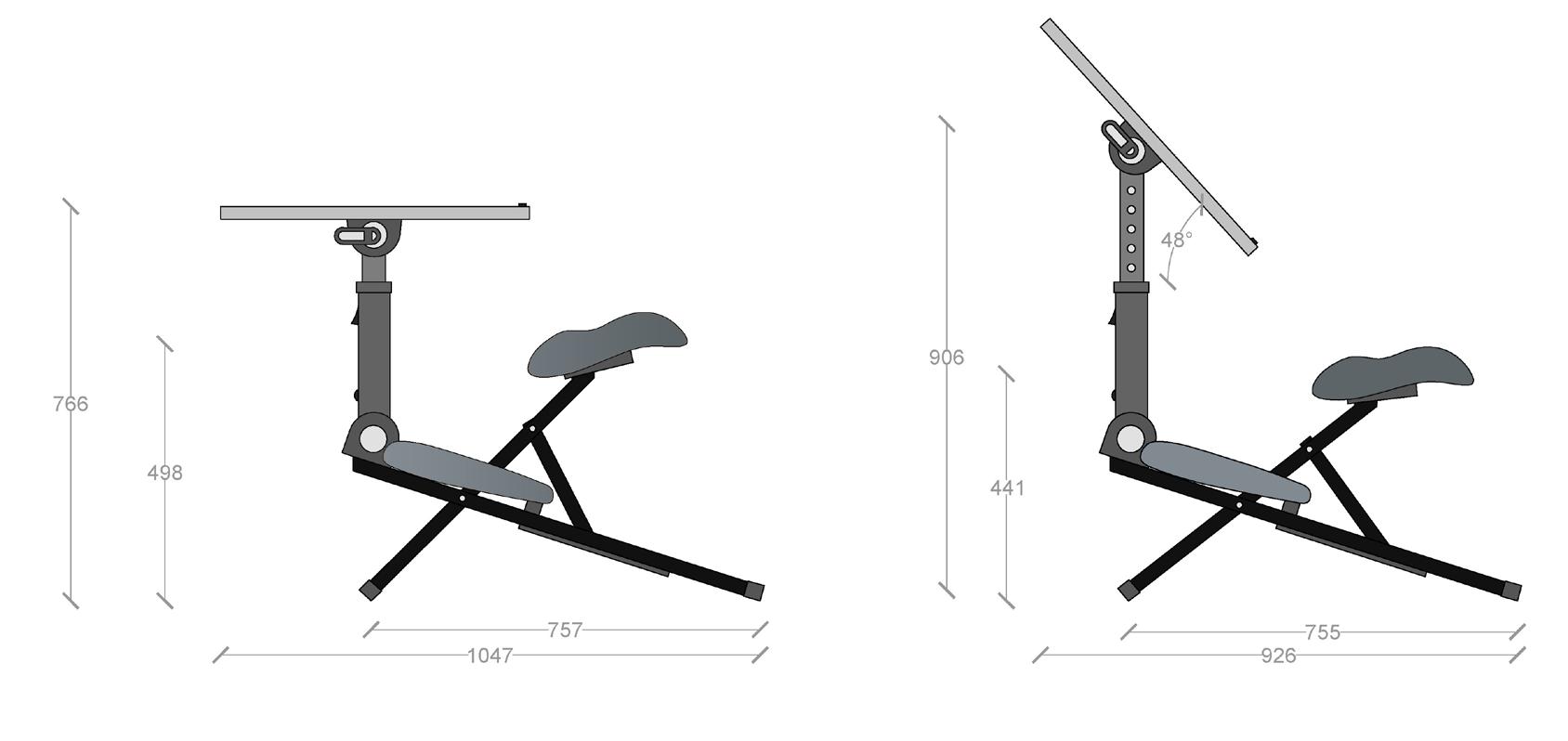

Side Elevation

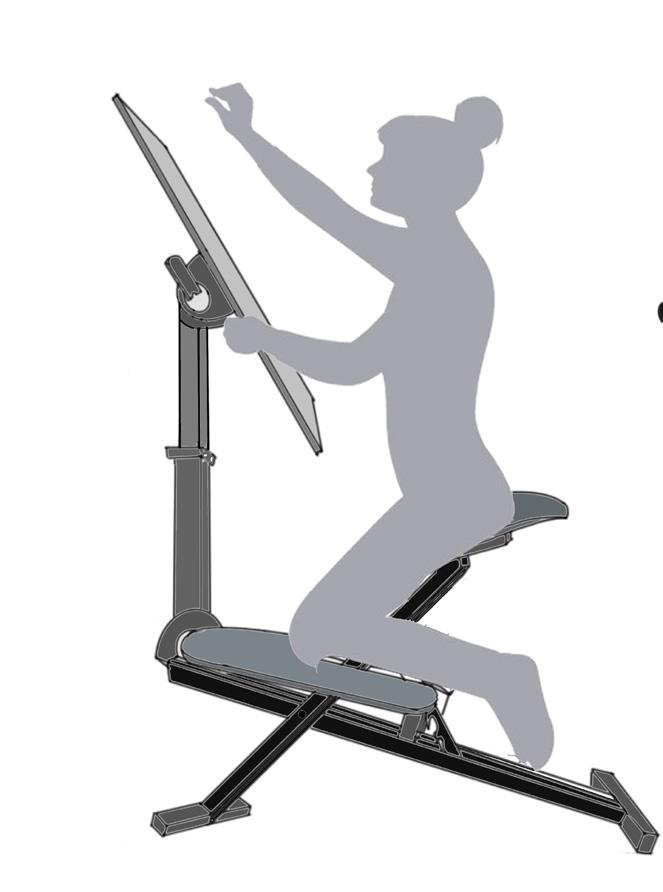

Artists’ Easel-chair is a portable furniture that can be transformed into a pop-up workstation for artists anywhere they want.
Artists frequently struggle to find a suitable chair with the ideal table height to paint/draw on without straining the spine. The goal was to create a light-weight, adjustable Easel-chair that can be collapsed and transported, allowing them to work anywhere they want.

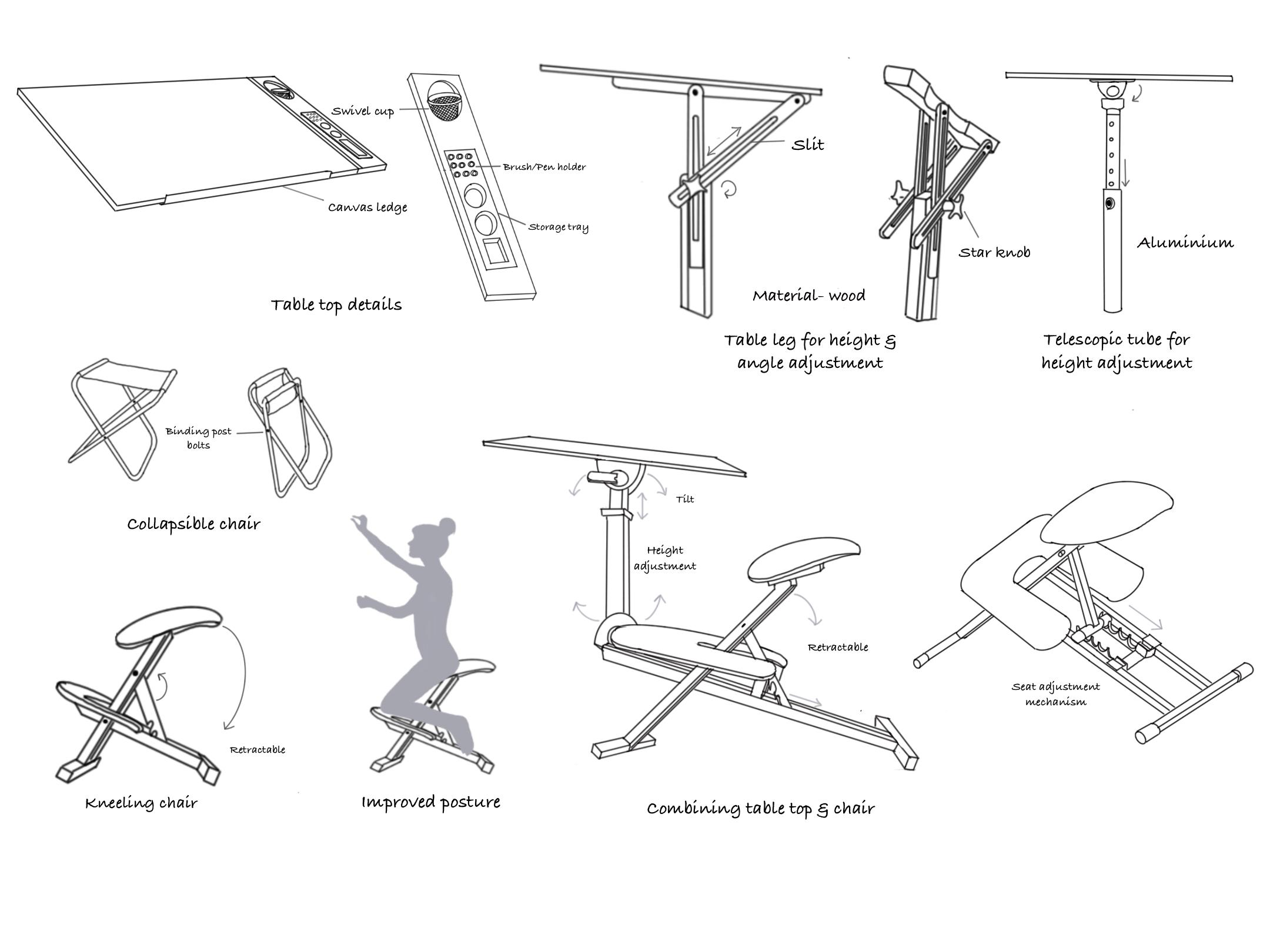

Concept Sketches

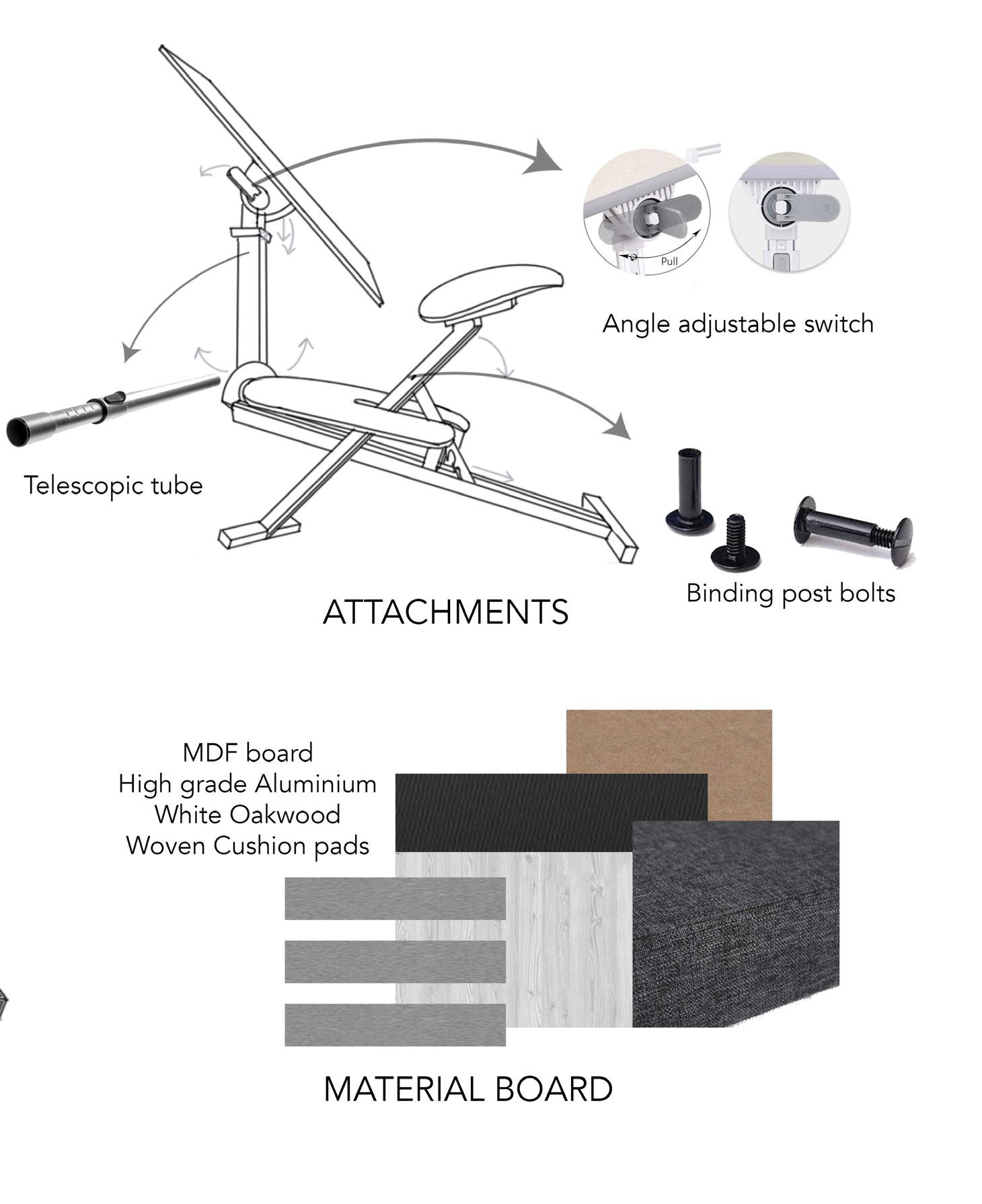

Details

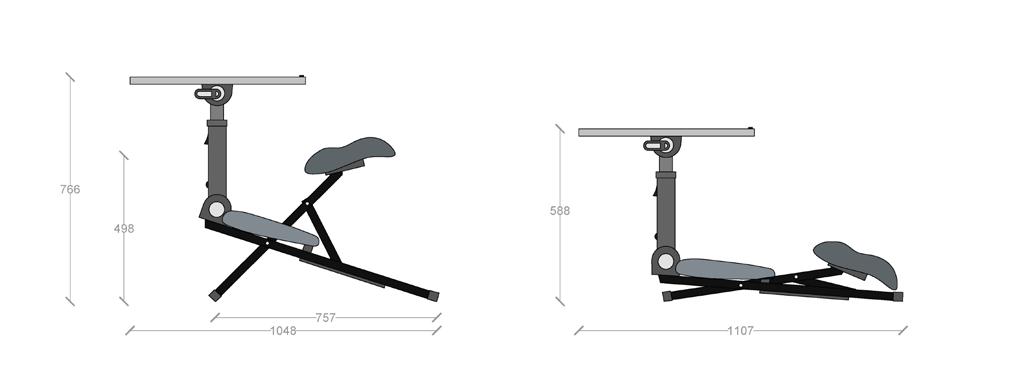

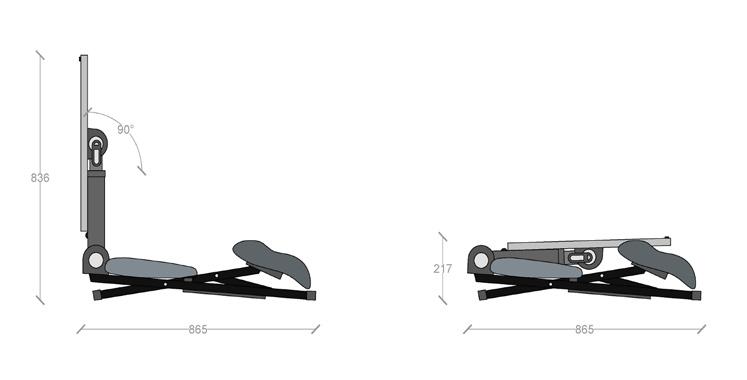

Stages of Transformation

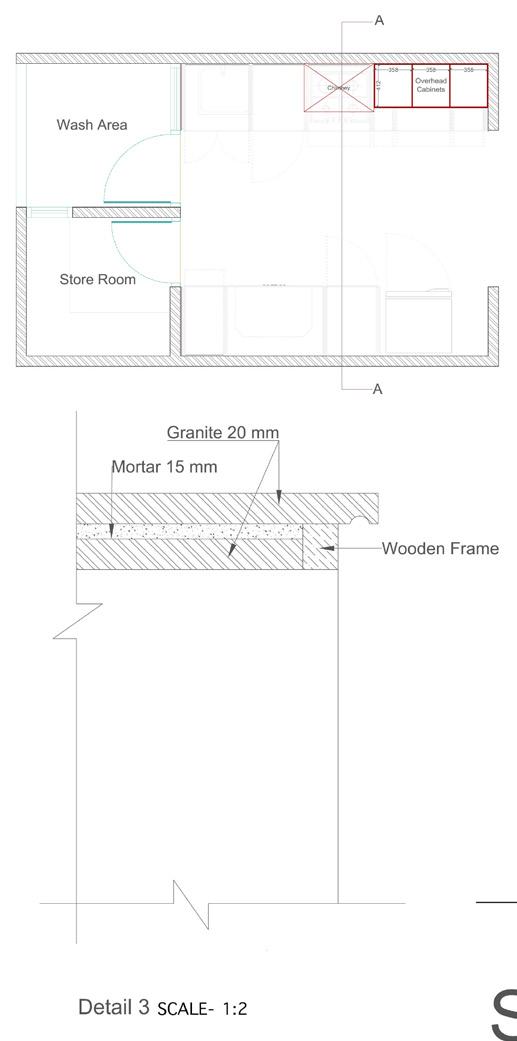

Kitchen Details


Plan at 500 mm LVL Scale- 1:25
Section AA’ Scale- 1:25
Plan at 1500 mm LVL Scale- 1:25
