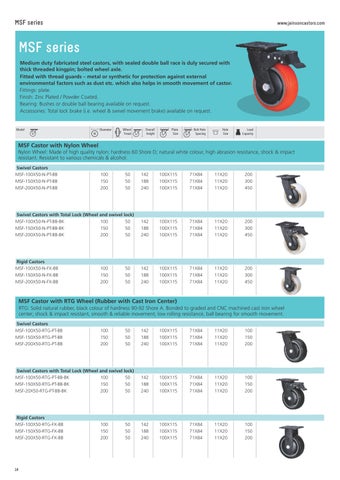

MSF series
www.jainsoncastors.com
MSF series Medium duty fabricated steel castors, with sealed double ball race is duly secured with thick threaded kingpin; bolted wheel axle. Fitted with thread guards – metal or synthetic for protection against external environmental factors such as dust etc. which also helps in smooth movement of castor. Fittings: plate. Finish: Zinc Plated / Powder Coated. Bearing: Bushes or double ball bearing available on request. Accessories: Total lock brake (i.e. wheel & swivel movement brake) available on request.
Model
Diameter
Wheel Tread
Overall height
Plate Size
Bolt Hole Spacing
Hole Size
Load Capacity
MSF Castor with Nylon Wheel Nylon Wheel: Made of high quality nylon; hardness 60 Shore D; natural white colour, high abrasion resistance, shock & impact resistant. Resistant to various chemicals & alcohol. Swivel Castors MSF-100X50-N-PT-BB MSF-150X50-N-PT-BB MSF-200X50-N-PT-BB
100 150 200
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
200 300 450
Swivel Castors with Total Lock (Wheel and swivel lock) MSF-100X50-N-PT-BB-BK 100 50 MSF-150X50-N-PT-BB-BK 150 50 MSF-200X50-N-PT-BB-BK 200 50
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
200 300 450
Rigid Castors MSF-100X50-N-FX-BB MSF-150X50-N-FX-BB MSF-200X50-N-FX-BB
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
200 300 450
100 150 200
50 50 50
50 50 50
MSF Castor with RTG Wheel (Rubber with Cast Iron Center) RTG: Solid natural rubber, black colour of hardness 90-92 Shore A. Bonded to graded and CNC machined cast iron wheel center; shock & impact resistant, smooth & reliable movement; low rolling resistance, ball bearing for smooth movement. Swivel Castors MSF-100X50-RTG-PT-BB MSF-150X50-RTG-PT-BB MSF-200X50-RTG-PT-BB
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
100 150 200
Swivel Castors with Total Lock (Wheel and swivel lock) MSF-100X50-RTG-PT-BB-BK 100 50 MSF-150X50-RTG-PT-BB-BK 150 50 MSF-20X50-RTG-PT-BB-BK 200 50
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
100 150 200
Rigid Castors MSF-100X50-RTG-FX-BB MSF-150X50-RTG-FX-BB MSF-200X50-RTG-FX-BB
142 188 240
100X115 100X115 100X115
71X84 71X84 71X84
11X20 11X20 11X20
100 150 200
14
100 150 200
100 150 200
50 50 50
50 50 50
