Line Drive: Bucher Leans into the E-Mobility Market
Line Drive
Bucher Leans into the E-Mobility Market
By Michael Pyper for Bucher Hydraulics

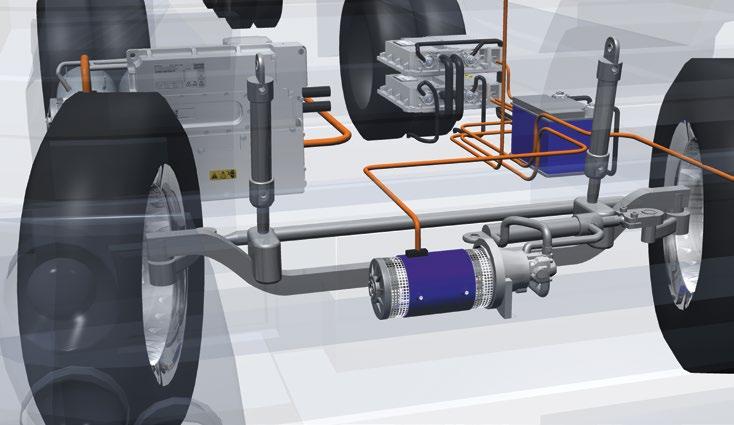

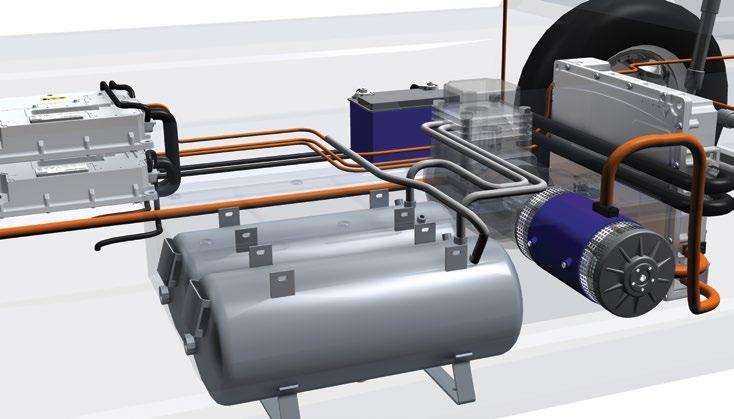

An e-truck electrified with Bucher’s MOBILE platform.
About a year ago, the Swiss group Bucher Industries acquired the Mobile Drives division of the Lenze group. Based in Romanshorn, Switzerland, the specialist in frequency inverters and DC/DC converters for commercial vehicles has been integrated into Bucher Hydraulics, which already provides hydraulic drive expertise within the group. The company now sees itself as being ideally equipped for the electric mobility of the future. "The world needs to decarbonize to tackle climate change. That's why the future of mobility is electric," said Andreas Schnurrenberger, head of sales and product management for electrohydraulic systems and mobile drives. The acquisition of Mobile Drives and its integration into Bucher Hydraulics has significantly strengthened the division's position as a supplier and partner in the e-mobility market, benefiting manufacturers of buses, trucks, and mobile machines.
The business acquired by Bucher Industries is a pioneer in electromobility. Founded in 1989 by a handful of idealists, some of whom are still onboard today, it means that Bucher Hydraulics now has unique expertise in the field of multi-inverters and DC/DC converters for electrically powered commercial vehicles. As early as 1995, an electric traction drive with an integrated vehicle charger was developed. Over the years, project business in the bus and truck sector has resulted in important requirements for the current platform, called MOBILE, which can implement a wide range of drive solutions quickly and easily. Since 2014, Mobile Drives has been supplying customers in the automotive industry with products tried and tested in large-scale production, together with ECE E1 approvals from Germany's Federal Motor Transport Authority.
A comparison with inverters from the industrial sector shows how essential experience is, especially in the mobility sector. "While such components fail after a very short time on test benches that simulate the environment, the Mobile Drives products easily withstand the specified load cycles," Schnurrenberger said, not least because a new product has to fulfill several hundred qualification tests before it goes into series production.
Modular system

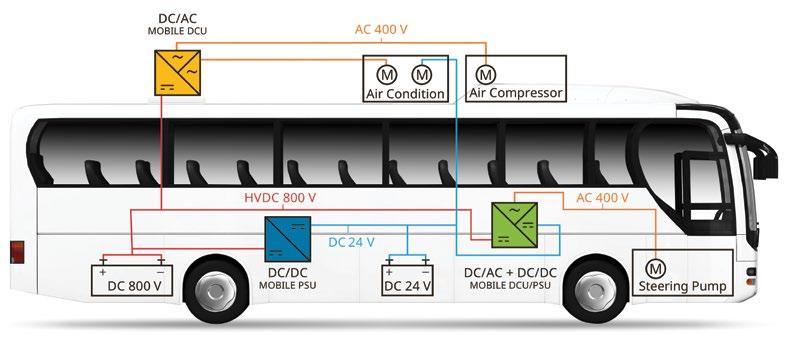

The inverters and DC/DC converters supply electrical auxiliary drives such as air compressors, pumps, or compressors. Combined devices also convert the voltage of the traction battery into the 12 or 24 VDC voltage required for the vehicle's onboard electrical system. With a maximum input voltage of 848, units are already equipped for future 800 VDC fast-charging stations. The modular principle makes it possible to meet vehicle manufacturers' individual requirements with customized software but largely standardized hardware. The compact, standardized housings significantly increase the long-term availability of spare parts and reduce their variety in production and customer service. "After all, e-buses have now been in service for up to 20 years," Schnurrenberger said. In buses and trucks, every cubic centimeter of Typical auxiliary drives in a city bus. installation space is at a premium. That is why the product portfolio includes double inverters that can supply two actuators from just one housing, which saves on space and costs.
The know-how acquired in the field of commercial vehicles can be transferred to mobile machines. Here, too, electric drives with batteries or fuel cells are increasingly replacing fossil-fuel diesel engines. The work functions are still commonly powered by hydraulics, which combine high forces with maximum ruggedness and low space requirements. As a provider of innovative hydraulic drives, Bucher Hydraulics is developing electrohydraulic solutions to make mobile machines more efficient, quieter, and longer lasting. This also results in solutions with enormous energy savings by means of recuperation. "The Mobile Drives business segment,” Schnurrenberger said, “is committed to efficiently and reliably converting energy for electrically powered vehicles such as e-buses, e-trucks, and mobile e-machines. We are therefore ideally positioned to deliver the drive solutions of the future." •
COMPONENT SHOWCASE
CLIPParD COrDIS ELECTrOnIC PrESSurE COnTrOLS
Precise, linear pressure control within a closed-loop system with ultra high resolution and repeatability.
Clippard’s Cordis is a revolutionary microcontroller primed for escape velocity from a proportional control market. Built with the highest quality Clippard EVP and DVP proportional valves at its heart, the Cordis is designed to outperform the competition in every way. With unparalleled performance and flexibility not possible with current analog proportional controllers, the Cordis makes everything from calibration to sensor variety acceptance to future development opportunities more accessible and less complicated. The future of proportional pressure control has arrived, and it’s digital. Made in the USA.
For further information on the Cordis Pressure Controls or any of Clippard’s line of electronic and pneumatic valves, visit www.clippard.com. Proudly made in the USA.
MEET US IN IFPE - SOUTH HALL 3 BOOTH S81917
PRODUCT SPOTLIGHT
Hengst of north america, Inc
See us in Las Vegas March 14 -18th at the IFPE show BOOTH #S84057

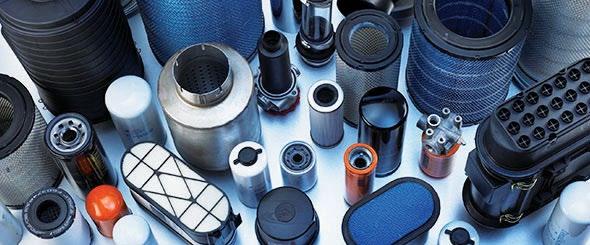

As of 2021 Hengst Filtration acquired former Rexroth Filtration product series, offering a complete range filtration products including high pressure and suction filters, high-quality elements and a variety of sensors, switches, and indicators. All with made in Germany quality and available now in our USA warehouse.
Call/email us for more information: sales-hydraulics@hengst.com
Go ahead. Push me. Ordinary heavy duty not heavy enough?
Heavy-Duty Mill Cylinders for:
• Induction-Hardened, Chrome-Plated Rods • Heavy Wall Tubing • Replaceable Glands & Retainer Rings • High-Load Piston Design
Think indestructible and call Yates. www.yatesind.com
yates Industries (HQ) 586.778.7680 yates Cylinders alabama 256.351.8081 yates Cylinders Georgia 678.355.2240 yates Cylinders Ohio 513.217.6777 nOVaPEaK 5000LT series
THE NEW GENERATION OF POWER NOW WITH A LOWER OPERATING TEMPERATURE

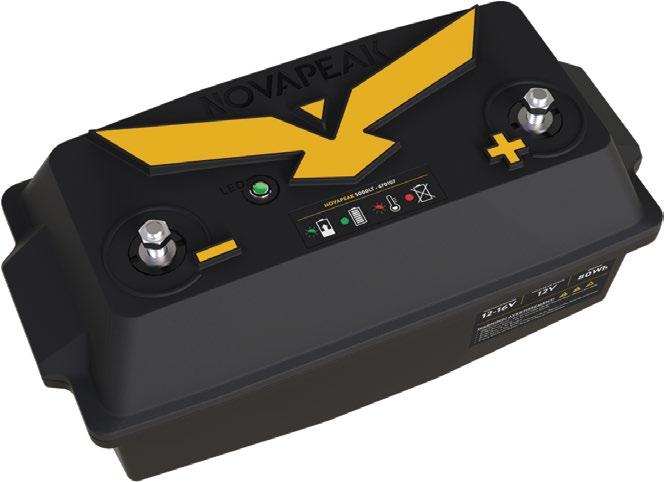

The NovaPeak 5000LT series is a battery replacement that uses supercapacitor technology. This product is specifically designed to supply maximum power for heavy user’s application such as liftgates, small dump bodies and dump trailers. It can withstand more than 50 000 cycles and charges in minutes. Never worry about discharged batteries again! This device charges in between dumps, through the connection with the truck. LT stands for LOW TEMPERATURE: NEW Operating temperature to -25 °C
EaGLE-HyDrauLIC.COM SaLES@EaGLE-HyDrauLIC.COM
FluiDyne Fluid Power Stocks a4V Piston Pumps & Parts

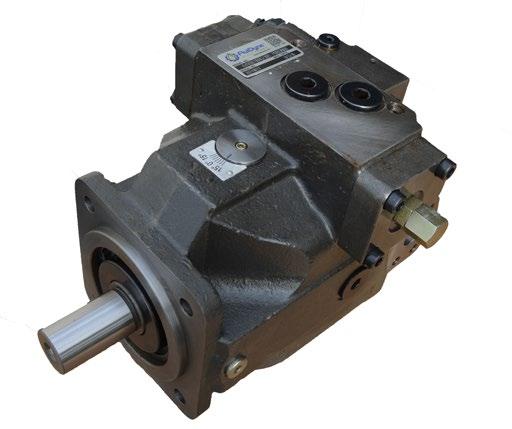

FluiDyne carries a complete line of A4V piston pumps that are available in displacement of: 40, 71, 125, 180, 250. Our units are used in many different applications: agriculture, forestry machinery, construction, on-highway, commercial vehicles, offshore, marine, wind/ocean energy, automotive and more. Controls include: DR, DRG, FR, FRG, DFR, and LR2. They are available in SAE or metric. The versatile A4V units carry the industry leading 18 month warranty. Units are fully tested, documented and guaranteed to perform 100% to the original manufacturer’s specification. Call, email, chat…we’re ready to help!
586.296.7200 • sales@fluidynefp.com www.fluidynefp.com
Genuine Donaldson Internormen-Eaton Velcon-Parker
We're hydraulic filter experts. We've been doing it for over 30 years. We're very competitive and happy to serve your needs. If you need hydraulic filter application help, we know the right questions, and we can give you the right answers.
J/T Hydraulics & Service Co. Inc. 1601 W. 25th Street • Houston, TX 77008 Local: 713.984.9727 • Toll Free: 800.591.8280 Fax: 713.861.2250 • www.jthydraulics.com ultra Clean Technologies
Ultra Clean highlights the enhanced Air Knife technology used in our Clean Seal System. The Air Knife technology speeds up the capsule shrinking process, sealing out contamination in less than 1 second. A 110mm opening allows single or multiple hose or tube assemblies to be sealed in one pass.
Contact us: sales@ultracleantech. com or call 800-791-9111. Website: www.ultracleantech.com
Inserta® Products
Custom Modular Connectors | Have It Your Way!
Inserta® Modular Connectors can be made with customer specified porting. A combination of ports including SAE J518, SAE J1926, and NPTF (up to 2”), in different sizes, may be specified on the same connector. This can result in a real savings in labor, space, connections, adapters, and leak points, and contribute to a smartly designed system. These are ideally used with Inserta® Flange Type Ball Valves and Check Valves. An inquiry form is now available on our website, upon which the desired port on each Modular Connector face can be indicated, and the form submitted for quotation. Quantities as low as one are available. Small to medium quantities typically ship within one week, or sooner if required.
Inserta® Products Blue Bell, Pennsylvania USA www.inserta.com
Don’t Compromise – that hydraulic flange you want maybe at MaIn

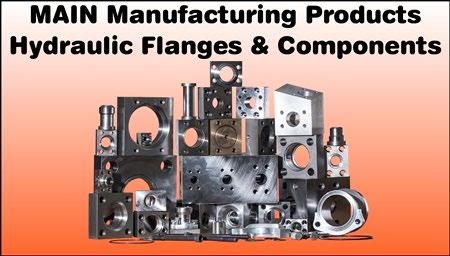

MAIN stocks 10,000+ hydraulic flanges and manufactures components in 4-7 days in the USA. SAE J518 Code 61 and J518 Code 62, JIS, DIN, ISO 6162, ISO 6164, and specials with socket-weld, butt-weld, ORB, BSPP, etc.; all geometries, flange heads, flange adapters; in carbon, stainless, cupro-nickel, ductile, aluminum, etc. Sixty years’ experience plus SAE and ISO technical committee experience.
MaIn Manufacturing Products, Inc. 800.521.7918 https://mainmanufacturing.com/block-categories Protection for all Things Hydraulic, Pneumatic and Fluid Power

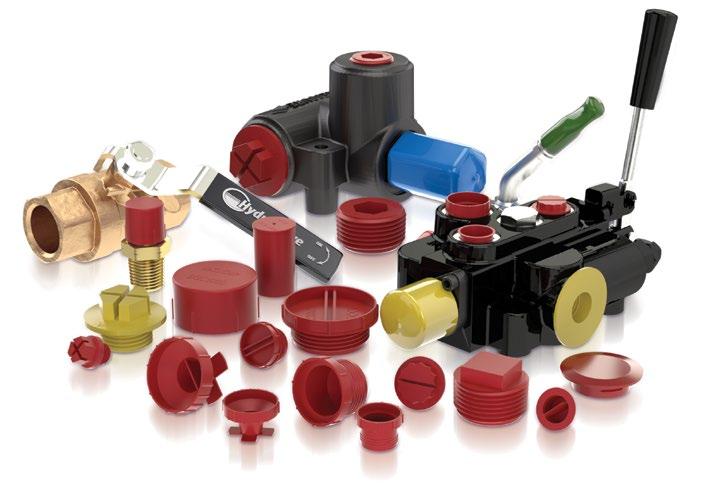

MOCAP manufactures an extensive range of protective closures to guard pipes, hoses, and hydraulic fittings from dirt, moisture, and damage to help maintain equipment reliability. Included are a variety of sizes and styles of Threaded and Non-Threaded plastic Caps and Plugs for Metric, NPT, BSP, JIC and SAE Threaded Connections, Ports and Fittings. These are in addition to MOCAP’s already extensive lines of low-cost Caps, Plugs, Grips, Netting, Tubing and Tapes for general Product Protection, Finishing and Masking. All of our stocked items are ready for immediate shipment and available in Box, Mini-Pack and Micro-Pack quantities. Free Samples are always available for testing purposes.
sales@mocap.com www.mocap.com
Fluid Gear Products, Inc
With over a decade of reliable and efficient products and services, Fluid Gear Products® is your ideal source for innovative high quality drive solutions. Whether your application requires our high speed/high torque radial piston motors, gear reducers or a combination unit, we are sure that our products engineered to fit your application will meet and exceed your requirements and expectations.
Sales@fluidgearproducts.com Ph. 610-200-6045 www.fluidgearproducts.com
Hydraulic noise and Shock Suppressor
Suppressor Accumulators

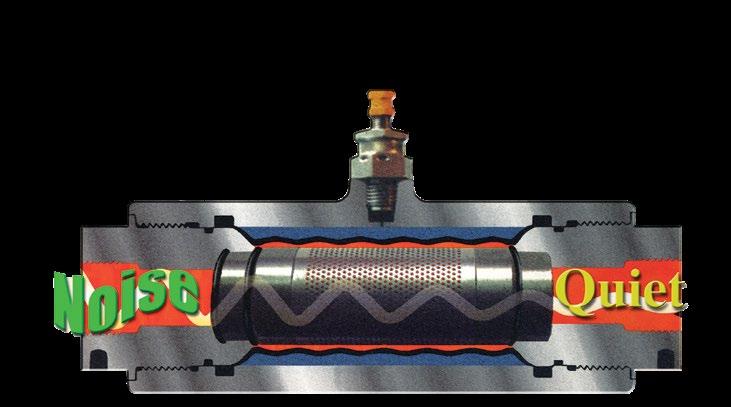

Wilkes and McLean manufactures an In Line Noise and Shock Suppressor for hydraulics and is a stocking distributor of Nacol Accumulators. Our suppressors eliminate pulsations, which greatly reduces noise and vibration from applications from a few gallons up to 200 gallons. We stock all of our suppressor sizes as well as Nacol Accumulators and parts from 1/5 of a pint up to 15 gallons, in our Schaumburg, Illinois facility.
877.534.6445 info@wilkesandmclean.com | www.wilkesandmclean.com Heavy Duty Multi-Stages Air Cylinders

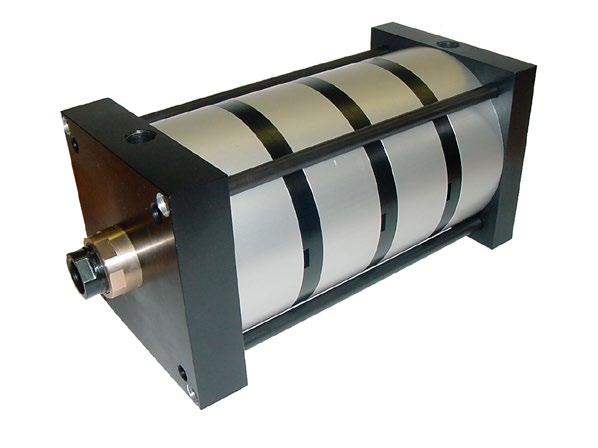

M3 series-Heavy Duty Multi-Stage Air Cylinders, 3.25” Bore to 10” Bore, strokes 1/4” to 8”. All NFPA mountings available, even the ME5 rectangular head mount. These cylinders have a High Flow design, which allows a fast cycle rate. Using multiple pistons in the extend stroke to increase force in a small foot print. They also save air consumption on every cycle by retracting with a single piston. All seal are heavy duty special Urethane, we also offer bumper seals in this special Urethane. Custom designs can be done on request.
Call sales at 1-877-STarCyL (782-7295) or at www.starcyl.com

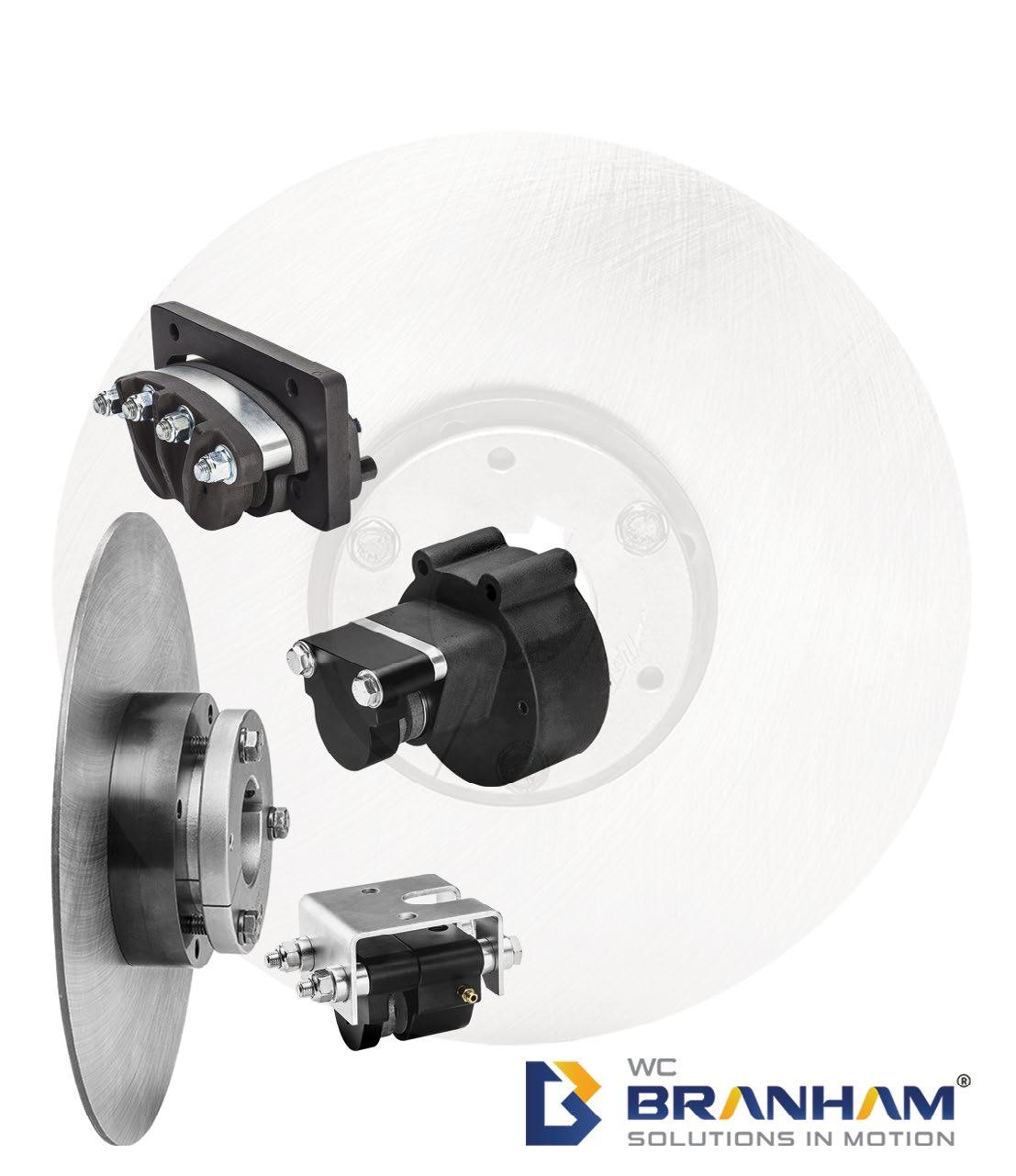

BRANHAM CALIPER DISC BRAKES
STOP. HOLD. MAINTAIN TENSION
Industrial and Off/Highway uses. From a liile as 600 to over 150,000-inch pounds of braking torque. Over 2000 models and Made in the U.S.A. for over 40 years.
Hardcoat. Electro-Nickel. Stainless Steel Many Service Types
Pneumatic | Hydraulic | Mechanical Pneumatic Spring Applied Hydraulic Spring Applied
Brake Discs & Disc/HubDisc/Hub AssembliesAssemblies
6-5/16 to 16” Dia. Discs Large Selection of Fixed and QD Hubs w/Bushings We at Branham Listen, Let Us Help You Today!

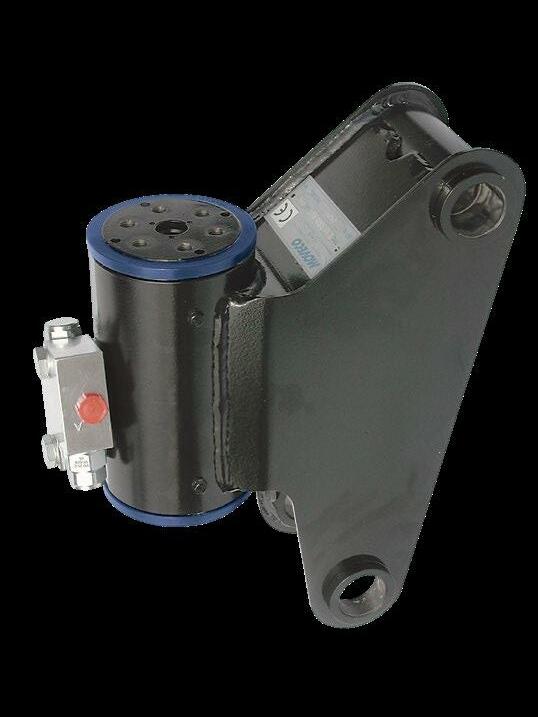

Young Powertech, Italian made Helical Hydraulic Rotary Actuators cover a wide range from 45 to 40,000 LB-FT torque and up to 750 degrees rotation for mobile and industrial applications. Local inventory for quick delivery and service and worldwide support makes it the best option for your rotating applications.
3060 Plaza Dr. #108 Garnet Valley, Pa 19060 Telephone: 610-558-0760 Email: info@youngpowertech.com www.youngpowertech.com
delivers solutions
Fluid Power Shipments Grew in October
Some fluid power segments saw growth in October, according to recent numbers from the National Fluid Power Association. Raw index data shows that in October, when compared to September, pneumatic and mobile hydraulic shipments increased while industrial hydraulic shipments decreased. The year-to-date percent change for total fluid power shipments in October was 17.5%, up from 17.2% in September. The 12-month moving average of shipments for pneumatics, hydraulics, and total fluid power continues growing. The data is drawn from NFPA’s Confidential Shipment Statistics (CSS) program.
Hydraulic and Pneumatic Shipments

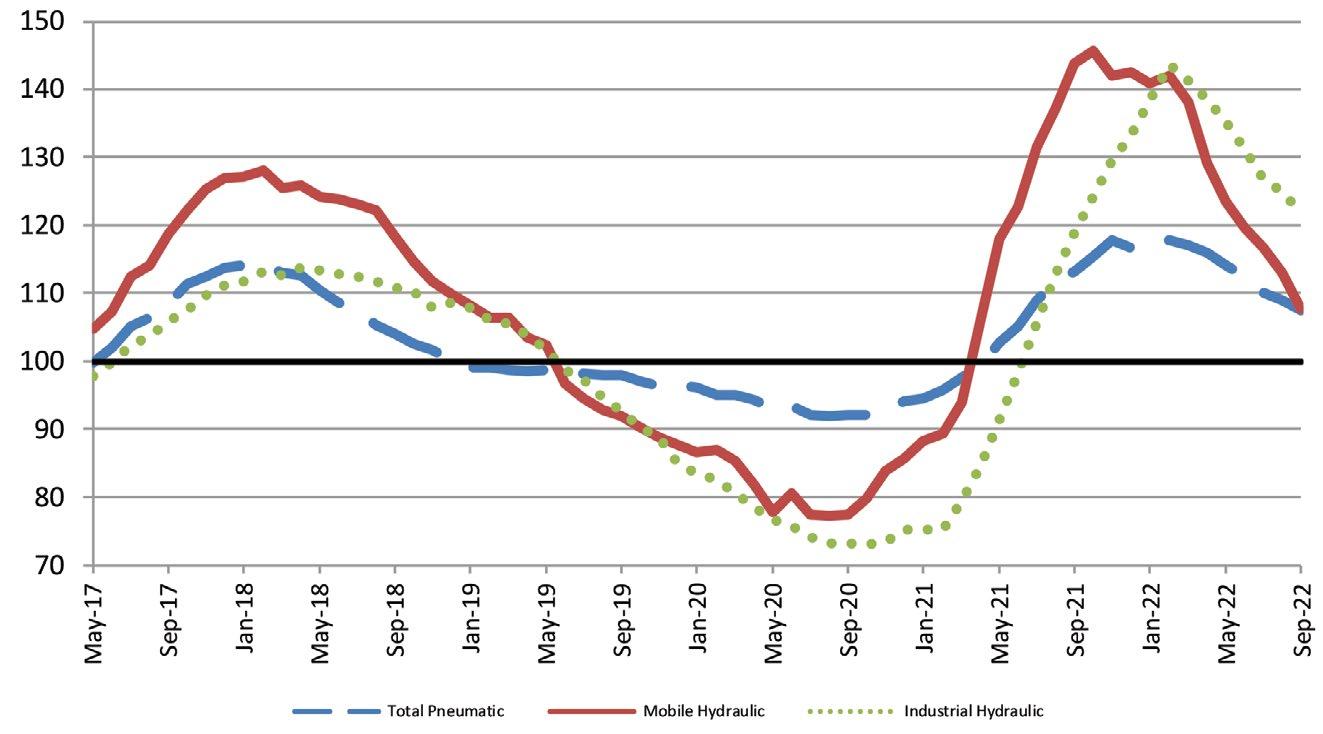

Raw Index Data, Index: 2018=100
This graph of raw index data is generated by the total dollar volume reported to NFPA by CSS participants and compared to the average monthly dollar volume in 2018. For example, the October 2022 total dollar volume for pneumatic shipments is 114.4% of the average monthly dollar volume in 2018. (Base Year 2018 = 100)
SHIPMEnTS
MOnTH TOTaL FLuID POWEr TOTaL HyD. TOTaL PnEu.
Aug 2022 16.4 19.0 8.1
Sep 2022 17.2 19.9 8.1
Oct 2022* 17.5 20.4 8.5 *Preliminary data subject to revision.
Shipments – Cumulative year‐to‐date % change (2022 vs. 2021)
The table above is expressed in terms of cumulative percent changes. These changes refer to the percent difference between the relevant cumulative total for 2022 and the total for the same months in 2021. For example, October 2022 pneumatic shipments figure of 8.5 means that for the calendar year through October 2022, pneumatic shipments increased 8.5% compared to the same time-period in 2021.
Pneumatic, Mobile, and Industrial Hydraulic Orders 12/12 Ratio
Each point on this graph represents the most recent 12 months of orders compared to the previous 12 months of orders. Each point can be read as a percentage. For example, 120.3 (the October 2022 level of the industrial hydraulic series) indicates that industrial hydraulic orders received from November 2021 to October 2022 were 120.3% of the orders received from November 2020 to October 2021. (Base Year 2018 = 100)

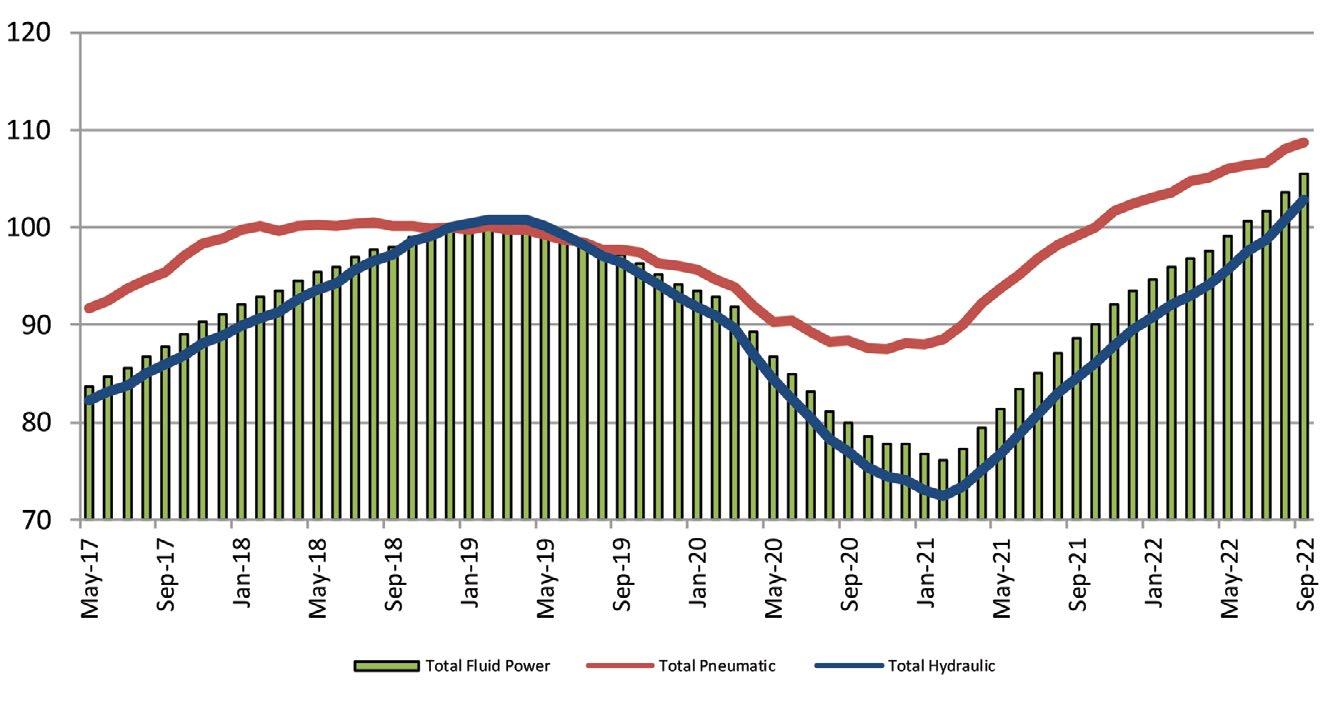

Total - Hydraulic and Pneumatic Shipments 12 Month Moving Average
