VELOGIC FIT

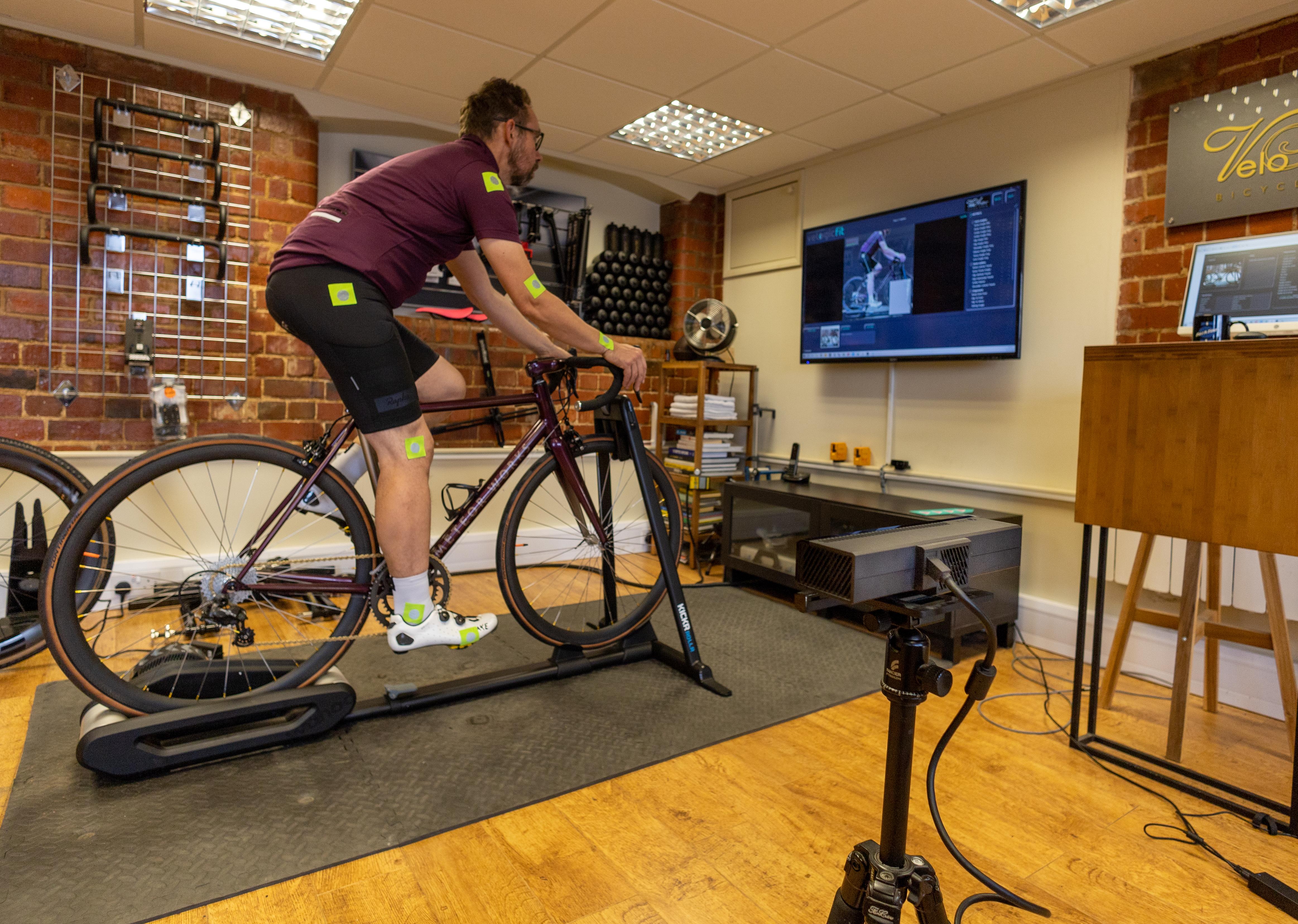

Diva logic fit system is the most comprehensive BikeFit specific system on test. It uses system specific 3D cameras. The system we tested used Microsoft connect cameras, but the new version has a proprietary camera which can capture higher rates more accurately. The software allows multi camera support, so you can assess symmetry and stability without having to move cameras or the rider. You start by calibrating the system. This is done by using a supplied one and which is held on specific areas of the bike until the system recognises it. This thing allows the software to accurately measure, not only dynamic movement and angles, but also distances.

The 3-D cameras allow the system to measure, not only on the sagittal plane, but also any medial lateral movement of the markers, which are applied to the rider.

Multiple captures can be taken, and compared as you go through the process of adjusting the riders position.

Once you have completed the fitting the system can then supply you with a full range of measurements and statistics annotating the new bike position. This can all be outputted as a customisable report for your clients, which include all of the measurements images, your notes, and lots of other information that you choose to include.

What we like the most about this system is that it automatically measures a huge amount of data specific to bike fitting which allows you to make very informed changes to the riders position which can then be assessed using easily illustrated data.

The accuracy of the system was exceptional, but it does require a well lit studio.

Video capture and analysis

Calibration

Reporting and data capture

Are they is a well thought out and user friendly interface that is easy to use for the Fitter and provides a very professional set of tools.

$200/month
