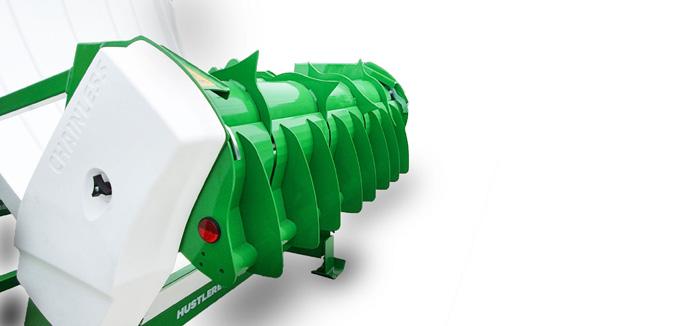

INTRODUCTION Thank you for purchasing a HUSTLER TX205/TE205/TH205 BALEFEEDER. Please read through this manual as it contains important information which you need to know. Please take special note of the warnings on page 4-5, routine servicing on pages 7-11 and trouble-shooting on page 15-16. Correctly maintained and operated this machine will give many years of service. If you have any questions please contact the dealer who supplied you this machine. They have trained technicians who will be able to help you.
IMPORTANT • Please ensure this booklet is read and understood by every operator of this machine. • Also ensure that this booklet goes with the machine if it is resold and is read and understood by owner.
SPECIFICATIONS Pressure:
2250 - 3000 PSI.
Flow:
25 - 60 Litres/minute (our recommended minimum flow is 25 Litres/ minute)

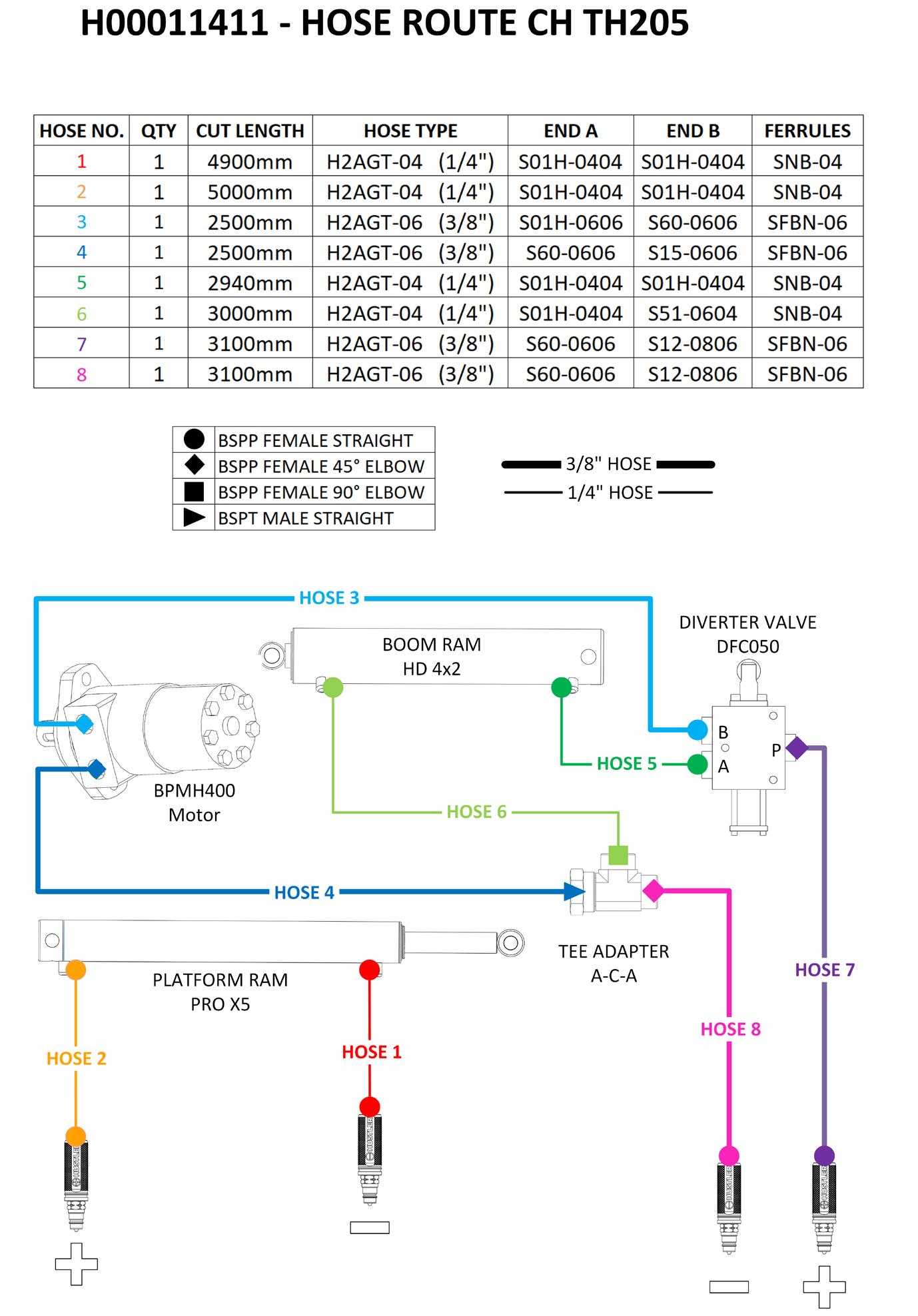

Hydraulic Requirements:
2 x set of double acting hydraulics.
Tractor size:

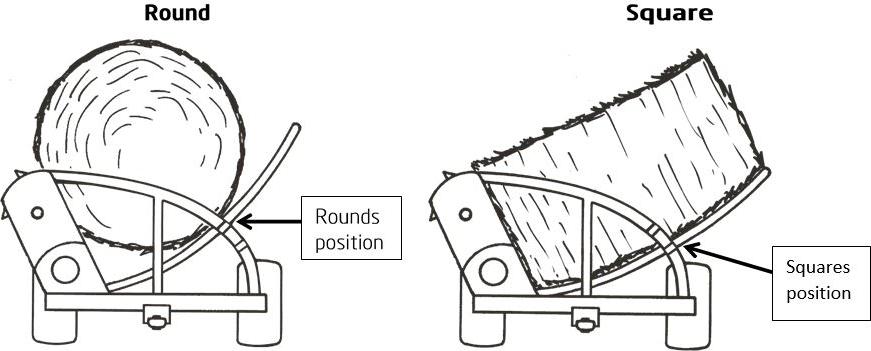

Large enough to safely handle the TX205|TE205 (1070 kg’s) | TH205 (1230kgs) and 2 bale up to 1500kgs each. (One on the platform and one on the loading tynes.) Up to 6’ round bales and 8’ square bales with optional extension bar.
