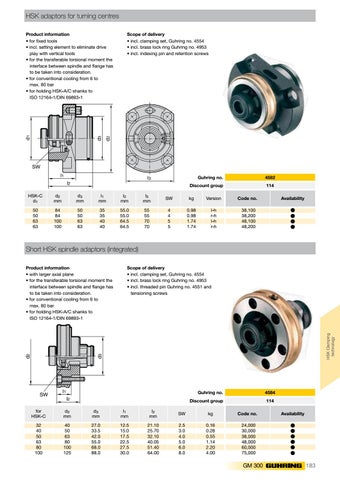

HSK adaptors for turning centres Scope of delivery • incl. clamping set, Guhring no. 4554 • incl. brass lock ring Guhring no. 4953 • incl. indexing pin and retention screws
d2
d3
d1
Product information • for fixed tools • incl. setting element to eliminate drive play with vertical tools • for the transferable torsional moment the interface between spindle and flange has to be taken into consideration. • for conventional cooling from 6 to max. 80 bar • for holding HSK-A/C shanks to ISO 12164-1/DIN 69893-1
SW l1
Guhring no.
4582
Discount group
114
l3
l2 HSK-C d1
d2 mm
d3 mm
l1 mm
l2 mm
l3 mm
SW
kg
Version
Code no.
Availability
50 50 63 63
84 84 100 100
50 50 63 63
35 35 40 40
55.0 55.0 64.5 64.5
55 55 70 70
4 4 5 5
0.98 0.98 1.74 1.74
l-h r-h l-h r-h
38,100 38,200 48,100 48,200
l l l l
Short HSK spindle adaptors (integrated)
HSK Clamping technology
Scope of delivery • incl. clamping set, Guhring no. 4554 • incl. brass lock ring Guhring no. 4953 • incl. threaded pin Guhring no. 4551 and tensioning screws
d2
d3
Product information • with larger axial plane • for the transferable torsional moment the interface between spindle and flange has to be taken into consideration. • for conventional cooling from 6 to max. 80 bar • for holding HSK-A/C shanks to ISO 12164-1/DIN 69893-1
SW
l1 l2
Guhring no.
4584
Discount group
114
for HSK-C
d2 mm
d3 mm
l1 mm
l2 mm
SW
kg
Code no.
Availability
32 40 50 63 80 100
40 50 63 80 100 125
27.0 33.5 42.0 55.0 68.0 88.0
12.5 15.0 17.5 22.5 27.5 30.0
21.10 25.70 32.10 40.05 51.40 64.00
2.5 3.0 4.0 5.0 6.0 8.0
0.16 0.28 0.55 1.14 2.20 4.00
24,000 30,000 38,000 48,000 60,000 75,000
l l l l l l
