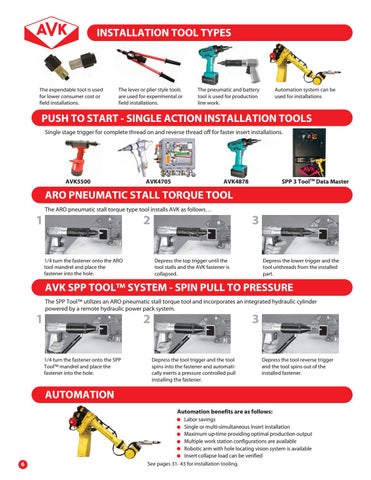

INSTALLATION TOOL TYPES
The expendable tool is used for lower consumer cost or field installations.
The lever or plier style tools are used for experimental or field installations.
The pneumatic and battery tool is used for production line work.
Automation system can be used for installations
PUSH TO START - SINGLE ACTION INSTALLATION TOOLS
Single stage trigger for complete thread on and reverse thread off for faster insert installations.
AVK5500
AVK4878
AVK4705
SPP 3 ToolTM Data Master
ARO PNEUMATIC STALL TORQUE TOOL
The ARO pneumatic stall torque type tool installs AVK as follows…
1
2 1/4 turn the fastener onto the ARO tool mandrel and place the fastener into the hole.
3 Depress the top trigger until the tool stalls and the AVK fastener is collapsed.
Depress the lower trigger and the tool unthreads from the installed part.
AVK SPP TOOL™ SYSTEM - SPIN PULL TO PRESSURE The SPP Tool™ utilizes an ARO pneumatic stall torque tool and incorporates an integrated hydraulic cylinder powered by a remote hydraulic power pack system.
1
2 1/4 turn the fastener onto the SPP Tool™ mandrel and place the fastener into the hole.
3 Depress the tool trigger and the tool spins into the fastener and automatically exerts a pressure controlled pull installing the fastener.
Depress the tool reverse trigger and the tool spins out of the installed fastener.
AUTOMATION Automation benefits are as follows: Labor savings Single or multi-simultaneous insert installation Maximum up-time providing optimal production output Multiple work station configurations are available Robotic arm with hole locating vision system is available Insert collapse load can be verified
66
See pages 31- 43 for installation tooling.
