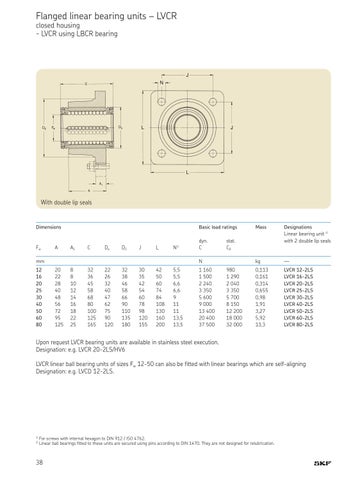

Flanged linear bearing units – LVCR closed housing - LVCR using LBCR bearing
With double lip seals
Dimensions
Fw
A
Basic load ratings
A1
C
Da
D2
J
L
N1)
mm 12 16 20 25 30 40 50 60 80
dyn. C
8 8 10 12 14 16 18 22 25
32 36 45 58 68 80 100 125 165
22 26 32 40 47 62 75 90 120
32 38 46 58 66 90 110 135 180
30 35 42 54 60 78 98 120 155
42 50 60 74 84 108 130 160 200
5,5 5,5 6,6 6,6 9 11 11 13,5 13,5
1 160 1 500 2 240 3 350 5 600 9 000 13 400 20 400 37 500
Designations Linear bearing unit 2) with 2 double lip seals
kg
—
0,113 0,161 0,314 0,655 0,98 1,91 3,27 5,92 13,3
LVCR 12-2LS LVCR 16-2LS LVCR 20-2LS LVCR 25-2LS LVCR 30-2LS LVCR 40-2LS LVCR 50-2LS LVCR 60-2LS LVCR 80-2LS
stat. C0
N 20 22 28 40 48 56 72 95 125
Mass
980 1 290 2 040 3 350 5 700 8 150 12 200 18 000 32 000
Upon request LVCR bearing units are available in stainless steel execution. Designation: e.g. LVCR 20-2LS/HV6 LVCR linear ball bearing units of sizes Fw 12-50 can also be fitted with linear bearings which are self-aligning Designation: e.g. LVCD 12-2LS.
1) 2)
For screws with internal hexagon to DIN 912 / ISO 4762. Linear ball bearings fitted to these units are secured using pins according to DIN 1470. They are not designed for relubrication.
