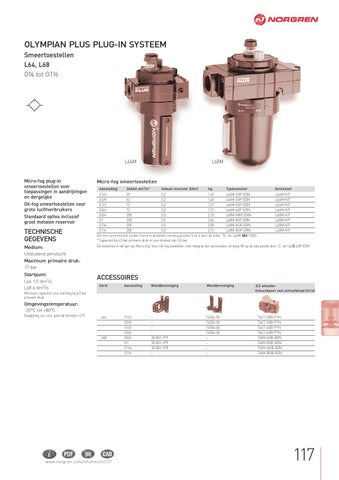

OLYMPIAN PLUS PLUG-IN SYSTEEM Smeertoestellen L64, L68 G∞ tot G1≥
L64M
Micro-fog plug-in smeertoestellen voor toepassingen in aandrijvingen en dergelijke Oil-fog smeertoestellen voor grote luchtverbruikers Standaard opties inclusief groot metalen reservoir
TECHNISCHE GEGEVENS
L68M
Micro-fog smeertoestellen Aansluiting
Debiet dm3/s*
Inhoud reservoir (liter)
kg
Typenummer
Serviceset
G1/4 G3/8 G1/2 G3/4 G3/4 G1 G1∞ G1≥
25 62 72 72 200 200 200 200
0,2 0,2 0,2 0,2 0,5 0,5 0,5 0,5
1,42 1,40 1,37 1,73 2,10 2,04 2,08 2,12
L64M-2GP-EDN L64M-3GP-EDN L64M-4GP-EDN L64M-6GP-EDN L68M-NNP-ERN L68M-8GP-ERN L68M-AGP-ERN L68M-BGP-ERN
L64M-KIT L64M-KIT L64M-KIT L64M-KIT L68M-KIT L68M-KIT L68M-KIT L68M-KIT
NNP-EDN. Om een smeertoestel zonder frame te bestellen, vervang posities 5 en 6 door de letter "N", vb. L64M-N * Capaciteit bij 6,3 bar primaire druk en een drukval van 0,5 bar. C-4GP-EDN De toestellen in de lijst zijn Micro-fog. Voor Oil-fog toestellen, met inbegrip van servicesets, vervang 'M' op de 4de positie door 'C', vb. L64C
Medium: Uitsluitend perslucht
Maximum primaire druk: 17 bar
Startpunt: L64 1,5 dm3/s L68 6 dm3/s
ACCESSOIRES Serie
Aansluiting
Wandbevestiging
Wandbevestiging
G1/4 G3/8 G1/2 G3/4 G3/4 G1 G1∞ G1≥
– – – – 18-001-979 18-001-979 18-001-978 –
74504-50 74504-50 74504-50 74504-50 – – – –
Minimum capaciteit voor werking bij 6,3 bar primaire druk
3/2 afsluiter Ontluchtpoort met schroefdraad (G1/4)
Omgevingstemperatuur: -20°C tot +80°C Raadpleeg ons voor gebruik beneden +2°C
L64
L68
www.norgren.com/info/nec/nl117
T64T-2GB-P1N T64T-3GB-P1N T64T-4GB-P1N T64T-6GB-P1N T68H-6GB-B2N T68H-8GB-B2N T68H-AGB-B2N T68H-BGB-B2N
