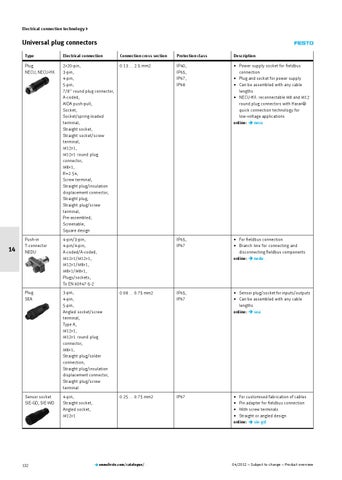

Electrical connection technology >
Universal plug connectors
14 14
Type
Electrical connection
Connection cross section
Protection class
Description
Plug NECU, NECU-HX
2x20-pin, 3-pin, 4-pin, 5-pin, 7/8'' round plug connector, A-coded, AIDA push-pull, Socket, Socket/spring-loaded terminal, Straight socket, Straight socket/screw terminal, M12x1, M12x1 round plug connector, M8x1, R=2.54, Screw terminal, Straight plug/insulation displacement connector, Straight plug, Straight plug/screw terminal, Pre-assembled, Screenable, Square design
0.13 ... 2.5 mm2
IP40, IP65, IP67, IP68
Power supply socket for fieldbus connection Plug and socket for power supply Can be assembled with any cable lengths NECU-HX: reconnectable M8 and M12 round plug connectors with Harax® quick connection technology for low-voltage applications necu online:
Push-in T-connector NEDU
4-pin/3-pin, 4-pin/4-pin, A-coded/A-coded, M12x1/M12x1, M12x1/M8x1, M8x1/M8x1, Plugs/sockets, To EN 60947-5-2
IP65, IP67
For fieldbus connection Branch line for connecting and disconnecting fieldbus components nedu online:
Plug SEA
3-pin, 4-pin, 5-pin, Angled socket/screw terminal, Type A, M12x1, M12x1 round plug connector, M8x1, Straight plug/solder connection, Straight plug/insulation displacement connector, Straight plug/screw terminal
0.08 ... 0.75 mm2
IP65, IP67
Sensor plug/socket for inputs/outputs Can be assembled with any cable lengths sea online:
Sensor socket SIE-GD, SIE-WD
4-pin, Straight socket, Angled socket, M12x1
0.25 ... 0.75 mm2
IP67
For customised fabrication of cables Pin adapter for fieldbus connection With screw terminals Straight or angled design sie-gd online:
132
www.festo.com/catalogue/...
04/2012 Subject to change Product overview
