Festo product overview 2012 en

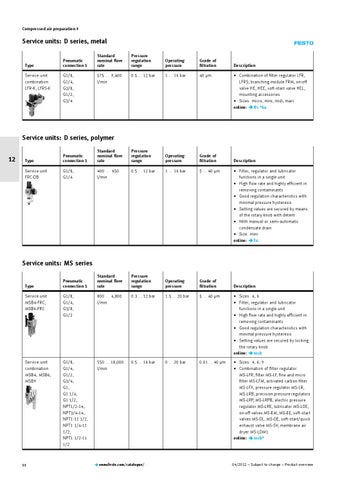

Page 100

Compressed air preparation >

Service units: D series, metal

Type Service unit combination LFR-K, LFRS-K

Pneumatic connection 1 G1/8, G1/4, G3/8, G1/2, G3/4

Standard nominal flow rate

Pressure regulation range

Operating pressure

Grade of filtration

575 ... 9,400 l/min

0.5 ... 12 bar

1 ... 16 bar

40 µm

Description Combination of filter regulator LFR, LFRS, branching module FRM, on-off valve HE, HEE, soft-start valve HEL, mounting accessories Sizes: micro, mini, midi, maxi lfr-*ka online:

Service units: D series, polymer 12 12

Type

Pneumatic connection 1

Standard nominal flow rate

Pressure regulation range

Operating pressure

Grade of filtration

Service unit FRC-DB

G1/8, G1/4

400 ... 650 l/min

0.5 ... 12 bar

1 ... 16 bar

5 ... 40 µm

Standard nominal flow rate

Pressure regulation range

Operating pressure

Grade of filtration

Description Filter, regulator and lubricator functions in a single unit High flow rate and highly efficient in removing contaminants Good regulation characteristics with minimal pressure hysteresis Setting values are secured by means of the rotary knob with detent With manual or semi-automatic condensate drain Size: mini frc online:

Service units: MS series

Type

Pneumatic connection 1

Description

Service unit MSB4-FRC, MSB6-FRC

G1/8, G1/4, G3/8, G1/2

800 ... 4,800 l/min

0.3 ... 12 bar

1.5 ... 20 bar

5 ... 40 µm

Sizes: 4, 6 Filter, regulator and lubricator functions in a single unit High flow rate and highly efficient in removing contaminants Good regulation characteristics with minimal pressure hysteresis Setting values are secured by locking the rotary knob msb online:

Service unit combination MSB4, MSB6, MSB9

G1/8, G1/4, G1/2, G3/4, G1, G1 1/4, G1 1/2, NPT1/2-14, NPT3/4-14, NPT1-11 1/2, NPT1 1/4-11 1/2, NPT1 1/2-11 1/2

550 ... 18,000 l/min

0.5 ... 16 bar

0 ... 20 bar

0.01 ... 40 µm

Sizes: 4, 6, 9 Combination of filter regulator MS-LFR, filter MS-LF, fine and micro filter MS-LFM, activated carbon filter MS-LFX, pressure regulator MS-LR, MS-LRB, precision pressure regulators MS-LRP, MS-LRPB, electric pressure regulator MS-LRE, lubricator MS-LOE, on-off valves MS-EM, MS-EE, soft-start valves MS-DL, MS-DE, soft-start/quick exhaust valve MS-SV, membrane air dryer MS-LDM1 msb* online:

98

www.festo.com/catalogue/...

04/2012 Subject to change Product overview
