FUEL SYSTEM
6C – 19

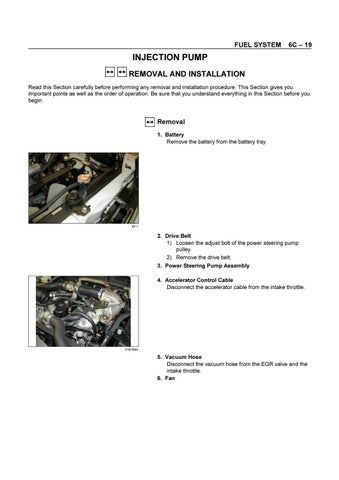

INJECTION PUMP REMOVAL AND INSTALLATION Read this Section carefully before performing any removal and installation procedure. This Section gives you important points as well as the order of operation. Be sure that you understand everything in this Section before you begin.
Removal 1. Battery Remove the battery from the battery tray.
6C-1
2. Drive Belt 1) Loosen the adjust bolt of the power steering pump pulley. 2) Remove the drive belt. 3. Power Steering Pump Assembly 4. Accelerator Control Cable Disconnect the accelerator cable from the intake throttle.
P1010003
5. Vacuum Hose Disconnect the vacuum hose from the EGR valve and the intake throttle. 6. Fan
