6C – 12 FUEL SYSTEM

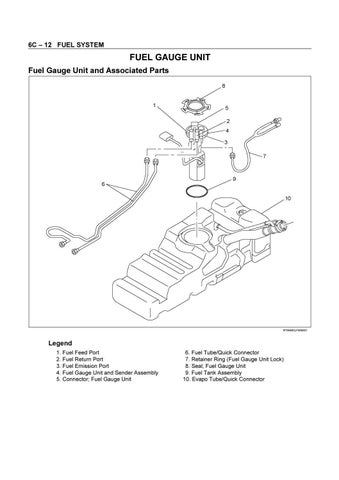

FUEL GAUGE UNIT Fuel Gauge Unit and Associated Parts
RTW46CLF000501
Legend 1. Fuel Feed Port 2. Fuel Return Port 3. Fuel Emission Port 4. Fuel Gauge Unit and Sender Assembly 5. Connector; Fuel Gauge Unit
6. Fuel Tube/Quick Connector 7. Retainer Ring (Fuel Gauge Unit Lock) 8. Seal; Fuel Gauge Unit 9. Fuel Tank Assembly 10. Evapo Tube/Quick Connector
