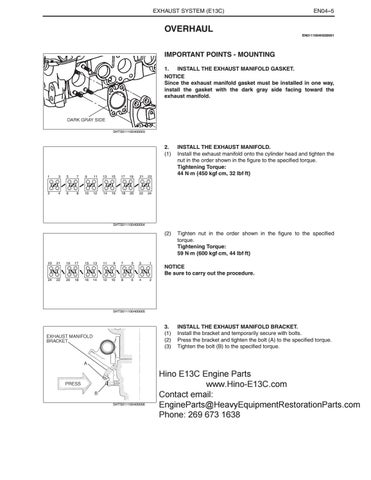

EXHAUST SYSTEM (E13C)
EN04–5
OVERHAUL EN0111004H200001
IMPORTANT POINTS - MOUNTING 1. INSTALL THE EXHAUST MANIFOLD GASKET. NOTICE Since the exhaust manifold gasket must be installed in one way, install the gasket with the dark gray side facing toward the exhaust manifold.
SHTS011100400003
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
2. (1)
INSTALL THE EXHAUST MANIFOLD. Install the exhaust manifold onto the cylinder head and tighten the nut in the order shown in the figure to the specified torque. Tightening Torque: 44 N⋅m {450 kgf⋅cm, 32 lbf⋅ft}
(2)
Tighten nut in the order shown in the figure to the specified torque. Tightening Torque: 59 N⋅m {600 kgf⋅cm, 44 lbf⋅ft}
SHTS011100400004
23
21
19
17
15
13
11
9
7
5
3
1
24
22
20
18
16
14
12
10
8
6
4
2
NOTICE Be sure to carry out the procedure.
SHTS011100400005
3. (1) (2) (3)
SHTS011100400006
INSTALL THE EXHAUST MANIFOLD BRACKET. Install the bracket and temporarily secure with bolts. Press the bracket and tighten the bolt (A) to the specified torque. Tighten the bolt (B) to the specified torque.
