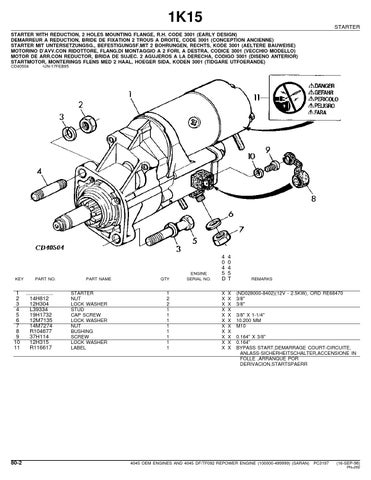

1K15 STARTER STARTER WITH REDUCTION, 2 HOLES MOUNTING FLANGE, R.H. CODE 3001 (EARLY DESIGN) DEMARREUR A REDUCTION, BRIDE DE FIXATION 2 TROUS A DROITE, CODE 3001 (CONCEPTION ANCIENNE) STARTER MIT UNTERSETZUNGSG., BEFESTIGUNGSF.MIT 2 BOHRUNGEN, RECHTS, KODE 3001 (AELTERE BAUWEISE) MOTORINO D’AVV.CON RIDOTTORE, FLANG.DI MONTAGGIO A 2 FORI, A DESTRA, CODICE 3001 (VECCHIO MODELLO) MOTOR DE ARR.CON REDUCTOR, BRIDA DE SUJEC. 2 AGUJEROS A LA DERECHA, CODIGO 3001 (DISENO ANTERIOR) STARTMOTOR, MONTERINGS FLENS MED 2 HAAL, HOEGER SIDA, KODEN 3001 (TIDGARE UTFOERANDE) CD40504
KEY
1 2 3 4 5 6 7 8 9 10 11
80-2
-UN-17FEB95
PART NO.
.................. 14H812 12H304 L39334 19H1732 12M7135 14M7274 R104677 37H114 12H315 R116617
PART NAME
STARTER NUT LOCK WASHER STUD CAP SCREW LOCK WASHER NUT BUSHING SCREW LOCK WASHER LABEL
QTY
1 2 2 1 1 1 1 1 1 1 1
ENGINE SERIAL NO.
4 0 4 5 D
4 0 4 5 T
X X X X X X X X X X X
X X X X X X X X X X X
REMARKS
(ND028000-8402)(12V - 2.5KW), ORD RE68470 3/8" 3/8" 3/8" X 1-1/4" 10.200 MM M10 0.164" X 3/8" 0.164" BYPASS START,DEMARRAGE COURT-CIRCUITE, ANLASS-SICHERHEITSCHALTER,ACCENSIONE IN FOLLE ,ARRANQUE POR DERIVACION,STARTSPAERR
4045 OEM ENGINES AND 4045 DF/TF092 REPOWER ENGINE (100000-499999) (SARAN) PC3197
(16-SEP-98) PN=262
