Wall Sections

Term- Winter 2022

Program- ARCH 1005, Studio 1

Instructor- Stepfano Pupella

Hand sketck using Pencil and scaled rulers

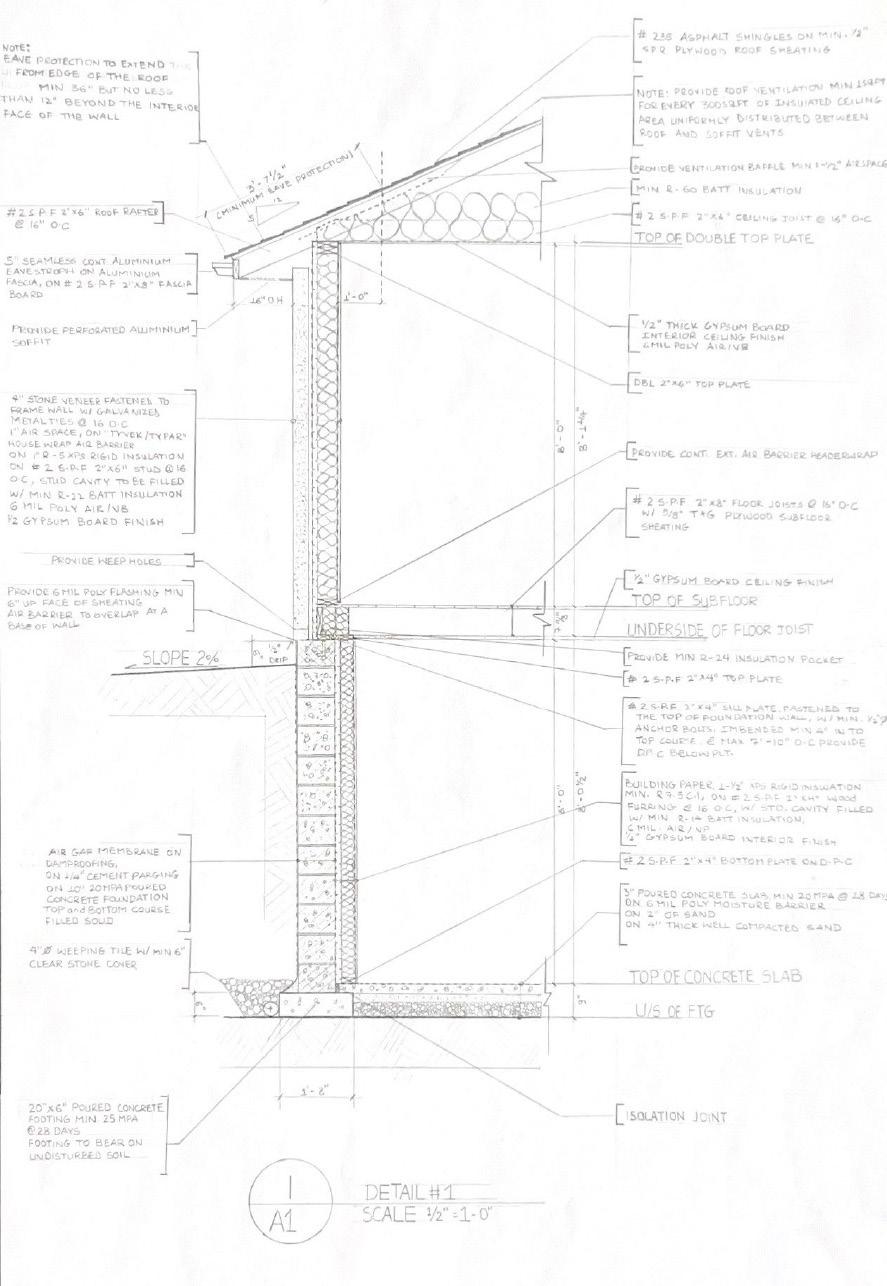

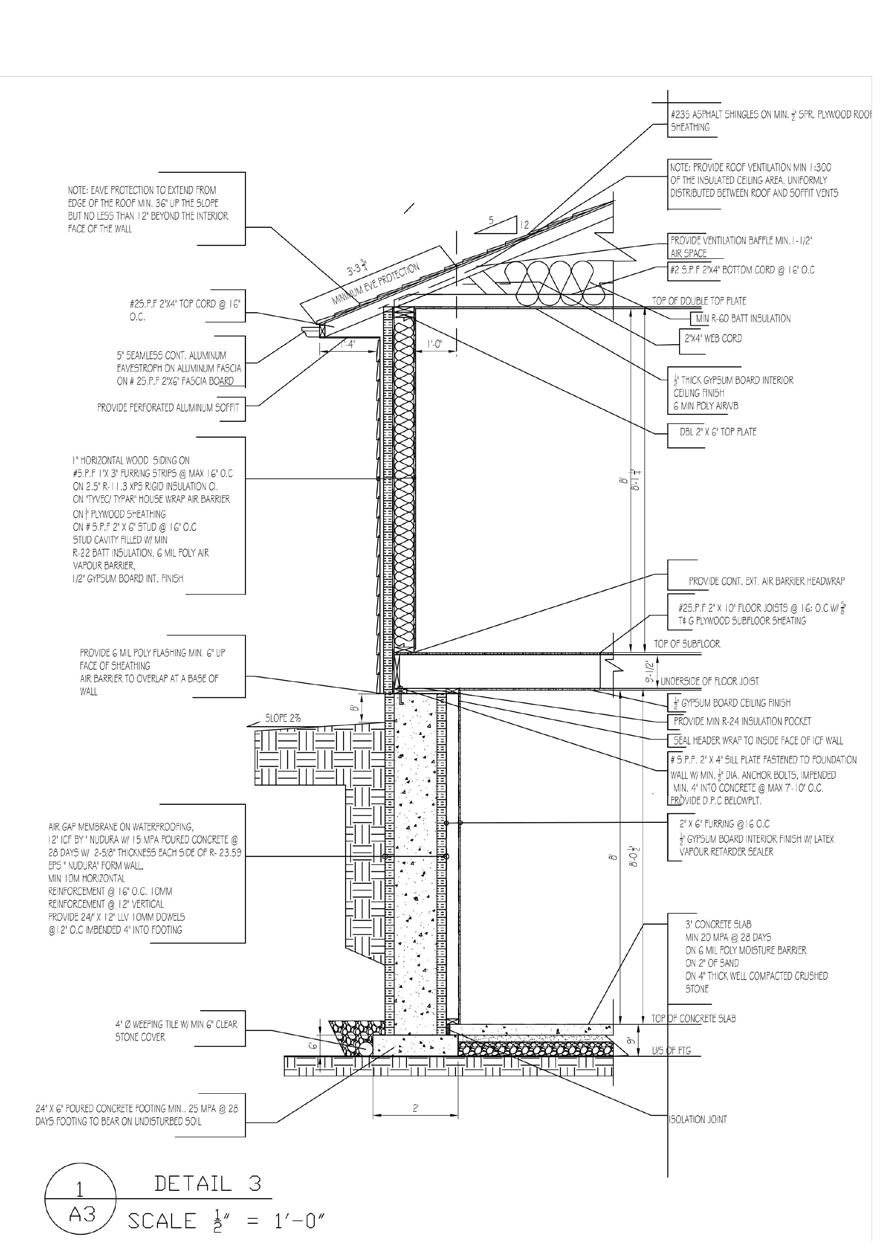

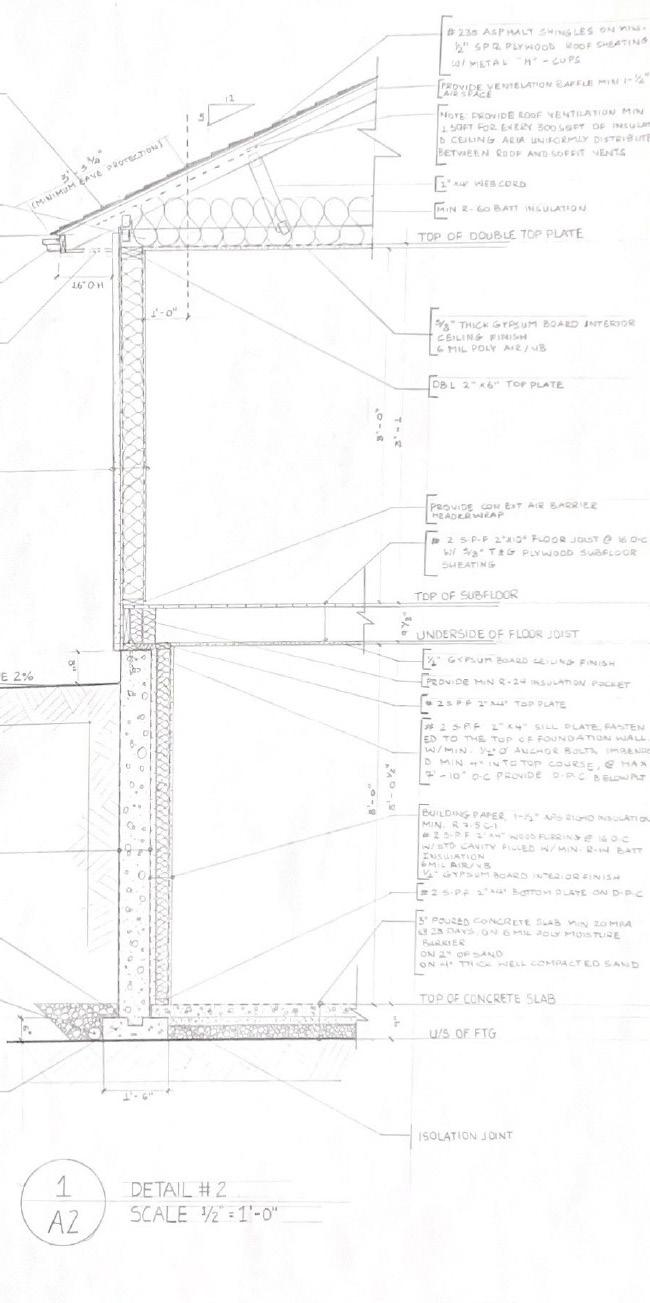

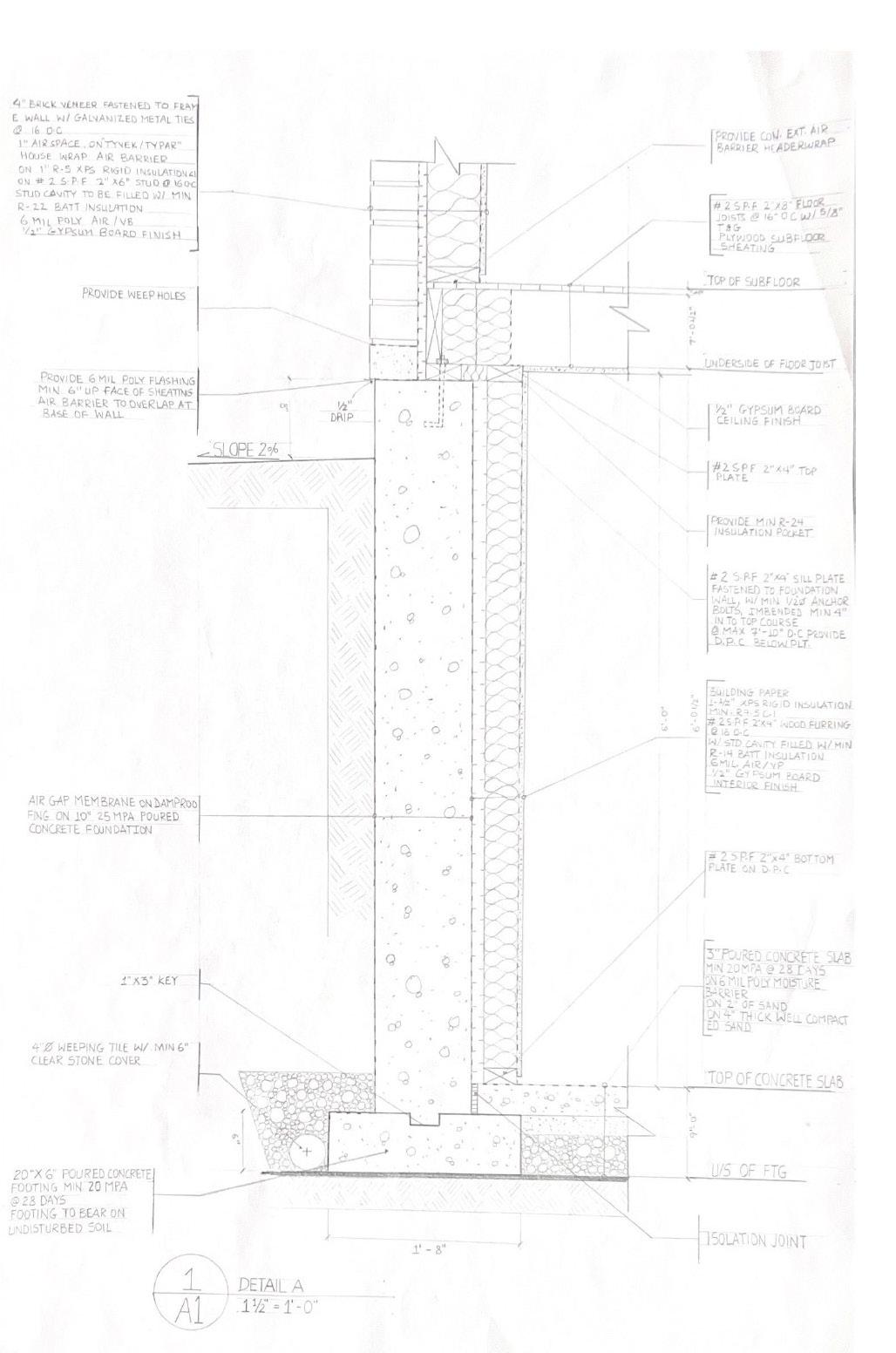

Emphasizes drawings of several wall sections made to enhance our understanding of wall assemblies.The drawings are all made by hand sketching using both imperial and metric rulers. The process emphasizes the value of accuracy as well as persistence because a single drawing takes more time to create than using a digital software. The three wall sections differentiate by the finish material used as well as the construction of the foundation walls. The finished materials constitute brick, wood, and stucco while the foundation is made of poured concrete and ICF foundation blocks to demonstrate the different ways of doing the foundations of walls.
