physical model

“ Royalle is a mixed-use high-rise building located in Bangalore. The proposal contains a retail podium and a residential and office tower. The main challenge of this project was to incorporate the different uses of the same space without affecting the circulation within. The utmost importance was given to the column layout, the cores, the fire towers and the structural stability of the building. Vertical zoning is done based on public and private spaces. The staggered form help to enhance the aesthetic of the building and to add connectivity with the outside world.”

Site boundary with surrounding roads outline

16m offset all along the site Arrows indicating access points on the site

Podium is extruded to a height of 36m, tower is extuded to a height of 54m

Podium and tower outline based on area statement Vertical zoning of tower based on private and semi-private spaces Central core to allow easy circulation Staggered form of tower to add connectivity with the outside

Subtraction of solid to create entrance points for different typologies ground floor

Area - 15 acres (60,700sqm)

Permissible ground coverage - 45% (27315sqm)

Ground coverage provided - 23,600sqm

Floor area ratio - 4

Total height - 134m

Setback provided - 16m

Permissible podium height - 36m

Build-up area required - 2,42,812sqm

Total build-up area - 2,40,700sqm legend retail circulation office circulation residential circulation services/cores fire exits floor plans typical residential floor

3bhk flats

4bhk flats services fire cores typical office floor meeting rooms kitchen/cafe services fire cores multiplex floor play arena restaurant/cafe multiplex services fire cores residential floors refuge floor residential floors refuge floor office floors refuge floor office floors retail floors basements

“Ripple Center for Academics is an education-based institutional campus located next to Bangalore University Jnana Bharathi campus and is developed phase-wise.

A ripple effect occurs when an initial change to the system propagates outward to change an increasingly larger part of the system, like ripples expanding across the water when an object drops into it. Curved architectural forms are free-flowing tectonic elements. They imply movement while symbolizing organic and abstract relationships. The master plan is designed to mimic the ripple effect. The academic and resource centre act as the central point of the campus inter-connected to one another through skywalks, while the admin, staff housing and hostels act as an extension of the academic block, signifying the impact and inter-relation of each building typology.”

Site Contours

Highest elevation - LVL: 845m

Lowest elevation - LVL: 815m firm name

Internship

/ 2022

principal architect location

IntHab Ar. Sachin Shetty Bangalore

“Int-Hab is an architecture and design studio based in Bangalore specialising in architecture, interiors and product design. It was founded by Ar. Sachin Shetty, an award-winning architect, in 2012. As an intern, I was given various opportunities to work on residential and hospitality projects and design the interiors for one of the projects.” plumbing drawing

Naveen Shetty Residence

Worked on

• plumbing and electrical drawings,

• detail drawings of skylights, doors and windows, planter box, spiral staircase

• interior drawings

• tile drawing plumbing fixtures drawing door detail drawing

Master bedroom

The master bedroom design was done keeping the small space in mind. Floating furniture, mirrors and a light material palette were used to help enhance and enlarge the room.

Family rooms master bedroom family rooms

Since the common areas are used by every member of the family, the space was designed neutrally. Beams and columns are hidden cleverly through wall panelling and false ceiling.

Son’s bedroom

The son is a 13yr old teenage boy who loves neutral, monochromatic dark colours. The room was divided into three different zones - the entertainment zone, the working zone and the sleeping zone, with the help of flooring tiles, ceiling details and a material palette. Concrete finish wall panels and a wooden false ceiling were used to make the space more aesthetic.

Community Housing at Mysore - Staff Quarters

Worked on

• conceptual plan and design

• working plan, section and elevation

• exterior model and renders working elevation - staff quarters working section - staff quarters exterior view

Freelancing / 2023 live project

“RB Arcade is a mixed use complex set in the heart of malleshwaram, featuring 4 apartment units and a double height commercial space with mezzanines” concept development

Site boundary excluding setbacks extruded to desired height

Subtraction of solid to create openings 02

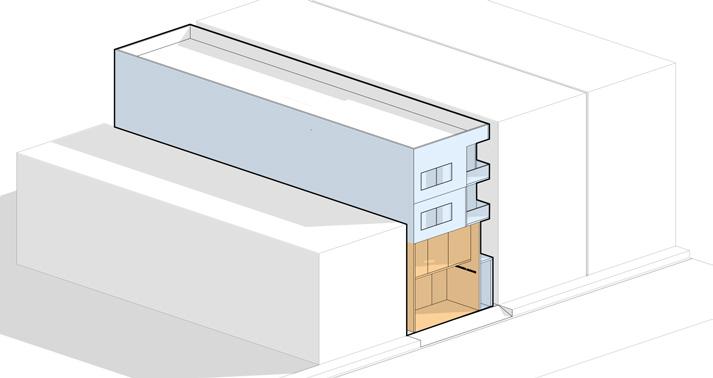

Basic zoning of the builidng commercial residential 03

Approach road to the site

Introverted spaces to maximise potential views 05 softwares AutoCad; Sketchup ; Lumion; Photoshop; V-ray

Facade detailing using wooden panels and acp to enhance the aesthetic of the building day view night view features

• acp curves with strip light

• faux wood strips

• backlit nameboard

Miscellaneous

street-a-float

“A competition aiming to design a street floating market on Earth for the year 2400.” competition group of arch8 3 softwares

AutoCad; Sketchup ; Lumion; Photoshop

lock-unlock

“The competition aiming to design a medium security prison for 50 inmates where the concept should address recidivicm, life of inmantes and society, and how a place can influnece the life of people living in it.” competition group of arch8 3
