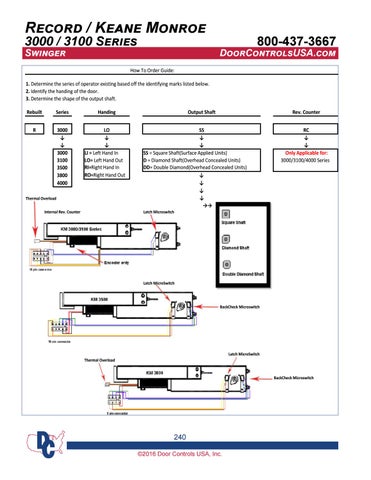

Record / Keane Monroe 3000 / 3100 Series Swinger
800-437-3667
DoorControlsUSA.com
How To Order Guide: 1. Determine the series of operator existing based off the identifying marks listed below. 2. Identify the handing of the door. 3. Determine the shape of the output shaft. Rebuilt
Series
R
3000 ↓ ↓ 3000 3100 3500 3800 4000
Handing LO ↓ ↓ LI = Left Hand In LO= Left Hand Out RI=Right Hand In RO=Right Hand Out
Thermal Overload Internal Rev. Counter
Output Shaft
Rev. Counter
SS ↓ ↓ SS = Square Shaft(Surface Applied Units) D = Diamond Shaft(Overhead Concealed Units) DD= Double Diamond(Overhead Concealed Units) ↓ ↓ ↓ ↓ →→
RC ↓ ↓ Only Applicable for: 3000/3100/4000 Series
Latch Microswitch
Latch MicroSwitch
BackCheck Microswitch
Latch MicroSwitch Thermal Overload
BackCheck Microswitch
240 ©2016 Door Controls USA, Inc.
