Q&A with Oasis Scientific on their Vividia CX-4010i Borescope.
Professional Tool & Equipment News (USPS 012-426, ISSN 1081-4485 print; ISSN 2150-2072 online) is published eight times a year in March, April, May, June, July, September, October and December by Endeavor Business Media, LLC. 201 N Main St, 5th Floor, Fort Atkinson, WI 53538. Periodicals postage paid at Fort Atkinson, WI 53538 and additional mailing offices. POSTMASTER: Send address changes to Professional Tool & Equipment News, PO Box 3257, Northbrook, IL 60065-3257. Canada Post PM40612608. Return undeliverable Canadian addresses to: Professional Tool & Equipment News, PO Box 25542, London, ON N6C 6B2.
Subscriptions: Individual subscriptions are available without charge in the U.S. to qualified subscribers. Publisher reserves the right to reject non-qualified subscriptions. Subscription prices: $62.50 per year, $116.25 two year (U.S.A. only). All subscriptions payable in U.S. funds. Send subscription inquiries to Professional Tool & Equipment News, PO Box 3257, Northbrook, IL 60065-3257. Customer service can be reached toll-free at 877-382-9187 or at circ.PTEN@omeda.com for magazine subscription assistance or questions.
Printed in the USA. Copyright 2024 Endeavor Business Media, LLC. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recordings or any information storage or retrieval system, without permission from the publisher.
Endeavor Business Media, LLC does not assume and herby disclaims any liability to any person or company for any loss or damage caused by errors or omissions in the material herein, regardless of whether such errors result from negligence, accident or any other cause whatsoever. The views and opinions in the articles herein are not to be taken as official expressions of the publishers, unless so stated. The publishers do not warrant, either expressly or by implication, the factual accuracy of the articles herein, nor do they so warrant any views or opinions offered by the authors of said articles.

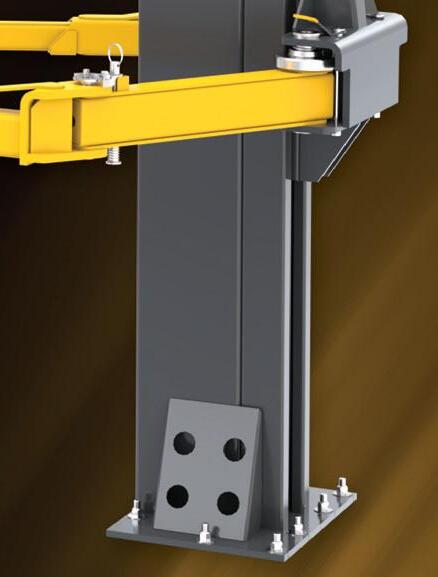

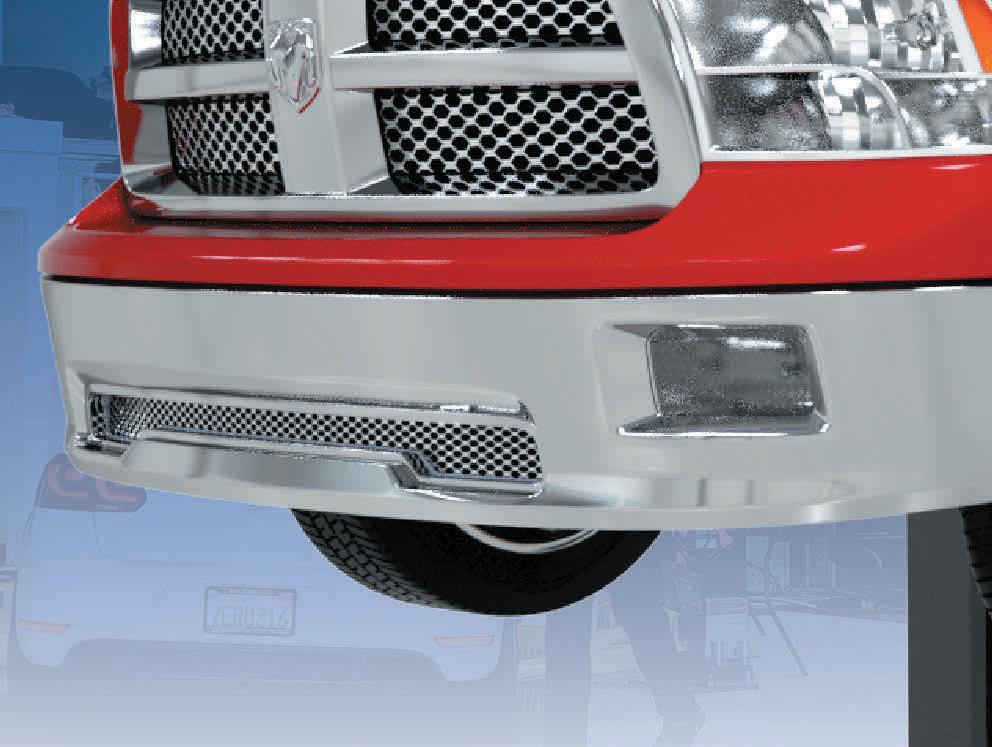

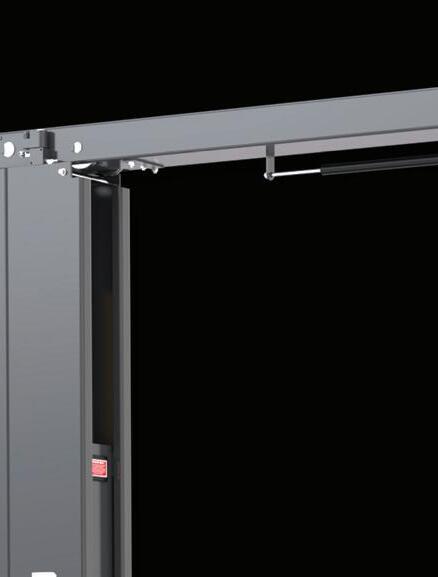

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The BP10 incorporates the popular single point lock release with an overall height of about 9’ 4”. If you need to lift a one ton dually or a Smart Car and have limited ceiling height, this is the lift for your shop.
■ Commercial Grade
■ Baseplate, Open-Top Style Lift
■ Single-Point Lock Release
■ Super-Symmetric Arms
■ Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
■ Welded Support Gussets Increase Column Strength
■ Automatic Arm Restraints
■ Powder Coat Finish
■ Free 12 Piece Truck Adapter Set
■ 5 yr Structural, 2 yr Hydraulic Warranty
Mastercool R134A Mobile Monster is designed to handle tough conditions while providing robust recovery and efficient charging capabilities.
National Training Manager Keith Wray walks through the do’s and don’ts of ignition system diagnosis.

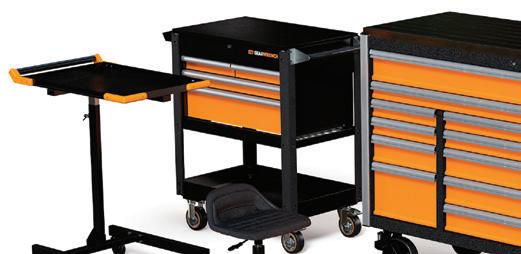

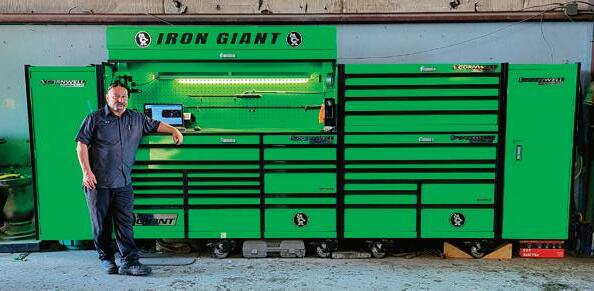

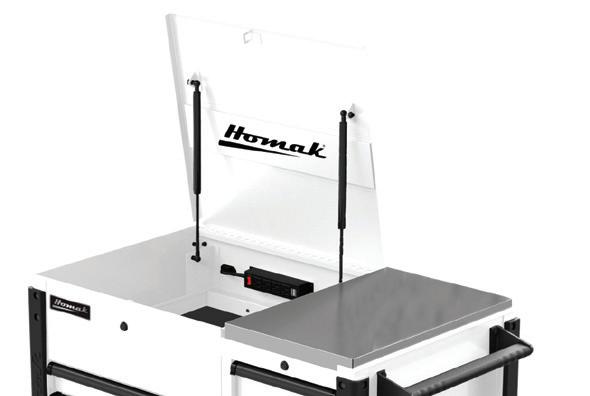

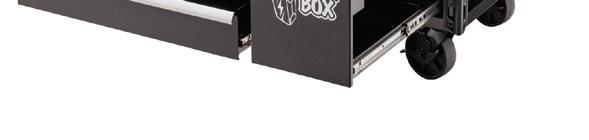

PFinding the perfect toolbox
Considerations to make before purchasing your next toolbox.
By Emily Markham, Editor Emily@VehicleServicePros.com
urchasing a toolbox, whether it’s your first one or the last you’ll have before retiring, is a big commitment. There are many factors to take into consideration, as well as many conversations you’ll want to have with the mobile tool dealers who visit your shop.
PRICE
It’s no secret that buying a toolbox can be an expensive endeavor. However, there are a few options to consider that can help bring that price down a bit.
Option one – Look at used toolboxes. Places like Facebook Marketplace or eBay could potentially have exactly what you need for a fraction of the cost. Also, try talking with your mobile tool dealers. It’s possible they could have a box that was traded in by someone else that they’re able to give you a good deal on.
Option two – Speaking of trading in toolboxes, if you have a toolbox that you’ll no longer need once purchasing your new one, you may as well get rid
of it. Talk with your tool dealer about trading it in for some credit off your new purchase.
Option three – If a new toolbox is a must and trading in your old box isn’t an option, then one of the best things you can do is speak with your tool dealer about financing. This way, you’ll be able to come up with a payment plan that works for you.
QUALITY
A toolbox is meant to be a safe haven for all your tools, but if your box can’t handle the weight of your tool collection, it won’t be doing you much good. Issues like buckling drawers, or worse, could lead to you being unable to open parts of your toolbox. A technician who can’t access their tools is unable to do their job.
Additionally, with the price you’re paying for your toolbox, it’s expected that it should last a long time, regardless of the abuse it will likely receive in the shop – the wheels should keep turning, the drawers should keep opening, and the lock shouldn’t stick.
SIZE
Be sure that whatever toolbox you’re considering buying can hold all the tools you currently own and either already has the space or has the ability to be expanded to fit any future tool purchases. There’s nothing worse than making a purchase and realizing after the fact, that you’ve got the wrong size. If you’re in the market for a new toolbox, make sure to check out this month’s Category Spotlight (Pg. 60) to see some of the latest toolboxes that have been released.
ERIC MOORE, DeMary Trucks, Columbus, OH LOU FORT, K.A.R.S. Inc., Huntingburg, IN
SHOP OWNERS
KIM AUERNHEIMER, Cool Springs Automotive, Brentwood, TN
TANNER BRANDT, Autodiag Clinic, Welford, SC
PHIL FOURNIER, Phil's Auto Clinic, Hemet, CA
JD GOAD, Goad's Body Shop, Lexington, VA
EDWIN HAZZARD, Southeast Mobile Tech, Goose Creek, SC
PETE RUDLOFF, Pete’s Garage Inc., Newark, DE
MICHELLE TANSEY, Dubclinic, Santa Clara, CA
EQUIPMENT MANUFACTURERS
KIMBERLY COTTLE Associated Equipment
JIM O’HARA, Clore Automotive
PTEN EDITORIAL ADVISORY BOARD TECHNICIANS
Kicking off the New Products section each month, our Featured New Products page includes brand new products showcased on the cover that are available to the automotive market.
VOICE-CONTROLLED LIGHT FOR HANDS-FREE USE
The Coast RL35R Voice Activated Headlamp features voice-recognition technology that allows full handsfree use of the light with spoken commands for power on/off, lighting output, beam shape, beam color, and other functions. It also has manual controls and the Coast Variable Light Control dial for even more precise adjustments. It provides up to 1,100 lm with a 613’ beam at maximum power with a 2.5-hour runtime. The RL35R includes a silicone-lined strap made of non-slip mesh and a detachable, rechargeable battery pack that can be used as a power bank. It’s IP54 water- and dust-resistant and comes with a lifetime warranty.
Circle 6 on card or click “PTEN e-inquiry” on VehicleServicePros.com
COMES WITH 3 YEARS OF FREE SOFTWARE UPDATES
The GEARWRENCH GWSMART07 is a bidirectional diagnostic tablet that offers full bidirectional control and 38 vehicle reset/relearn functions, including throttle matching, ABS bleeding, TPMS reset, and more. It comes with a built-in Wi-Fi system for easily connecting to cars without needing nearby networks. The GWSMART07 uses topology mapping to visually present the coms of a vehicle’s systems. It features three years of free software updates and a complete two-year warranty.
Circle 7 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES FREE RPM SPEED OF 8,000
The SUNEX Tools 1/2” Drive Air Impact Wrench , No. SX231P, offers up to 500 ft-lbs of torque, adjustable torque, and a free rpm speed of 8,000. It features reverse bias technology, increasing reverse torque and ensuring efficient lug removal. It’s compatible with most commonly used sockets, including spindle nut applications. At only 5.9 lbs, it’s light enough for extended use without strain.
Circle 8 on card or click “PTEN e-inquiry” on VehicleServicePros.com
POWERED ASSIST ARMS FOR HEAVY COMPONENTS

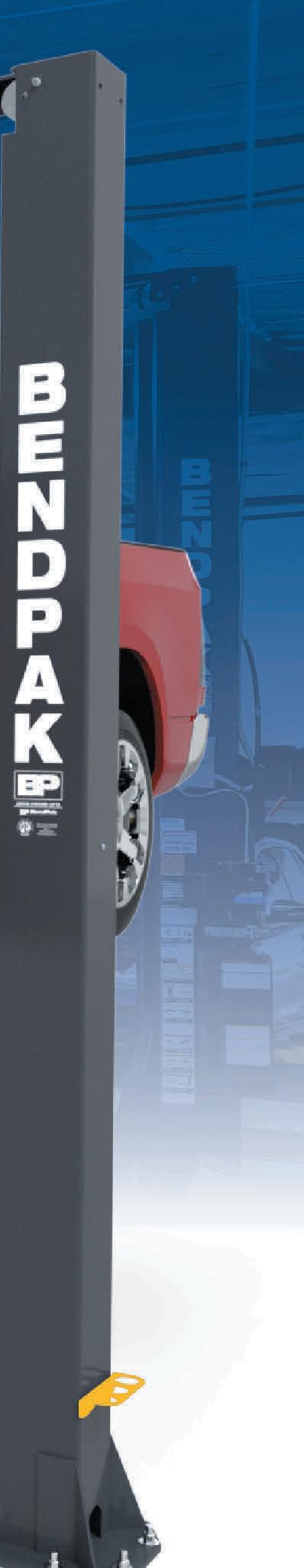

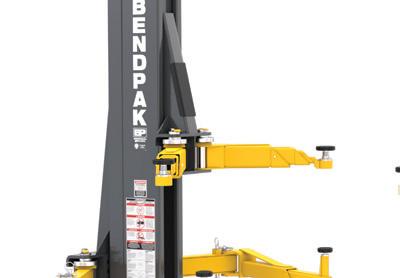

BendPak continues to refine Octa-Flex, the first two-post lift design with eight fully adjustable, telescoping swing arms. The OctaFlex Series lifts offer the functionality of a traditional two-post lift plus the versatility of a second set of powered assist arms to lift and maneuver heavy vehicle components like EV battery packs. First in the series is the EV12DPS coming in early 2025. Design updates include reducing overall size without impacting drivethrough clearance and lifting height, converting to direct drive for faster and smoother assist arm rise and descent, and moving to a single power unit and controller for better efficiency and maintenance.
Circle 9 on card or click “PTEN e-inquiry”on VehicleServicePros.com
Photo courtesy of Scott Becker
NEW PRODUCTS

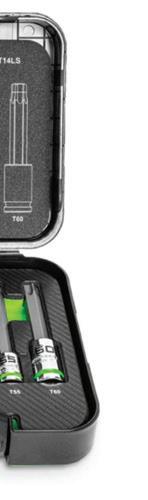

4” LENGTH FOR INCREASED ACCESS
The GripEdge Tools 14-pc Long Star Set , No. ST14LS, includes sizes ranging from T6 to T60, and each bit socket has a 4” length for increased access to hard-to-reach star fasteners. Each bit is precision machined from S2 steel for added strength and durability and nickelchrome plated for corrosion resistance. The bidirectional design allows the bits to easily grip, loosen, and tighten new and damaged fasteners. The kit comes in a foam tray inside a molded case; the tray and bits can be removed and stored in a toolbox or cart.
Circle 10 on card or click “PTEN e-inquiry” on VehicleServicePros.com
SUPPORTS UP TO 100 LBS
The Brake Caliper Hanger, No. 14880, from Tool Aid, allows technicians to hold heavy assemblies out of the way during service, preventing damage to sensitive components like brake lines. This tool is suitable for brake caliper assemblies, exhaust systems, and other miscellaneous items like extension cords. The hanger offers a secure hold without the need for additional accessories and can support a maximum weight of 100 lbs.
The hanger is 9” in length.
Circle 13 on card or click “PTEN e-inquiry” on VehicleServicePros.com
BLACK OXIDE FINISH FOR RUST PROTECTION
The Pin Punch Sets from Mayhew Tools are used to drive out and remove already loosened pins and keys after initial movement by a solid punch. The set is available in fractional and metric sizes, variable point sizes, and lengths for different applications. This 10-pc set features a black oxide finish for additional rust protection and is made in the U.S.
Circle 11 on card or click “PTEN e-inquiry” on VehicleServicePros.com
ELECTRONICALLY CONTROLLED LOCKING BUTTON
The CEAS 2,640-lb Lifting Table, Electric/Hydraulic with Adapters is designed to remove/replace battery packs for electric vehicles and engines, transmissions, drive axles, fuel tanks, the suspension, and subframes of traditional vehicles. Reserved holes on the working table allow for positioning and fixing components with specialized fixtures. The lift also features a dual-speed system with fast precise lifting. Additional features include an electrically controlled mechanical locking button, hand-held button control with a stop function, and an extendable table for greater versatility. Lifting adapters are included. Circle 14 on card or click “PTEN e-inquiry” on VehicleServicePros.com
EASILY DISASSEMBLES FOR STORAGE

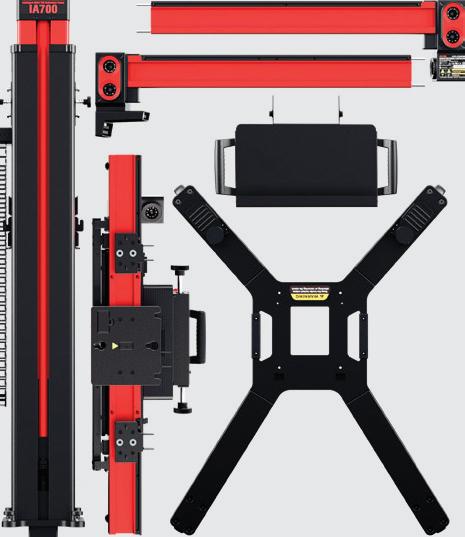

The Autel MaxiSYS IA700 ADAS Calibration Frame System features a modular, compact design that can be quickly disassembled for transport or storage. It uses a robotic crossbar with six high-definition tracking cameras and includes advanced features such as wheel alignment pre-checks, optical positioning, and unlevel floor compensation. The IA700 also includes the Guided ADAS application, which allows users to calibrate recently released vehicles that aren’t yet covered by Autel software. Circle 12 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES A HIGHVISIBILITY BLADE
The STUD Tape Measure from Milwaukee Tool is a durable tape measure designed to ensure smooth retraction and strong extension through debris in harsh job site environments. Equipped with EXO360 Rip & Wear Resistant Blade Technology, the tape measure offers increased blade protection and extended lifespan. Its fully reinforced, impact-resistant body and double-sided anti-tear coating on the first 6” enhance its resilience. With a high-visibility blade for clear readability, the STUD Tape Measure provides 17’ of reach and 14’ of standout.
Circle 15 on card or click “PTEN e-inquiry” on VehicleServicePros.com
UPDATED TWICE A YEAR
The Hunter Engineering ADAS Coverage Guide features hundreds of vehicle models ranging from 2006 to the present and is updated twice a year with additional models and changes in the ADAS market. The guide allows users to identify required ADAS calibrations or resets before writing a work order and designates the necessary Hunter ADAS equipment. Each page includes a reference key and color-coding for quick reference. It can be accessed through the HunterNet2 online portal.
Circle 16 on card or click “PTEN e-inquiry” on VehicleServicePros.com
INCLUDES EXTRACTION AND DISCHARGE CAPABILITIES
The Manual Extractor & Discharge Pump, No. JD-150DE, from JohnDow, offers an efficient, clean, and user-friendly method for evacuating and discharging a variety of fluids, including engine oil, transmission fluids, gear oil, coolant, and brake fluid. This model is the first in JDI’s lineup to feature both extraction and discharge capabilities, housed in a durable 1.6-gallon polyethylene unit resistant to automotive and household chemicals. It is versatile for use in automobiles, small engines, jet skis, boats, landscaping equipment, ATVs, motorcycles, farm equipment, and more.
Circle 17 on card or click “PTEN e-inquiry” on VehicleServicePros.com
WANDS FEATURE REINFORCED RIBS FOR ADDED DURABILITY
PLASTIC SHAFT PREVENTS DAMAGE TO WHEELS
The Alligator Rubber Valve Puller, No. 231900, is designed to make the assembly of snap-in valves faster and more efficient. It features a pivoting joint that prevents the valve from being retracted at an angle, snap-in notches to ensure the correct angle, a long lever arm for optimal force application, and a soft plastic shaft that prevents damage to aluminum wheels. The tool also has a “click” mechanism in its head that allows rapid screwing onto the valve. The off-set and pivoting head ensures compatibility with most aftermarket wheels. Circle 18 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The Lisle Radiator Genie Pro, No. 88800, features interchangeable 17” and 43” wands that have reinforced ribs for increased durability and can be used with air or water. Notches on the wand securely lock the tip angle in 90-degree increments for hard-to-reach areas, while a patented fan head increases pressure and working width. The metal handle and trigger can be hooked for an always-on flow to reduce hand fatigue. The twopiece air fitting includes an M-style plug that can be changed to any style plug or removed for use with a standard hose.
Circle 19 on card or click “PTEN e-inquiry” on VehicleServicePros.com
SERVICES AND TROUBLESHOOTS BATTERY CONDITIONS
IDEAL FOR EMERGENCY VEHICLE ACCESS
The E-XTEQ DCBS Mobile, No. EZ-0268-A, is a diagnostic and charge battery station that features built-in diagnostic functions to service and troubleshoot battery conditions, including state of charge/state of health. It can perform IR, CCA tests, true reserve capacity, and automatic load test and charge acceptance functions, as well as functioning as a constant current constant voltage power supply. It also offers a clean, consistent power supply for vehicle ECU reflashing.
Circle 20 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The EasyWedge Inflatable Airbag Three-Pack Combo , No. STC32925, from Steck Manufacturing by Milton Industries , is a multi-use air wedge trio ideal for emergency vehicle access, vehicle repair applications, and more. The trio consists of three bags sized for an infinite number of markets and applications. Each airbag is also sold separately, and their edges are high-frequency sonic welded for years of use. The air shim bag squeeze pump allows for easy, one-handed operation and precision inflation control as well as quick deflation.
Circle 21 on card or click “PTEN e-inquiry” on VehicleServicePros.com
NEW TOOLS

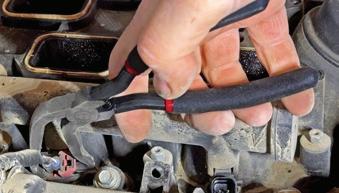

37990 ELECTRICAL CONNECTOR PLIERS
Removes many single and double connectors found on many cars, trucks and heavy-duty vehicles. Narrow knurled tips provide extra grip when removing connector in tight spaces. The tool is 8" long and made from forged carbon steel for extra strength and durability. Spring in the handle for one handed use. Dual material grips for comfort.
88800
RADIATOR GENIE PRO
13180 SAE FLARE NUT SOCKET SET, 7 PC.
The socket design allow access to difficult wired temperature sensors, thermo switches and other components. Works on ABS, master cylinder, coolant, steering components and hydraulic lines. 3/8" Square drive with chrome finish. Set includes: 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" and 3/4".
41620 CASTER CAMBER KIT FOR GM, 6PC. The kit includes 5 cam adjusting holding tools to adjust the control arm cams found on Chevrolet and GMC vehicles. The holding tool surrounds the entire perimeter of each cam to
Interchangeable heavy-duty cleaning wands for radiators and other hard-to-reach places. Fast and easy cleaning wands for use with water or air. The Radiator Genie Pro is so versatile, it can be used on a variety of machines that operate in dirty outdoor environments. Extends the life of your equipment by keeping them clean and running cool. Interchangeable 17" and 43" wands with inner reinforced ribs in wands for strength. Notches on wand securely lock the tip angle in 90° increments for hard-to-reach spots. Patented fan head increases pressure and working width. Special sized, .5" diameter tube to access confined areas. All metal handle and trigger can be hooked for always on feature to reduce hand fatigue. Two-piece air fitting includes M-style plug, or can be changed to any style plug, or it can be removed for use with a standard garden hose.
39970 TRUCK BRAKE SPRING TOOL, EATON
Easily removes and installs brake shoe anchor springs on eaton air brakes. Slotted ends on tool to hold the spring. Uses leverage against the brake shoe to expand the spring for removal and installation.
37980 ELECTRICAL DISCONNECT PLIERS, 60 DEGREES
Angled tips for easier access to hard-to-reach connectors. Easily removes locking push tab style electrical connectors found on mass air flow sensors, fuel injectors, ignition coils and other applications. Use the hook on the end of the pliers to pull out tab to unlock the connector and then use the point to engage the tab. Spring action allows the technician to use the tool with one hand.
LISLE CORPORATION
CURRENTLY PAYS ROYALTIES TO OVER 100 INDIVIDUALS.
LEARN MORE
39980 TTRUCK & TRAILER BRAKE SPRING TOOL
Easily removes and installs rear drum brake return springs. Slotted ends on tool hold spring at correct work angle. Bolt can be removed to adjust tool for three spring sizes. No need to leverage tool against a solid surface during spring installation.
92202 JEEPERS CREEPER SEAT, RED
62310 ENGINE BARRING TOOL FOR CUMMINS
Allows the engine crank to be manually adjusted. Works on Cummins 3.9l, 8.3l, B & C Series 5.9L and 6.7L diesel engines. Can be used to make sure the engine rotates freely while troubleshooting other issues or to access torque converter bolts. Use with 1/2" square drive.
The heavy-duty steel creeper seat easily rolls across shop floors on four 2" corrosion resistant wheels with sealed bearings. The creeper seat design features four open sides to keep tools and parts easily accessible. 2" vinyl covered pad for comfort on even the longest jobs. Stable 19" x 14.5" footprint to help prevent tipping while moving. 16-1/4" tall for use on many tasks around the vehicle. The frame is powder coated for durability. The seat has a 500 lb. capacity.
If you have an original tool idea which others may need, Lisle Corporation is interested in evaluating your idea. Your idea may be produced and sold by Lisle Corporation under an attractive Award or Royalty Agreement that will bring you an income for years to come.
23940 MAGNETIC TOOL HOLDER
Keeps cordless power tools within easy reach while working or for storage. The powerful 200 lb. pull magnet keeps the holder from sliding or tilting when attached to any ferrous metal surface. Designed to fit most cordless power tools. The holder can also be mounted to a wall with screws, if needed.
23900
MAGNETIC BOX HOLDER
Two formed box holder bars fit different sized cardboard towel dispenser boxes. Two spikes on each steel holder keep the box in place whether dispensing from the top, bottom or front. Spikes are constructed in an opposing orientation to keep the box from slipping. Each holder has two strong magnets.

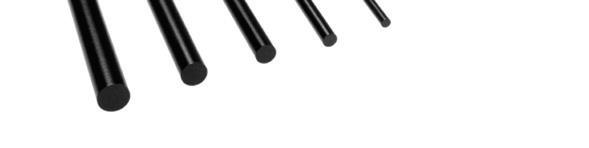

PRY BARS WITH STRIKING CAPS
Heavy-duty pry bars made from high carbon alloy steel that are forged and heat treated for strength and durability
Great for demolition, repostioning equipment, industrial, and heavy-duty automotive work
Bent tips for ease of access and the strike protection hard capped handles are ergonomically designed for comfort, secure grip and robustness
Black oxide finish for corrosion resistance
Individual sizes included: 12", 17", 25", 31", 36" and 45"
#853-6ST 6-PIECE PRY BAR SET
Also available in 5-piece set, 3-piece set, and individually.
FEATURES INTEGRATED STORAGE BOX

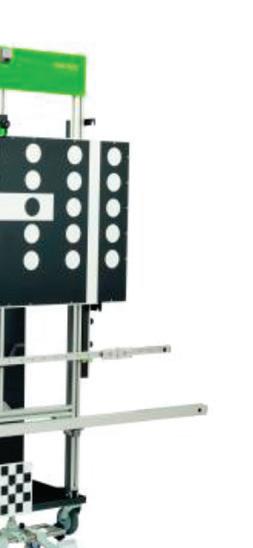

The ADAS Recalibration Unit , No. DAS3000-1, from Bosch is designed to be a complete set-up for shops to recalibrate vehicle camera and radar systems. Robust camera targets with an integrated storage box make finding the proper target easy and help maintain the integrity and serviceability of the targets. A dualpurpose VW camera board is a universal OEM radar reflector specially designed for calibrating both radar systems as well as Volkswagen cameras. Distance and wheel hub thrust angle alignment markers are used by the systems guided instruction to efficiently direct the user to place and align the fixture to the vehicle for the most accurate calibration.
Circle 24 on card or click “PTEN e-inquiry” on
FEATURES CROSS-PATTERN STRIKE DESIGN
The 3-lb Drilling Hammer Pro , No. 63013, from Titan Professional Tools , features a cross-pattern strike design that concentrates the strike force into a smaller surface area, creating greater power per strike. The cross-pattern face helps crack hard materials. This hammer is 12” in length, is made of fiberglass, and has a powder-coated finish.
Circle 25 on card or click “PTEN e-inquiry” on VehicleServicePros.com
NEW PRODUCTS
CONSTRUCTED OF CARBON STEEL
The Omega Clip Removal Tool , No. 9369, from CTA Tools , is used for the removal of Omega clips which hold body panels typically found on various Volkswagen, Audi, Porsche, MercedesBenz, and Tesla vehicles. This tool can also be used to remove similar clips on the Tesla trunk trim on the Model Y and the door trim of the Model X. The tool is made of carbon steel for strength and durability.
Circle 26 on card or click “PTEN e-inquiry” on VehicleServicePros.com
2-IN-1 FLASHLIGHT AND SPOTLIGHT
The Luxtreme MZ60 Blueline Edition from NEBO is a 2-in-1 flashlight and spotlight with 1,000 lm of close-range illumination and a half-mile beam distance for longrange spotlight performance. Equipped with five adaptable light modes and a 16x adjustable zoom. The rechargeable design, featuring a bidirectional USB-C port allows it to work as a power bank, adding extra convenience. With an IP67 waterproof rating, it is operable in all conditions from heavy rain and submersion.
Circle 27 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES FLEXIBLE GREASE HOSE
The Flexzilla Pistol Grip Grease Gun, No. L1325FZ, from Legacy Manufacturing combines comfort and control with durability. The soft barrel grip is designed to conform to the user’s hand, reducing fatigue during extended use. The heavy duty cast head construction ensures this tool can handle tough environments. The pistol grip design allows users to operate the gun with one hand.
Circle 28 on card or click “PTEN e-inquiry” on VehicleServicePros.com
POWER SUPPLY FEATURES EPOXY-SEALED COMPONENTS
The Multi-MIG Synergic Welder, No. HSW-6222, from H&S Autoshot offers 200A of output power at a 35 percent duty cycle. It works with both manual or fully synergic MIG for gas and no-gas applications. It can also perform lift-arc DC TIG and arc electrode stick welding. A 7” LCD touchpad makes parameter selection easy, and the welder’s IGBT inverter power supply’s components come sealed in epoxy. It can use an optional spool gun as well as a standard handheld torch. Its output power range is 35-200A at 115230VAC, and it supports wires ranging from 0.6mm to 1mm/0.024” to 0.040” diameter on 4” or 8” spools. Circle 30 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES SOFT-TOUCH PLASTIC SURFACES
The Philips Xperion 3000 Under Bonnet LED Work Light from Lumileds is designed to withstand the demanding work environment of professional shops. It features soft-touch plastic surfaces to protect painted surfaces and to provide additional grip. The light is rated IP54/ IK07 for resistance to impact, water, and dust. At 1,200 lm, the light has a threehour run-time, and at 300 lm, the light’s run-time is 12 hours. The light reaches a full charge in under four hours using the USB-C cable provided.
Circle 31 on card or click “PTEN e-inquiry” on VehicleServicePros.com
10 PERCENT LESS WEIGHT THAN PNEUMATIC
ERGONOMIC HANDLE REDUCES HAND FATIGUE
The Matco Tools 1/2” Drive 24” Breaker Bar, No. C24EFHP, features a purple ergonomic grip handle for added user comfort and control while reducing hand fatigue during extended use. It has a 1/2” drive and extends to a full 24” length for added leverage, allowing it to bust loose stubborn or stuck bolts. The bar is made in the USA.
Circle 33 on card or click “PTEN e-inquiry” on VehicleServicePros.com
62 HRC HARDNESS
The Vessel Tools IMPACT BALL Torsion Bit 52-pc Set , No. IB52P01U, is made using a new alloy steel, VoHA (Vessel Outstanding High-Performance Alloy), with a hardness of 62 HRC. The bits come in a hard case, and according to the company, the shock absorption at the ball torsion part of the bit makes it 30 times tougher for greater durability. The set comes with a mix of Phillips head, slotted, square, Torx, hex, and pozidriv bits, as well as magnetic nut setters in 1/4”, 5/16”, and 3/8”, socket adapters in 1/4”, 3/8”, and 1/2”, and a mag enhancer. Circle 34 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The IQV20 Cordless High Torque Impact Wrenches , Nos. W8171 and W8191, from Ingersoll Rand, are cordless pistol-grip impact wrenches with brushless motors that help remove difficult fasteners. These wrenches weigh 10 percent less than pneumatic with equal performance. Additional features include a patented 360-degree shadowless LED light ring, rubberized bumpers for damage protection, an over-molded grip, a durable metal casing, and a variable speed trigger with an electronic brake. These wrenches are IPX6-rated for tough environmental conditions and have 2,000 ft-lbs of breakaway torque.
Circle 32 on card or click “PTEN e-inquiry” on VehicleServicePros.com
SHARES RESULTS WITH CUSTOMERS VIA TEXT
The DHC BTW350 is a wireless battery and electrical system tester that conducts tests via Bluetooth connection to the DHC app on a smartphone or tablet, which then displays real-time results. The app-based interface is not limited by cable length, and it allows users to edit and save customer and shop information as well as share test results with customers through text or images. It supports 6V and 12V batteries and includes 12V and 24V system tests. It comes with a 12-month warranty.
Circle 35 on card or click “PTEN e-inquiry” on VehicleServicePros.com
MEASURES 7.5” TALL BY 8.5” WIDE AND 5” DEEP
The Heavy Duty On-Truck Pitman Arm Remover, No. 11880A, from Schley Products is engineered to remove pitman arms equipped on F-450 and F-550 trucks equipped with ZF steering gear. The tool has a forged construction, and its design allows it to be secured and locked in place while being utilized. Additionally, the forged design allows for less torque and space, enabling the user to remove the pitman arms on the vehicle. It measures 7.5” tall by 8.5” wide by 5” deep, and will accomodate pitman arms that are 3” wide.
Circle 38 on card or click “PTEN e-inquiry” on VehicleServicePros.com
LOW-PROFILE DESIGN FOR EASY STORAGE
The EZRED Magnetic 4-Slot Pry Bar Holder, No. EZPB4-R, magnetically holds pry bars, allowing users to attach it to any ferrous surface, such as a toolbox or lift, for easy access to their pry bars. It features strong, lightweight materials to ensure its durability even in a harsh shop environment. Its low-profile design makes it easy to store when not in use, and it can also be mounted to peg boards for more permanent storage.
Circle 40 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES A MAGNETIC BASE FOR MOUNTING
The 1110 lm Work Light with Foldable Magnetic Leg from K-Tool International features a foldable magnetic leg with a clip option. This light uses a long button hold to move between three light sources—top light, chip-on-board (COB) white, and COB red flashing. A single click will move through multiple brightness levels. This unit can also be used as a high-power flashlight. The strong magnetic base will mount the light to metal surfaces and a power display easily identifies the battery level.
Circle 39 on card or click “PTEN e-inquiry” on VehicleServicePros.com

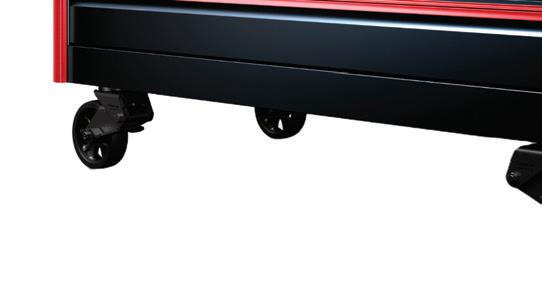

NEW PROFILE ALLOWS CAB TO FIT IN SMALLER BAYS
The racing-inspired 68" Nine-Drawer Double Bank Snap-Fiber Roll Cab from Snap-on uses corner gussets and standing seam construction with added top, bottom, and side support for what the company calls its strongest roll cab design. The InPulse flush finish drawers won’t drift open, and the SpeeDrawer provides dividers to organize all loose parts and tools. Additionally, the PowerDrawer charges and keeps power tools ready for use. The Midnight Blue with black trim or Candy Apple Red with black trim finishes feature exclusive track marks on this limited series “special edition.”
Circle 41 on card or click “PTEN e-inquiry” on VehicleServicePros.com
SUITABLE FOR 12V AND 24V PRIME MOVERS

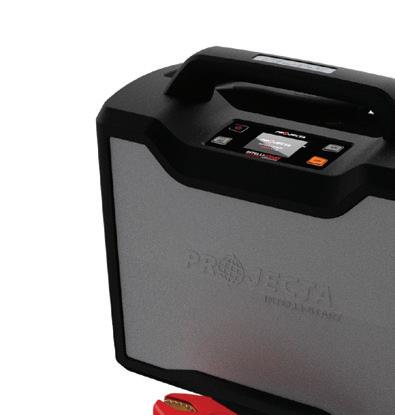

The Intelli-Start Industrial Jump Starter, No. PJ-IS3000, from Projecta is capable of starting 12V 12L gas and diesel vehicles and all 24V gas and diesel vehicles. Suitable for 12V and 24V prime moves, buses, and industrial machinery. This model has a LifePo4, allowing Projecta’s patented Rapid Recharge Technology to work. This RRT allows the vehicle that was jump-started to recharge the unit within 40 seconds after it is started. Users have unlimited jump starts without putting the unit back on its docking station for recharging.
Circle 42 on card or click “PTEN e-inquiry” on VehicleServicePros.com
HIGHEST SETTING PROVIDES 5,300 LM FOR 2 HOURS
The Streamlight ProTac HL6 Flashlight uses two USB-C rechargeable protected Li-Ion battery packs that can provide up to 5,300 lm for two hours on high. It can also provide 1,500 lm for 3.75 hours on medium and 450 lm for 12.5 hours on low, as well as strobe for 4 hours. It’s IPX7 waterproof and has a durable anodized aluminum construction. Its anti-roll head prevents it from rolling, and its rubber sleeve provides increased grip and thermal insulation. Circle 43 on card or click “PTEN e-inquiry” on VehicleServicePros.com
INCLUDES EXTENSION BAR, NANO RATCHET, AND ADAPTER
The VIM Tools 42-pc Nano Bit Set , No. VHC42, features a variety of 1/4” drive hex bits and accessories. The set comes with six Torx half cut bits, seven Torx Plus half cut bits, six metric half cut hex bits, eight SAE half cut hex bits, three half cut Philips bits, two half cut flat tip bits, and three half cut triple square bits. The kit also includes a clutch 5/32” half cut, a Mortorq 2 half cut, an R1 Robertson half cut, and an R2 Robertson half cut, all of which are 16mm long. A 4” extension bar, nano ratchet, and 1/4” hex x 1/4” square drive adapter are included.
Circle 44 on card or click “PTEN e-inquiry” on VehicleServicePros.com
GWSMART07
Pro-Quality Bidirectional
Diagnostic Tablet
GWSMARTBT
Professional Bidirectional
Diagnostic Tool
GWSCAN
Everyday Diagnostic Device
FEATURES A SEAT FOR ACCESS TO DENT PULLER

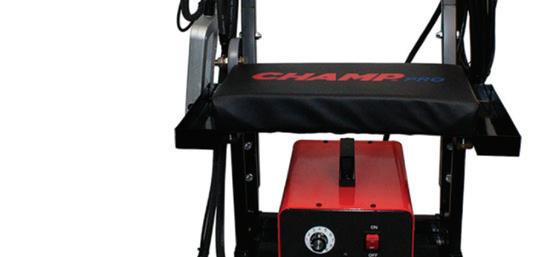

The CHAMP Pro Steel Dent Repair System from US Auto Supply is an allin-one mobile workstation. The seated cart provides access to the dent puller and its tools and accessories along with easy cord storage. The system features a variety of pulling accessories to suit a variety of dent repair needs. Additional features include two metal storage trays, three 4” electrodes, two 10” electrodes, a key tab electrode, 50 straight weld keys and 50 twisted weld keys, a 20’ power cord, and more.
Circle 46 on card or click “PTEN e-inquiry” on VehicleServicePros.com

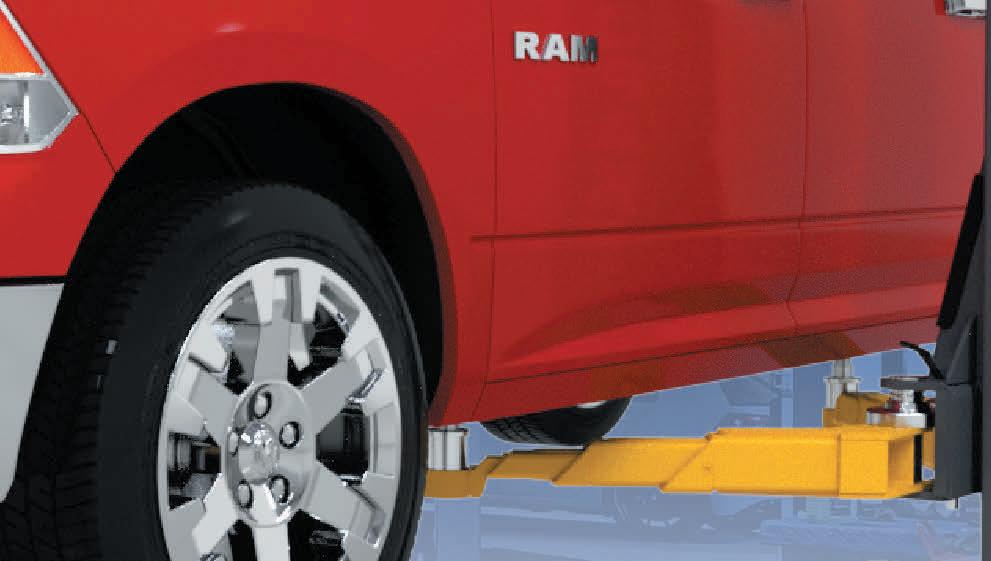

FEATURES SINGLE-POINT LOCK RELEASE
The Atlas Commercial-Grade Two-Post
Baseplate Lift is designed for lifting heavy vehicles in low-ceiling garages. It features a single-point lock release and 9’ 4” columns with a middle-welded support gusset for added strength. It’s ideal for lifting 1-ton dually trucks or smart cars in shops with limited ceiling height. The lift has a 10,000-lb capacity.
Circle 49 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES AN AIR/ HYDRAULIC PUMP
The Suspension Bushing Kit with Pump, No. 4247-FR, from OTC includes an air/ hydraulic pump, a 25-ton hydraulic cylinder, a hose with couplers, a complete puller leg/plates, and an adapter set for double-wrap leaf springs. Each kit features Hendrickson rear suspensions, including Primaax EX, Comfort Air, and FCCC V-Ride Pivot and D-Pin suspension bushings. Additional features include double and single-wrapped FAS II Airliner rear suspension bushings, as well as centering adapters to align tool and bushing for clean installation.
Circle 47 on card or click “PTEN e-inquiry” on VehicleServicePros.com
INCLUDES TWO YEARS OF IDENTIFIX CODE-ASSIST
The Icon T10 Comprehensive Diagnostic Scanner from Harbor Freight features a 10.1” high-definition in-plane switching touchscreen and wireless OBD-II scanning. The T10 comes with a oneyear subscription to TrueFix OEM repair information and automotive diagnostic software and a two-year subscription to Identifix Code-Assist, which includes over four million technician assessments and verified fixes for fault codes. It also features a stylus, docking station, a heavy duty storage case that converts to a tool tray, a USB borescope inspection camera, and a wireless 12V battery tester.
Circle 50 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES PEAK FLOW RATE OF 742 CFM
The SFC 110M Variable Frequency Drive Compressor from Kaeser Compressors uses a 150hp permanent magnet motor that produces a flow range of 103 to 742 cfm at 100 psig. It includes the features of other compressors in its line, such as the speed-controlled fan, a brushless DC motor for improved cooling, and the Sigma Control 2 for condition monitoring and external communication capabilities, with a smaller physical and environmental footprint. Its design features improved maintenance access for fluid changes and valve maintenance to minimize downtime.
Circle 48 on card or click “PTEN e-inquiry” on VehicleServicePros.com
EQUIPPED WITH OVER 41 FUNCTIONS
The TOPDON Phoenix XLink integrates robust hardware with versatile software functions to allow technicians to execute intricate tasks with heightened efficiency. The XLINK features cloudbased programming and online coding functions and can handle complex repair needs including full system diagnostics on a broad variety of vehicles boasting CAN-FD and DoIP protocols. Featuring over 41 maintenance functions, topology mapping, and bidirectional control, the XLink is designed to streamline workflow and amplify productivity.
Circle 51 on card or click “PTEN e-inquiry” on VehicleServicePros.com
ALIGNMENT PRE-CHECK + OPTICAL TARGET PLACEMENT
FULLY OPTICAL TARGET PLACEMENT
UNLEVEL FLOOR COMPENSATION
INTEGRATED WHEEL ALIGNMENT PRE-CHECK
Fo r the tenth year in a row, we asked our readers to weigh in on the PTEN Innovation Awards. Named the 2024 PTEN People’s Choice, the following pages feature the top 25 products selected by our readers, per product category, that were originally nominated for the 2024 PTEN Innovation Awards.
Snap-on
Band Sander, No. PTBF210
The Snap-on Band Sander, No. PTBF210, features a thermally balanced air motor to cool internal components as well as the surface temperature of the tool. An adjustable rear exhaust directs airflow away from the work area while a built-in 10-position air regulator makes it easy to dial in the exact speed needed for a specific application. The 90-degree angle head offers tool-free adjustments and can be rotated 270 degrees for access and flexibility without additional tools. Additionally, an ergonomically designed comfortgrip handle keeps vibration to a minimum and the side handle helps keep the sander supported and controlled.
CATEGORY: Air Tools
Circle 53 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Hunter Engineering
RX14KL
and
RX16KL
Scissor Alignment Lifts
The Hunter Engineering RX14KL and RX16KL Scissor Alignment Lifts can accommodate up to a 195” two-wheel wheelbase, offering longer variations of Hunter’s RX14 and RX16 Scissor Alignment Lifts. The new models offer adjustable turnplate pockets that provide an 88” to 168” four-wheel alignment service range. When aligning a shorter vehicle, the turnplates can be moved back into the pocket within seconds. Additionally, a flush-mount arrangement simplifies floor-level rolling compensation and ADAS calibrations. The surface-mount RX14 and flush-mount RX16 series provide 14,000 and 16,000 lbs respective capacity and both include two 9,000-lb capacity jacks. Both models offer low drive-on height and are also PowerSlide and InflationStation capable.
CATEGORY: Lifts, Jacks, & Stands
Circle 54 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on SOLUS+
The Snap-on SOLUS+ has been redesigned and upgraded. The tool includes SureTrack verified repair information and comprehensive coverage for 49 domestic, Asian, and European vehicles and nine domestic motorcycles, and provides all the features that technicians need to handle a broad range of diagnostics services. Boot-up time is two seconds. Additional features include detailed trouble code definitions, live data, functional tests, relearns, and adaptations.
CATEGORY: Automotive Scan Tools
Circle 55 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Mitchell 1
Google Optimization Suite
Google Optimization Suite from Mitchell 1, available exclusively through Mitchell 1’s SocialCRM | LocalSearch services, offers drastically simplified online and digital marketing processes for shop owners. It allows owners or managers to enhance shop visibility online and grow the business and its audience through Google. The suite also features verified review services, tailored automated review responses, instant content creation for promotions or announcements, a “Rescore” feature to mitigate negative reviews, and ongoing support from dedicated SocialCRM marketing agents.
CATEGORY: Automotive Software
Circle 57 on card or click “PTEN e-inquiry” on VehicleServicePros.com
TEXA
Konfort 780 Dual Gas Touch
The Konfort 780 Dual Gas Touch from TEXA supports dual R-134a and R-1234yf recovery, recycling, and recharging service in the same cabinet while keeping both systems separate so there is no cross-contamination of refrigerant. This A/C service cabinet supports a fully automatic, functional process, operated from a 10” touchscreen with wireless connectivity. Advanced vehicle coverage is supported by the TEXA IDC5 OE-level diagnostic platform.
CATEGORY: Air Conditioning Service
Circle 56 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
High-Capacity Shop Cart, No. KRSC2430
The Snap-on High-Capacity Shop Cart, No. KRSC2430, features a worksurface split lid that opens the entire width of the top compartment, providing storage for larger tools and 20 prybar/screwdriver slots that store sizes up to 36”. The compartment, measuring 8” deep, includes a power strip for charging tools and two separate sliding drawers beneath the lid. The cart is powered by a 15’ power cord and includes an exterior cord wrap for maneuverability. Small sliding bins below the top compartment offer room for smaller tools or equipment.
CATEGORY: Tool Storage
Circle 58 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Autel
MaxiTPMS
TS900
The Autel MaxiTPMS TS900 is a 3-in-1 TPMS, diagnostics, and service tablet. Activate, read, and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel BLE Sensor, preprogrammed for Tesla vehicles. The TS900 offers both basic and advanced all-systems diagnostics and can generate, print, and share pre- and post-scans.
CATEGORY: Tire & Wheel Service Circle 59 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Hunter Engineering
Ultimate
ADAS
Hunter Engineering’s Ultimate ADAS system is designed to eliminate error-prone manual layouts common to static ADAS calibrations. Ultimate ADAS combines Hunter’s standard-setting alignment technology with a guided target placement system for around-thevehicle coverage. Gimbal-mounted lasers are the key component, replacing the inexact guesswork for strings, plumb bobs, and tape measures to cut setup time by 70 percent for certain procedures. The gimbals’ onscreen guidance provided by Hunter’s WinAlign software increases target placement precision by automatically compensating for non-level floors, monitoring for placement errors, and confirming accuracy with laser measurements each step of the way. Ultimate ADAS is currently exclusively available to Honda and Acura dealers, with availability set to expand in 2024.
CATEGORY: ADAS
Circle 61 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
CLOUD 9 68" EPIQ Roll Cab, No. KERN681ATWHU
The Snap-on CLOUD 9 68" EPIQ Roll Cab, No. KERN681ATWHU, features seven full-width drawers, four of which are equipped with Snap-on’s Pro-Fi Organization System, precision-cut modular foam that configures 771 tools in total. The system was designed to give technicians quick access to their most-used tools, packing a total of 370 drive tools, 193 wrenches, 143 screwdrivers, and 65 striking tools. A color-changing LED PowerTop illuminates drawer contents, and 10 staggered outlets and 4 USB ports offer plenty of charging options.
CATEGORY: Tool Organization Circle 60 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
High-Definition Borescope with 5.5 mm Dual Imager with Handle, No. BK7000COMBO
The High-Definition Borescope with 5.5 mm Dual Imager with Handle, No. BK7000COMBO, from Snap-on, features a new wireless handle combo in addition to the BK7000 borescope. The scope and Wi-Fi handle pair instantly out of the box. The handle also offers quick USB-C charging and remote use of features, such as initiating image capture, adjusting brightness, and toggling between camera views and picture-in-picture. The borescope also features a 5” capacitive touchscreen and software and feature updates through Wi-Fi. The battery provides up to 1-1/2 hours of runtime.
CATEGORY: Inspection Tools & Lab Scopes
Circle 62 on card or click “PTEN e-inquiry” on VehicleServicePros.com
JohnDow Industries
Vehicle Fire Blanket
JohnDow Industries’ Vehicle Fire Blanket enables you to suppress electric, hybrid, and internal combustion engine vehicle fire flames and fumes. Lithiumion battery fires are very difficult to extinguish and traditional fire repellents do not work due to thermal runaway. When an EV experiences thermal runaway, the battery self-generates heat until it reaches its limit or experiences a catastrophic failure like a fire. This fire blanket is the most efficient way to isolate an EV fire. The fire blanket’s high temperature-resistant material prevents fire from spreading and damaging surrounding vehicles and property while minimizing potential combustion and the fire’s temperature.
CATEGORY: EV Tools & Equipment
Circle 65 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
Organize tools by size and style for easy identification. Secure regular, deep and semi-deep sockets all on one tray.
All trays are molded from rugged ABS plastic to shrug off grease, chemicals, and other debris, and come with a lifetime guarantee.
3 row trays available in ½”, 3/8” and ¼” drive.
2 row trays available in red, gray, orange and green.
Sledgehammer Safety Glasses, No. SOSG6
The Snap-on Sledgehammer Safety Glasses, No. SOSG6, were engineered with military-grade impact resistance. Each pair features customizable arm lengths, and a range of sizes ensures that the glasses maintain a comfortable fit that stays in place through heavy labor. The interchangeable UPCL lenses are prescription-capable and come with multiple tint options, including clear, yellow, smoke, and vermillion, depending on the intended work environment.
CATEGORY: Safety & Personal Gear
Circle 66 on card or click “PTEN e-inquiry” on VehicleServicePros.com
GEARWRENCH
Bolt Biter Wrench Inserts
The GEARWRENCH Bolt Biter Wrench Inserts are designed with features to grip roundedout, frozen, and damaged fasteners. The Bolt Biter design is bidirectional, seats quickly and safely on fasteners, and removes easily from fasteners after use. Offering the slimmest solution to removing damaged fasteners in tight and confined spaces, the Bolt Biter Wrench Inserts not only remove stuck fasteners using traditional wrenches technicians already have on hand, but also enable the reuse of specialty fasteners, saving users time to complete a job. The wrench inserts feature a magnet on the hex base to hold the insert in place on the wrench while removing or reusing fasteners.
CATEGORY: Tool Accessories
Circle 67 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
SAE and SAE/Metric Tape Measures
The Snap-on SAE and SAE/Metric Tape Measures use a strong side magnet instead of a clip, allowing it to easily fit in a pocket or attach to any ferrous surfaces. A non-metal, high-density injectionmolded enclosure reduces damage to surroundings while withstanding rugged use in the shop. It also includes an automatic locking brake mechanism, positive release button, tape rule printed on both sides, nylon-wrapped blades, and a low profile tang for vehicle measurements.
CATEGORY: Body Shop
Circle 68 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Milwaukee Tool M18 FUEL 1/2” High Torque Impact Wrench with Friction Ring
The Milwaukee Tool M18 FUEL 1/2” High Torque Impact Wrench with Friction Ring, No. 2967, measures 7.6” in length and weighs 5.9 lbs (bare tool). When equipped with a M18 Redlithium Forge XC6.0 battery, the tool delivers up to 1,600 ft-lbs of nut-busting torque and 1,200 ft-lbs of fastening torque. With all new materials and redesign from its previous generation, this compact impact wrench delivers the durability required in the shop, allows access in tight spaces, and offers increased ease of use. Additionally, a new integrated battery isolation system ensures a constant connection between the battery and tool when in use.
CATEGORY: Power Tools
Circle 69 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
WELDIGNREDRACE Wide View Welding Helmet
The WELDIGNREDRACE Wide View Welding Helmet from Snapon features a 180-degree viewing area with a fixed shade. Ten side lenses and a full outer protective shield create a wide field of vision. A fully integrated LED provides enhanced visibility with a 360-degree pivot and flip-out capability. The helmet features an external grind lockout button, an extra-large heavy duty auto-darkening lens with hyperview technology, a solar-powered ADF with lithium battery backup, patented lightweight quick-adjust comfort-fit headgear, and a compact shell design for tight work areas.
CATEGORY: Welding
Circle 71 on card or click “PTEN e-inquiry” on VehicleServicePros.com
NextLED
Multi-Function Color Matching/Flood UV Light, No. NT-1010UV
The NextLED Multi-Function Color Matching/Flood UV Light, No. NT-1010UV, is a professional auto detailing/worklight with four adjustable brightness levels up to 2,000 lm. It also offers four dynamic color options ranging from 2500k to 6500k and a CRI rating of 95, making it ideal for pre- and post-paint repairs. It boasts a 395 nm UV light, IP65 water resistance, and a high-performance rechargeable battery with a longer run-time. It can also be mounted to a tripod as a shop light. The light features a lightweight, sturdy construction that is ideal for auto-detailing, workshop lighting, auto repair, and HVAC inspections.
CATEGORY: Lighting
Circle 72 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Jump Starting Made Easy with
Whether it’s lithium or lead acid, shops and technicians know that when they reach for a JNC, it’s going to work. Our lithium units deliver exceptional power, supreme convenience, unsurpassed safety and long unit life.
- 550 Start Assist Amps (10L gas/diesel)
- Effective on totally dead (0.0V) batteries - UL2743-certified for safe operation
- Quick, efficient and easy recharging
- 40” cable reach
Autel
MaxiFlash XLink
The MaxiFlash XLink from Autel offers three primary functions. It can act as an enhanced vehicle communication interface when used with any MaxiSYS tablet, allowing users to communicate with and diagnose vehicles. It also functions as a J2534 Pass-Thru programmer that can be used with OE software subscriptions to flash and program system modules. Finally, the XLink can use Remote Expert and allow Remote Expert’s programmers and system experts to connect with a vehicle in need of service. It includes a one-year limited warranty.
CATEGORY: Diagnostic Equipment Circle 74 on card or click “PTEN e-inquiry” on VehicleServicePros.com
GEARWRENCH
MEGAMOD Master Mechanics Tool Sets
GEARWRENCH has five MEGAMOD Master Mechanics Tool Sets ranging from 614 to 1,268 pieces with multiple storage boxes and tools pre-nestled in foam storage trays. MEGAMOD tool sets offer a mix of high-performance tools in trays that fit into a top-quality storage box, says the company. This gives technicians the opportunity to organize their tools their way at an affordable price. The individual MEGAMOD sets offer tools from more than 15 different product categories, including GEARWRENCH products such as the Bolt Biter Extraction products, 90T ratchets, sockets, wrenches, screwdrivers, pliers, and a 120XP torque wrench.
CATEGORY: Shop Equipment
Circle 75 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The Cummins Engine V5 Software Release, No. EEHD843003, from Snap-on, makes it easier for technicians to manage regen, adjust speed parameters/idle adjustments, test emission systems, display historical records, perform AFT SCR performance testing, and diagnose rough-running engines. Users can change the minimum speed for regen, clean the diesel particulate filter system, monitor/rest the SCR system, and disable fuel injectors to troubleshoot misfires. The software supports pre-EPA 07-EPA 20 and natural gas engines ranging from 1994 to present, including B6.7, L9, X12/X15, ISB, ISC, ISL, ISM, ISX, N14, M11, and industrial off-road Q series engines.
CATEGORY: Heavy Duty Scan Tools
Circle 76 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FedPro Tub O’ Towels
Heavy Duty Cleaner and Degreaser Spray
The FedPro Tub O’ Towels Heavy Duty Cleaner and Degreaser Spray is designed to tackle tough grease and grime. This spray is ideal for use on surfaces such as automotive parts, glass, and more. Its formula combines the cleaning power of Tub O’ Towels Heavy Duty Cleaning wipes with the convenience of a spray. Additionally, the spray is alcohol-free and solvent-free, has a citrus scent, and is made in the USA.
CATEGORY: Chemicals
Circle 77 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The Snap-on 1/2” Drive 6-point 15/16” Particulate Matter
Sensor Socket, No. SWR5, allows technicians to access particulate matter/soot sensors found in 2018 to present Freightliner trucks equipped with Detroit Diesel engines. This off-set crowfoot wrench-designed socket provides users with the access and leverage needed to loosen and free sensors frozen in place with corrosion. It also features a clearance slot that allows service without cutting the sensor wire, saving technicians time and effort.
CATEGORY: Specialty Tools
Circle 79 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Hunter Engineering
AutoComp Elite Brake Lathe
The Hunter Engineering AutoComp Elite Brake Lathe with tablet now features HunterNet 2 portal connectivity. With the new connectivity and the optional DigiCal feature, shop owners and managers are able to view before and after cut results for rotors online, as well as before and after runout, plus monitor lathe usage counts and track equipment ROI. They can also order consumables 24/7 and access the online user manual. The easily accessible beforeand-after data is designed to provide valuable documentation for warranty purposes, as well as transparency for customers.
CATEGORY: Brake Service
Circle 81 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Associated Equipment
Battery Charger and Analyzer, No. 6021AGM
The Battery Charger and Analyzer, No. 6021AGM, from Associated Equipment is designed to provide 6V, 12V, and 24V charging capabilities for vehicle batteries including AGM and EFB. The charger also has a manual mode with the ability to adjust the time up to 180 minutes, safety features, as well as safe start and auto restart in the AGM setting. Additionally, the charger performs an automated load test and automatic surface charge removal and will notify the user if the battery is out of the parameters for conducting the load test.
CATEGORY: Battery Starting & Charging
Circle 80 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Snap-on
7” Talon Grip Long Nose Slip Joint Pliers, No. LN46ACF
The Snap-on 7” Talon Grip Long Nose Slip Joint Pliers, No. LN46ACF, provide 57 percent more pulling power and greater accessibility in tight workspaces. The three-position slip joint pliers allow the jaws to be parallel to the workpiece, increasing the surface area contact while providing the most ergonomic handle position, allowing technicians to apply and transfer greater force to their workpiece. The tip of the pliers’ jaws features unique notched slots specifically designed to aid in fuse removal while in the center position of the slip joint. These innovative updates to an often-used tool have quickly made the LN46ACF a tech favorite.
CATEGORY: Hand Tools
Circle 82 on card or click “PTEN e-inquiry” on VehicleServicePros.com
Professional Diagnostics
The next generation of scan tools with the most advanced OE level vehicle coverage supporting scanning, live data access and complete bi-directional functions.
ADAS Recalibration
A seamless, full-system solution that guides you from setup through calibration in half the time.
Heavy Duty Diagnostics
Heavy duty solutions to help you get the repair done right and the vehicle back in operation.
Test, Tune and Analyze
Test, analyze and diagnose your vehicle electrical and mechanical systems.
Visit us at AAPEX Booth #A4409 and Joe's Garage Bay #4
Tesla service, repair, and diagnostics
Stay up-to-date on how to maintain your customers’ Tesla vehicles.
By Scott Brown, Technical Editor
Although you may already provide service on Tesla’s, this article could reveal information you may not be completely aware of. Since Tesla’s fall into the “Software Defined Vehicle” (SDV) category, changes are continuously added to not only enhance the driver experience, correct for bugs and other issues, but are also rolling out changes to enhance the service technician’s experience as well. I now own two Tesla vehicles and over the past five-plus years I have witnessed many interesting changes that
have allowed for better diagnostics and a way for those interested in learning more about how these machines work to learn more through the highly informational graphics displayed on the center screen when in service mode, and the theory of operation data now made available within service information via subscription. A quick example of this is shown in Figure 1 displaying the live thermodynamic heat-pump data values on a Tesla Model Y.
In this article, you will find plenty of graphics, explanations, and several use cases that I believe you will find to be
highly informative. We will also cover how one can now access the vehicle remotely to triage and analyze vehicle problems before the vehicle arrives for service. I will also share an interesting case study where I was able to support a colleague, with a shop in Central California, in addressing a high-voltage battery problem on a 12-year-old Model S.
The role of automotive service technicians is evolving. With the advanced tools built into vehicles, such as those found on Teslas, you can experience the vehicles of the future today. The aftermarket service
Figure 1 – Tesla Service Mode heat pump visualization
Photo courtesy of Scott Brown
FASTER, EASIER BALL JOINT REPLACEMENT
7249
BALL JOINT SERVICE KIT
• R&I press fit parts including ball joints, U-joints, truck brake anchor pins
• Hundreds of available adapters to build your kit
• Strongest C-frame available for years of trusted use 6530
BALL JOINT PRO KIT
• Includes 20+ adapters for more jobs and vehicle applications
• Specially hardened C-frame and forcing screw for years of reliable service
CA7149
CONNECTED ADAPTER STARTER KIT
• 7 connected cups & adapters hold securely to C-frame and drive screw
• 235+ vehicle models covered, from Honda Accord to Ford F-350s
• Backwards compatible with all OTC ball joint kits and adapters
CA6630
CONNECTED ADAPTER PROFESSIONAL KIT
• 25 connected cups & adapters hold securely to C-frame, making R&I easier
• 600+ vehicle models covered, including compact cars up to HD trucks
• Fully illustrated manual with adapter callouts, diagrams and instructions by vehicle model
• Backwards compatible with all OTC ball joint kits and adapters
of Tesla vehicles poses unique challenges and opportunities, requiring a specialized understanding of Tesla’s proprietary systems such as Toolbox, Garage, Periscope, and service information. This article aims to provide professional automotive service technicians with a detailed overview of Tesla Service, highlighting recent access developments and how they can leverage Tesla’s service tools.
SERVICE MODE & SERVICE MODE PLUS
Going back about four to five years ago the aftermarket had no access to service mode or service mode plus unless you were a certified collision center. Today
anyone can engage service mode through a couple of key presses on the screen. When accessing the software page and long pressing on the model’s name of the vehicle for approximately five seconds, a password entry box should appear, and entering the word service will allow you to engage in service mode. A disclaimer screen will appear letting you know that you could get yourself in trouble if you don’t know what you are doing. So, you should be cautious until you are highly fluent with Tesla vehicles.
On this first page (Figure 2), the first thing that I recommend doing is looking at the service alerts. This
provides a list of alerts and warnings that may be useful when addressing vehicle problems or complaints. But beware, researching this information should be carried out before engaging in any level of diagnostics because I have seen several alerts and warnings for items that are known issues and that may be corrected sometime down the road through software updates.
Additionally, the alerts shown either on the in-car display or in Toolbox may have an additional payload of cracked data that might be useful to the service technician (Figure 3).
For example, APP_w303_imuIrational on my 2018 model 3 equipped with a hardware 3 car computer indicates that there is a rationality error between the accelerometer or IMU (Inertial Measurement Unit) located in the restraints control module and the IMU located inside of the car computer, a.k.a. Autopilot computer.
This is one example of a known issue that is supposed to be corrected with future software updates according to what Tesla shared with me during a service visit to address this alert. However, I have discovered something unusual on this vehicle that may be related to this IMU anomaly which I will share more about later in this article. There is another known false positive and that has to do with an indicated voltage drop. VCFRONT_a059_inputResistanceHigh. Reviewing service documents on the Tesla service information website can sometimes reveal these known issues and sometimes a Google search may reveal actual vehicle owner experiences and what Tesla service advised on such anomalies. Today’s technicians need to be highly resourceful and in doing so may save valuable time and effort. However, there are cases where you will not be able to look up certain fault codes unless you are using Tesla’s Toolbox 3.0 software where a lot of useful diagnostic information can be found.
Figure 2 – Service Mode - Alerts
Photo courtesy of Scott Brown
Figure 3 – Tesla Service Mode alerts and warnings Photo courtesy of Scott Brown
TESLA TOOLBOX 3.0 SOFTWARE
Tesla Toolbox is a diagnostic and repair software offered by Tesla to access additional service information within the vehicle and from within the online application. The software runs in a web browser (preferably Chrome) where the computer is connected to an Ethernet diagnostic port located under the dash near the drivers kick panel. Service information will provide settings that will need to be set up with your network connection on your laptop or computer and specific settings that the browser needs to have. Essentially, you’ll need to assign a specific IP address to your network interface card and turn off all the security-related settings within the browser. Some of the earlier cars require specific connectors however for 2022 and later cars, the standard RJ45 cable connection is all you need to connect.
p Figure 4 – Tesla Service Mode Plus
Photo courtesy of Scott Brown
When you connect the vehicle with Toolbox, the vehicle is automatically placed into Service Mode Plus. Service Mode Plus provides additional diagnostic access through the display screen found in the vehicle so let’s review a few of those differences.
HIGH VOLTAGE BATTERY PAGE
On this page, you will see more options to perform various routines such as discharging the battery, clearing contactor problems, and other operations (Figure 4).
Additionally, there are a couple of relearns for the calculated ampere-hour charge and state of charge levels. You’ll need to review service information and obtain additional training to understand why one would need to execute these changes. And later in this article, I will share a case study where we performed these operations and were able to successfully enable a vehicle that had learned incorrect cell balancing values.
Here’s a note about resetting the high voltage battery management system calculated ampere-hour capacity.
“Resetting the calculated amperehour capacity may cause the vehicle to prematurely enter graceful poweroff mode at a displayed percentage or mileage above zero. It is important to inform the customer not to drive the vehicle below the 20 percent displayed range for the next eight weeks following a calculated ampere-hour capacity reset. This routine resets all the high voltage battery brick calculated amp hour capacities to the nominal/default values. During normal operation, the high voltage battery management system calculates brick-calculated amp hour capacities over multiple charge/discharge cycles. In the event of a large, accumulated error, this routine can reset the calculated amp-hour capacities based solely on the nominal/default brick calculated ampere-hour capacity values to improve the high voltage battery management system full pack energy prediction.”
On the low voltage page, you will have access to a CAN bus diagnostic panel which is not available in regular service mode. As you can see in the attached image, this gives you a visual representation of three of the main can busses on the vehicle and the various module
states (Figure 5). If one of the modules has a problem, it will be indicated on the screen. However please be aware that you need to make sure that various drive rails (power supplies) are enabled so that these modules can talk. These visuals indeed can be extremely helpful when
The only time people notice an air compressor is when it’s not working. That’s why Jenny has basically gone unnoticed since 1927. It’s the hazard of offering the most reliable compressors on the market, but we wouldn’t have it any other way…nor would our customers.
›› Isn’t it time a Jenny was hiding in your shop?
tasked with communication problems. If you’d like to learn more about entering service mode and some of the ins and outs, here’s a link to a video I live-streamed in early 2024 that walks through Service Mode: youtu.be/nRW 7evDC7O0?si=YkXfyf08vpthoiwi
TESLA GARAGE
Tesla Garage (Figure 6) is accessible from within your active Toolbox subscription and provides you with a way to remotely connect to a vehicle and retrieve more information about the
vehicle. This can be extremely helpful in not only looking at current vehicle data but can offer up a look at high-resolution data from the past.
To obtain connection permission, you’ll need to use the Owner Authorization Request function. After making a Garage connection, then it would be wise to go into the CAN Explorer (Periscope) and request data logs from the past when the client was reporting vehicle symptoms. Once you do this, then when you are researching vehicle problems and viewing articles,
it is possible that you might be presented with a notice like what is shown in Figure 7
If you select the “View Plots” link, you’ll automatically load up Periscope which is Tesla’s data viewer allowing service personnel to research vehicle problems. Tesla Periscope is a newer addition to the Toolbox suite of service tools, and it’s a powerful tool as you’ll see demonstrated later in this article.
SANDBOX
When searching through articles you’ll see a small + sign next to the article title. Clicking on it will load the article into the “Sandbox” where one can leverage a feature that will show causal relationships. The articles will be linked if related and displayed in a way that shows the items the vehicle is aware of on the left side of the page and potential solutions listed on the right side of the page (Figure 8).
MAINTENANCE SERVICES
Tesla and other BEV’s will require maintenance. Here is a list of services we carry out in our facility.
• Alignment and tires – Tires for EVs have more demand due to vehicle weight and torque. Tires should be rotated every 5-6,000 miles. Wheel alignment checks can be done via software within service mode, but I have found many of these vehicles leaving the factory with wheel alignments that are not set up for optimum tire life.
• HVAC – The A/C system is an integral part of the EV systems and on pretty much all EVs. Therefore there are maintenance and inspections that should be performed on Teslas. Every five years Tesla states that the desiccant bag shall be replaced (Figure 9) which of course will require an evacuation and recharge of the system. Be sure to check service information for the appropriate tools and equipment needed to remove and install the
p Figure 5 – Tesla Service Mode Plus CAN Diag
Photo courtesy of Scott Brown
p Figure 6 – Tesla Toolbox – Garage remote connection
Photo courtesy of Scott Brown
desiccant bag and filter. This is also a suitable time to make sure that there is the proper amount of oil within the system which can be checked using an appropriately prepared sight glass as shown in Figure 10.
• Brake Systems – The brakes rarely get used on an EV that is driven in a manner that is most efficient, but the braking system still must be able to stop the vehicle. Periodic inspections of the brake pads and rotors should be performed. Additionally, periodic maintenance on the brake caliper sliders along with brake fluid replacement should be performed as well. Check service information for more info.
• General inspections – Teslas use a lot of aero close-out panels which should be removed periodically for proper inspections. Looking for any anomalies such as hose or harness routing, evidence of critter exploration, drivetrain mounts, and heat exchanger airflow problems that can occur from the accumulation of debris between the condenser and radiators. Additionally, since BEVs weigh 20-30 percent more than their ICE counterparts, suspension wear and tear will likely present many service opportunities.
CASE STUDY – MODEL S BATTERY ISSUE
I received a text from a colleague about a 2012 Model S with 174k that arrived at his shop with a client complaint of a warning message on the display stating that there was a problem with the HV battery and the fact that the client was unable to charge the battery above 30 percent. After gaining authorization from the client to remote into the vehicle, we retrieved an Urgent Alert BMS_ u018_SOC. Looking this up in Tesla Toolbox I came across Article 7763300 which had the following statements: “In certain scenarios, a customervisible High Voltage (HV) battery State
of Charge (SOC) imbalance alert sets due to a condition unrelated to the HV batterybricks.
In these situations, it is prudent not to simply replace the HV battery pack without further diagnosis to confirm an SOC imbalance exists: in some cases, simply updating the vehicle firmware or running an Onboard Diagnostic Interface (ODIN) routine might resolve the issue.”
The document listed several steps to follow which we did and were able to get the vehicle to charge well past 80 percent. The cell balancing deltas went from approximately 422mv to 40mv over the course of a few days of discharging and recharging the battery after performing the resets outlined in the service docu-
ment. Here are the data valves we collected near the end of one of the final charge cycles:
• Voltage: 385.3 V
• Battery Min Temp: 27 °C
• Max Temp: 28 °C
• Min Brick V: 4 V
• Max Brick V: 4 V
• SOC Min Unscaled: 81.8 percent
• Max Unscaled: 86.2 percent
• CAC Min: 239 Ah
• CAC Max: 239 Ah
• CAC Average: 239 Ah
Looking back at the data logs from the vehicle during our discharge > recharge routines, I was able to observe the cell min and max values and their progression over time (Figure 11). This vehicle was recently purchased through a used
Figure 7 – Tesla Toolbox - Article linking to data log
Photo courtesy of Scott Brown
Figure 8 – Tesla Toolbox - Sandbox Photo courtesy of Scott Brown
car dealer and with no service history and over 174k miles on the clock it might need a new traction battery in the future, but for now the client is getting effective use out of the vehicle. The shop will continue working with the client so we can monitor battery performance.
CMS-120 COOLANT MAINTENANCE SYSTEM
Removes & fills coolant quickly & safely
• Single 20-gallon tank
• Push/pull technology enables fast service times
• Drain & fill 14-gallon system in under 25 minutes
• Operates on shop air
OMS-120PV OIL MAINTENANCE SYSTEM
Efficiently and quickly drains oil
• Single 20-gallon tank with fluid level sight tube
• Easy mobility cart with heavy duty 8” casters
• Easy to use — no 120V or 12V power required
• Operates on shop air
• Easily connects to oil drain quick connect drain plugs
CASE STUDY – MODEL 3 –INERTIAL MEASUREMENT UNIT
Although the following issue has yet to be resolved, I strongly believe that this scenario will provide technicians with insight into what Tesla has to offer regarding diagnostics.
The vehicle is a 2018 Model 3 with approximately 80,000 miles. This vehicle is equipped with the FSD (Full Self Drive) car computer hardware version 3.0 which is Tesla’s first internally developed hardware to support their self-driving efforts. My vehicle did not come equipped with this module, but Tesla made a retrofit option available back around 2021, so I opted into it. I have been studying the full self-drive capabilities and can attest that I have
p Figure 9 – Desiccant bag
Photo courtesy of Scott Brown
p Figure 10 – A/C system sight glass
Photo courtesy of Scott Brown
seen a remarkable evolution in vehicle capabilities taking place.
About a year or so ago I started noticing some strange vehicle behavior especially when the vehicle was operating in self-drive. I was interested in seeing if there was any vehicle data that could help explain what was happening. I also began seeing a recurring warning titled APP_w303_imuIrational. Now when you look at these alerts and warnings in the Toolbox Periscope application, the alerts and warnings will typically carry a payload of data that can be analyzed, but beware, the alerts and warnings are triggered by the clear event and not at the time the fault was triggered
When researching the article covering this issue, the warning is explained as follows:
“The Autopilot electronic control unit (ECU) internal inertial measure-
ment unit (IMU) is irrational compared to the IMU from the Electronic Stability Program (ESP) or Restraint Control Module (RCM). This may occur due to an internal condition affecting the Autopilot board or may set temporarily due to aggressive driving (high lateral and longitudinal acceleration).”
The IMU data from the Autopilot computer cannot be monitored through any of the methods I have but I can see that the restraints control module IMU appears to deliver normal data. The fault clears when the cabin temp drops to around 17 degrees Celsius on my drive home from work (Figure 12) I only recently associated the temperature relationship due to the next
Diagnostic Problems?
Diagnostic Problems?
194 Super Relay Buddy®
• Full 7 Amp load during the test
• Relay voltage drop monitored
• Ten second test!
• Test results displayed as red, green or yellow for caution
• Tests 7 different 12 volt relays
• Improved & more effective test finds intermittently bad relays
Call 800-227-1603 for more info - www.esitest.com
• 10 second test - this is THE quickest way to test relays
• Pro Test Kit includes adapters for expanded test coverage10 different 12V relays
p Figure 11 – Periscope historic BMS data
Photo courtesy of Scott Brown
scenario I began to unfold starting this summer. The data demonstrates that the alarm begins going off each day around noon when the ambient temperature rises to approximately 34 degrees Celsius (Figure 13). Reviewing alert data I found VCSEC_a133_alarmTriggered and loading this up in Periscope I can see that the UI (User Interface) was the requester for the alarm which doesn’t give me a whole lot to go on (Figure 14). As I began to dig further, I decided to
have a look at the Sentry video recordings stored in the user-accessible USB drive associated with these events. I believe I found additional evidence pointing back to the autopilot’s IMU as being the potential cause. When you look at the folders created for these sentry events, you’ll find a JSON file that has metadata containing the timestamp, location, reason, and which camera detected the condition. In this first example, the sentry_panic_accel value appears to indicate .9 g’s of lon-
So, to close this out for now, I believe that the IMU on the autopilot board is the cause of this anomaly. Soon I plan to work towards a resolution and to share this journey in full when able. If you have any insight you’d like to share, please do. I hope you found this article helpful and informative and if you’d like to see more Tesla coverage, please let us know as there is a lot more we can discuss. If you have any questions or comments, please leave them here or feel free to reach out
SCOTT BROWN is an ASE Master Certified L1 Technician with over 37 years of service industry experience. He is an independent shop owner in California and is engaged at various levels within the industry. He has a deep understanding of the challenges technicians experience at the service level and is continuously striving to move the industry forward through education and networking. Brown found Diagnostic Network (diag. net) after 22 years of service at iATN, where he retired as company president in 2018. SBrown@VehicleServicePros.com
Photo courtesy of Scott Brown
Photo courtesy of Scott Brown
Diagnosing an engine misfire
Recognizing a misfire is the easy part; the challenge is determining its cause.
By Roy Ripple, Contributing Editor
An engine misfire is one of the few driveability concerns we can identify immediately during the road test. Recognizing that a misfire exists is the easy part; the challenge is determining its cause.
When diagnosing a misfire, it makes sense to test the easiest, less invasive causes first, and the first step of all diagnostics is the visual inspection.
Once you’ve determined which cylinder is misfiring, look around under the hood for an observable cause. Check con-
nections at the ignition coil and the fuel injector. Look for a harness that might have been chewed through by a critter. Remove the coil and check for a damaged or liquid-soaked boot. Remove the spark plug. If the plug is blown apart or covered with carbon, you’ve found the problem
p Figure 1 shows the tester attached to coil No. 2 and the ground wire attached to a good engine ground.
Photo courtesy of Roy Dennis Ripple
• LISLE COIL-ON-PLUG SPARK TESTER, NO. 20700
• BLUE POINT NOID LIGHT, NO. FID 8837
• 1157 BRAKE LIGHT BULBS
• STEELMAN ENGINEEAR II ELECTRONIC STETHOSCOPE
• MITYVAC MV5532 DIGITAL COMPRESSION TESTER
• OTC CYLINDER LEAKAGE TESTER, NO. 5609
• BLUE POINT COMBUSTION LEAK TESTER, NO.
and saved yourself a lot of diagnostic time. If you’re not that lucky, check for spark.
TESTING FOR SPARK
I use a Lisle Coil-On-Plug Spark Tester, No. 20700. It’s simple to use and presents a good visual of the spark. The tester has easy-to-read gap measurements of 0 to 40KV, and the spark gap is adjustable. Figure 1 shows the tester attached to coil No. 2 and the ground wire attached to a good engine ground. You can easily see the spark jumping across the air gap in Figure 2 . Having a good spark at the coil does not mean the spark is making it to the tip of the spark plug. Inspect for carbon tracks along the inside of the coil boot that might have transferred to the spark plug. The spark will follow a carbon track along the side of the spark plug straight to ground, never reaching the central electrode.
Check for power and ground at the coil if you have no spark. For two wire coils, one wire is hot with the ignition on or with the engine cranking, and the other blinks a ground generated by the powertrain control module (PCM). I use a Blue Point Noid Light, No. FID8837, to check the coil harness. You should get a bright blinking light with the noid light connected to the coil harness and the engine cranking.
Three wire coils have a third wire that is a full-time ground. This ground is attached to the engine block and should be loadtested. I use two 1157 brake light bulbs to load test ground circuits. If we have a good spark, we check for fuel.
LISTEN TO THE FUEL INJECTOR
Listening is the best way to determine if a fuel injector is working. I use a Steelman EngineEar II Electronic Stethoscope to listen to the fuel injector while the engine is running. The tool features a decibel meter with seven sound level control set-
BATTERY SERVICE INNOVATION
tings ranging from 60 to 120 decibels. A pair of over-the-ear headphones are included to help block out background noises when scanning.
As you can see in Figure 3, the meter shows 2 decibels at the injector. Compare the sound of the injector to a known good. Mechanically defective fuel injectors tend to rattle rather than click. If the injector is silent, it’s not working, so use the noid light to verify power and ground at the injector.
IT COULD BE AN ENGINE CONCERN
Most misfires caused by a base engine concern will create a low compression condition in the failing cylinder. It’s essential to use a good compression gauge that you can count on to display and hold compression readings accurately. A leaky gauge can ruin your day. Our diagnosis is only as good as the equipment we use. I use the Mityvac MV5532 Digital Compression Tester. The gauge offers a digital readout with a maximum compression indicator. Compression values can be stored for up to 12 cylinders, and the tool comes with all the hoses and adapters you should need. Figure 4 reveals that cylinder No. 2 only has 34 psi compression and the maximum compression indicator on the lower right of the readout shows that this is the highest compression recorded in this cylinder. A leaking valve or leaking compression rings are the most likely cause of compression loss in a cylinder.
A cylinder leakdown tester will determine the percentage of air escaping the cylinder, and your ears will determine where
p Figure 2 – You can easily see the spark jumping across the air gap. Photo courtesy of Roy Dennis Ripple
it’s going. I use an OTC Cylinder Leakage Tester, No. 5609. Figure 5 shows the leakdown tester hooked up to cylinder #2. The left gauge shows that 100 psi air pressure is being pumped into the cylinder, yet the cylinder is only holding 15 psi per the right side gauge. This indicates 85 percent leakage in that cylinder. The air can easily be heard escaping from the exhaust.
SKIP THE WET TEST
I’m sure some of you use the wet test to determine whether a valve or a piston ring is causing the compression loss. This test is performed by taking a mechanical compression test after squirting oil into the cylinder. The premise is that oil will seal a leaking ring and won’t seal a burnt valve. I’ve never liked this test, and I don’t use it. More than once, I’ve seen oil seal a leaky valve, resulting in an incorrect diagnosis. Cylinder leakdown is the only sure way to diagnose a compression loss. An intake valve not opening will also cause low compression, simply because there is nothing being pulled into the cylinder to compress. Also, be sure that the cylinder walls aren’t washed down with fuel due to a faulty injector before condemning the base engine. Gasolinesoaked compression rings will stop sealing, causing low compression.
DON’T FORGET THE COOLING SYSTEM
Coolant entering the cylinder is a base engine concern that will cause a misfire without always affecting compression. This is especially true for misfires during initial startup after a short soak. Coolant will seep into the cylinder when the engine is off, usually through a failed head gasket or a cracked head. A cooling system combustion leak tester uses liquid bromothymol to detect CO2 in the cooling system. The testing fluid starts out dark blue and changes color when it absorbs CO2. In a case of extreme contamination, the liquid will turn yellow when testing a gasoline engine. The liquid
p Figure 4 reveals cylinder No. 2 only has 34 psi compression and the maximum compression indicator on the lower right of the readout shows that this is the highest compression recorded in this cylinder.
Photo courtesy of Roy Dennis Ripple
p Figure 3 – The meter shows 2 decibels at the injector.
Photo courtesy of Roy Dennis Ripple
EXPLORE THOUSANDS OF NEW PRODUCTS AND INNOVATIONS FROM2,000+EXHIBITORS!
TransTech™ IV+
Inline & Dipstick Automatic Transmission Fluid Exchange System
The TransTech IV+ combines both Inline and Dipstick capabilities, allowing for the two most common methods of ATF exchange from a single machine.
500-1125B
CoolantClean™ III
Premium Coolant Exchange System
The CoolantClean™ III exchanges virtually all the used coolant mixture in a vehicle’s system in as quickly as 15 minutes.
500-5100PD
WWW.CPSPRODUCTS.COM
will turn green or even a lighter shade of blue when only small amounts of CO2 are detected. I use the Blue Point Combustion Leak Tester, No. GDCT16. Figure 6 shows the results when the tester detects CO2 gases in the cooling system. Be sure that the cooling system is at operating temperature when testing. Dual-chamber testers are more accurate than single-chamber testers because the first chamber serves as a filter to absorb any alkaline particles that could induce a false reading. If the second chamber changes color, it sees combustion gases.
TRUST YOUR EQUIPMENT
Like most things we do, a misfire diagnosis is only as good as the equipment we use. The confidence of knowing that the input you receive from your diagnostic tools is accurate is more than worth the extra time and money.
ROY
DENNIS RIPPLE is a Ford Senior Master Technician and an ASE Master Technician with more than 30 years' experience in the automotive industry. As an automotive journalist, he is the recipient of a 2020 Azbees Award and a 2020 Tabbies Award. Ripple is currently working full-time as the shop foreman at a Ford dealership. He lives in New Jersey with his wife, three dogs, and two motorcycles. He can be reached at ripkrypton@gmail.com
Figure 6 shows the results when the tester detects CO2 gases in the cooling system.
Photo courtesy of Roy Dennis Ripplea
Figure 5 shows the leakdown tester hooked up to cylinder No. 2. Photo courtesy of Roy Dennis Ripple
INNOVATION AWA RDS
Oasis Scientific Vividia CX-4010i Borescope
Q&A with Zach Egan, marketing manager at Oasis Scientific.
Q: What makes this product innovative?
A: What makes this product innovative is a combination of different things. One thing is the fact that it is a 4mm diameter scope, meaning it’s pretty thin. It's compatible with iPhone, iPad, and Android. You can throw your phone on the removable mount that’s included with it. It takes the barrier to entry down for borescopes, which is helpful for startup technicians. Instead of having to pay a lot for an expensive monitor, you can use the device you have in your pocket. The biggest feature is the joystick articulation. You can get specific angles with the joystick control, which technicians love.
Q: What was the inspiration behind creating this product?
A: The inspiration behind it is that we’ve been working on borescopes as a company pretty much since our inception and just improving them year after year. We saw with the evolving technology, we were like, “Now we’re able to do compatibility with phones.” Our joystick ones are very popular and we had a bunch of pieces of the puzzle that worked together well. We thought they’d come together to create a really good inspection tool, which they clearly have.
Q: How will this product improve the lives of technicians and shop owners?
A: The general concept of a borescope is really awesome because you’re able to take a camera and put it in any place you have to inspect without having to tear down a whole vehicle. That revolutionizes life for shop owners because that's labor hours that they’d have to be putting in. It might be a complete waste. Being able to just get right inside somewhere and see problems without having to do a full tear-down is really just revolutionary for shop owners.
Q: What has the feedback from technicians been like so far?
A: The feedback has been super awesome. The only complaints we ever really get is when people are way too aggressive with them. Besides that, people kind of just tell us, “You helped us find problems that we never would have known about.” We’ve also heard that the camera quality is better
than one you may get on Amazon. A quality product at an affordable price is what we hear.
Q: Is there anything else about the CX-4010i our readers should know?
A: You can choose to use a borescope or you can choose not to use a borescope. It’s one of those things where it’s going to be a preventative measure. I highly recommend if you’re a shop owner, you have one of these around because there are so many stories we’ve heard about, I know there was one gentleman in the aviation industry who was about to buy a plane and he used his borescope to inspect inside the plane. He found issues that would have basically lost all of his money immediately and could have put him in grave danger. It’s one of those things where you may think, “Oh, I’ll hold off, I don’t really need it.” The preventative measures that it provides are so powerful. I recommend all shop owners have one.
PTEN is the only publication to feature the prestigious “Innovation Awards”. Every year since 1999, the Innovation Awards highlight the newest and most innovative products introduced to the automotive aftermarket. For 2024, PTEN received over 100 submitted product entries in 25 categories. We will be featuring the top scoring products in monthly Innovation Award Profiles. To view a full list of winners online, visit: VehicleServicePros.com/2024IAWinners.
The Innovation Awards honor companies that take their products to another level and offer unique features that make a technician’s job easier. If you would like to submit a product to be considered for the 2025 Innovation Awards, entries will be accepted starting in November 2024.
Reviewed by Eric Moore, manager at DeMary Truck in Columbus, Ohio.
Q: How did the tool function as far as saving you time?
A: This one worked well for us. We liked that it was long enough for leverage and being able to just flip it over for the reverse direction made it simple when
PRODUCT DESCRIPTION
The Ascot Supply 3/4” Drive 600 ft-lb Split Beam Torque Wrench, No. 168-00600, has an accuracy of +/- 4 percent and features a noncoil spring mechanism. Its toothed hinge cover contains a lock function, which can prevent the setting from being changed accidentally. It features a knob-type torque that allows for a faster and more efficient adjustment and a cushioned handle that provides comfort and oil resistance. The wrench is equipped with a loud click sound when the required torque is reached and is packaged in a durable blow-molded case. Circle 97 on card or click “PTEN e-inquiry” on VehicleServicePros.com
checking for proper torque application.
Q: Was there a manual included? If so, did you use the manual, and was the manual easy to understand?
A: There is a simple care and use manual, and I read it. It also came with a torque certification.
Q: What kind of setup was involved before using the product?
A: None, simply remove it from the blow-molded case.
Q: How does this tool compare to other tools you've used like it?
A: The only difference I saw was the push-through drive adapter, otherwise, it’s a clicker-style torque wrench.
Q: What types of jobs/repairs did you use this tool for?
A: Mostly torquing lug nuts on our fleet vehicles, but we did use it for setting preload on a hub bearing, and the quick reverse feature made it super quick to check that we had the proper preload set.
Q: How easy was it to use?
A: We found it very easy to use, it has a dial setting with a spring-loaded cover.
Q: What features did you like?
A: We liked that the drive adapter pushes through the head to reverse the direction of the application.
Q: On a scale of 1 to 10, how would you rate this tool overall? Why?
A: If you use a 3/4 drive torque wrench, this is a pretty solid choice. I would rate it pretty highly at a nine.
ERIC MOORE began his career working on cars at several franchise dealerships. Initially, he leaned towards smaller vehicles, settling into Powersports vehicles, where he stayed for over 20 years. Then, Moore went the total opposite direction, landing at a medium and heavy duty truck dealership. Eventually, he moved into management and has performed most roles at the dealership level except for owning his own franchise. Currently, he is a manager at DeMary Truck in Columbus, Ohio.
Coast XP40R Rechargeable Dual Power Flashlight
Reviewed by Mario Rojas,
shop foreman at Autobahn Performance in Ft. Lauderdale, Florida.
Q: How did the tool function as far as saving you time?
A: It’s a flashlight, a reliable one as far as I can tell, which, in the grand scheme of things, is a time saver in itself.
Q: How was its packaging? Did it come with any accessories?
A: It comes in a clamshell plastic packaging with clear descriptions of its functions and specifications. It also arrived with a charging cable. There was a
PRODUCT DESCRIPTION
The Coast XP40R Rechargeable Dual Power Flashlight features five modes: medium, high, low, Turbo, and MoonGlow. It has a max beam length of 754 feet and a maximum output of 8,000 lm. It includes a real-time display screen that shows what mode the light is in and how much runtime is left in the battery. It can double as a power bank to recharge other devices via its USB-C port. The XP40R is rated IP54 dustresistant and water-resistant and comes with a lifetime warranty.
Circle 98 on card or click “PTEN e-inquiry” on VehicleServicePros.com
manual included, and the instructions were clearly and competently written.
Q: How has using this tool impacted your shop’s profitability?
A: By cutting down time, but I wouldn’t exactly say that this tool has skyrocketed our shop’s profitability.
Q: What kind of setup was involved before using the product?
A: Nothing more than plugging it in to charge before the first use.
Q: How easy was it to use?
A: It’s very intuitive, as all flashlights should be, and yet somehow, certain companies complicate the flashlight. That is not the case with this one.
Q: What types of jobs/repairs did you use this tool for?
A: I used this flashlight particularly with smoke testing intake systems, in turbo mode, on a 2015 BMW X5M.
Q: What features did you like? Is there any way you could think to improve or add to this tool?
A: I like that it doubles as a power bank in a pinch. It comes with a telescopic zoom head. It’s also well-built. I do not
foresee a failure in the near future. A wall-mounted or tabletop docking station would be cool to see.
Q: How does this tool compare to other tools you’ve used like it?
A: I have used other models of this brand, but not the predecessor of this particular model.
Q: On a scale of 1 to 10, how would you rate this tool overall? Why?
A: I give it an eight. A quick charging solution like a docking station would be nice. I am also a fan of a warmer light temperature, but that is a personal preference coming from a flashlight addict. It works and has not let me down thus far. I’m satisfied with this flashlight.
MARIO ROJAS is an L1 ASE Master certified Diagnostic Technician from Miami, Florida. He began working on cars as a way to supplement his income until finally stepping into the industry full-time in 2013. He’s now working at Autobahn Performance, which specializes in European vehicles. Rojas also shares some of his work on his YouTube channel, Super Mario Diagnostics, in the hopes that his audience will appreciate what it takes to troubleshoot and repair the modern automobile, and to steer everyone into continued training.
Mac Tools
14-pc 3/8” Deep Metric R.B.R.T. Socket Set
Reviewed by Brian Noel, Automotive Mechanics Technology professor at Cosumnes River College.
Q: How did the tool function as far as saving you time?
A: For ordinary fasteners in good condition, the socket set will work like any other high-quality socket. For fasteners that are questionable or damaged, these sockets have the ability to remove the
PRODUCT DESCRIPTION
The Mac Tools 14-pc 3/8” Deep Metric R.B.R.T. Socket Set, No. SXDM146RBRT, is designed to be used on new and damaged fasteners. This set is made to grip and turn an 80 percent rounded bolt, with up to 61 percent more torque than existing Mac Tools torque sockets. Each socket has a polished finish for corrosion resistance. Sizes include: 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, and 19mm. Circle 99 on card or click “PTEN e-inquiry” on VehicleServicePros.com
fastener without having to switch to an extractor-style socket or rely on another method to remove the damaged fastener.
Q: How was its packaging? Did it come with any accessories?
A: The set came packaged in a full-color cardboard box, and the sockets were mounted to a high-quality metal rail with plastic inserts.
Q: Is there any way you could think to improve or add to this tool?
A: The only real improvement that I can think of would be to include high-visibility color markings to make it quicker and easier to identify the socket size.
Q: What types of jobs/repairs did you use this tool for?
A: I used these sockets in place of typical 3/8” drive metric deep sockets for various disassembly and reassembly procedures such as brake jobs, alternator replacements, etc. These work equivalent to other high-quality sockets. I also used them on fasteners that
were slightly rounded, damaged from rust, etc. They had no issues removing damaged fasteners that were unable to be removed by a traditional socket.
Q: What features did you like?
A: The sockets have the functionality of a typical high-quality socket but with the added bonus of acting as an extractor-style socket.
Q: How does this tool compare to other tools you’ve used like it?
A: I’ve used many different sockets and extractor-style sockets, but this is the first socket design I’ve utilized that has effectively combined these approaches.
Q: On a scale of 1 to 10, how would you rate this tool overall? Why?
A: Nine—These sockets have the ability to effectively replace a typical highquality socket set, as well as a set of corresponding extractor-style sockets.
BRIAN NOEL is a full-time Automotive Mechanics Technology Professor at Cosumnes River College in Sacramento, CA. He teaches the Ford ASSET program and a variety of automotive courses. Noel is a Ford Senior Master Technician, ASE Master Automobile Technician, ASE Advanced Level Specialist, and CA BAR certified SMOG inspector, and repair technician. He also holds a Bachelor of Science degree in Career and Technical Studies from California State University, Sacramento, and is working towards a master’s degree in Educational Technology from California State University, Sacramento.
Work IQ Tools IQ Vise
Reviewed by Eric Moore, manager
at DeMary Truck in Columbus, Ohio.
Q: How did the tool/equipment function as far as saving you time?
A: I’ve been using the Work IQ Tools IQ Vise for almost a month now. I’m impressed with the versatility that Work IQ Tools built in with the interchangeable jaw inserts for specific tasks and with the optional accessories. I believe that the vise could save time for certain projects where using a typical bench vise would require being creative.
Q: How was its packaging? Did it come with any accessories?
A: All items came packaged in cardboard boxes with clear plastic windows to view the products. The vise came with multi-purpose jaw inserts, a set of multi-purpose inserts, woodworking inserts, pipe inserts, leather inserts for soft items, and an accessory kit that includes three flexible arms. There is
PRODUCT DESCRIPTION
The IQ Vise from Work IQ Tools features a ball and socket design that allows articulation and 360-degree rotation at any angle. It includes a Quick Cam compression lever in the front that gives the vise more functionality by allowing it to lay flat, lock at any angle, or rotate for optimal work positioning. The eight-position IQ Lok locks the ball in place and allows up to 130 ft-lbs of torque. Additionally, five different IQ Vise Jaws allow users to tailor the vise’s grip for the project at hand. Circle 100 on card or click “PTEN e-inquiry” on VehicleServicePros.com
one of each insert that holds an included flashlight, a 6” magnifying lens, and a spring-loaded X-style cell phone holder. Personally, I could use another of the magnetic bases so I can use the light and the cell phone holder at the same time.
Q: Was there a manual included? If so, did you use the manual, and was the manual easy to understand?
A: There are instructions included with pictures.
Q: What features did you like?
A: The interchangeable sleeves and multiple-angle lockable positioning make this pretty great to use compared to the old standard bench/pipe vise, which still has plenty of uses in the shop, especially for heavier jobs.
Q: Is there any way you could think to improve or add to this tool?
A: If I had to recommend any improvements, I would say a brighter flashlight or maybe a spring clip-style holder that would accept other lights. A heavy duty offering would do well in my opinion.
Q: What types of jobs/repairs did you use this tool for?
A: I used the IQ Vise for some oddfitting projects with great success. I used the multi-purpose inserts to hold the string trimmer while I rewound the head with string, it was much easier than trying to hold it between my knees. I took the opportunity to use the vise with the multi-purpose jaws and sharpened the lawnmower blade. Unfortunately, I haven’t found
a chance to use the woodworking or leather inserts yet.
Q: How does this tool compare to other tools you’ve used like it?
A: The interchangeable sleeves and multiple-angle lockable positioning make this pretty great to use compared to the old standard bench/pipe vise, especially for heavier jobs.
Q: On a scale of 1 to 10, how would you rate this tool overall? Why?
A: Overall I’d say this is a solid nine out of 10, no complaints.
ERIC MOORE began his career working on cars at several franchise dealerships. Initially, he leaned towards smaller vehicles, settling into Powersports vehicles, where he stayed for over 20 years. Then, Moore went the total opposite direction, landing at a medium and heavy duty truck dealership. Eventually, he moved into management and has performed most roles at the dealership level except for owning his own franchise. Currently, he is a manager at DeMary Truck in Columbus, Ohio.
SHOP EQUIPMENT & STORAGE
Tool storage is an essential part of any automotive shop. Understandably, you want to keep your tools organized and within reach so you can go about your job without any hiccups. The same goes for shop equipment, from fans and lighting to compressors and tool carts, this equipment helps you work smarter, not harder.
CHARGES CORDLESS POWER TOOLS, BATTERIES, AND OTHER DEVICES
The Homak Manufacturing 44” RS PRO 9-Drawer Power Cart , No. WH06044090, has a convenient power tool drawer with a built-in power strip that stores and charges cordless power tools. The top till includes an additional power strip for charging batteries and other devices. Four 5x2 casters and a comfortable grip push handle allow for easy maneuverability. The nine drawers are outfitted with 3mm PVC foam liners, and a lift and release drawer latch system keeps drawers secure during movement. The power cart is constructed from high-quality 18-gauge steel and built to last a lifetime. Circle 101 on card or click “PTEN e-inquiry” on VehicleServicePros.com
REMOVABLE TOP TRAY AND LID
The Gray Tools Mobile Tool Chest with Drawers , No. 941004, is made of sturdy injection-molded copolymer polypropylene, making it both durable and lightweight. With two side handles, a telescoping rear handle, and self-oiling wheels, it’s easy to move around the shop. A pivoting wheelset can be added for even greater mobility. The tool chest’s versatile design includes a removable top tray, lid, and front cover. The main compartment can be secured with a central lock, and there are multiple padlock points for added security. The drawers can be rearranged to fit users’ personal preferences, and there is an easy-to-use self-restraint feature that prevents them from accidentally falling out. The chest can also be stacked for easy storage.
Circle 102 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES A SPRINGLOADED HANDLE
The 10-Ton Air Hydraulic Service Jack, No. HDJ10P, from OTC Tools features air-assist operation to quickly and safely handle lifting tasks. With rugged steel frame members, and a spring-loaded handle that locks in three positions, this jack can used for heavy duty lifting jobs. A foot pedal quickly positions the saddle to the lift point. The jack has a cycle-tested design for a long life.
Circle 104 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES LOCKING AND NON-LOCKING CASTERS
The Matco Tools 4-Drawer Rat Fink ‘24 Service Cart , No. MSC4RFK24, features a unique Rat Fink design from artist Ed Roth. This tool cart is prepped for Matco power cord assembly, and designed to provide seamless integration for the user’s tools. With four 6” x2” casters— two locking and two non-locking—users can maneuver the cart wherever needed. The two gas pistons allow the lid to automatically open and stay upright when unlocked, offering convenience and accessibility.
Circle 103 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES EV-INSULATED PLATFORMS
The Tuxedo Distributors iDEAL EV/Hybrid Lift Table, No. LT-EV2500AH-X, incorporates multi-adjustable and directional EV-insulated platforms for controlled lifting and lowering tasks to safely remove, replace, or service heavy vehicle components for EV or hybrid vehicles, such as EV batteries, motors, powertrains, or similar heavy components. The table also features air-hydraulic power and fully operational hand controls for lifting, locking, and lowering. The table can hold up to 2,500 lbs. Circle 105 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES A 50-GALLON CAPACITY
The Atlas Automotive Equipment Spray Wash Cabinet is designed to clean automotive parts and features 19 high-pressure spray jets. The cabinet has a 50-gallon capacity tank and requires only hot water and biodegradable detergents for an environmentally friendly operation, rather than harmful solvents. Additionally, the cabinet’s 60-minute timer with automatic shut-off allows it to be left unsupervised.
Circle 106 on card or click “PTEN e-inquiry” on VehicleServicePros.com
MAX AIRFLOW OF 17,820 CFM
The Cool Boss CB-28HV Desert Storm Series is the most powerful model of evaporative cooler in the Cool Boss line, states the company, and it comes equipped with a 28" axial-flow fan with an effective cooling area of 3,915 sq. ft. Designed without a drive belt, it produces less vibration and noise while delivering a smooth, consistent performance. The cooler also features a built-in wireless Bluetooth speaker system and a 4,000 lm LED floodlight, as well as a touchpad and remote control with autotime shutoff.
Circle 107 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES THREE 50” WIDE DRAWERS
The Snap-on 73” 15-Drawer Triple-Bank Classic Series , No. KCP1423WIS8, features a bedliner PowerTop and titanium-colored accessories. It includes three 50” wide drawers that make stored tools more accessible, an 8” drawer with integrated power for charging, a 12” drawer with a power tool shelf for both air and cordless tools, a 2” deep SpeeDrawer for quick access to small tools and parts, a heavy duty cable carrier with a stainless shield, and vibration-absorbing casters.
Circle 109 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES HANDLE BUMPERS TO PREVENT SCRATCHING
The EZRED Magnetic 3/8” Ratchet Holder features powerful magnets that allow it to be attached to any metal surface, such as a tool cart, lift, or drawer. It can hold up to four ratchets, making them accessible and within reach. It includes two ratchet handle bumpers that ensure the ratchets stay in place and don’t scratch or damage the surface the holder is attached to.
Circle 110 on card or click “PTEN e-inquiry” on VehicleServicePros.com
RUNS COOLER FOR LESS CONDENSATION
The Flexzilla Air Compressor, No. FS05V060V1, from Legacy Manufacturing, features Quiet Technology, which uses large low-rpm pumps and motors to reduce high-frequency noise levels while increasing CFM output. Since they run slow, Flexzilla compressors also run cooler for less tank condensation and longer component life.
Circle 108 on card or click “PTEN e-inquiry” on VehicleServicePros.com
CHARGES 14 DEVICES SIMULTANEOUSLY
The Juic’d Box 7-Drawer Powered Cart , No. 80659CBK, from SUNEX Tools features two integrated power strips with a total of six 110V outlets, four USB-A outlets, and four USB-C outlets, allowing it to charge a total of 14 devices simultaneously. A modular drawer stores over 20 power tools, and all of the drawers are fully extendable and lockable. Its interior offers additional storage space and has a gas piston-assisted lid for easy operation. The cart has 6” casters and four corner bumpers for safe and easy maneuvering around the shop.
Circle 112 on card or click “PTEN e-inquiry” on VehicleServicePros.com
PROVIDES NEARLY 180 DEGREES OF ILLUMINATION
The Killer Tools Mobile LED Shop Light , No. ART505, provides 4,000 lm of colorcorrect light on a compact, adjustable frame. The LED panel offers height and pitch adjustment that allows the light to be angled upwards or downwards and is designed to provide nearly 180 degrees of illumination on all sides. This lets the user get full lighting in tough areas such as under a vehicle lift or inside an engine compartment. The base frame takes up less than 4 sq. ft. of shop floor and has locking casters.
Circle 113 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FOUR OPEN SIDES FOR TOOL AND PART STORAGE
FEATURES A MAGNETIC BRAKE
The SKF Lincoln 60’ Retractable Power Cord Reel is a high-quality electrical power cord reel with premium features found nowhere else. The 60’ long, heavygauge cord is resistant to grease, oil, and weather with three outlets to power a range of needs, including high-current drawing equipment. The reel has a unique magnetic brake that aids in a steady, controlled return which provides safety for the user, others around, and work items in the area. The cord retracts smoothly each time and can be safely stored either mounted on a wall, ceiling, or work bench. This premium model, with its non-binding return, will not damage the reel as it delivers the high amperage needed in any setting.
Circle 114 on card or click “PTEN e-inquiry” on VehicleServicePros.com
LisLe Corporation CurrentLy pays royaLties to over 120 individuaLs. Lisle has been in business for over 110 years and for over 40 years have been working with individuals on an award or royalty basis. If you have an original tool idea which others may need, we have a procedure to evaluate your idea.
The Jeepers Creeper Seat , No. 92202, from Lisle Corporation , features a 2” vinyl-covered pad for comfort and stands at 16-1/4” tall. The creeper has 2” corrosion-resistant casters with sealed bearings for easy movement on shop floors. Its powder-coated frame makes it durable and resistant to scratches and other damage that can happen around a shop. It has four open sides for easy access to any stored tools or parts in the bottom section. A stable 19” x 14.5” footprint helps prevent tipping while the creeper is in motion.
Circle 115 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES A 2’ EXTENSION TUBE
The ShopFan HVLS Industrial Fan from Big Ass Fans is lightweight and pre-wired for easy installation. The fan features six patented airfoils, wind noise cancellation due to the out-cuffed winglet technology, a 2’ extension tube, and a sealed helical gearbox for durable and smooth operation. The ShopFan comes with a 1-year warranty.
Circle 116 on card or click “PTEN e-inquiry” on VehicleServicePros.com
LARGE FLYWHEEL FOR EASY START-UP
The Single-Stage Service Vehicle Compressors, Nos. K5HGA-30T, GC8HGA-30T, GC11HGA-30T, and J11HGA-30T, from Jenny Products, Inc. come in four models, each with a 30-gallon air tank. Powered by a Honda GX Series OHV engine, they utilize a heavy duty two-stage cast iron compressor pump made in the USA. A directional air shroud reduces pump temperatures, while a large flywheel provides further cooling and makes for an easier start-up. At 125 psi, the lowest capacity model provides 8.6 cfm, and the highest capacity provides 20.9 cfm.
Circle 117 on card or click “PTEN e-inquiry” on VehicleServicePros.com
of Ownership, Management, and Circulation (Requester Publications Only)
Issue of Frequency: March, April, May, June, July, September, October, December
Complete Mailing Address of Known Office of Publication (Not Printer): Endeavor Business Media, LLC, 201 N Main St, Ste 5, Fort Atkinson, WI 53538
Complete Mailing Address of Headquarters or General Business Office of Publisher (Not Printer): Endeavor Business Media, LLC,331 54th Ave N., Nashhville, TN 37209
Full Names and Complete Mailing Addresses of VP/Group Publisher, Editor, and Editorial Director - Group Publisher: Chris Messer, Endeavor Business Media, LLC 571 Snelling Ave N, Saint Paul, MN 55104; Editor: Emily Markham, Endeavor Business Media, LLC 201 N Main St, Ste 5, Fort Atkinson, WI 53538 ; Editorial Director: Chris Jones, Endeavor Business Media, LLC 571 Snelling Ave N, Saint Paul, MN 55104
Owner - Full name and complete mailing address: Endeavor Media Holdings I, LLC, 905 Tower Place, Nashville, TN 37204; Endeavor Media Holdings II, LLC, 905 Tower Place, Nashville, TN 37204;Resolute Capital Partners Fund IV, LP, 20 Burton Hills Blvd, Suite 430, Nashville, TN 37215;RCP Endeavor, Inc, 20 Burton Hills Blvd, Suite 430, ,Nashville, TN 37215;Northcreek Mezzanine Fund II, LP,312 Walnut Street, Suite 2310,Cincinnati, OH 45202;Invegarry Holdings, LP,44235 Hillsboro Pike,Nashville, TN 37215;Everside Fund II, LP,155 East 44th St, Suite 2101 - 10 Grand Central,New York, NY 10017Everside Endeavor F1 Blocker, LLC, 155 East 44th St, Suite 2101 - 10 Grand Central, New York, NY 10017;Everside Endeavor International Blocker, LLC, 155 East 44th St, Suite 2101 - 10 Grand Central, New York, NY 10017;Everside Founders Fund, LP, 155 East 44th St, Suite 2101 - 10 Grand Central, ,New York, NY 10017;Suncap Endeavor Blocker, LLC,155 East 44th St, Suite 2101 - 10 Grand Central,New York, NY 10017;
Known Bondholders, Mortgagees, and Other Security Holders Owning or Holding 1 Percent or More of Total Amount of Bonds, Mortgages or
Publication Title: PROFESSIONAL TOOL & EQUIPMENT NEWS
14. Issue Date for Circulation Data: September 2024
a. Total Number of Copies (Net press run)
b. Legitimate Paid and/or Requested Distribution (By Mail and Outside the Mail) (1) Outside County Paid/Requested Mail Subscriptions stated on PS Form 3541. (Include direct written request from recipient, telemarketing and Internet requests from recipient, paid subscriptions including nominal rate subscriptions, employer requests, advertiser’s proof copies, and exchange copies.)
(2) In-County Paid/Requested Mail Subscriptions stated on PS Form 3541. (Include direct written request from recipient, telemarketing and Internet requests from recipient, paid subscriptions including nominal rate subscriptions, employer requests, advertiser’s proof copies, and exchange copies.)
(3) Sales Through Dealers and Carriers, Street Vendors, Counter Sales, and Other Paid or Requested Distribution Outside USPS®
(4) Requested Copies Distributed by Other Mail Classes Through the USPS (e.g. First-Class Mail®) Total Paid and/or Requested Distribution (Sum of 15b (1), (2), (3), and (4))
(1) Outside County Nonrequested Copies Stated on PS Form 3541 (include Sample copies, Requests Over 3 years old, Requests induced by a Premium, Bulk Sales and Requests including Association Requests, Names obtained from Business Directories, Lists, and other sources)
(2) In-County Nonrequested Copies Stated on PS Form 3541 (include Sample copies, Requests Over 3 years old, Requests induced by a Premium, Bulk Sales and Requests including Association Requests, Names obtained from Business Directories, Lists, and other sources) (3) Nonrequested Copies Distributed Through the USPS by Other Classes of Mail (e.g. First-Class Mail, Nonrequestor Copies mailed in excess of 10% Limit mailed at Standard Mail® or Package Services Rates)
(4) Nonrequested Copies Distributed Outside the Mail (Include Pickup Stands, Trade Shows, Showrooms and Other Sources)
Total Nonrequested Distribution (Sum of 15d (1), (2), (3), and (4))
Total Distribution (Sum of 15c and 15e)
(15c
by 15f times
FEATURES LOCKING SECURITY BAR
The Milwaukee Tool PACKOUT MultiDepth 3-Drawer Toolbox has a 50-lb weight capacity and a locking security bar that allows users to padlock the drawers closed, keeping them securely shut during transportation. This portable tool box is constructed with impact-resistant polymers, all-metal ball-bearing slides, and metal-reinforced corners for ideal jobsite durability.
Circle 118 on card or click “PTEN e-inquiry” on VehicleServicePros.com
DESIGNED FOR COXREELS’ CHALLENGER SERIES
The Coxreels Roller Bracket Assembly is designed to assist in guiding the hose during extension and retraction on Challenger Series reels and is available only in a fourway upper roller format due to the compact size of the Challenger Series. For 12” disk Challenger models, the assembly is available for 8” and 12.5” wide drums. For 17” disc models, the assembly is available for 8”, 12.5”, and 18” wide drums. The assembly is made in the USA.
Circle 119 on card or click “PTEN e-inquiry” on VehicleServicePros.com
35” W/ DURABLE POWDER-COAT FINISH
The 6-Drawer and 4-Drawer Tool Carts from SK Tools are 35” steel tool carts with a durable powder-coat finish. They feature deep drawers with liners, double slides to provide more capacity and a full extension with soft-close. The carts come with an internal prybar and screwdriver racks, pegboards on the sides for additional storage space, and an integrated power station to keep charged. Four heavy duty swivel casters with locking brakes can hold up to 770 lbs. A central locking system allows access to drawers even when the lid is in the closed position.
Circle 120 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES PORTABLE CAPABILITIES
The 21-Gallon Combination Oil Drain and Fluid Evacuator from ZeeLine by Milton is designed for changing oil, transmission fluids, and more for autombiles and light trucks. This portable combination oil drain can be used as a standard oil drain under a lifted vehicle or act as a fluid evacuator using the included probes to remove fluids without having to remove the pan’s drain plug. This 2-in-1 unit is ideal for smaller shops wanting to service more types of vehicles or larger shops looking to increase productivity. Circle 121 on card or click “PTEN e-inquiry” on VehicleServicePros.com
FEATURES UNIVERSAL POWER TOOL RACKS
EXTENDS TO 58-1/4” IN LENGTH
The CEAS 2,200-lb Lifting Table Air/ Hydraulic w/ Adapters , is designed for removing/replacing battery packs of electric vehicles as well as the engine, transmission, drive axle, fuel tank, suspension, and sub-frames of traditional vehicles. The table is controlled and powered by a foot-activated pneumatic-driven hydraulic pump. Additionally, the table can be extended to 58-1/4” in length and features four heavy duty and abrasion-resisting casters that steer and move quickly front and back effectively. Reserved holes (3-15/16” by 3-15/16”) on the table allow for positioning and fixing components with specialized fixtures. The large base frame ensures better stability.
Circle 122 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The Extreme Tools new and improved Extreme Portable Workstation* offers greater tool storage capacity in a more efficient layout. The placement of pegs/hangars was carefully calculated to accommodate the most popular tool sets so every inch is utilized. The workstation features universal power tool racks and power strips with space to charge batteries; holders for pliers, screwdrivers, ratchets, extensions, etc.; wrench hangars; 1/4”, 3/8” and 1/2” standard, metric, and impact sockets; and more. Available in various colors and sizes including 30”, 36”, standard 41”, and deluxe 41”. *Patent pending Circle 123 on card or click “PTEN e-inquiry” on VehicleServicePros.com
The ‘Iron Giant’
This technician spent two and a half years putting together his ‘giant’ of a toolbox setup.
By Emily Markham, Editor
During COVID, Bob Roux, maintenance foreman for VCT, Inc. in Kelso, Washington, started assembling his now 17’2” long Cornwell Quality Tools toolbox setup. The setup consists of two side lockers, a hutch, an upper single bank toolbox, and one of Cornwell’s Iron Giant tool storage systems. Roux spent two and a half years putting this setup together and traded in his previous, smaller, Cornwell box to get started.
ALL ABOUT STORAGE
Roux has been doing vehicle repair for around 30 years, on and off, throughout his life. Between his longevity as a technician and the fact that he works in a heavy duty truck shop, Roux needed a toolbox that could handle his collection of tools.
“I do everything,” Roux notes of his position at the shop, “I needed a box to store tools so I can do my job.”
Bob Roux
Shop: VCT, Inc.
Location: Kelso, Washington
The storage is actually the technician’s favorite part of his box. All the space allows him to organize his tools exactly as he likes.
“People think I’m kind of crazy because I’ve got a drawer for almost everything,” Roux says. “I’ve got two separate wrench drawers, one for metric, one for standards, and I’ve got separate drawers just for my ratchets and my extensions.”
Although, even with all his organization, he notes that the box is large enough he sometimes still gets lost looking for a tool.
Luckily, he also has a tool cart he can use to prioritize whatever tools he needs for the job at hand. Being able to push his tools around also means he
saves time by not having to keep walking back and forth to his larger setup.
A QUALITY BOX
When it comes to looking for a new toolbox, Roux notes that price and quality are the two major factors technicians should be taking into consideration.
“I really like this,” Roux says of his toolbox setup. “It’s a fair price, and the quality of the box is what sold me on it. My [tool] dealer took care of me.”
To make his box stand out a bit –though the size certainly does this already – Roux put the words ‘Iron Giant’ in large letters across his hutch with two of Cornwell’s Iron Man symbols on either side.
WHAT’S NEXT?
Roux admits that his toolbox is already full.
“I gotta quit buying tools,” he says. “I’m gonna retire in a few more years.”
However, he does have one more addition he’d like to add – a power drawer box. This way he can not only store all his power tools together but can charge them as well so they’re ready to go whenever he needs them.
Want to see more photos of Roux's box? Visit: VehicleServicePros.com/55143429
Want to show off YOUR Big-Time Box? For more information, email Editor@VehicleServicePros.com.
