Reference buildings – Passive House refurbishments

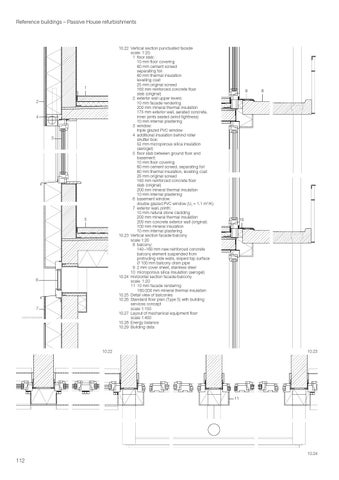

10.22 Vertical section punctuated facade scale 1:20 1 floor slab: 10 mm floor covering 60 mm cement screed separating foil 60 mm thermal insulation levelling coat 25 mm original screed 9 160 mm reinforced concrete floor 9 slab (original) 2 exterior wall upper levels: 10 mm facade rendering 200 mm mineral thermal insulation 175 mm exterior wall, aerated concrete, inner joints sealed (wind tightness) 10 mm internal plastering 3 window: triple glazed PVC window 4 additional insulation behind roller shutter box: 52 mm microporous silica insulation (aerogel) 5 floor slab between ground floor and basement: 10 mm floor covering 60 mm cement screed, separating foil 60 mm thermal insulation, levelling coat 25 mm original screed 160 mm reinforced concrete floor slab (original) 200 mm mineral thermal insulation 10 mm internal plastering 6 basement window: double glazed PVC window (Uf = 1.1 m2/K) 7 exterior wall, plinth: 10 mm natural stone cladding 200 mm mineral thermal insulation 10 200 mm concrete exterior wall (original) 10 100 mm mineral insulation 10 mm internal plastering 10.23 Vertical section facade/balcony scale 1:20 8 balcony: 140 –160 mm new reinforced concrete balcony element suspended from protruding side walls, sloped top surface Ø 100 mm balcony drain pipe 9 2 mm cover sheet, stainless steel 10 microporous silica insulation (aerogel) 10.24 Horizontal section facade/balcony scale 1:20 11 10 mm facade rendering 160/200 mm mineral thermal insulation 10.25 Detail view of balconies 10.26 Standard floor plan (Type 5) with building services concept scale 1:150 10.27 Layout of mechanical equipment floor scale 1:400 10.28 Energy balance 10.29 Building data
1 2
4
3
5
6
7
8 8
9 9
8 8
10 10
10.22
10.23
11 11
10.24
112
