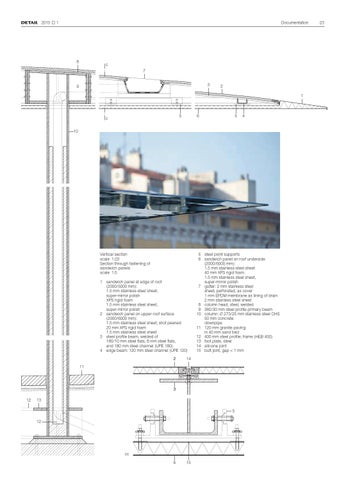

Vertical section scale 1:20 Section through fastening of sandwich panels scale 1:5 1
2
3 4
s andwich panel at edge of roof (2000/5000 mm): 1.5 mm stainless-steel sheet, super-mirror polish XPS rigid foam 1.5 mm stainless steel sheet, super-mirror polish sandwich panel on upper roof surface (2000/6000 mm): 1.5 mm stainless steel sheet, shot peened 20 mm XPS rigid foam 1.5 mm stainless steel sheet steel profile beam, welded of 180/10 mm steel flats, 8 mm steel flats, and 180 mm steel channel (UPE 180) edge beam: 120 mm steel channel (UPE 120) 2
5 steel point supports 6 sandwich panel on roof underside (2000/6000 mm): 1.5 mm stainless-steel sheet 40 mm XPS rigid foam 1.5 mm stainless steel sheet, super-mirror polish 7 gutter: 2 mm stainless steel sheet, perforated, as cover 1 mm EPDM membrane as lining of drain 2 mm stainless steel sheet 8 column head, steel, welded 9 360/30 mm steel profile primary beam 10 column: Ø 273/25 mm stainless steel CHS 50 mm concrete downpipe 11 120 mm granite paving in 40 mm sand bed 12 400 mm steel profile; frame (HEB 400) 13 foot plate, steel 14 silicone joint 15 butt joint, gap < 1 mm
