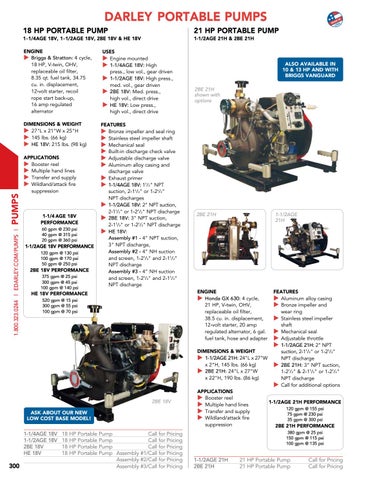

DARLEY PORTABLE PUMPS 18 HP PORTABLE PUMP
21 HP PORTABLE PUMP
1-1/4AGE 18V, 1-1/2AGE 18V, 2BE 18V & HE 18V
1-1/2AGE 21H & 2BE 21H
ENGINE u Briggs & Stratton: 4 cycle, 18 HP, V-twin, OHV, replaceable oil filter, 8.35 qt. fuel tank, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator
1.800.323.0244 | EDARLEY.COM/PUMPS |
PUMPS
DIMENSIONS & WEIGHT u 27"L x 21"W x 25"H u 145 lbs. (66 kg) u HE 18V: 215 lbs. (98 kg) APPLICATIONS u Booster reel u Multiple hand lines u Transfer and supply u Wildland/attack fire suppression
1-1/4 AGE 18V PERFORMANCE 60 gpm @ 230 psi 40 gpm @ 315 psi 20 gpm @ 360 psi
1-1/2AGE 18V PERFORMANCE 120 gpm @ 130 psi 100 gpm @ 170 psi 50 gpm @ 250 psi
2BE 18V PERFORMANCE 375 gpm @ 25 psi 300 gpm @ 45 psi 100 gpm @ 140 psi
USES u Engine mounted u 1-1/4AGE 18V: High press., low vol., gear driven u 1-1/2AGE 18V: High press., med. vol., gear driven u 2BE 18V: Med. press., high vol., direct drive u HE 18V: Low press., high vol., direct drive FEATURES u Bronze impeller and seal ring u Stainless steel impeller shaft u Mechanical seal u Built-in discharge check valve u Adjustable discharge valve u Aluminum alloy casing and discharge valve u Exhaust primer u 1-1/4AGE 18V: 11/2" NPT suction, 2-11/2" or 1-21/2" NPT discharges u 1-1/2AGE 18V: 2" NPT suction, 2-11/2" or 1-21/2" NPT discharge u 2BE 18V: 3" NPT suction, 2-11/2" or 1-21/2" NPT discharge u HE 18V: Assembly #1 - 4" NPT suction, 3" NPT discharge, Assembly #2 - 4" NH suction and screen, 1-21/2" and 2-11/2" NPT discharge Assembly #3 - 4" NH suction and screen, 1-21/2" and 2-11/2" NPT discharge
ALSO AVAILABLE IN 10 & 13 HP AND WITH BRIGGS VANGUARD 2BE 21H shown with options
2BE 21H
1-1/2AGE 21H
ENGINE u Honda GX 630: 4 cycle, 21 HP, V-twin, OHV, replaceable oil filter, 38.5 cu. in. displacement, 12-volt starter, 20 amp regulated alternator, 6 gal. fuel tank, hose and adapter
HE 18V PERFORMANCE 520 gpm @ 15 psi 300 gpm @ 55 psi 100 gpm @ 70 psi
DIMENSIONS & WEIGHT u 1-1/2AGE 21H: 24"L x 27"W x 2"H, 145 lbs. (66 kg) u 2BE 21H: 24"L x 27"W x 22"H, 190 lbs. (86 kg)
2BE 18V
ASK ABOUT OUR NEW LOW COST BASE MODEL!
1-1/4AGE 18V 18 HP Portable Pump Call for Pricing 1-1/2AGE 18V 18 HP Portable Pump Call for Pricing 2BE 18V 18 HP Portable Pump Call for Pricing HE 18V 18 HP Portable Pump Assembly #1/Call for Pricing Assembly #2/Call for Pricing Assembly #3/Call for Pricing 300
APPLICATIONS u Booster reel u Multiple hand lines u Transfer and supply u Wildland/attack fire suppression
FEATURES u Aluminum alloy casing u Bronze impeller and wear ring u Stainless steel impeller shaft u Mechanical seal u Adjustable throttle u 1-1/2AGE 21H: 2" NPT suction, 2-11/2" or 1-21/2" NPT discharge u 2BE 21H: 3� NPT suction, 1-21/2" & 2-11/2" or 1-21/2" NPT discharge u Call for additional options 1-1/2AGE 21H PERFORMANCE 120 gpm @ 155 psi 75 gpm @ 230 psi 35 gpm @ 300 psi
2BE 21H PERFORMANCE 380 gpm @ 25 psi 150 gpm @ 115 psi 100 gpm @ 135 psi
1-1/2AGE 21H 2BE 21H
21 HP Portable Pump 21 HP Portable Pump
Call for Pricing Call for Pricing
