CREWS START LOWERING EQUIPMENT FOR DUNE EXCAVATION

The Fermilab-hosted Deep Underground Neutrino Experiment is an enormous international scientific effort. More than a thousand researchers aim to shed light on elusive subatomic particles known as neutrinos — and possibly the nature of matter itself.

It’s also going to be physically enormous. The experiment will send the world’s most intense high-energy neutrino beam from U.S. Department of Energy’s Fermilab in Illinois to huge particle detectors 800 mi. away at the Sanford Underground Research Facility in South Dakota. Each of the four neutrino detector modules will be four-stories high and more than 200 ft. long. Construction crews will excavate almost 800,000 tons of rock to create the gigantic caverns of the Long-Baseline Neutrino Facility that will house these detectors.

The challenge? Everything required to build the LBNF caverns in South Dakota, as well as the future particle detectors, must be lowered a mile below the surface of the Earth through a 13- by 5-ft. shaft compartment and then assembled underground, like a ship in a bottle. Even the large machines necessary to remove the rock must follow the process.

On April 5, Thyssen Mining, the company contracted to carry out the excavation, received the green light to start underground work. Thyssen will bring about 35 pieces of equipment underground — around 30 will need to be disassembled to some degree to fit down the shaft. It will take about three months to mobilize all of the heavy equipment underground.

“These machines are designed for mines, so they come in components, and the contractor looks at what size components can fit inside the hoist cage,” said James Rickard, the Fermilab resident engineer managing the excavation construction. “They try to break it down as minimally as possible” to fit the pieces into the 12-ft.-tall cage. Long, narrow pieces are slung underneath the cage.

One of the first machines that will be brought in pieces down the shaft is a raise bore machine. The raise bore is being used to drill a pilot hole for a 1,200-ft.-long ventilation shaft to increase airflow and allow heat to escape from the underground lab. After the 13-in. pilot hole is drilled, the drill is attached to a 12-ft. reamer that is then pulled back up the 1,200 ft. creating the full-size shaft. The shaft will be completed in fall 2021.

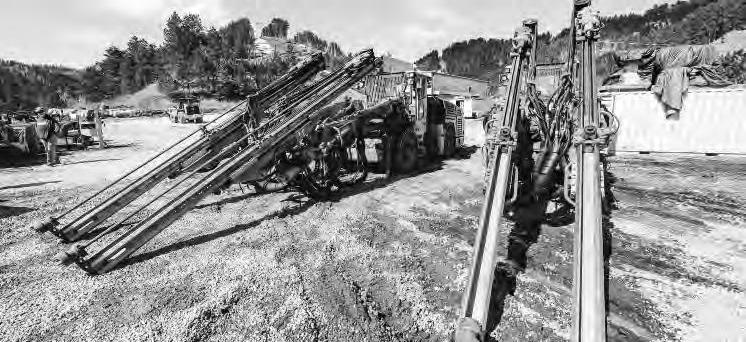

Other machines Thyssen will move underground include telehandlers; multifunctional skid steers; durable load, haul and dump machines; and jumbo drills that will create blasting holes. The equipment is coming to South Dakota from Thyssen’s headquarters in Nevada and Saskatchewan, as well as from project sites in the United States and Canada.

An automated rock bolter is being shipped to the site directly from the manufacturer in Finland. Its role is to install 20-ft.-long steel bolts into the cavern, reinforcing the roof and walls. The machine boasts an advanced computer control system to accurately position the bolts, as well as advanced safety features and lower emissions. It will be one of only two such machines in the world.

Machines that have already arrived are being stored at an offsite yard, waiting their turn to be brought to the subterranean construction site. Once underground, the equipment will be stored in existing drifts and tunnels until an equipment and maintenance shop can be established.

The first underground blast for LBNF by Thyssen is scheduled for June. The main cavern excavation work will begin in August and continue for two-and-a-half years.

“It’s a pretty exciting time,” said Andrew Hardy, Thyssen’s project manager for the excavation. “We thought we already had a lot of activity up to this point, but now it really begins.”

Once the subterranean work gets going, Thyssen will use the cage hoist daily to transport not only machinery but also materials, safety supplies and people. The company has contracted 90 miners, mechanics and electricians split into three rotating crews, along with a surface support team of engineers, planners, buyers, safety coordinators and administrators, to keep the work going 24/7.

There is much excitement about moving towards the more substantial construction work for LBNF after over three years of preexcavation work and reliability projects such as refurbishing the nearly 90-year-old hoists.

“I can’t wait,” said Fermilab’s Michael Gemelli, the LBNF Far-Site Conventional Facilities project manager. “I’m looking forward to the next stage of this project. The site project team has done so much great work to set the stage for the excavation work to commence.”

For more information, visit science.energy.gov. 

Adam Gomez, Sanford Underground Research Facility photo

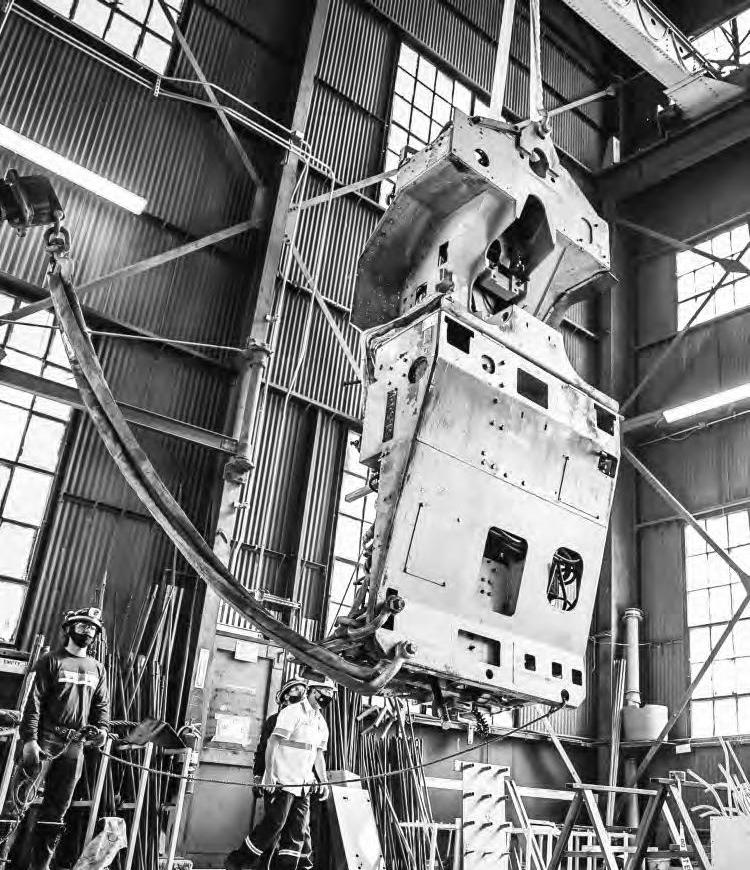

A large support beam — too long to fit inside the cage of the Ross Shaft — is prepped for underground delivery by slinging it underneath the cage. The beam will be used to support drilling equipment.

www.midcountrymachinery.com

Fort Dodge, IA (515) 574-2302

Waterloo, IA (319) 234-8710 Sergeant Bluff, IA (712) 943-4470 Bondurant, IA (515) 410-9900

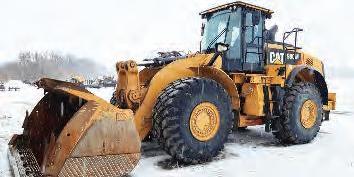

2017 Caterpillar 420F2, 964 Hours $75,000 2020 Gehl VT320 $CALL 2019 John Deere 544L, 217 Hours $155,000 2015 Caterpillar 980M, 8200 Hours $205,000

EXCAVATORS

2015 326FL, 4296 HRS........................................................$129,500 - CAT C7.1 ACERT 212 HP TIER 4 ENGINE, 9’8” STICK, AUX HYDRAULICS, 22’4” MAX DIG, 33’1” MAX REACH, BACKUP CAMERA. HITACHI

1997 EX160, 7414 HRS..........................................................$35,000 - ISUZU ENGINE 113HP, CAB EROPS W HEAT/AC, 21’ DIG DEPTH, 30’ MAX REACH, 178” SHOES, 33,960 OP. WEIGHT. JOHN DEERE

2014 210GLC, 3480 HRS........................................................$99,000 - JOHN DEERE DIESEL ENGINE, 159 HP, CAB EROPS W AC, 9’7” STICK, 30.35 FT IN MAX REACH, 21.89 FT IN MAX DIG. KOBELCO

2021-2019SK85CS-7, 5 UNITS................................................$CALL - YANMAR 70 HP ENIGINE, TIER 4F, CAB W AC & HEAT, 7’ STICK, 24” BKT, 14’7” MAX DIG, 24’1” MAX REACH, 7’7” TRANSPORT WIDTH 2021-2019 SK210LC-10, 5 UNITS............................................$CALL - HINO 160 HP ENGINE, CAB W AC & HEAT, TIER 4, 9’8” STICK, 22’ MAX DIG, 31’11” MAX REACH, 10’5” TRANSPORT WIDTH. 2020-2018 SK350LC-10, 4 UNITS........................................................ 187 HRS/306 HRS/352 HRS - $CALL, 498 HRS - $256,900 - HINO 70 HP ENGINE, TIER 4, CAB W AC & HEAT, 13’7” STICK, 27’7” MAX DIG, 38’8” MAX REACH, 11’1” TRANSPORT WIDTH. 2020 SK170LC-10, 93 HRS........................................................$CALL - HINO 127 HP ENGINE, CAB W AC, 17’1” BOOM, 10’2” STICK, 31’1” MAX REACH, 21’3” MAX DIG, 8’6” TRANSPORT WIDTH. 2020 SK300LC-10, 105 HRS......................................................$CALL - HINO 250 HP ENGINE, TIER 4F, CAB W AC & HEAT, 10’2” STICK, 32” SHOES, 23’7” MAX DIG, 35’ MAX REACH, 11’1” TRANSPORT WIDTH. 2020 SK260LC-10, 226 HRS......................................................$CALL - HINO 178 HP ENGINE, TIER 4F, CAB W AC & HEAT, 12’ STICK, AUX HYDS, 25’2” MAX DIG, 35’6” MAX REACH, 11’1” TRANSPORT WIDTH. 2020 SK130LC-11, 8 HRS..........................................................$CALL - 96 HP, TIER 4F, 9’ 4” STICK, AUX HYDRULICS, 23.6” SHOES, 19’ 7” MAX DIG, 28’ 3” MAX REACH, 8’ 6” TRANSPORT WIDTH. 2019 SK270SR, 273 HRS..........................................................$CALL - HINO 160 HP ENGINE, TIER 4F, 9’8” STICK, 18’6” BOOM, 21’9” MAX DIG, 31’9” MAX REACH, 11’1” TRANSPORT WIDTH. 2019 SK85CS3-E, 296 HRS......................................................$CALL - ISUZU 55 HP ENGINE, TIER 4, CAB W AC & HEAT, 12’1” BOOM, 7’ ARM, 23.6” SHOES, 13’9” MAX DIG, 23’9” MAX REACH. 2015 SK350LC-9E, 2425 HRS..............................................$259,500 - HINO 270 HP ENGINE, TIER 4F, CAB W AC & HEAT, 8’6” ARM, AUX HYDRAULICS, COUPLER, 34’9” MAX REACH, 22’3” MAX DIG. LINKBELT

2021-2019 210X4, 4 UNITS......................................................$CALL - ISUZU 160 HP ENGINE, 9’8” ARM, 31’11” MAX REACH, 31’10” MAX DIG, HYDRAULIC THUMB & COUPLER, 48,900 LBS OP. WEIGHT. 2021 250X4, 23 HRS................................................................$CALL - ISUZU 177HP ENGINE, CAB EROPS, 9’10” STICK, 22’8” MAX DIG, 33’2” MAX REACH, 32’5” TRANSPORT WIDTH. 2020 80X3, 153 HRS................................................................$CALL - EROPS W/ HEAT & AC, 54HP ISUZU ENGINE, 7’2” ARM, 11’6” BOOM, MULTI HYDS, TRANSPORT WIDTH: 7’7”, OP. WEIGHT: 18,900. 2020 145X4LC, 177 HRS..........................................................$CALL - ISUZU 102 HP ENGINE, TIER 4, CAB W AC & HEAT, 9’11” ARM, 28’8” MAX REACH, COUPLER, 19’9” MAX DIG, 28’3” MAX REACH. 2020/2019 75X3, 2 UNITS......577 HRS - $92,750, 176 HRS - $CALL - ISUZU 54 HP ENGINE, TIER 4F, CAB W AC & HEAT, 7’2” ARM, 22’2” MAX REACH, 15’2” DIG DEPTH, THUMB AND COUPLER. 2019 145X4DZ, 112 HRS..........................................................$CALL - ISUZU 102 HP ENGINE, TIER 4F, CAB EROPS, 9’11” STICK, 18’1” DIG DEPTH, MULTI-HYDRAULICS, 33,600 LBS OP. WEIGHT. 2019 490X4, 596 HRS..............................................................$CALL - ISUZU 326 HP ENGINE, TIER 4F, CAB W AC & HEAT, 13’2” STICK, 11’11” TRANSPORT WIDTH, 27’4” MAX DIG, 40’4” MAX REACH. 2019 350X4, 768 HRS..........................................................$256,225 - ISUZU 268 HP ENGINE, TIER 4F, 10’8” STICK, 24’1” MAX DIG, 36’ MAX REACH, 11’2” TRANSPORT WIDTH. 2019 300X4, 589 HRS..............................................................$CALL - ISUZU 207 HP ENGINE, TIER 4F, 12’ STICK, 36’ MAX REACH, 11’2” TRANSPORT WIDTH, 24’10” MAX DIG. 2019/2018 160X4, 2 UNITS......................................................$CALL - ISUZU ENGINE, TIER 4F, CAB W AC & HEAT, 10’ STICK, 21’4” MAX DIG, 30’3” MAX REACH, 8’6” TRANSPORT WIDTH. SANY

2020 SY155SR, 88 HRS............................................................$CALL - 105 HP ENGINE, CAB W/ HEAT & AC, AUX HYDRAULICS, SHORT RADIUS, 8’2” STICK, 17’11” DIG DEPTH, 35,724 LB OP. WEIGHT. 2020 SY80, 2 HRS....................................................................$CALL - 56 HP ENGINE, CAB EROPS W AC & HEAT, HYDRAULICS, 13’ MAX DIG DEPTH, 5’ STICK, 12’ BOOM, 7’ TRANSPORT WIDTH. 2020 SY215, 3 UNITS................................................................$CALL - CUMMINS 164 HP ENGINE, TIER 4F, CAB W AC & HEAT, 9’7” STICK, 21’8” MAX DIG, 33’10” MAX REACH, 10’5” TRANSPORT WIDTH. 2020 SY265CLR, 3 UNITS........................................................$CALL - CUMMINS 190 HP ENGINE, TIER 4F, CAB W AC & HEAT, 43’8” MAX DIG, 57’9” MAX REACH, 11’1” TRANSPORT WIDTH. 2020 SY500H, 6 HRS................................................................$CALL - 400 HP ENGINE, CAB EROPS, 12’9” STICK, 22’11” BOOM, 27’1” DIG DEPTH, 120,152 LB OP. WEIGHT, 11’11” TRANSPORT WIDTH. 2020 SY265C LC, 3 HRS............................................................$CALL - CUMMINS 194 HP, TIER 4F, CAB W HEAT & AC, STICK: 9’ 8”, 31” TRACKS, MAX DIG DEPTH: 22’, MAX REACH: 33’ 7”, TRANSPORTAT WIDTH: 11’ 1” 2020/2019 SY95, 3 UNITS........................................................$CALL - YANMAR 72 HP ENGINE, TIER 4F, CAB W AC & HEAT, 6’7” STICK, 14’2” MAX DIG, 21’10” MAX REACH, 10’6” TRANSPORT WIDTH. 2019 SY135C, 2 UNITS..............................................................$CALL - ISUZU 104 HP ENGINE, TIER 4F, CAB W AC & HEAT, 8’2” STICK, 18’1” MAX DIG, 27’2” MAX REACH, 8’6” TRANSPORT WIDTH.

DOZERS

CATERPILLAR

2018/2016 D6K2 LGP, 2 UNITS............................................................ 1 HR - $175,000, 4274 HRS - $112,000 - CAT 160 HP ENGINE, TIR 4F, CAB W HEAT & AC, REAR HYDRAULICS, 6-WAY BLADE, 30” TRACK, 109” TRANSPORT WIDTH. 2016 D4K2 LGP, 2710 HRS....................................................$95,000 - CAT 92 HP ENGINE, TIER 4F, CAB EROPS AC & HEAT, 6-WAY VPAT BLADE, 25” SHOES, 18,666 LBS OP. WEIGHT 2015 D6N LGP, 4086 HRS....................................................$143,000 - CAT 150 HP ENGINE, CAB EROPS AC & HEAT, 6 WAY BLADE, 33” SHOE SIZE. 2015-2013 D6T LGP, 5 UNITS.............................................................. 5489 HRS $199,000, 6234 HRS - $190,000, 9408 HRS - $89,000 4443 HRS - $229,000, 3486 HRS - $CALL - CAT 257 HP ENGINE, CAB EROPS AC & HEAT, 6 WAY BLADE, 36” TRACK, ACCUGRADE READY, 10’6” TRANSPORT WIDTH. 2012/2006 D6T XW, 4897 HRS............................................$189,500 - CAT 228 HP ENGINE, TIER 4F, CAB EROPS W AC & HEAT, REAR SCREEN, SU BLADE, 30” TRACK, RIPPER, 9’8” TRANSPORT WIDTH. 2012 D6N XL, 3941 HRS......................................................$145,000 - CAT 145 HP TIER 3 ENGINE, CAB EROPS, 6 WAY BLADE, 24” STEEL PADS. 10’8” TRANSPORT WIDTH, RIPPER VALVE. 2010 D6K LGP, 3450 HRS....................................................$115,000 - CAT 125 HP ENGINE, TIER 3, CAB EROPS, ARO READY, 6-WAY BLADE, 30” SHOES, DRAWBAR, 9’ TRANSPORT WIDTH. 2006 D6R XL, 7589 HRS......................................................$125,000 - CAT 175 HP TIER 1 ENGINE, CAB EROPS, SU BLADE, 22” SHOES, 10’4” TRANSPORT WIDTH, DRAWBAR.

WHEEL LOADERS

CATERPILLAR

2019 938M, 385 HRS................................................................$CALL - CAT C7.1 DIESEL ENGINE, 188HP, EROPS, AC, HEAT, DELUXE, RIDE CONTROL, HYD COUPLER, CAT 3.8 YD BKT, 20.5R25 RUBBER. 2018 906M, 2 UNITS..............................................................$79,000 - CAT 73 HP ENGINE, TIER 4, CAB EROPS NO AC, 1.2 YD BUCKET, 3RD VALVE HYDRAULICS, 72.5” TRANSPORT WIDTH. 2015 980M, 8268 HRS..............................................................$CALL - CAB W/ HEAT & AC, RADIO, AGGREGATE PACKAGE, RIDE CONTROL, AUTOLUBE, 7.75 YD GP BUCKET, 29.5R25 TIRES 2014 938K, 5807 HRS............................................................$92,500 - CAT 169 HP ENGINE, CAB EROPS W AC & HEAT, 3RD VALVE HYDRAULICS, 3 YD SMOOTH BUCKET, 20.5 R25, RADIAL (L-3) TIRES 1973 950 ....................................................................................$CALL - 3304T ENGINE, 130 HP, EROPS CAB, 2 CU YD BUCKET CAPACITY, 20.5-25 12PR(L-2) TIRES, 28500LB OPERATING WEIGHT. DRESSER

1989 515B, 10254 HRS............................................................$CALL - 105 HP ENGINE, CAB EROPS, 18.4 X 24 - 10 PR (R-4) TIRES, 2 CU YD BUCKET CAPACITY, 18,500LB OPERATING WEIGHT HITACHI

2020 ZW120-6, 10 HRS........................................................$120,000 - DEUTZ 95 HP ENGINE, TIER 4F, CAB W AC & HEAT, JRB COUPLER, 1.8 YD BUCKET, AUX HYDRAULICS, 17,900 OP. WEIGHT. 2020 ZW220-6, 70 HR..............................................................$CALL - CUMMINS 200 HP ENGINE, TIR 4F, CAB EROPS W AC & HEAT, 3RD VALVE HYDRAULICS, JRB QUICK COUPLER, 108” TRANSPORT WIDTH. 2020 ZW80, 4 UNITS............................................................................ 19 HRS - $79,000, 106 HRS/147 HRS/189 HRS - $75,000 - DEUTZ 63 HP ENGINE, TIER 4F, CAB EROPS AC & HEAT, 3RD VALVE HYDRAULICS, 1 YD BUCKET, 6.3’ TRANSPORT WIDTH. 2019 ZW50-5B, 75 HRS..........................................................$63,000 - KUBOTA 46 HP ENGINE, TIER 4F, CAB EROPS W AC & HEAT, COUPLER, .78 YD BUCKET, COUNTERWEIGHT, 5.4’ TRANSPORT WIDTH. JOHN DEERE

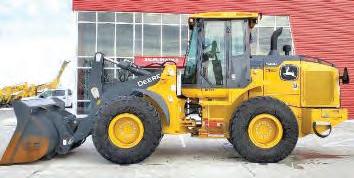

2019 544L, 2 UNITS..............................................................$155,000 - POWERTECH PVS 6068, 174 HP, TIER 4 FINAL, EROPS CAB W AC, 20.5 R25 TIRE, COUPLER, BUCKET, OPERATING WEIGHT: 14,108 LBS. 2016/2014 644K, 2 UNITS....4580 HRS - $119,500, 5246 - $118,000 - HYBRID POWERTECH 230HP ENGINE, TIER 4, CAB EROPS W AC, 4 YD BUCKET, 117.5” TRANSPORT WIDTH. SANY

2017 SW405K, 2 UNITS..........................................................$95,000 - DEUTZ 252 HP ENGINE, CAB EROPS, 4.2 CU YD BUCKET CAPACITY, 40,786 LBS OPERATING WEIGHT, 87” TRANSPORT WIDTH.

SKID LOADERS

CATERPILLAR

2018 289DXPS, 474 HRS........................................................$75,000 - CAT 74 HP ENGINE, CAB EROPS W AC, HIGH FLOW HYDRAULICS, 7600 TIPPING LOAD, TWO SPEED, 10,533 OP. WEIGHT. GEHL

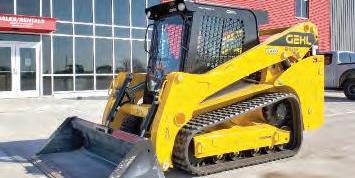

2021 RT215, 5 UNITS................................................................$CALL - YANMAR 72 HP, TIER 4, CAB W HEAT & AC, 17.7” RUBBER TRACKS, 74”, 16.1 CUFT HD BUCKET, OP WEIGHT: 9,900 LBS, TRANSPORT WIDTH: 69.5”..................................................................$CALL - 74HP, TIER 4, CAB W HEAT & AC, HIGH HYDRAULICS, 17.7” TRACKS, 84”, 18.4 CUFT BUCKET, OP. WEIGHT: 11,600 LBS, TIPPING LOAD: 7,286 LBS. 2020 VT320, 4 UNITS................................................................$CALL - DEUTZ 114 HP ENGINE, TIER 4F, CAB EROPS, HIGH FLOW HYDRAULICS, TWO SPEED, 9,143 TIPPING LOAD, 11,160 OP. WEIGHT. 2020 V270, 2 UNITS................................................................$CALL - CAB WITH HEATING & A/C, JOYSTICK W/ HYDRAULIC SELF-LEVELING, TWO SPEED W/ HYDRAULIC, REAR CAMERA, BUCKET 74” CUTTING EDGE JOHN DEERE

2020/2019 333G, 2 UNITS......291 HRS - $CALL, 166 HRS - $72,000 - YANMAR 75 HP, TIER 4, CAB W AC & HEAT, 2 SPEED, HIGH FLOW HYDRAULICS, 110,570 LB TIPPING LOAD 2019 325G, 146 HRS..............................................................$55,000 - YANMAR 74 HP ENGINE, 2 SPEED, CAB W AC & HEAT, STD HYDRAULICS, 78” BUCKET, 7,400 LB TIPPING LOAD. 2019 324G, 8 UNITS..............................................................$51,000 - YANMAR 74 HP ENGINE, TIER 4, 2 SPEED, CAB W AC & HEAT, HAND CONTROLS, STD HYDRAULICS, 86” BUCKET, 5,380 LB TIPPING LOAD. 2019 317G, 2 UNITS............112 HRS - $47,000, 546 HRS - $44,000 - YANMAR 65 HP ENGINE, TIER 4F, CAB W AC & HEAT, 72” BUCKET, 5’5” TRANSPORT WIDTH, 6,070 LB TIPPING LOAD. KUBOTA

2017 SVL75, 750 HRS............................................................$50,000 - KUBOTA 75 HP ENGINE, CAB EROPS W AC & HEAT, AUX HYDRAULICS, COUPLER, 2 SPEED, 74” HD BUCKET. MANITOU

2020 2150RT, 61 HRS................................................................$CALL - YANMAR 72 HP ENGINE, CAB EROPS W HEAT & AC, HIGH FLOW HYDRAULICS, 74” BUCKET, 9,000 LB OP. WEIGHT. 2020 3200VT, 2 UNITS..............................................................$CALL - DEUTZ 114 HP ENGINE, CAB EROPS W AC & HEAT, HIGH FLOW HYDRAULICS, 84” HD BUCKET, 12,350 LB OP. WEIGHT. TAKEUCHI

2011 TL240, 2574 HRS..........................................................$30,000 - YANMAR 84 HP ENGINE, TIER 3, CAB EROPS W AC & HEAT, HIGH FLOW HYDRAULICS, COUPLER, 70” TRANSPORT WIDTH. TORO

2019-2017 TX100 DINGO, 3 UNITS.....................................$33,000 - KUBOTA D1305 ENGINE, 9FT CU. FT. BUCKET, SOIL CULTIVATOR/AUGER/TRENCHER/LEVELER, 2610 LBS OP. WEIGHT, 33.7” TRANSPORT WIDTH.

MINI EXCAVATORS

KOBELCO

2020-2017 SK55SRX-6E, 8 UNITS..............................FROM $49,000 - YANMAR 37 HP ENGINE, TIR 4F, 5’7” STICK, AUX HYDRAULICS, QUICK COUPLER, 12’10” MAX DIG, 20’ MAX REACH. 2020 SK35SR-6E, 4 UNITS........................................................$CALL - YANMAR 23 HP ENGINE, TIR 4F, 5’6” STICK, AUX HYDRAULICS, COUPLER, 10’ MAX DIG, 17’7” MAX REACH, 5’7” TRANSPORT WIDTH. 2019 SK45SRX-6E, 266 HRS....................................................$CALL - YANMAR 37.5HP ENGINE, TIER 4F, 5’1” STICK, AUX HYDRAULICS, COUPLER, 24” BUCKET, 11’3” MAX DIG, 18’8” MAX REACH. 2018 SK75SR-3E, 403 HRS....................................................$99,500 - ISUZU 55 HP ENGINE, TIER 4F, 7’ STICK, AUX HYDRAULICS, 15’ MAX DIG, 22’2” MAX REACH, 24” BUCKET, 8’ TRANSPORT WIDTH. SANY

2021 SY26, 1 HR......................................................................$CALL - 19.6HP YANMAR DIESEL, AUX HYDRAULICS, 6,085LBS OP. WEIGHT, 9’3” DIG DEPTH, 5’1” TRANSPORT WIDTH, BACKFILL BLADE, 12” TRACKS. 2021 SY50, 3 HRS....................................................................$CALL - 39HP TIER 4 FINAL YANMAR 4THV88C DIESEL, 11,684LB OP. WEIGHT, 11’ 3” DIG DEPTH, 6’ 5” TRANSPORT WIDTH, 16” RUBBER TRACKS. 2020/2019 SY35/U, 3 UNITS....................................................$CALL - YANMAR 24.4 HP ENGINE, TIER 4F, 4’7” STICK, AUX HYDRAULICS, 24” BUCKET, 10’2” MAX DIG, 5’8” TRANSPORT WIDTH. 2019 SY60, 5 UNITS..................................................................$CALL - YANMAR 57 HP ENGINE, TIER 4F, 5’7” STICK, AUX HYDRAULICS, 13’ MAX DIG, 20’9” MAX REACH, 6’7” TRANSPORT WIDTH.

BACKHOES

CASE

1985 580D ..............................................................................$11,500 - 55 HP CASE ENGINE, CAB EROPS, 2 WHEEL DRIVE, STD BOOM, 14.9X24 REAR TIRES, HYDROSTATIC POWER STEERING. CATERPILLAR

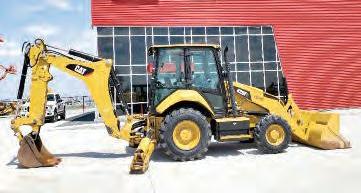

2017/2016 420F2, 3 UNITS.................................................................. 964 HRS- $75,000, 1140 HRS/ 1393 HRS - $82,000 - CAT 102 HP ENGINE, TIER 4, CAB EROPS AC, 4X4, AUX HYDRAULICS, EXTENDABLE, ST BLADE, 28” BUCKET. JOHN DEERE
