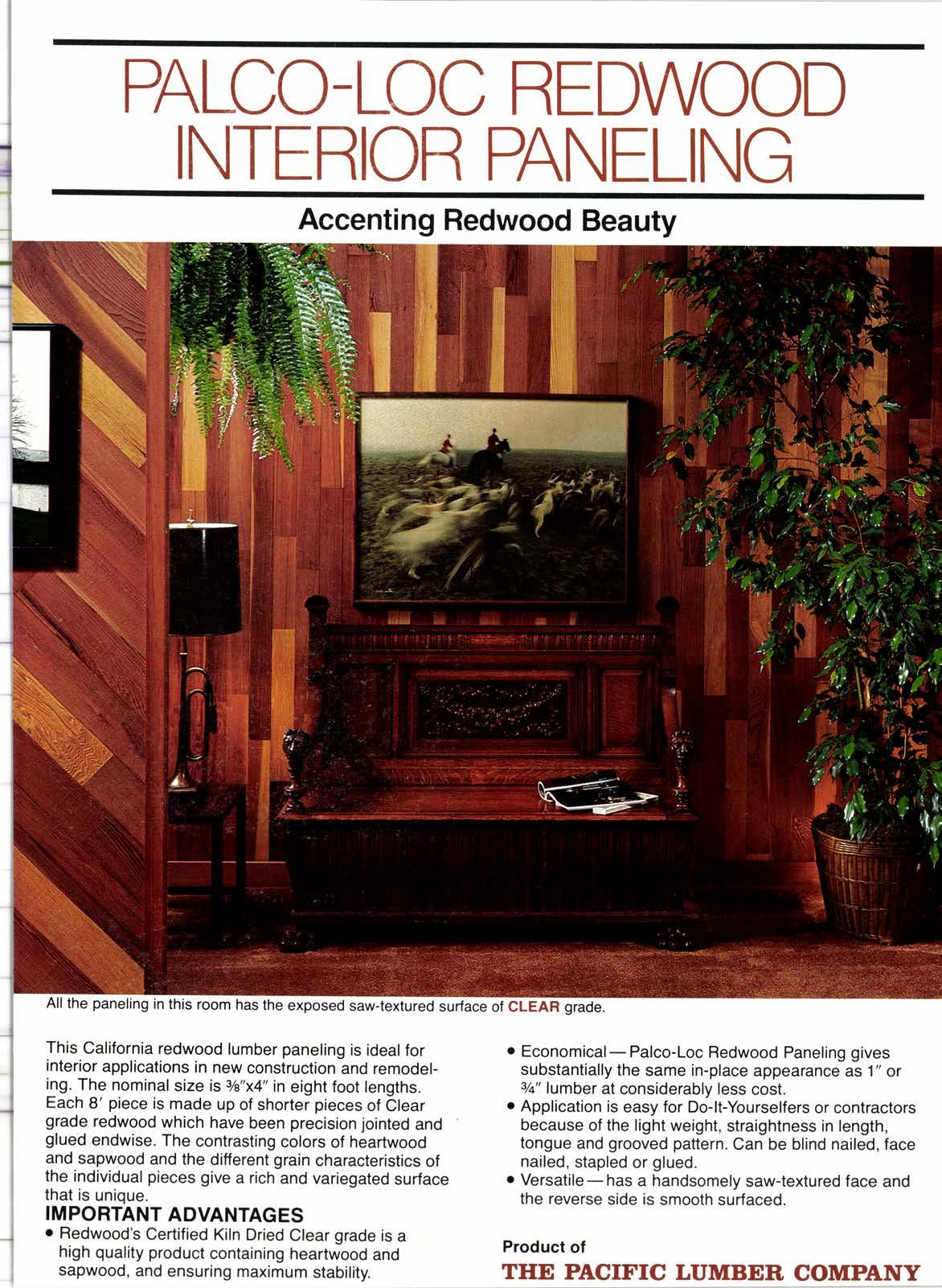

I%LOO-LOC REDWOOD INTERIOR FANELING

Accenting Redwood Beauty

This California redwood lumber paneling is idealfor interior applications in new construction and remodeltlg.The nominal size is 3/g"x4" in eight foot lengths. Each 8' piece is made up of shorter pieces of Clear grade redwood which have been precision jointed and glued endwise. The contrasting colors of heartwood and sapwood and the different grain characteristics of the individual pieces give a rich and variegated surface that is unique.

Important Advantages

o Redwood's Certified Kiln Dried Clear grade is a high quality product containing heartwood and sapwood, and ensuring maximum stability.

o Economical- Palco-Loc Redwood Paneling gives substantially the same in-place appearance as 1" or 3/q" lumber at considerably less cost.

o Application is easy for Do-lt-Yourselfers or contractors because of the light weight, straightness in length, tongue and grooved pattern. Can be blind nailed, face nailed, stapled or glued.

o Versatile-has a handsomely saw-textured face and the reverse side is smooth surfaced. Product of

HOW TO USE PALCO.LOC REDWOOD INTERIOR PANELING VERSATILITY

As shown in the photographs, this paneling can be applied vertically, horizontally, or diagonally which particularly creates an accent wall. Can also be used on ceilings. Can have a saw-textured face or smooth face. Should not be used on exteriors.

Application

Nailing: Nail to furring strips of blocking spaced 2' or less. Can use 4d finish nails for blind nailing through tongue and for face nailing. lf face nailed, colored nails can eliminate counter' sinking and nail-hole filling. Staples may be used in lieu of nails.

Gluing: Paneling can be easily applied to dry flat surfaces following adhesive manufacturer's directions.

Finishing

Although redwood takes and holds finishes better than other woods, redwood requires no finishes on surfaces away lrom grease, moisture and dirt, as on ceilings and accent panels. Left unfinished, the paneling will gradually darken in color. To protect and minimize color change, use a dull or satin lacouer, or a clear sealer. A number of clear sealers are available, are economical, and are easy to apply.

In areas subject to soiling and moisture such as kitchens and bathrooms, apply lacquer or clear sealer. For a washable finish, apply one or two coats of flat or semi-gloss varnish. lf other color hues or tones are desired, penetrating stains are recommended. Any color or hue can be achieved. To help retain the initial color, mix small amount of properly colored pigment or compatible semi-transparent stain into a clear sealer.

Detailed Product Specification

Product Name: Palco-Loc Redwood Interior Paneling

Size: Nominal s/e"x4" in 8' lengths with 28 full length pieces and 4 layers of shorter length pieces per carton. Dressed thickness and width are shown in this sketch:

Shipping Information For Distributors

Available in straight or mixed truck and car shipments. Mixed shipments can include items from a wide range of redwood lumber including uppers, and Douglas fir uppers and plywood.

Grade:

#220,tongue and grooved, eased edges, saw-textured face and smooth surfaced back. Certified Kiln Dried, Clear, Mixed Grain redwood.

Finger- Glued with water-proof melamine-urea joints: adhesive in non-structural joints (non-structural means not load-bearing).

Cartons are protective and easily handled. ln every cafton is an in' struction sheet including affangements, applications, and finishing recommendations in simPle terms ideal for D-l-Y's.
