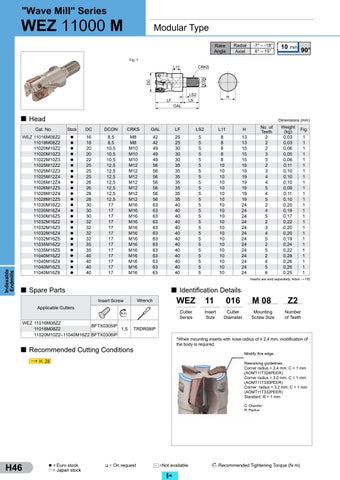

"Wave Mill" Series
WEZ 11000 M
Modular Type Rake Angle
Radial Axial
-7° – -18° 6° – 15°
No. of Teeth 2 2 2 3 3 2 3 4 4 5 4 5 2 4 5 2 3 4 5 2 5 2 4 5 6
10 mm
90°
Fig. 1
&5.6
'&
'&21
/
/6 /6
/)
+
2$/
Indexable Endmills
Head
Dimensions (mm)
Cat. No.
Stock
DC
DCON
CRKS
OAL
LF
LS2
L11
H
WEZ 11016M08Z2 11018M08Z2 11020M10Z2 11020M10Z3 11022M10Z3 11025M12Z2 11025M12Z3 11025M12Z4 11026M12Z4 11026M12Z5 11028M12Z4 11028M12Z5 11030M16Z2 11030M16Z4 11030M16Z5 11032M16Z2 11032M16Z3 11032M16Z4 11032M16Z5 11035M16Z2 11035M16Z5 11040M16Z2 11040M16Z4 11040M16Z5 11040M16Z6
l l l l l l l l l l l l l l l l l l l l l l l l l
16 18 20 20 22 25 25 25 26 26 28 28 30 30 30 32 32 32 32 35 35 40 40 40 40
8,5 8,5 10,5 10,5 10,5 12,5 12,5 12,5 12,5 12,5 12,5 12,5 17 17 17 17 17 17 17 17 17 17 17 17 17
M8 M8 M10 M10 M10 M12 M12 M12 M12 M12 M12 M12 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16
42 42 49 49 49 56 56 56 56 56 56 56 63 63 63 63 63 63 63 63 63 63 63 63 63
25 25 30 30 30 35 35 35 35 35 35 35 40 40 40 40 40 40 40 40 40 40 40 40 40
5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5
8 8 8 8 8 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
13 13 15 15 15 19 19 19 19 19 19 19 24 24 24 24 24 24 24 24 24 24 24 24 24
Weight (kg) 0,03 0,03 0,06 0,05 0,06 0,11 0,10 0,10 0,10 0,09 0,11 0,10 0,20 0,19 0,17 0,22 0,20 0,20 0,19 0,24 0,22 0,28 0,26 0,26 0,25
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Inserts are sold separately. Arbor → H5.
Spare Parts
Identification Details
Wrench
Insert Screw Applicable Cutters WEZ 11016M08Z2 BFTX0305IP 11018M08Z2 1,5 11020M10Z2–11040M16Z2 BFTX0306IP
WEZ
11
016
M 08
Z2
Cutter Series
Insert Size
Cutter Diameter
Mounting Screw Size
Number of Teeth
TRDR08IP *When mounting inserts with nose radius of ≥ 2,4 mm, modification of the body is required.
Recommended Cutting Conditions
Modify this edge.
→ H. 28
Reworking guidelines Corner radius = 2,4 mm: C = 1 mm (AOMT11T324PEER) Corner radius = 3,0 mm: C = 1 mm (AOMT11T330PEER) Corner radius = 3,2 mm: C = 1 mm (AOMT11T332PEER) Standard: R = 1 mm C: Chamfer R: Radius
H46
Fig.
l = Euro stock l = Japan stock
q = On request
– = Not available
▌◄
Recommended Tightening Torque (N·m)
