Insert Selection
Non-Ferrous Metal

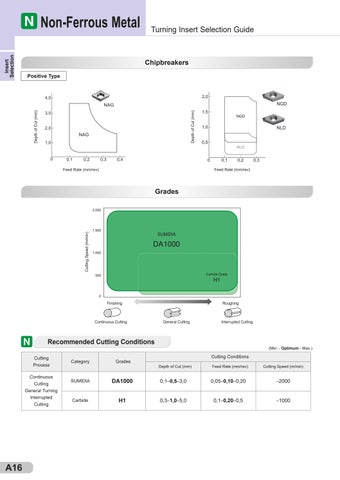

Turning Insert Selection Guide
Chipbreakers Positive Type
NGD Depth of Cut (mm)
Depth of Cut (mm)
NAG
NAG
Feed Rate (mm/rev)
NLD
Feed Rate (mm/rev)
Grades
Cutting Speed (m/min)
2.000
1.500
SUMIDIA
DA1000 1.000
Carbide Grade
500
H1
0
Finishing
Continuous Cutting
Roughing
General Cutting
Interrupted Cutting
Recommended Cutting Conditions Cutting Process Continuous Cutting General Turning Interrupted Cutting
A16
Category
Grades
SUMIDIA
Carbide
(Min. - Optimum - Max.)
Cutting Conditions Depth of Cut (mm)
Feed Rate (mm/rev)
Cutting Speed (m/min)
DA1000
0,1–0,5–3,0
0,05–0,10–0,20
–2000
H1
0,3–1,0–5,0
0,1–0,20–0,5
–1000
