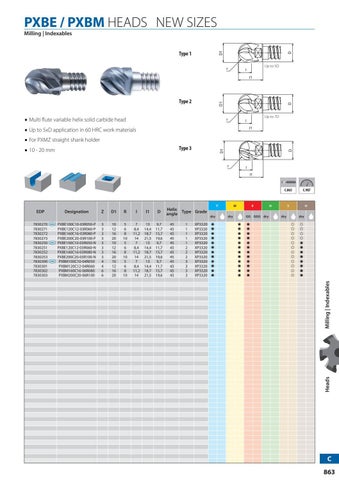

PXBE / PXBM HEADS NEW SIZES Milling | Indexables
D
D1
Type 1
r
Up to 5D
l l1
Multi flute variable helix solid carbide head
D
D1
Type 2
r
Up to 7D
l l1
Up to 5xD application in 60 HRC work materials
PXBE
For PXMZ straight shank holder
D
D1
Type 3
10 - 20 mm
r
l l1
NEW
NEW
NEW
PXBE100C10-03R050-P PXBE120C12-03R060-P PXBE160C16-03R080-P PXBE200C20-03R100-P PXBE100C10-03R050-N PXBE120C12-03R060-N PXBE160C16-03R080-N PXBE200C20-03R100-N PXBM100C10-04R050 PXBM120C12-04R060 PXBM160C16-06R080 PXBM200C20-06R100
Z 3 3 3 3 3 3 3 3 4 4 6 6
D1 10 12 16 20 10 12 16 20 10 12 16 20
R 5 6 8 10 5 6 8 10 5 6 8 10
l 7 8,4 11,2 14 7 8,4 11,2 14 7 8,4 11,2 14
l1 13 14,4 18,7 21,5 13 14,4 18,7 21,5 13 14,4 18,7 21,5
D 9,7 11,7 15,7 19,6 9,7 11,7 15,7 19,6 9,7 11,7 15,7 19,6
Helix angle Type Grade 45 45 45 45 45 45 45 45 45 45 45 45
1 1 1 1 1 2 2 2 3 3 3 3
XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320 XP3320
P dry ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉
M dry
C.987
N
S
H
K GG GGG dry
◉ ◉ ◉ ◉ ◉ ◉ PXBM ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉
dry
dry ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎
◎ ◎ ◎ ◎ ◉ ◉ ◉ ◉ ◉ ◉ ◉ ◉
Milling | Indexables
7830270 7830271 7830272 7830273 7830250 7830251 7830252 7830253 7830300 7830301 7830302 7830303
