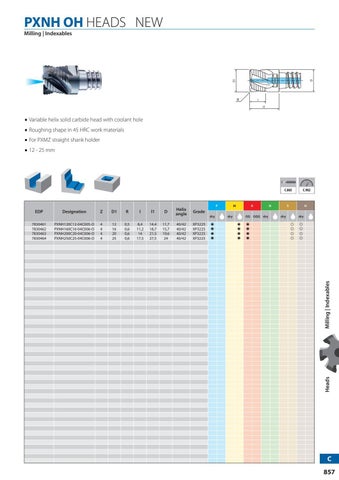

PXNH OH HEADS NEW
D
D1
Milling | Indexables
R
l l1
Variable helix solid carbide head with coolant hole Roughing shape in 45 HRC work materials
L
For PXMZ straight shank holder 12 - 25 mm
C.865
PXNH120C12-04C005-O PXNH160C16-04C006-O PXNH200C20-04C006-O PXNH250C25-04C006-O
Z 4 4 4 4
D1 12 16 20 25
R 0,5 0,6 0,6 0,6
l 8,4 11,2 14 17,5
l1 14,4 18,7 21,5 27,5
D 11,7 15,7 19,6 24
Helix angle 40/42 40/42 40/42 40/42
P
Grade XP3225 XP3225 XP3225 XP3225
dry ◉ ◉ ◉ ◉
M
K
dry
GG GGG dry ◉ ◉ ◉ ◉
◉ ◉ ◉ ◉
N
S
H
dry
dry ◎ ◎ ◎ ◎
◎ ◎ ◎ ◎
Milling | Indexables
7830461 7830462 7830463 7830464
Designation
Heads
EDP
C.982
C 857
