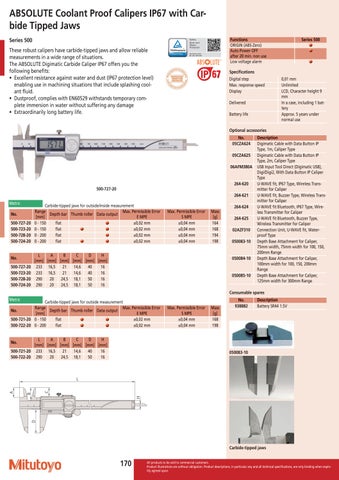

ABSOLUTE Coolant Proof Calipers IP67 with Carbide Tipped Jaws Series 500
Functions ORIGIN (ABS-Zero) Auto Power OFF after 20 min. non use Low voltage alarm
These robust calipers have carbide-tipped jaws and allow reliable measurements in a wide range of situations. The ABSOLUTE Digimatic Carbide Caliper IP67 offers you the following benefits: • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid. • Dustproof, complies with EN60529 withstands temporary complete immersion in water without suffering any damage • Extraordinarily long battery life.
Series 500
Specifications Digital step Max. response speed Display Delivered Battery life
0,01 mm Unlimited LCD, Character height 9 mm In a case, including 1 battery Approx. 5 years under normal use
Optional accessories No. 05CZA624 05CZA625 06AFM380A
264-620
500-727-20
264-621 Metric No. 500-727-20 500-723-20 500-728-20 500-724-20
No. 500-727-20 500-723-20 500-728-20 500-724-20
Carbide-tipped jaws for outside/inside measurement Range Max. Permissible Error Depth bar Thumb roller Data output [mm] E MPE ±0,02 mm 0 - 150 flat 0 - 150 flat ±0,02 mm ±0,02 mm 0 - 200 flat 0 - 200 flat ±0,02 mm
Max. Permissible Error S MPE ±0,04 mm ±0,04 mm ±0,04 mm ±0,04 mm
Mass [g] 164 168 194 198
L A B C D H [mm] [mm] [mm] [mm] [mm] [mm] 233 16,5 21 14,6 40 16 233 16,5 21 14,6 40 16 290 20 24,5 18,1 50 16 290 20 24,5 18,1 50 16
264-624 264-625 02AZF310 050083-10
050084-10
050085-10
Description Digimatic Cable with Data Button IP Type, 1m, Caliper Type Digimatic Cable with Data Button IP Type, 2m, Caliper Type USB Input Tool Direct (Digimatic USB), Digi/Digi2, With Data Button IP Caliper Type U-WAVE fit, IP67 Type, Wireless Transmitter for Caliper U-WAVE fit, Buzzer Type, Wireless Transmitter for Caliper U-WAVE fit Bluetooth, IP67 Type, Wireless Transmitter for Caliper U-WAVE fit Bluetooth, Buzzer Type, Wireless Transmitter for Caliper Connection Unit, U-WAVE fit, Waterproof Type Depth Base Attachment for Caliper, 75mm width, 75mm width for 100, 150, 200mm Range Depth Base Attachment for Caliper, 100mm width for 100, 150, 200mm Range Depth Base Attachment for Caliper, 125mm width for 300mm Range
Consumable spares Metric
Carbide-tipped jaws for outside measurement Range Max. Permissible Error No. Depth bar Thumb roller Data output [mm] E MPE 500-721-20 0 - 150 flat ±0,02 mm 500-722-20 0 - 200 flat ±0,02 mm
L A B C D H [mm] [mm] [mm] [mm] [mm] [mm] 500-721-20 233 16,5 21 14,6 40 16 500-722-20 290 20 24,5 18,1 50 16
Max. Permissible Error S MPE ±0,04 mm ±0,04 mm
Mass [g] 168 198
No. 938882
Description Battery SR44 1.5V
No.
050083-10
H
C
B D
A
L
Carbide-tipped jaws
