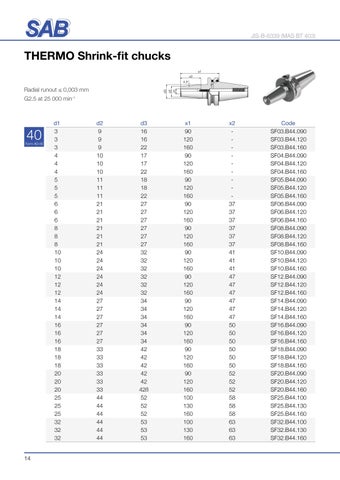

JIS-B-6339 (MAS BT 403)
THERMO Shrink-fit chucks x1 x2
d3
Radial runout ≤ 0,003 mm
d2 d1
4.5°
G2.5 at 25 000 min-1
40
Form AD+B
14
d1 3 3 3 4 4 4 5 5 5 6 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20 25 25 25 32 32 32
d2 9 9 9 10 10 10 11 11 11 21 21 21 21 21 21 24 24 24 24 24 24 27 27 27 27 27 27 33 33 33 33 33 33 44 44 44 44 44 44
d3 16 16 22 17 17 22 18 18 22 27 27 27 27 27 27 32 32 32 32 32 32 34 34 34 34 34 34 42 42 42 42 42 42ß 52 52 52 53 53 53
x1 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 90 120 160 100 130 160 100 130 160
x2 37 37 37 37 37 37 41 41 41 47 47 47 47 47 47 50 50 50 50 50 50 52 52 52 58 58 58 63 63 63
Code SF03.B44.090 SF03.B44.120 SF03.B44.160 SF04.B44.090 SF04.B44.120 SF04.B44.160 SF05.B44.090 SF05.B44.120 SF05.B44.160 SF06.B44.090 SF06.B44.120 SF06.B44.160 SF08.B44.090 SF08.B44.120 SF08.B44.160 SF10.B44.090 SF10.B44.120 SF10.B44.160 SF12.B44.090 SF12.B44.120 SF12.B44.160 SF14.B44.090 SF14.B44.120 SF14.B44.160 SF16.B44.090 SF16.B44.120 SF16.B44.160 SF18.B44.090 SF18.B44.120 SF18.B44.160 SF20.B44.090 SF20.B44.120 SF20.B44.160 SF25.B44.100 SF25.B44.130 SF25.B44.160 SF32.B44.100 SF32.B44.130 SF32.B44.160
