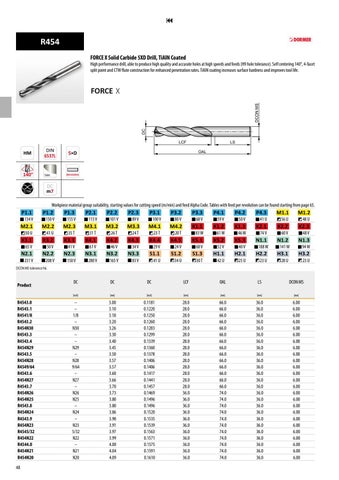

R454 FORCE X Solid Carbide 5XD Drill, TiAlN Coated
DC
DCON MS
High performance drill, able to produce high quality and accurate holes at high speeds and feeds (H9 hole tolerance). Self centering 140°, 4-facet split point and CTW flute construction for enhanced penetration rates. TiAlN coating increases surface hardness and improves tool life.
LCF
LS OAL
140° TM
CTW
TiAlN
DIN 6535HA
DC m7 Workpiece material group suitability, starting values for cutting speed (m/min) and feed Alpha Code. Tables with feed per revolution can be found starting from page 65.
P1.1
P1.2
P1.3
P2.1
P2.2
P2.3
P3.1
P3.2
P3.3
P4.1
P4.2
P4.3
M1.1
M1.2
M2.1
M2.2
M2.3
M3.1
M3.2
M3.3
M4.1
M4.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K4.1
K4.2
K4.3
K4.4
K4.5
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
S1.1
S1.2
S1.3
H1.1
H2.1
H2.2
H3.1
H3.2
134 V 50 U 65 V
231 V
150 V 41 U 50 V
208 V
155 V 35 T
41 V
150 V
115 V 31 T
61 V
280 V
101 V 26 T
46 V
165 V
89 V 24 T
34 V 83 V
100 V 23 T
29 V
41 U
80 V
68 V
20 T
83 W
24 V
68 V
34 U
30 T
59 V
61 W 52 V
42 U
50 V
46 W 40 V
25 U
41 U 74 V
188 W 23 U
56 U
48 U
60 V
48 V
141 W 28 U
94 W 23 U
DCON MS tolerance h6.
Product R4543.0 R4543.1 R4541/8 R4543.2 R454N30 R4543.3 R4543.4 R454N29 R4543.5 R454N28 R4549/64 R4543.6 R454N27 R4543.7 R454N26 R454N25 R4543.8 R454N24 R4543.9 R454N23 R4545/32 R454N22 R4544.0 R454N21 R454N20 48
DC
DC
DC
LCF
OAL
LS
DCON MS
[inch]
[mm]
[inch]
[mm]
[mm]
[mm]
[mm]
– – 1/8 – N30 – – N29 – N28 9/64 – N27 – N26 N25 – N24 – N23 5/32 N22 – N21 N20
3.00 3.10 3.18 3.20 3.26 3.30 3.40 3.45 3.50 3.57 3.57 3.60 3.66 3.70 3.73 3.80 3.80 3.86 3.90 3.91 3.97 3.99 4.00 4.04 4.09
0.1181 0.1220 0.1250 0.1260 0.1283 0.1299 0.1339 0.1360 0.1378 0.1406 0.1406 0.1417 0.1441 0.1457 0.1469 0.1496 0.1496 0.1520 0.1535 0.1539 0.1563 0.1571 0.1575 0.1591 0.1610
28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0
66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 74.0 74.0 74.0 74.0 74.0 74.0 74.0 74.0 74.0 74.0 74.0
36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0
6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00
