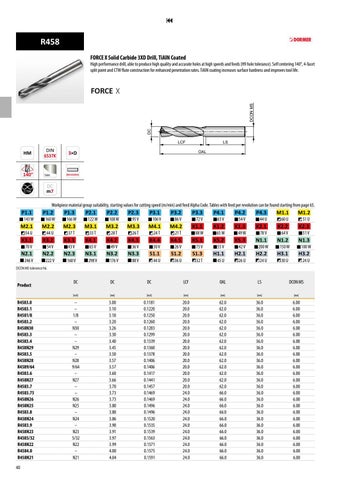

R458 FORCE X Solid Carbide 3XD Drill, TiAlN Coated
DC
DCON MS
High performance drill, able to produce high quality and accurate holes at high speeds and feeds (H9 hole tolerance). Self centering 140°, 4-facet split point and CTW flute construction for enhanced penetration rates. TiAlN coating increases surface hardness and improves tool life.
LCF
LS OAL
140° TM
CTW
TiAlN
DIN 6535HA
DC m7 Workpiece material group suitability, starting values for cutting speed (m/min) and feed Alpha Code. Tables with feed per revolution can be found starting from page 65.
P1.1
P1.2
P1.3
P2.1
P2.2
P2.3
P3.1
P3.2
P3.3
P4.1
P4.2
P4.3
M1.1
M1.2
M2.1
M2.2
M2.3
M3.1
M3.2
M3.3
M4.1
M4.2
K1.1
K1.2
K1.3
K2.1
K2.2
K2.3
K3.1
K3.2
K3.3
K4.1
K4.2
K4.3
K4.4
K4.5
K5.1
K5.2
K5.3
N1.1
N1.2
N1.3
N2.1
N2.2
N2.3
N3.1
N3.2
N3.3
S1.1
S1.2
S1.3
H1.1
H2.1
H2.2
H3.1
H3.2
143 W 54 U 70 V
246 V
160 W 44 U 54 V
222 V
166 W 37 T
43 V
160 V
122 W 33 T
65 V
298 V
108 W 28 T
49 V
176 V
95 V 26 T
36 V 88 V
106 V 24 T
30 V
44 U
86 V
72 V
21 T
88 W
26 V
73 V
36 U
32 T
63 V
65 W 55 V
45 U
54 V
49 W 42 V
26 U
44 U 78 V
200 W 24 U
60 U
51 U
64 V
51 V
150 W 30 U
100 W 24 U
DCON MS tolerance h6.
Product R4583.0 R4583.1 R4581/8 R4583.2 R458N30 R4583.3 R4583.4 R458N29 R4583.5 R458N28 R4589/64 R4583.6 R458N27 R4583.7 R4583.73 R458N26 R458N25 R4583.8 R458N24 R4583.9 R458N23 R4585/32 R458N22 R4584.0 R458N21 40
DC
DC
DC
LCF
OAL
LS
DCON MS
[inch]
[mm]
[inch]
[mm]
[mm]
[mm]
[mm]
– – 1/8 – N30 – – N29 – N28 9/64 – N27 – – N26 N25 – N24 – N23 5/32 N22 – N21
3.00 3.10 3.18 3.20 3.26 3.30 3.40 3.45 3.50 3.57 3.57 3.60 3.66 3.70 3.73 3.73 3.80 3.80 3.86 3.90 3.91 3.97 3.99 4.00 4.04
0.1181 0.1220 0.1250 0.1260 0.1283 0.1299 0.1339 0.1360 0.1378 0.1406 0.1406 0.1417 0.1441 0.1457 0.1469 0.1469 0.1496 0.1496 0.1520 0.1535 0.1539 0.1563 0.1571 0.1575 0.1591
20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0
62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 62.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0 66.0
36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0 36.0
6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00 6.00
