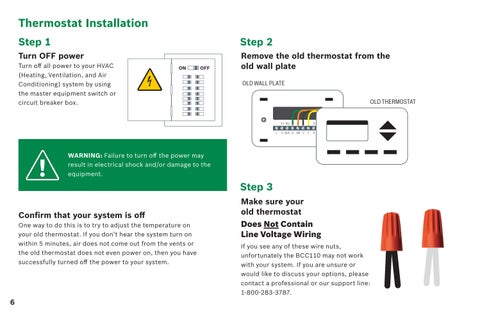

Page 6

Single Stage Cool – Air Conditioner

Ensure the system has a C-wire Ensure the pre-installed jumper wire remains between RH and RC Connect the R, C, Y1 and G wires from the Air Conditioner to RC, C, Y and G terminals on the wall plate, respectively

Two Stage Heat – Furnance

Ensure the system has a C-wire

----

Data

G

C

W2/ AUX

W/E Y

Y2 O/B

RH Jumper

RC

H/DH

----

Data

G

Ensure the pre-installed jumper wire remains between RH and RC

W2/ AUX

Connect the R, C, W1, W2 and G wires from the Furnace to RH, C, W/E, W2/AUX and G terminals on the wall plate, respectively

Y2 O/B H/DH

C W/E Y RH Jumper

RC

Combined Single Stage Heat and Single Stage Cool Furnace and Air Conditioner

Ensure the system has a C-wire Remove the pre-installed jumper wire from between RH and RC Connect the R, C, W1 and G wires from the Furnace to RH, C, W/E and G terminals on the wall plate, respectively

---G W2/ AUX Y2

O/B Connect the R, C, Y1 and G wires from the Air Conditioner to RC, C, H/DH Y and G terminals on the wall plate, respectively

5

Data C W/E Y RH RC
