SOFTWARE

Developed with reliability and high functionality in mind, our standard software solutions include new releases as well as regular upgrades. Our system utilizes a non-volatile memory hard disk for fast and reliable performance in even the harshest of conditions. Custom interfaces with Modbus are available, created to fit any makers automation system. If you do not find what you need in these pages, our software developers can meet your requirements and unique requests.

For more than 45 years, the professional team a Bergan Marine Systems has been designing and manufacturing high-quality marine instrumentation and equipment built to the highest standards required to guard life, property and the environment, and consistently exceeding both regulations and expectations.

GUARD LEVEL® CMS +

Our GUARD LEVEL® CMS+ (Cargo Monitoring Software+) is an embedded alarm and monitoring software providing a highly functional and user-friendly graphical software experience.

CMS+ guarantees safe loading, monitoring and control of cargo, ballast and fuel tanks. The software comes preloaded onto the Master Control (MCU) and Work Station Units (WSU) or can run separately on an onboard PC. Powered by the advanced Intel i7 processor, this versatile Windows tile-based system makes it easy to configure and set up custom screens to manage your cargo.

While basic overview screens are fabricated with tiles representing cargo (HL and HHL (Overfill)), ballast, and service tanks – mix and match and designate tiles for specific loading needs. Cargo can also be color-coded according to customer preference.

All monitored parameters are data logged. Choose what element to log and at what frequency. Printer function of associated alarm logging is also available.

Typical monitored sensors are level (with volume), tank temperatures (up to three points per tank), tank pressure sensor, manifold sensor, pump pressure, ballast, and bunker tank levels (volume) as well as vessel trim/ list and draft.

With the Modbus interface, computer software such as CargoMax® can be loaded allowing for bi-directional online interface. Additional interface-tovessel management systems are also included. The CMS+ can be run in master or slave mode accommodating one to multiple secondary displays.

Ask our representatives about the outstanding level of CMS+ functionality and specific program requirements.

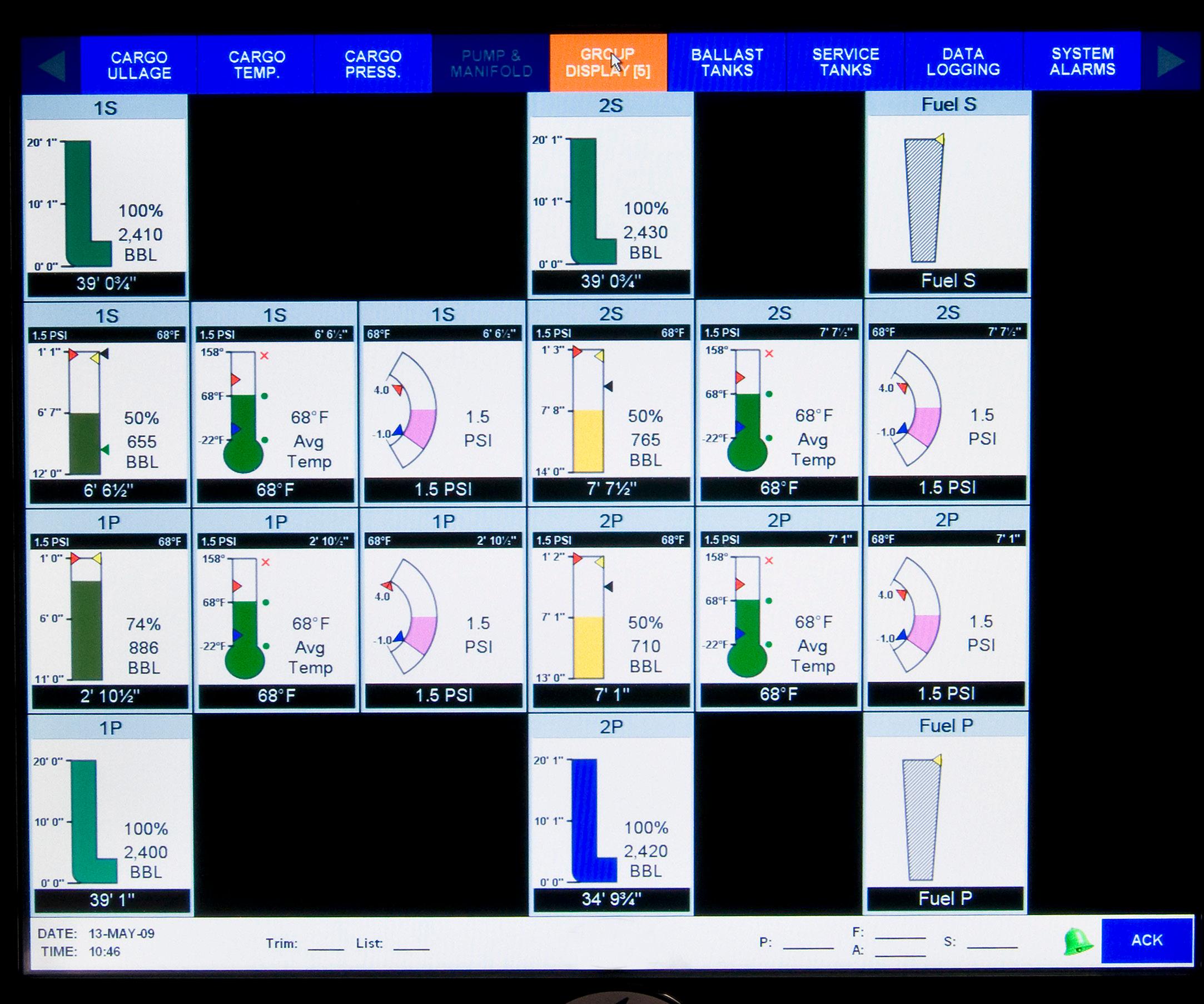

TANK GROUP SCREENS / USER SELECTED

CARGO ULLAGE SUMMARY SCREEN

CARGO TEMPERATURE SUMMARY SCREEN

CARGO PRESSURE SUMMARY SCREEN

PUMP AND MANIFOLD SUMMARY SCREEN

BALLAST TANK SUMMARY SCREEN

SERVICE TANK SUMMARY SCREEN

DATA LOGGING / USER SELECTED

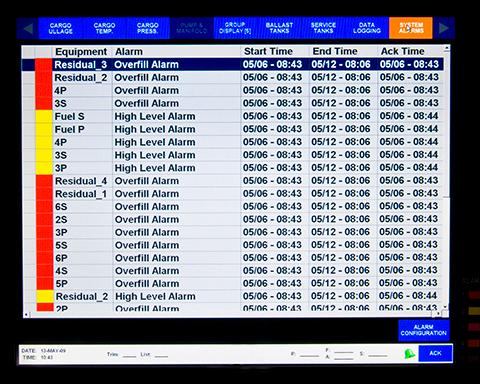

SYSTEM ALARM SCREEN

SYSTEM MAINTENANCE SCREEN

ADJUSTABLE HIGH AND LOW STOP GAUGE CHECKS

LOADING AND DISCHARGE RATES

TIME TO FULL AND EMPTY

TREND ARROW FILLING / DISCHARGING

CARGO LABELS AND USER DEFINED COLOR CODING

SYSTEM SAFE AND FAULT DISPLAYS

ONLINE INTERFACE WITH LOAD CALCULATOR

GUARD LEVEL® FMS

Fuel Management System (FMS)

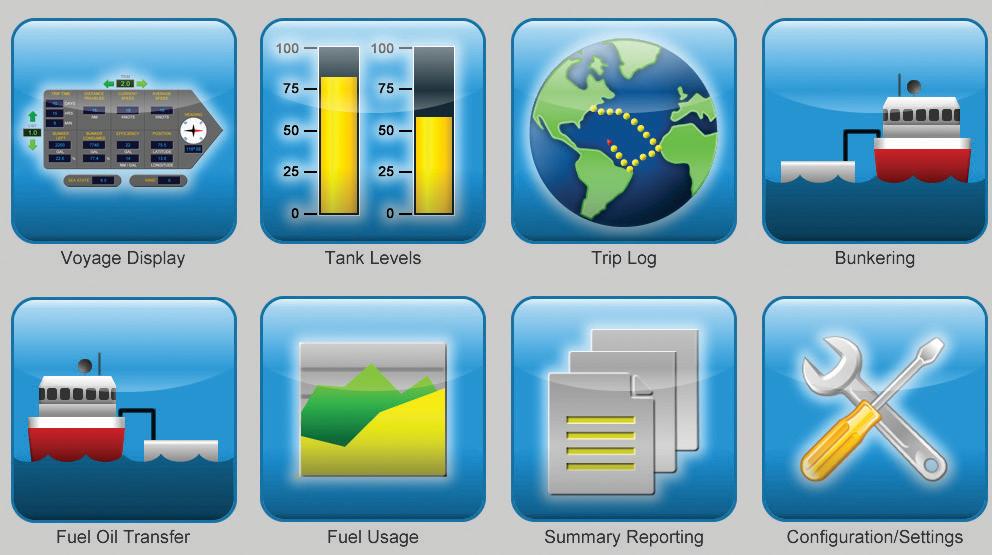

The GUARD LEVEL® FMS (Fuel Management System) is an inventory management system for tug boats and other smaller crafts that produces an audit trail to easily optimize fuel usage and reduce and eliminate fuel pilferage. This intuitive tank gauging system has extended hardware and software capabilities.

The FMS main cabinet and associated CARGORADAR® or GUARD LEVEL® DFG (Digital Float Gauge) combined GPS interface provides for highly accurate daily fuel usage reports.

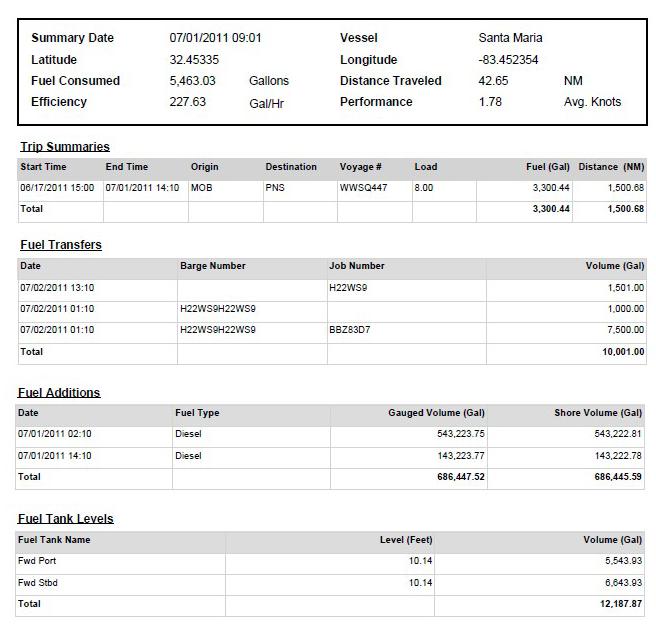

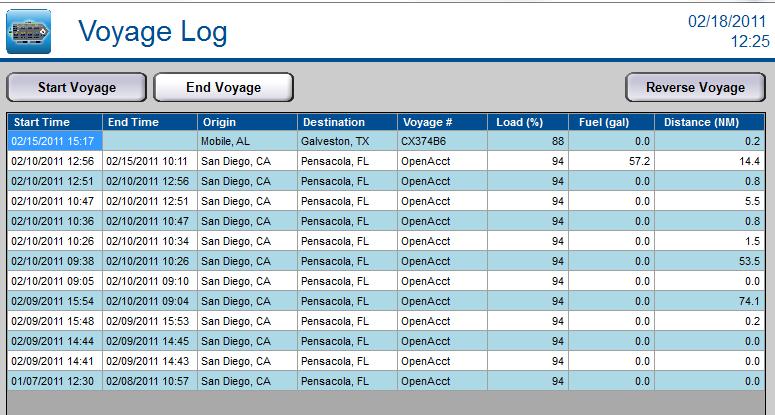

By characterizing the bunker tanks and having these strapped to +/0.15% accuracies, highly accurate tank volumes are calculated. The FMS software generates detailed daily reports and trip data information stored in non-volatile memory. When data communication like a Satcom or 4G system is specified, the daily report can be transmitted directly to your data center or uploaded to our Bergan-provided secure Fleet Reporting Software (cloud service).

With the Fleet Reporting Software cloud service, you have dependable access to the data whenever you need it.

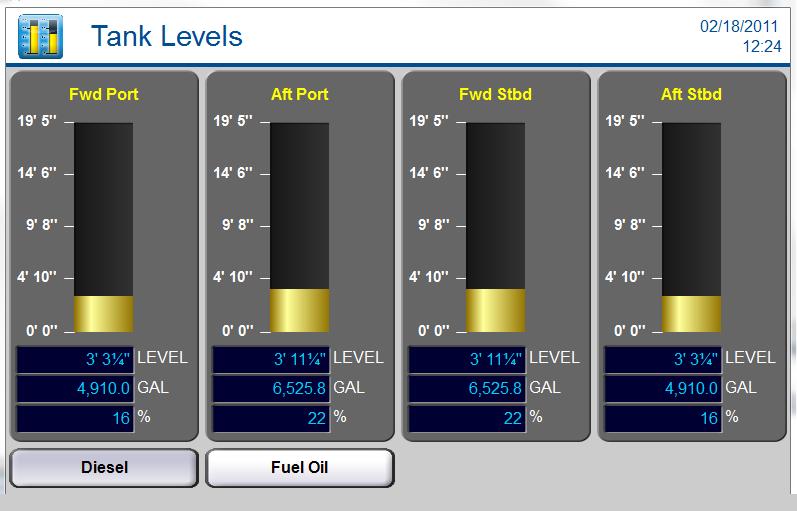

CONTINUOUS INVENTORY CONTROL OF ALL INSTRUMENTED BUNKER TANKS

ENGINE FUEL CONSUMPTION (REQUIRES OPTIONAL CORIOLIS FLOW METER)

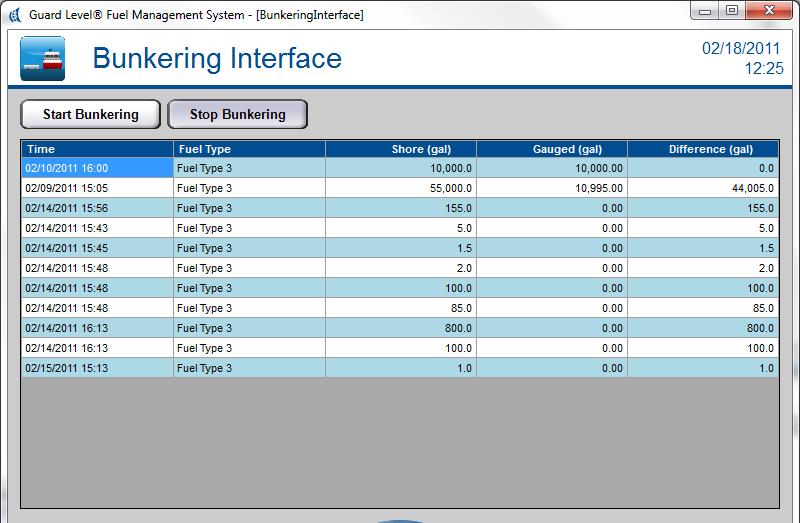

SHORE VERSUS VESSEL DISCREPANCY REPORT AFTER EACH BUNKER OPERATION

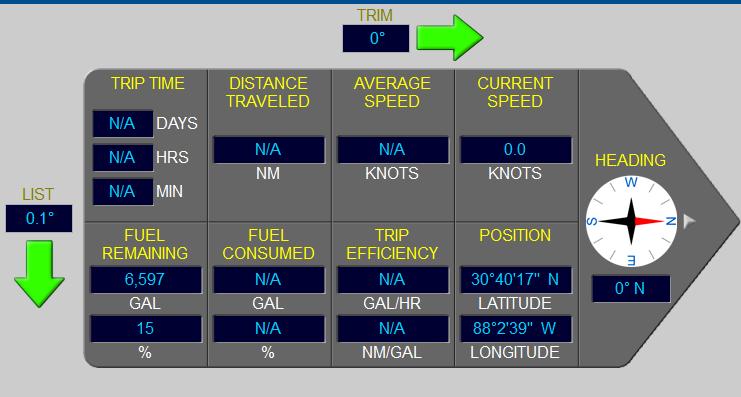

CONSUMPTION ANALYSIS WITH GPS COORDINATES FOR ALL INSTRUMENTED BUNKER TANKS

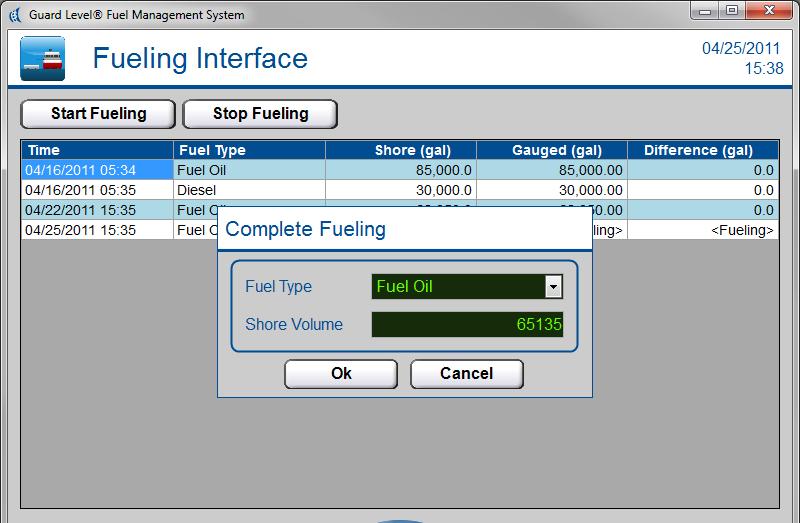

FUEL DISCHARGE REPORT AFTER TUG TO BARGE FUELING TRANSFER

DATA STORAGE IN NONVOLATILE MEMORY

REMOTE MONITORING USING CLOUD BASED FRS (FLEET REPORTING SOFTWARE)

GUARD LEVEL® FRS

Fleet Reporting System (FRS)

GUARD LEVEL® FRS (Fleet Reporting Software) is a low-cost cloud-based software for disseminating fuel data used with the Bergan GUARD LEVEL® Fuel Management System.

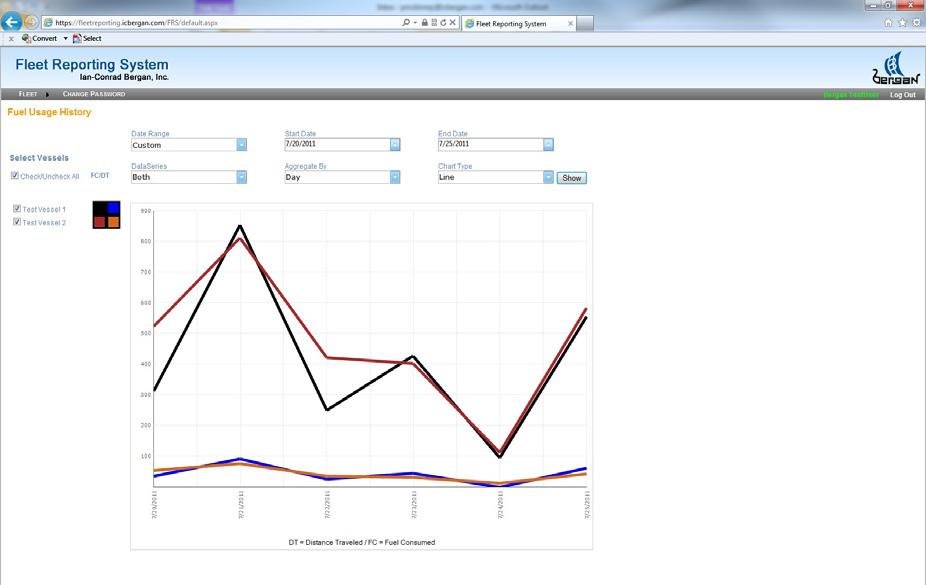

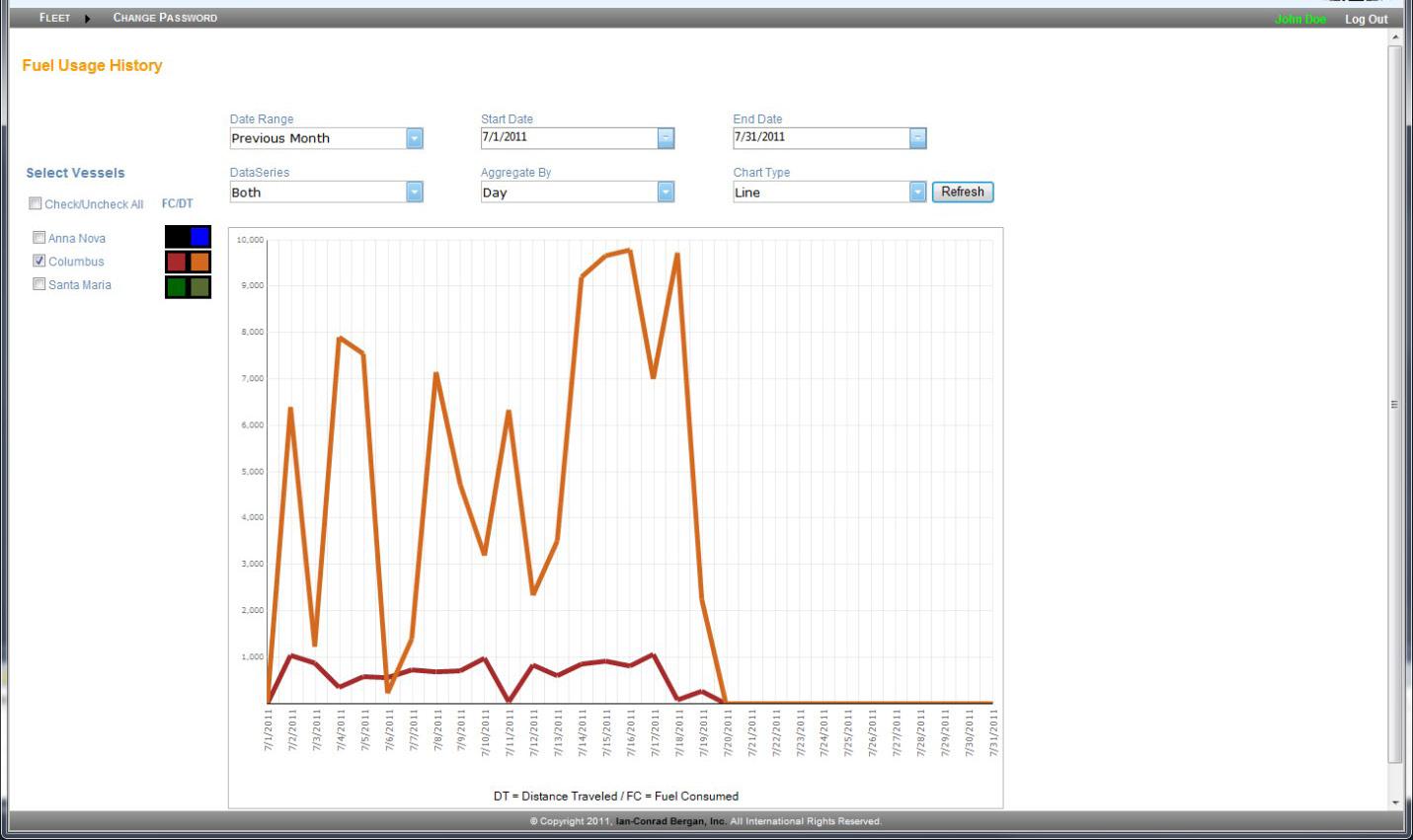

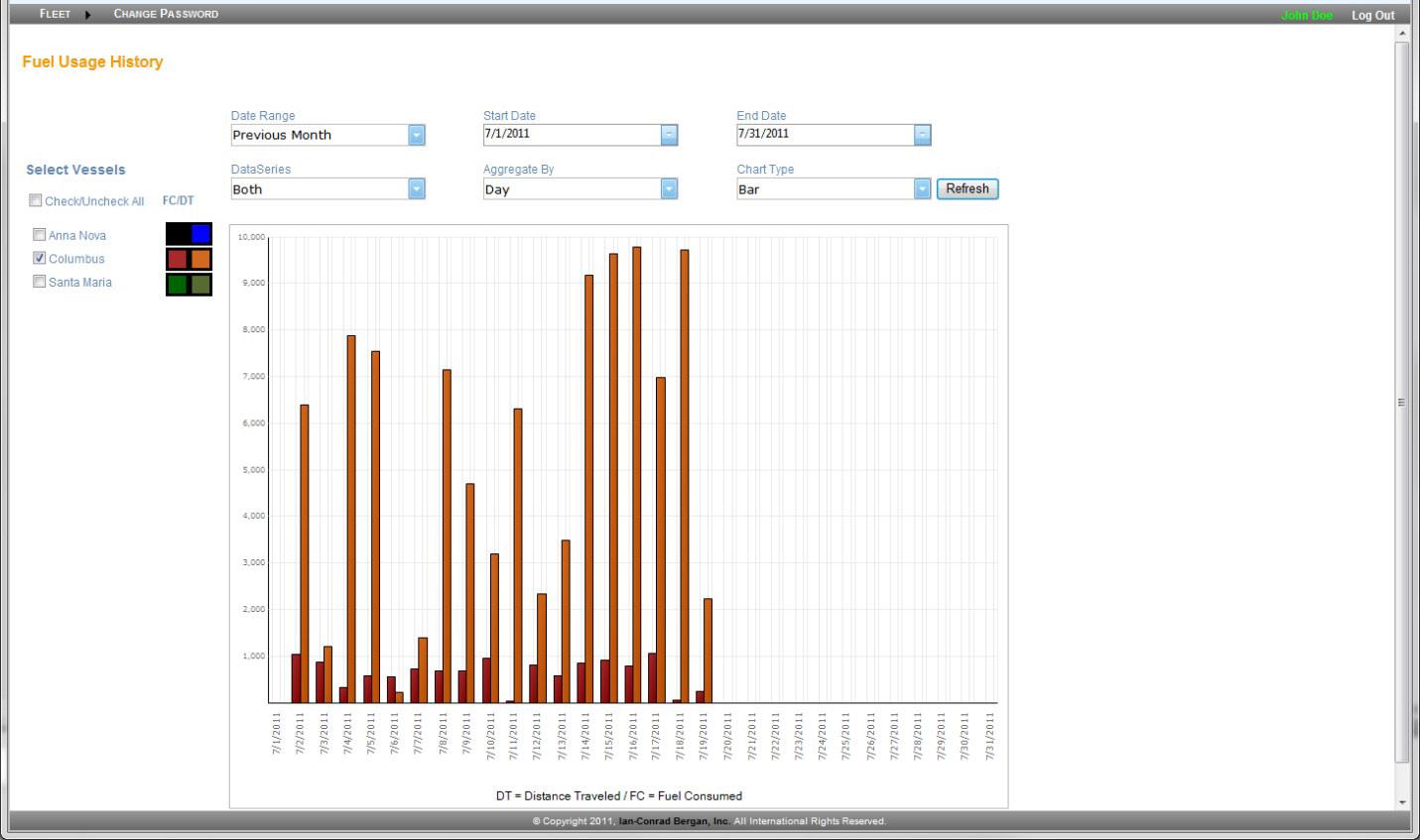

With the Fleet Reporting Software cloud, you have 24/7 access to data. Upload daily fuel reports, download raw data and generate and review graphical presentations of selected data sets.

You own and control your vessel’s proprietary data which is securely password protected – assuring reliability and peace of mind.

The FRS software is a SQL database program that is hosted by a third party.

CLOUD BASED SQL DATABASE PROGRAM

ACCESSIBLE FROM ANY COMPUTER WITH LOG-ON CREDENTIALS

FMS IN CONJUNCTION WITH FRS PROVIDES AUDIT TRAIL OF VESSEL POSITION, FUEL BURN AND RELATED DATA

SECURE DATA STORAGE

VESSEL NAME, DATE AND TIME

TRENDING AND DATA GRAPH

EXPORTING FOR DATA MINING
