HYDROSTATIC LEVEL GAUGING & PRESSURE SENSORS
Our VEGABAR series of highly accurate pressure instruments, with ceramic measurement cells and HART compatibility for easy ranging and scaling, is another great example of our advanced sensor technology through our OEM Vega Americas partnership.
Our VEGABAR series of highly accurate pressure instruments feature ceramic measurement cells and HART compatibility for easy ranging and scaling. It’s another great example of our advanced sensor technology through our OEM Vega Americas partnership.
Advertisement
Whether you’re measuring a tank’s vapor pressure or checking water and fuel levels with a submersible sensor, we again set the industry standard with our hydrostatic level gauging and pressure sensors.
Whether you’re measuring a tank’s vapor pressure or checking water and fuel levels with a submersible sensor, we set the industry standard with our hydrostatic level gauging and pressure sensors.
For more than 40 years the professional team at Bergan Marine Systems has been designing and manufacturing unsurpassed quality marine instrumentation and equipment built to the highest standards – to provide that security and peace of mind: safe-guarding lives, property and the environment.
For more than 45 years, the professional team at Bergan Marine Systems has been designing and manufacturing high-quality marine instrumentation and equipment built to the highest standards required to guard life, property, and the environment, and consistently exceeding expectations.
GUARD LEVEL® HPT 1/2/3 Series
The GUARD LEVEL® HPT (hydrostatic pressure transducer) series are rugged stainless steel, Intrinsically Safe sensors that easily and accurately measure pressure readings in any tank environment.
Hydrostatic Pressure Transducer (HPT)
From high pressure full fuel oil tanks to tank vapor line lower pressure situations, the HPT-1, HPT-2 and HPT-3 sensors work to assure ease and high accuracy, with safety first on the list. And, for all sensors, pressure ranges can be set according to your exact specifications.

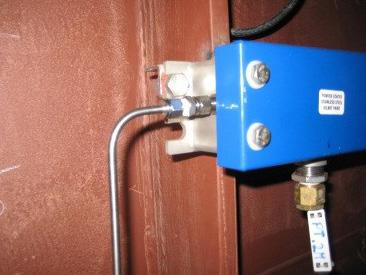

The HPT-1 is connected via stainless steel tube. Most common applications are vapor line, cargo manifold and pump pressure measurements. It’s fitted within the NEMA 4X / IP67 junction box and electrical connection is a simple 2-core cable with an industry standard 4-20mA output signal.
Let us know your requirements. Pressure ranges can be set from zero to 300Psi (high pressure applications) and from -1 to 4 PSI for vapor line or other low-pressure measurements.

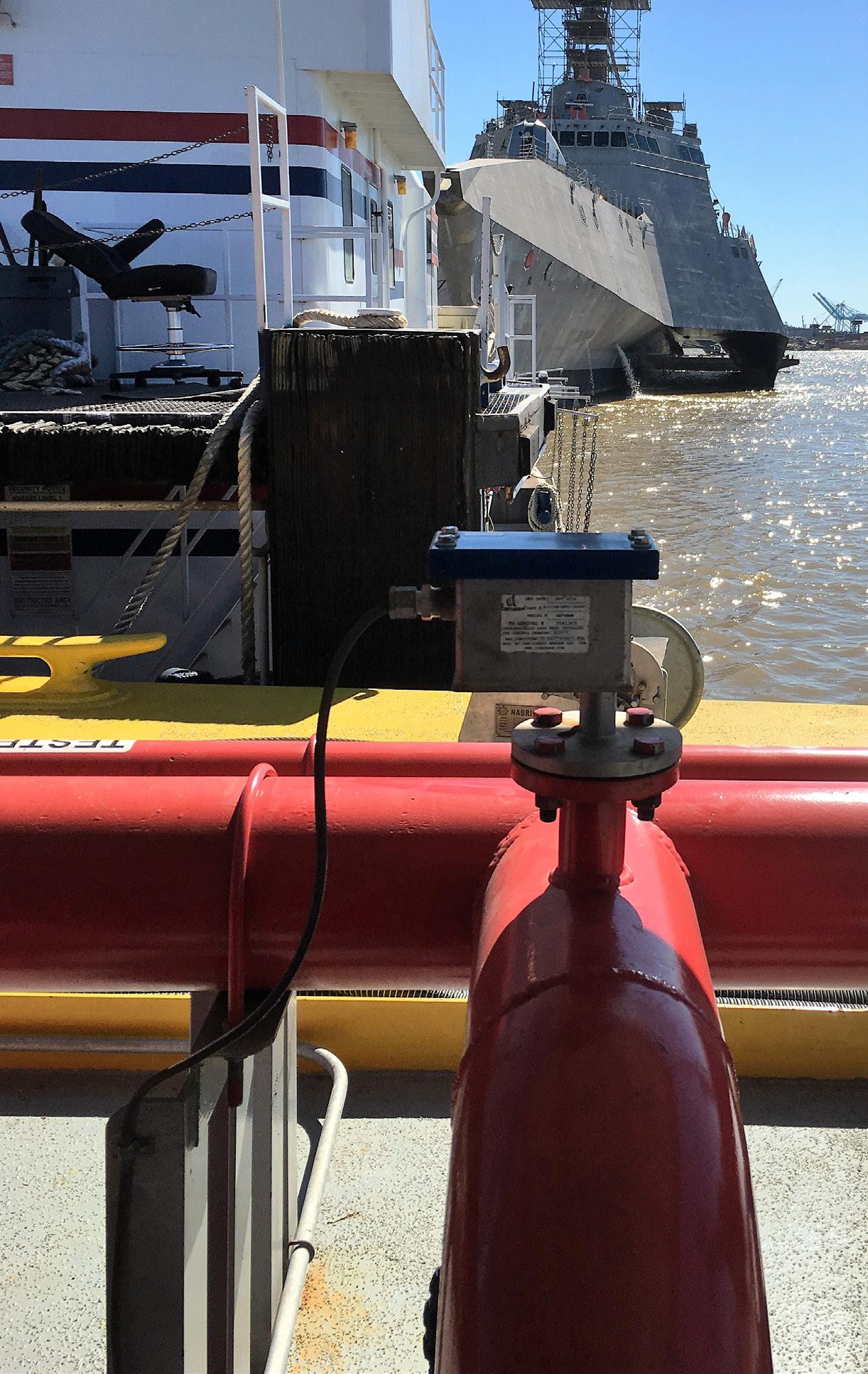

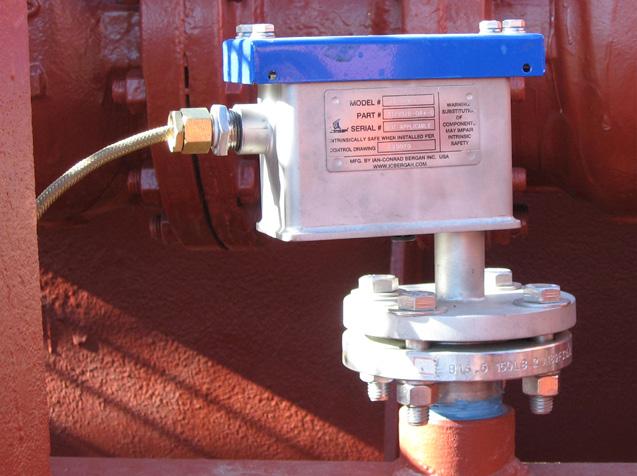

The GUARD LEVEL® HPT-2 operates with an integral flange connection. It is used to measure fuel oil tanks and other service tanks as well as low pressure applications such as tank vapor line pressure.
The sensor is fitted within the NEMA 4X / IP67 junction box and electrical connection is a simple 2-core cable with an industry standard 4-20mA output signal.

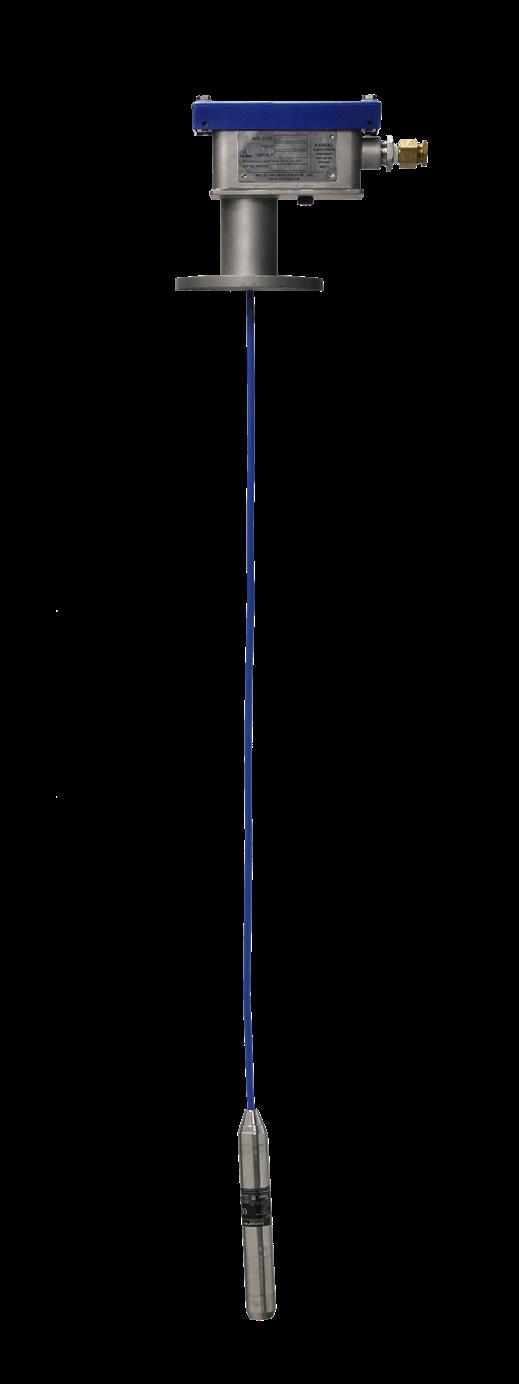

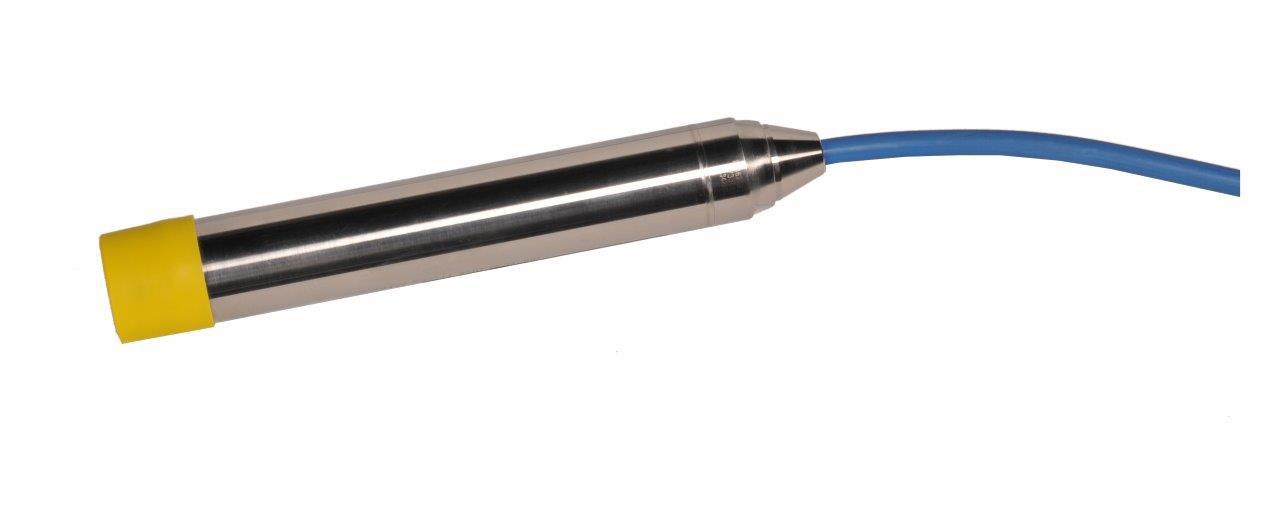

The GUARD LEVEL® HPT-3 is designed for submerged “drop-in” applications into ballast and fuel oil service tanks. With its duplex stainlesssteel sensor body and ceramic sensor diaphragm, the HPT-3 sensor is
DUPLEX SS HOUSING WITH CERAMIC SENSOR (HPT-3 ONLY)
TANK LEVEL INDICATION BALLAST, FO, LO, AND DRAFT GAUGING
ALL STAINLESS-STEEL JUNCTION BOX WITH 2” (50MM) FLANGE
CHEMICALLY RESISTANT SUBMERSIBLE EXTENSION CABLE
SERVICEABLE SENSOR WITHOUT TANK ENTRY made for the harshest conditions yet is incredibly sturdy and accurate.
With its unique construction, the sensor can be installed or removed without tank entry and most importantly, can be performed without need of emptying the tank – a major safety advantage.

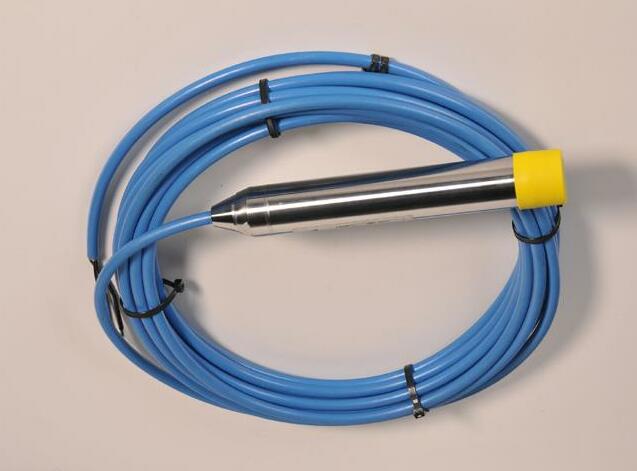

The attached PUR cable is suitable for fuel and diesel oil submersion and is simply cut to length depending upon tank height. Sensor termination can be done with the associated HPT-3 (NEMA 4X IP67) deck junction box.
PRESSURE RANGE PER APPLICATION
4-20MA/ HART 2-WIRE CONNECTION
OPTIONAL BUILT IN TEMPERATURE SENSOR
INTRINSICALLY SAFE
FITTED INTO SHIPYARD SUPPLIED 2” PIPE WITH COUNTER FLANGE FOR EASY INSTALLATION AND REMOVAL
The electrical connection is a simple 2-core cable with an industry standard 4-20mA/HART output signal.
