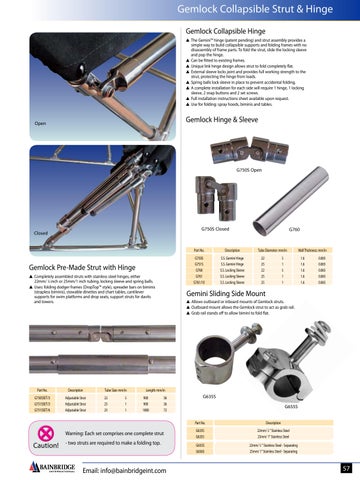

Gemlock Collapsible Strut & Hinge Gemlock Collapsible Hinge ▲ The Gemini™ hinge (patent pending) and strut assembly provides a simple way to build collapsible supports and folding frames with no disassembly of frame parts. To fold the strut, slide the locking sleeve and pop the hinge. ▲ Can be fitted to existing frames. ▲ Unique link hinge design allows strut to fold completely flat. ▲ External sleeve locks joint and provides full working strength to the strut, protecting the hinge from loads. ▲ Spring balls lock sleeve in place to prevent accidental folding. ▲ A complete installation for each side will require 1 hinge, 1 locking sleeve, 2 snap buttons and 2 set screws. ▲ Full installation instructions sheet available upon request. ▲ Use for folding: spray hoods, biminis and tables.
Gemlock Hinge & Sleeve
Open
G750S Open
G750S Closed
Closed
Gemlock Pre-Made Strut with Hinge ▲ Completely assembled struts with stainless steel hinges, either 22mm/ 7⁄8 inch or 25mm/1 inch tubing, locking sleeve and spring balls. ▲ Uses: folding dodger frames (DropTop™ style), spreader bars on biminis (strapless biminis), stowable dinettes and chart tables, cantilever supports for swim platforms and drop seats, support struts for davits and towers.
Part No.
Description
Tube Size: mm/in
G750SSET/3 G751SSET/3 G751SSET/6
Adjustable Strut Adjustable Strut Adjustable Strut
22 25 25
⁄ 1 1 7 8
Description
G750S G751S G760 G761 G761/10
S.S. Gemini Hinge S.S. Gemini Hinge S.S. Locking Sleeve S.S. Locking Sleeve S.S. Locking Sleeve
Tube Diameter: mm/in ⁄ 1 7 ⁄8 1 1
22 25 22 25 25
Wall Thickness: mm/in 1.6 1.6 1.6 1.6 1.6
7 8
0.065 0.065 0.065 0.065 0.065
Gemini Sliding Side Mount ▲ Allows outboard or inboard mounts of Gemlock struts. ▲ Outboard mount allows the Gemlock strut to act as grab rail. ▲ Grab rail stands off to allow bimini to fold flat.
Length: mm/in 900 900 1800
36 36 72
Warning: Each set comprises one complete strut
Caution!
Part No.
G760
- two struts are required to make a folding top.
Email: info@bainbridgeint.com
G635S G655S Part No.
Description
G633S G635S
22mm/ 7⁄8 " Stainless Steel 25mm/ 1" Stainless Steel
G655S G656S
22mm/ 7⁄8 " Stainless Steel - Separating 25mm/ 1" Stainless Steel - Separating
57
