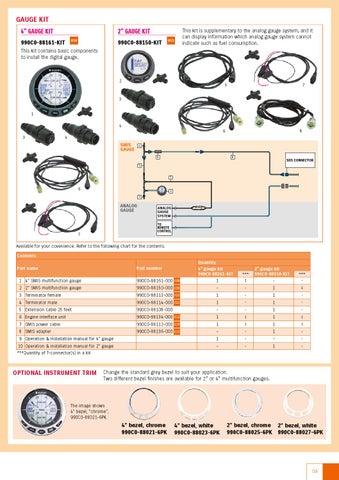

Suzukimarine Zubehörkatalog

GAUGE KIT 4” GAUGE KIT

2” GAUGE KIT

990C0-88161-KIT

010

990C0-88150-KIT

This kit is supplementary to the analog gauge system, and it can display information which analog gauge system cannot indicate such as fuel consumption.

011

This kit contains basic components to install the digital gauge.

2

5

7

3 1 4 8

6 3

4

SMIS GAUGE

4 6

8

SDS CONNECTOR

5 7

6

2 3

ANALOG GAUGE

ANALOG GAUGE SYSTEM TO REMOTE CONTROL

7

Available for your covenience. Refer to the following chart for the contents.

Contents Part name

Part number

Quantity 4” gauge kit 990C0-88161-KIT 1

***

2” gauge kit 990C0-88150-KIT -

***

2 2” SMIS multifunction gauge

990C0-88161-000 008 990C0-88150-000 009

-

-

1

1

3 Terminator female

990C0-88113-000 020

1

-

1

-

4 Terminator male

990C0-88114-000 021

1

-

1

-

5 Extension cable 25 feet

990C0-88108-000

-

-

1

-

6 Engine interface unit

990C0-88134-000 012

1

1

1

1

7 SMIS power cable

990C0-88112-000 017

1

1

1

1

8 SMIS adapter

990C0-88136-000 013

1 4” SMIS multifunction gauge

1

-

-

-

1

-

9 Operation & installation manual for 4” gauge

1

-

-

-

10 Operation & installation manual for 2” gauge

-

-

1

-

***Quantity of T-connector(s) in a kit

OPTIONAL INSTRUMENT TRIM

Change the standard grey bezel to suit your application.

Two different bezel finishes are available for 2” or 4” multifunction gauges.

The image shows 4” bezel, “chrome”, 990C0-88021-6PK.

4” bezel, chrome 990C0-88021-6PK

4” bezel, white 990C0-88023-6PK

2” bezel, chrome 2” bezel, white 990C0-88025-6PK 990C0-88027-6PK
