X670E Series

ASUS TUF GAMING X670E motherboards take all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.*

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

WiFi Antenna

The WiFi antenna leverages four-way positioning for better signal reception, and a magnetic base to secure the antenna on the top or side of a PC case.

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

1 Enlarged PCH Heatsink

Up to 3X Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

2 Optimized M.2 Heatsink Design

An expanded surface area for the chipset cooler maximizes performance and heat dissipation.

Three out of four M.2 slots have dedicated heatsinks, with one 40% enlarged M.2 heatsink for PCIe 5.0 support at optimal operating temperatures to ensure consistent performance and reliability.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME X670E-PRO WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

The two VRM heatsinks on PRIME X670E-PRO WIFI are significantly larger than those found on earlier X570 motherboards. Together with the thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Three M.2 heatsinks cover four M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

WiFi 6E & 2.5 Gb Ethernet

DDR5 support with ASUS Enhanced Mmory Profile (AEMP)

Gen 5 slots for graphics card and storage

PCIe® Slot Q-Release

M.2 Q-Latch

USB4® support via a Thunderbolt™ (USB4®) header

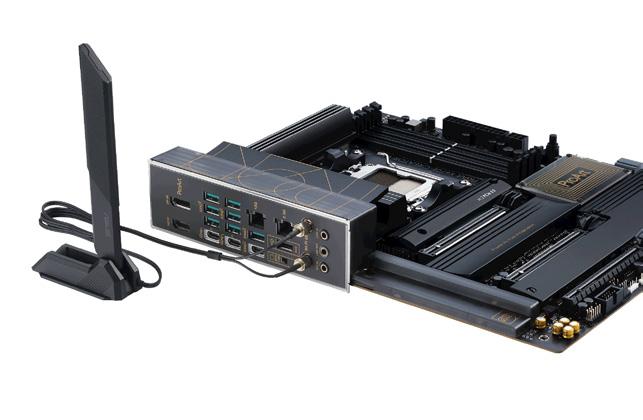

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightningfast connectivity.

It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.

Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local networkattached storage (NAS), allowing for improved data organization and security

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds.

USB 3.2 Gen 2x2 boosts Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Two PCIe® 5.0 and two PCIe 4.0 M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

Ready for AMD Ryzen™ 7000 Series desktop processors

‧DDR5 support

‧Two PCIe 4.0 x16 slots (x16 single or x8/x8 dual)

One PCIe 4.0 x 4 slot (Max. x4)

One PCIe 4.0 x1 slot 2.5 Gb & 1 Gb Ethernet

‧USB-C DisplayPort™ (DP Alt Mode)

One PCIe® 5.0 and two PCIe 4.0 M.2 slot

‧USB 3.2 Gen 2x2 Type-C® Front-Panel connector with 60W Quick Charge 4+

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

Enhances system security from bottom to top

ASUS Self-recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module (TPM)

Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147

ASUS business motherboard is certified by the national computer security standards.

ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

Ensures consistent performance with the finest components and rigorous reliability testing

An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.
