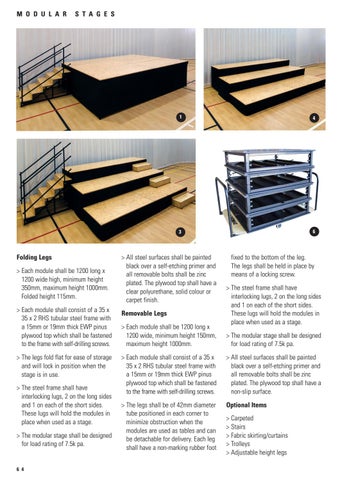

M O D U L A R
S T A G E S
Folding Legs > Each module shall be 1200 long x 1200 wide high, minimum height 350mm, maximum height 1000mm. Folded height 115mm. > Each module shall consist of a 35 x 35 x 2 RHS tubular steel frame with a 15mm or 19mm thick EWP pinus plywood top which shall be fastened to the frame with self-drilling screws.
1
4
3
6
> All steel surfaces shall be painted black over a self-etching primer and all removable bolts shall be zinc plated. The plywood top shall have a clear polyurethane, solid colour or carpet finish. Removable Legs
> The steel frame shall have interlocking lugs, 2 on the long sides and 1 on each of the short sides. These lugs will hold the modules in place when used as a stage.
> Each module shall be 1200 long x 1200 wide, minimum height 150mm, > The modular stage shall be designed maximum height 1000mm. for load rating of 7.5k pa.
> The legs fold flat for ease of storage > Each module shall consist of a 35 x 35 x 2 RHS tubular steel frame with and will lock in position when the a 15mm or 19mm thick EWP pinus stage is in use. plywood top which shall be fastened > The steel frame shall have to the frame with self-drilling screws. interlocking lugs, 2 on the long sides > The legs shall be of 42mm diameter and 1 on each of the short sides. These lugs will hold the modules in tube positioned in each corner to minimize obstruction when the place when used as a stage. modules are used as tables and can > The modular stage shall be designed be detachable for delivery. Each leg for load rating of 7.5k pa. shall have a non-marking rubber foot 6 4
fixed to the bottom of the leg. The legs shall be held in place by means of a locking screw.
> All steel surfaces shall be painted black over a self-etching primer and all removable bolts shall be zinc plated. The plywood top shall have a non-slip surface. Optional Items > Carpeted > Stairs > Fabric skirting/curtains > Trolleys > Adjustable height legs
