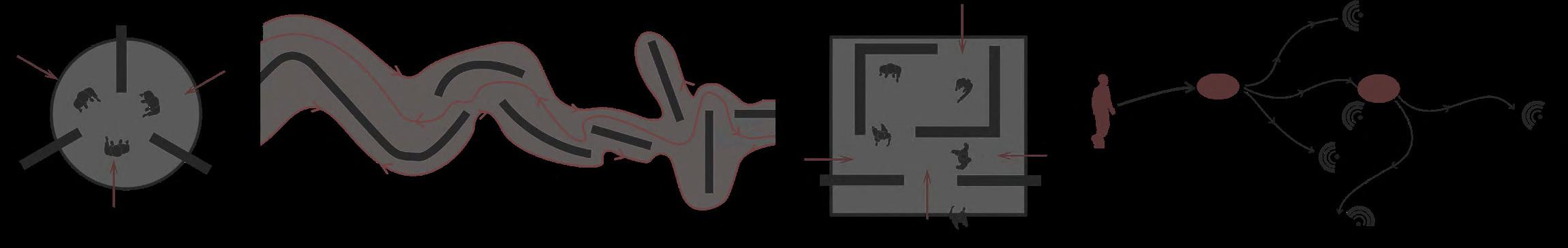

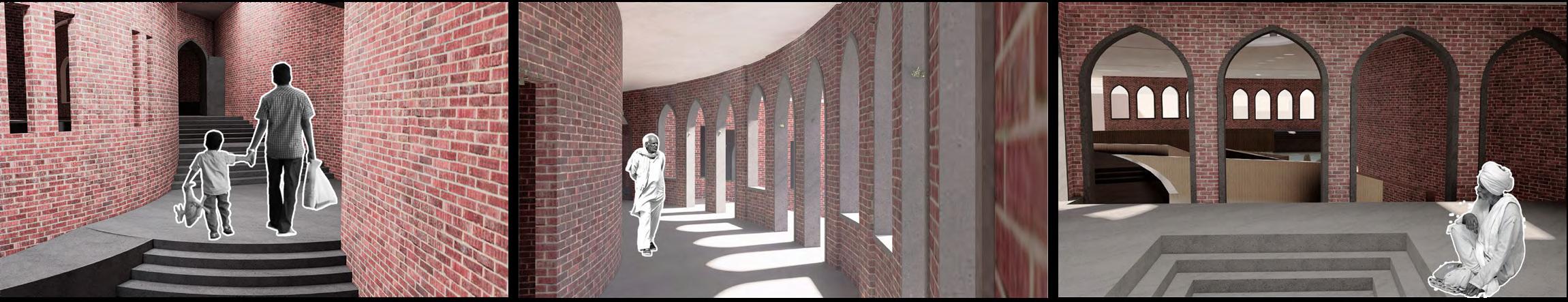

CIRCULATION FLOWS THROUGH SENSES( BY VARIOUS ACTIVITIES)

Multi - Directional Exchange

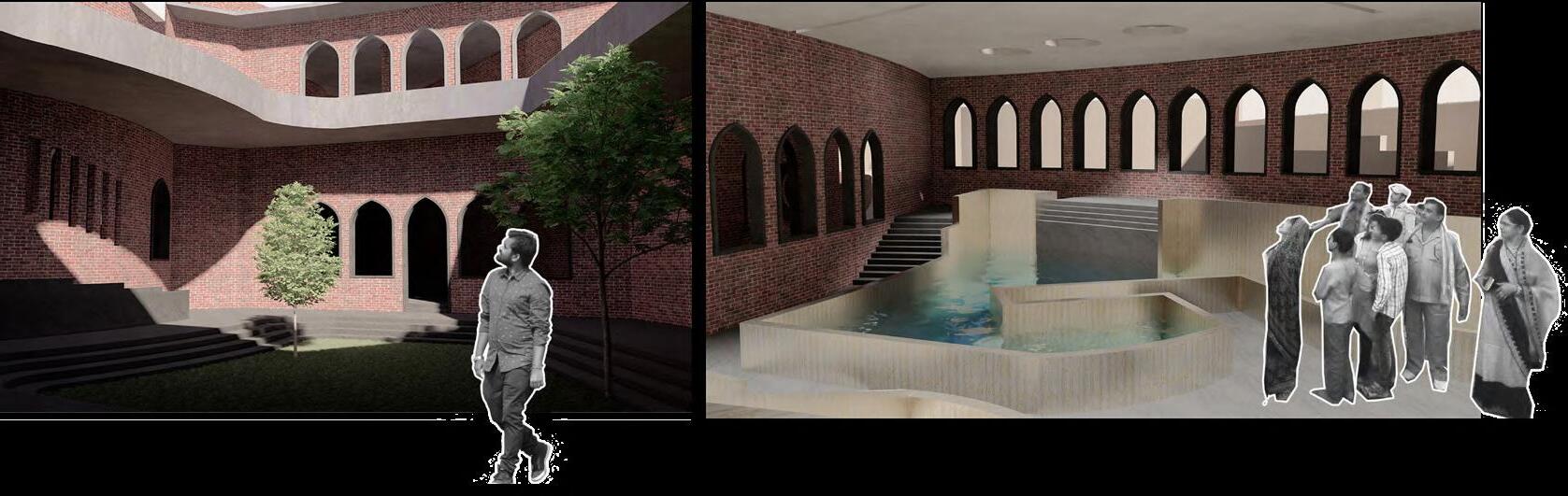

Node points leading through Senses towards Dynamic spaces

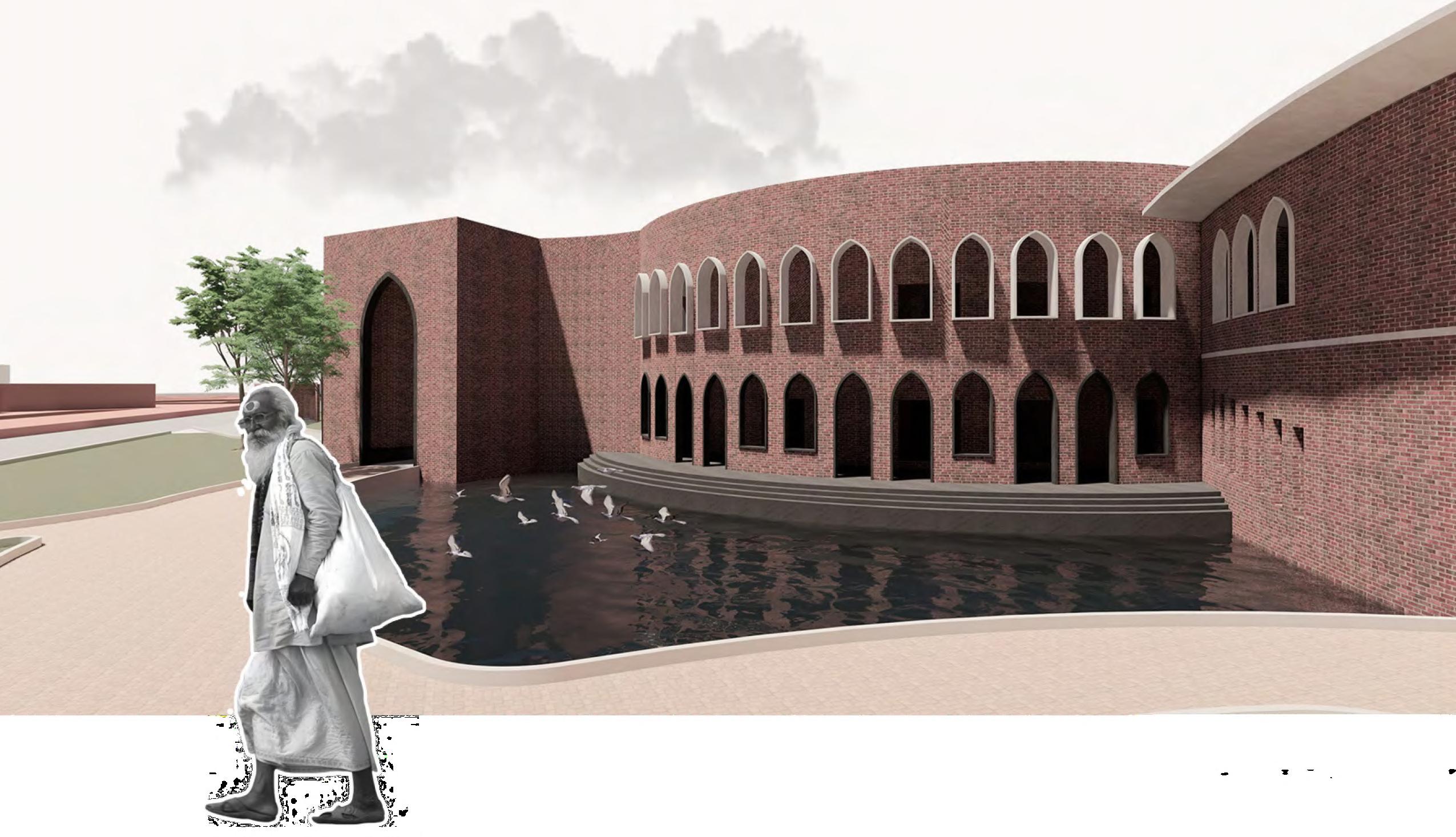

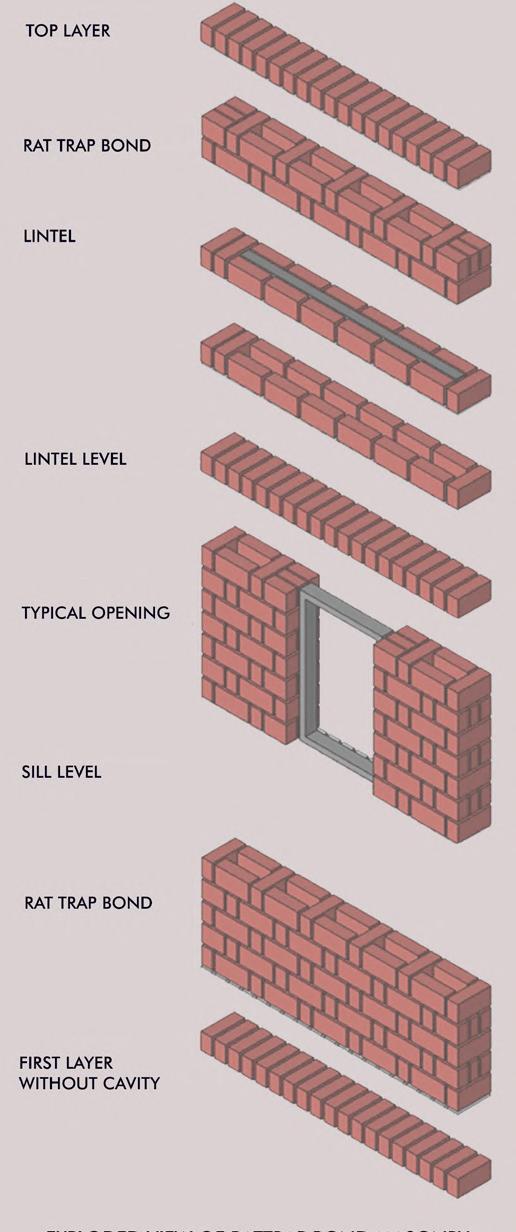

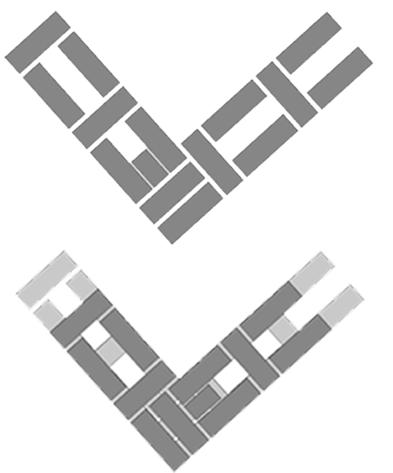

Rat Trap Bond

• It requires approximately 30% less bricks and 50% less mortar than concevtional masonry. Reduces the cost of a 230MM wall by 20%-30%.

• Cavity included in wall provides the advantage of thermal comfort. Allows the interior cooler in summer and warmer in winter.

• All pillars, lintels, sill bounds, electrical conducts, tie beams, etc are concealed giving better aesthetic looks for exposed brickwork

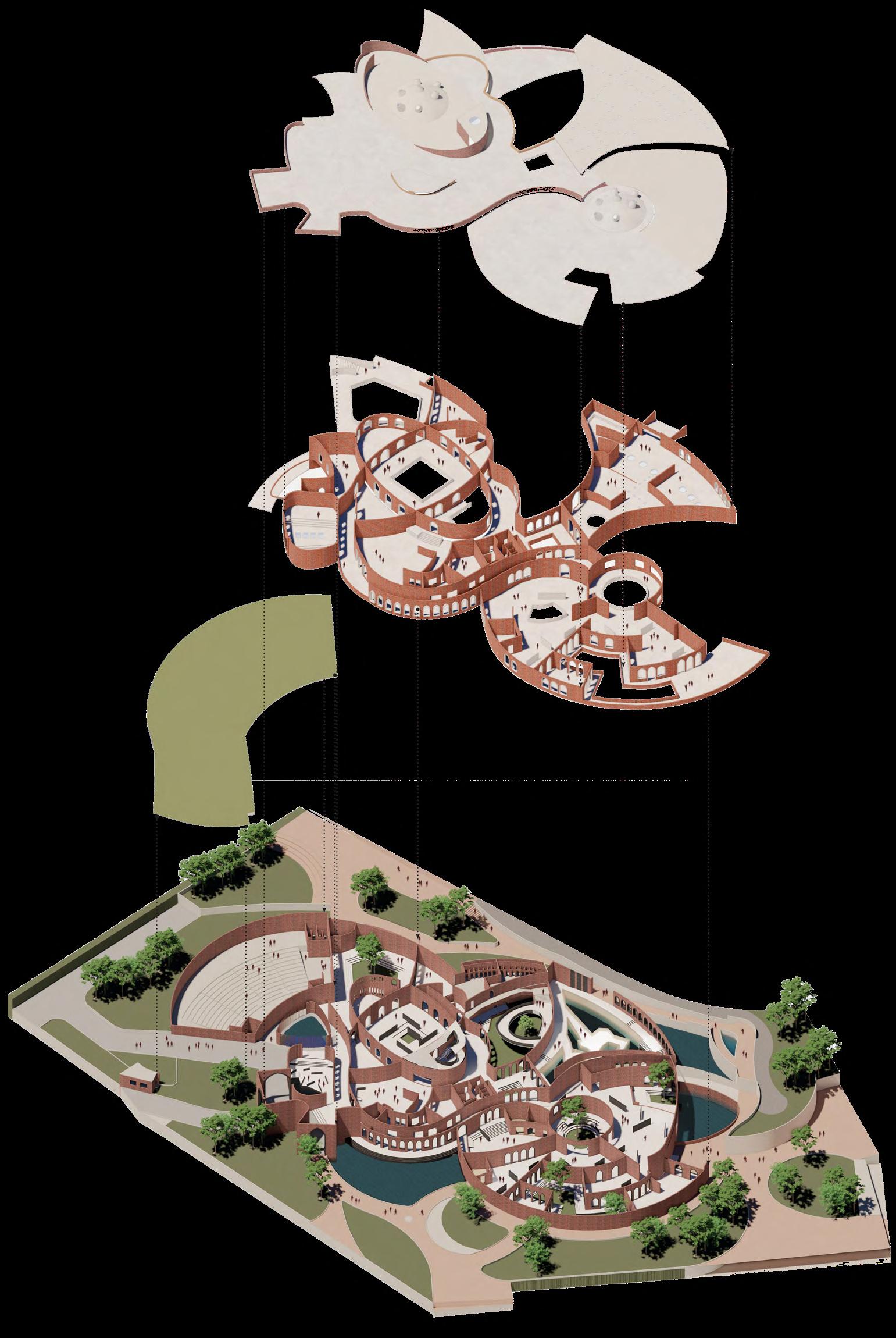

Axonometric View

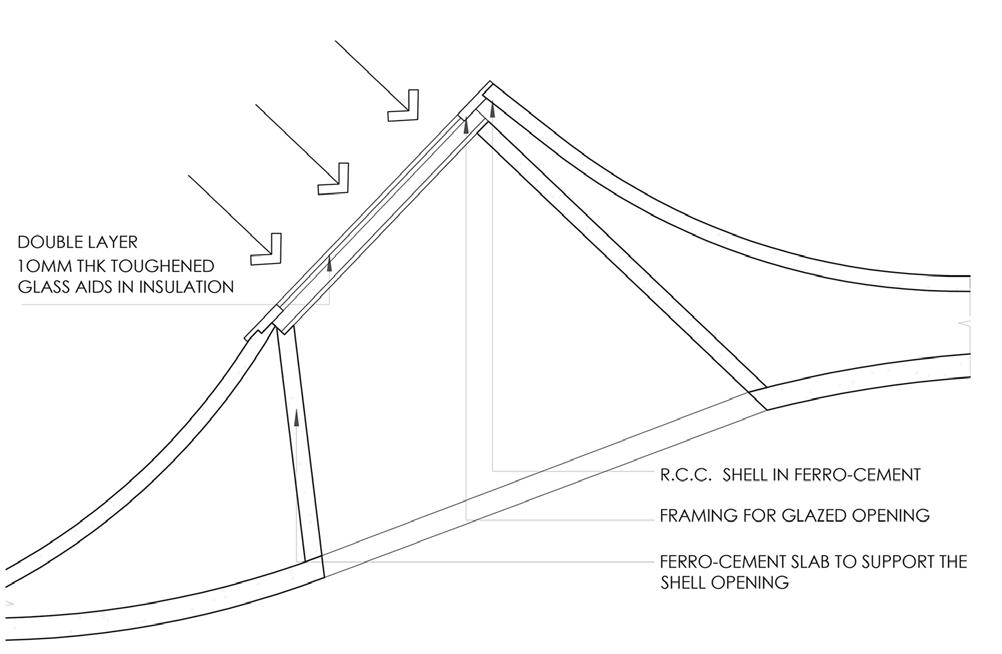

ROOF PLAN

FIRST FLOOR PLAN

Master Plan

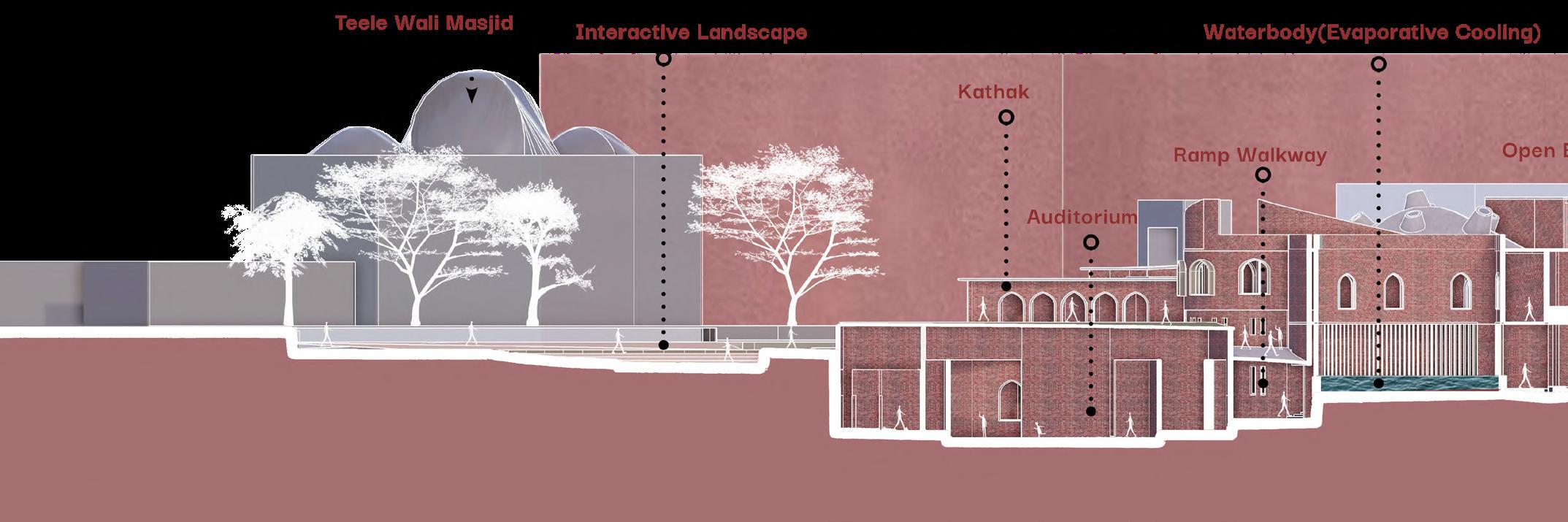

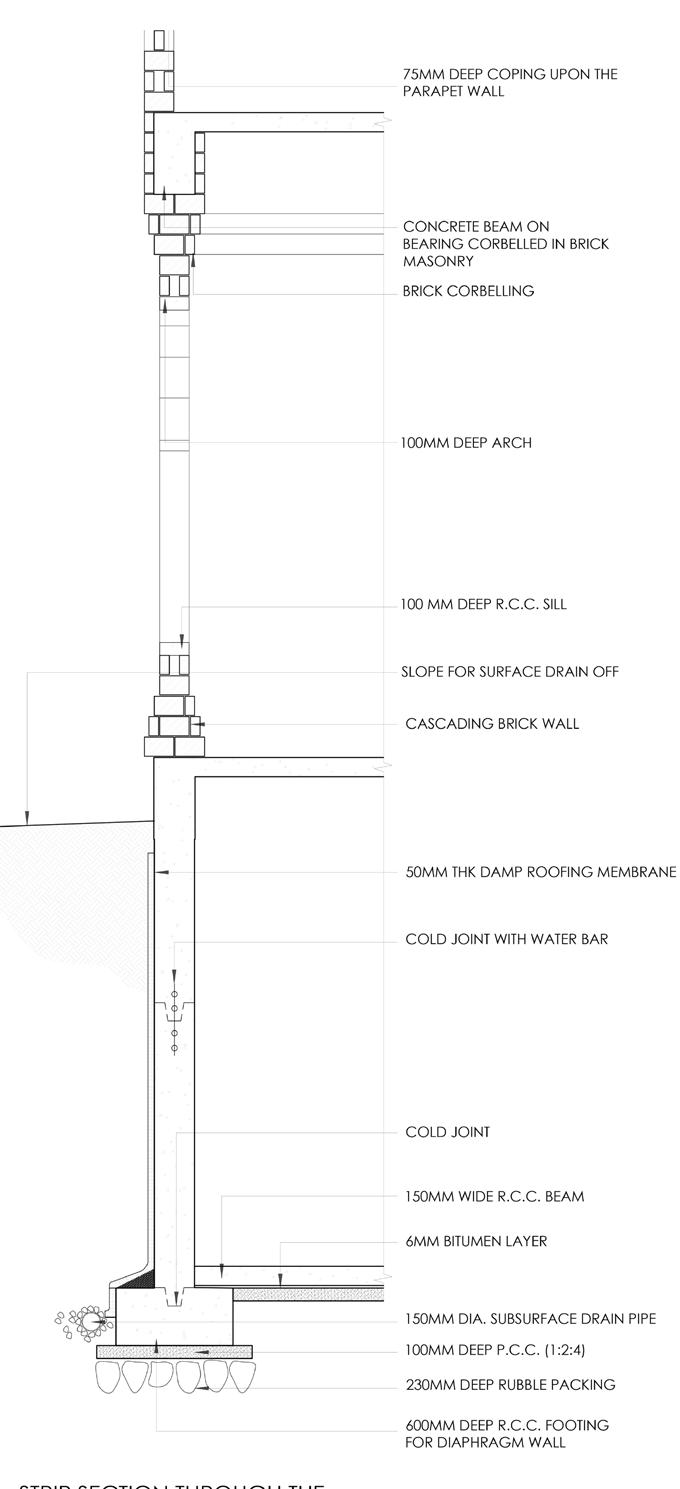

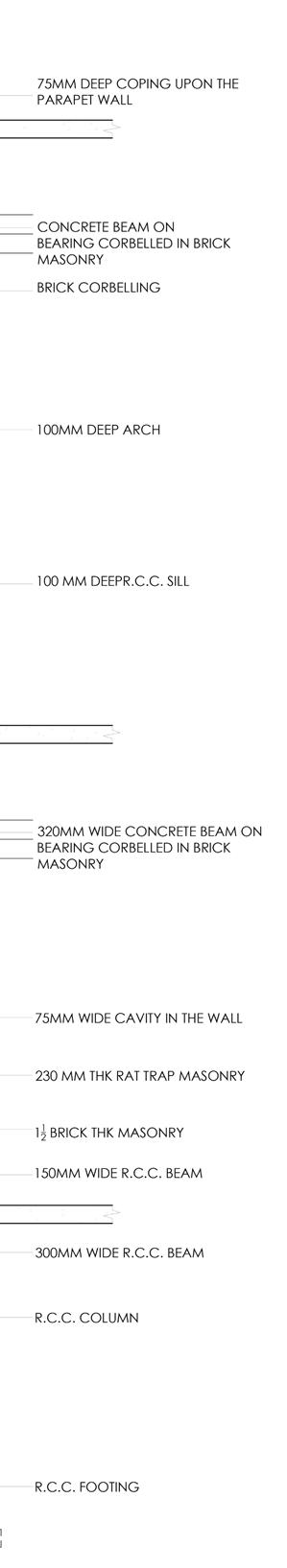

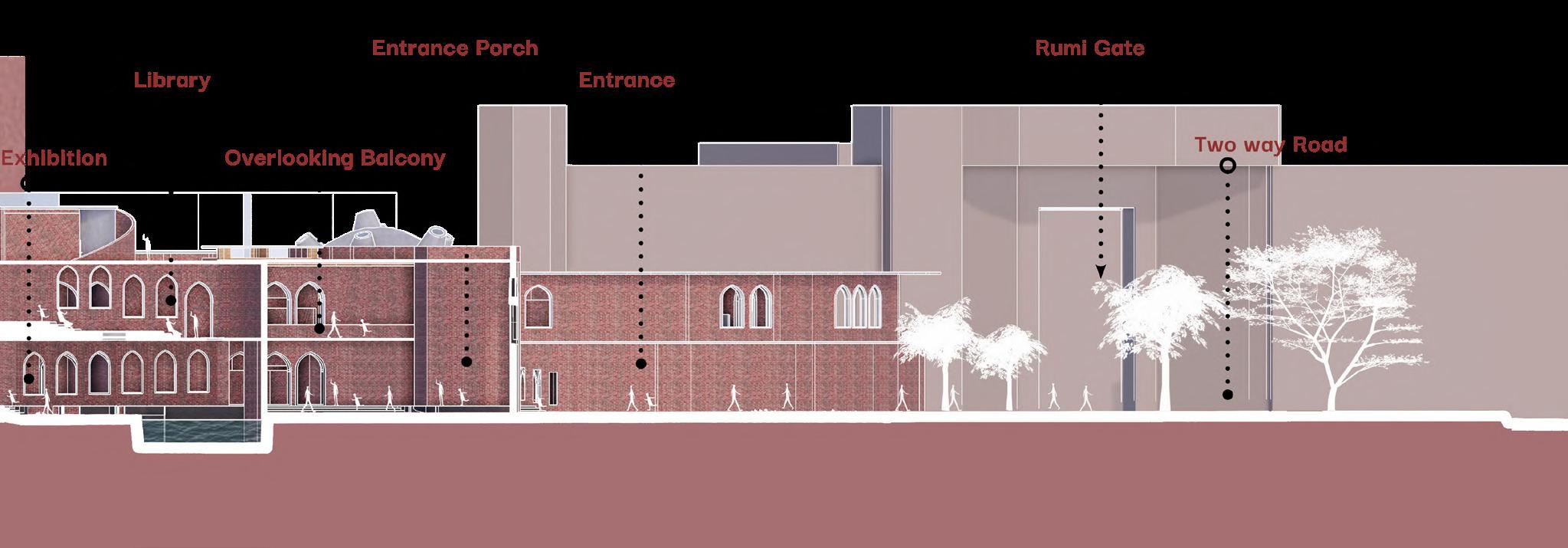

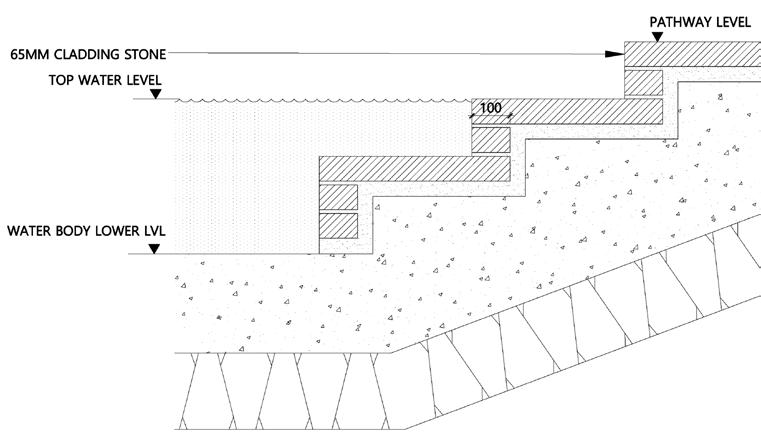

STRIP SECTION THROUGH THE RETAINING DIAPHRAGM WALL

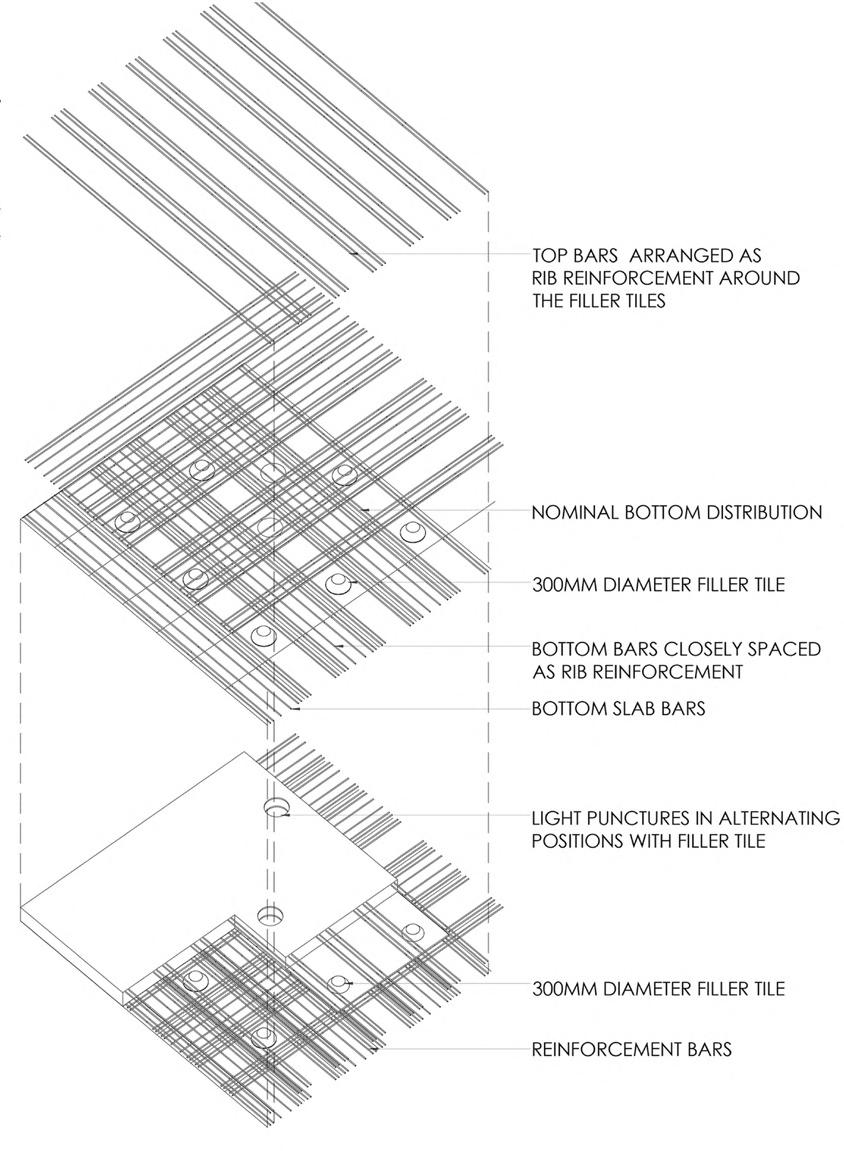

• Filler Slab has been used instead of normal R.C.C slab between floors. Structurally, R.C.C slabs does not require concrete at bottom level(tension zone), thus it has been replace with clay pots made by local artisans. This saves concrete (thus reducing cost) and provide better thermal insulation.

• 30% less concrete than conventional slab construction.
