20mm porcelain pavers
catalogue

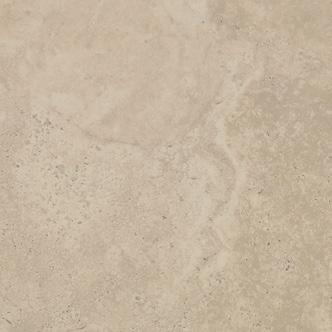

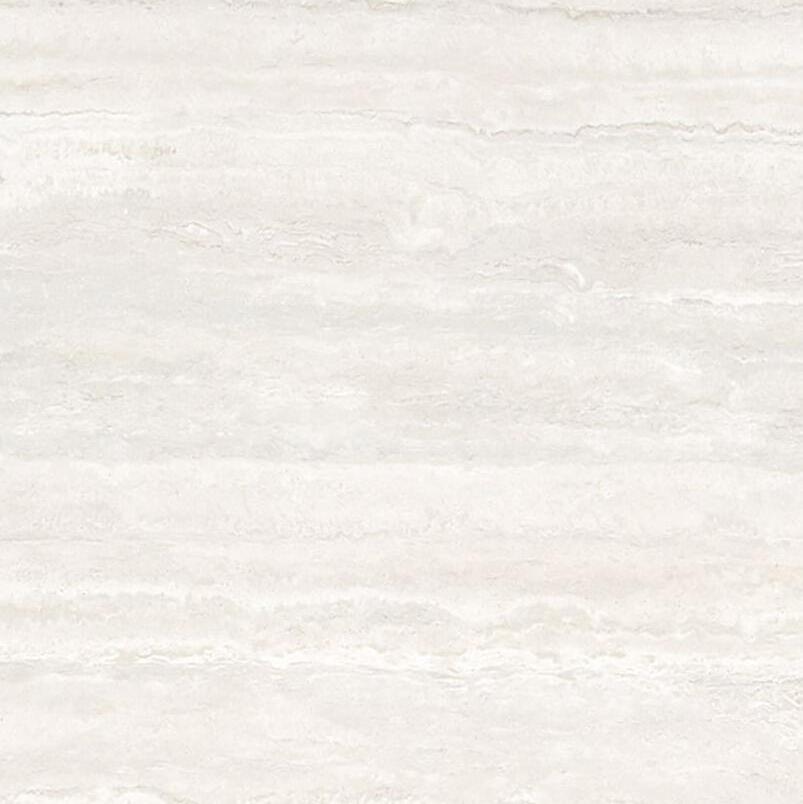

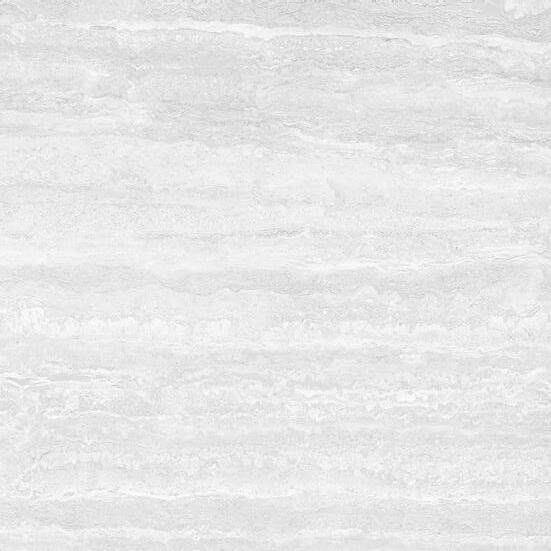

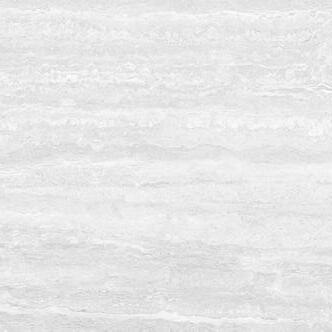

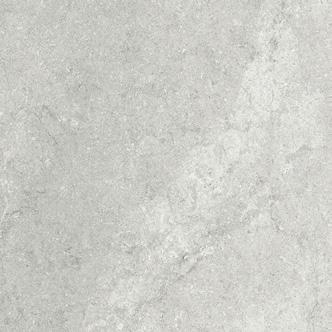

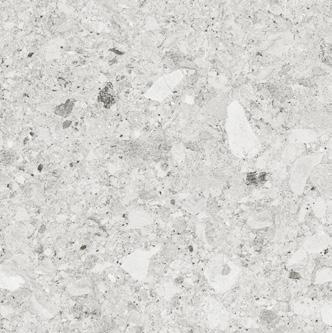

Paver: Ceppo Bianco Paver 600x600x20mm
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: External
Nominal sizes: 600x600x10mm, 600x600x20mm
Application: Floor
Wet pendulum test: P5
Slip resistance:
Lifetime Guarantee
Wet barefoot inclining platform test: B
Oil-wet inclining platform test: R11
stocked

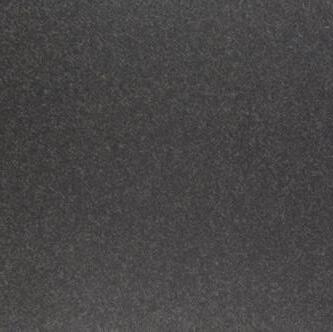

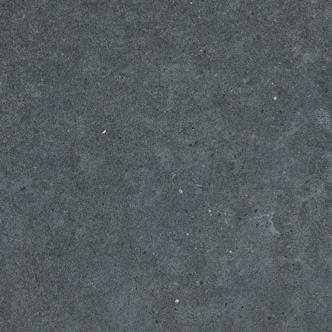

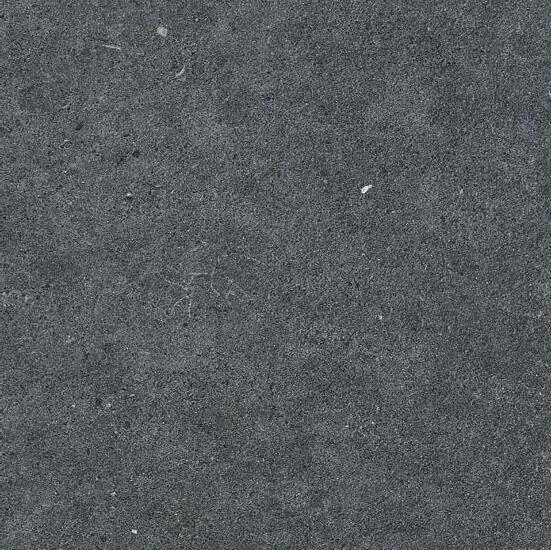

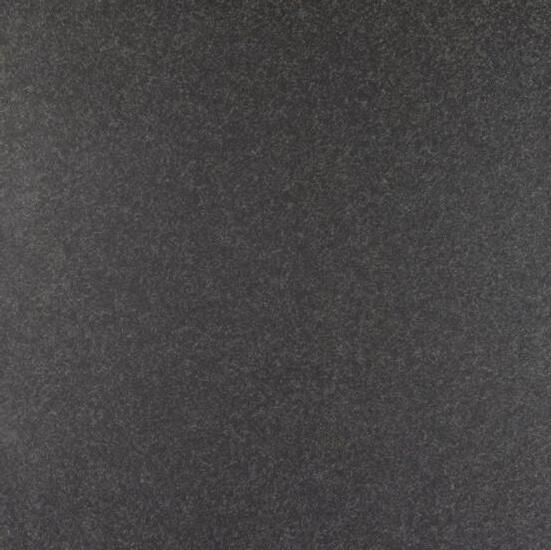

Paver: Beaton Black Pearl 20mm thickness
Black Pearl 600x600x20mm available in 10mm thickness

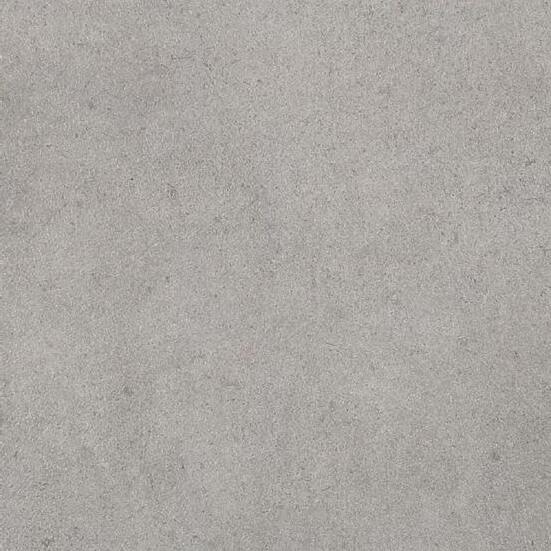

Steel Grey Paver 600x600x20mm
beaton 2
ceppo
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: Grip
Nominal sizes: 600x600x20mm
Application: Floor
Wet pendulum test: P5
Slip resistance:
Wet barefoot inclining platform test: A
Oil-wet inclining platform test: R11
stocked

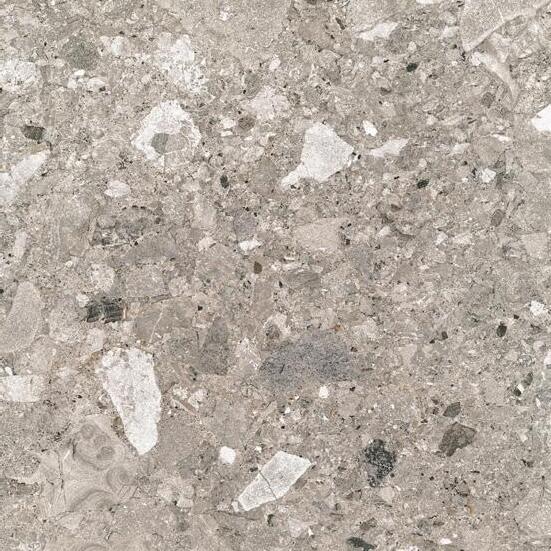

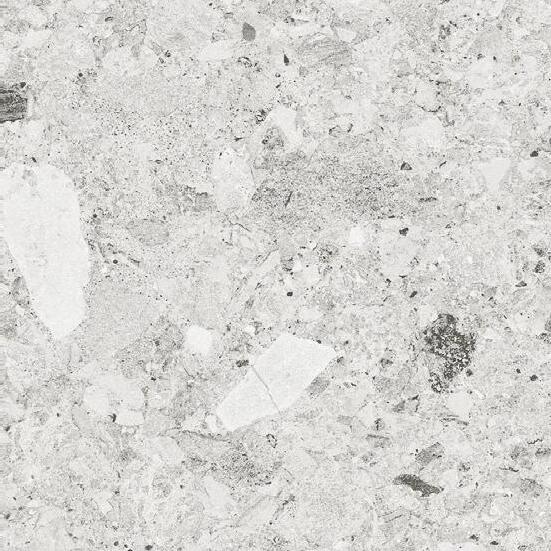

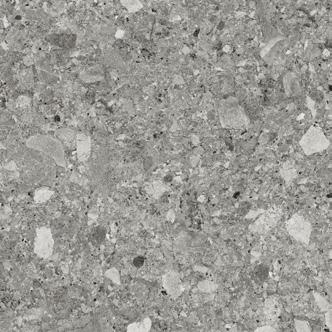

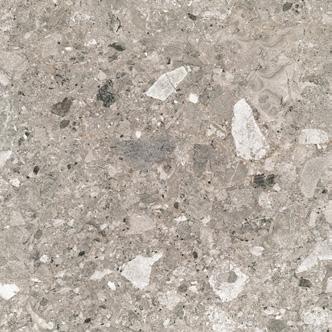

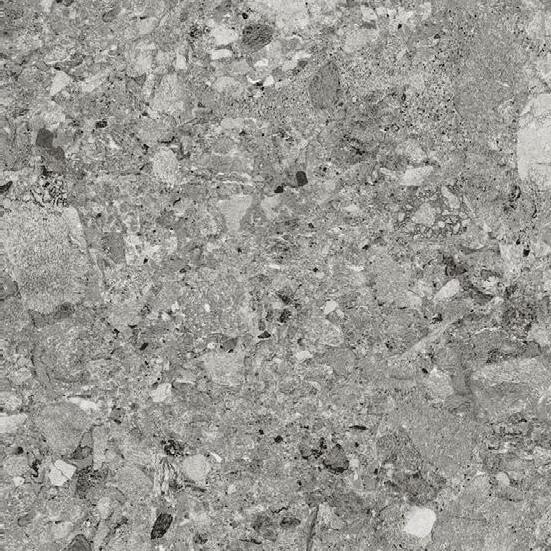

Paver: Ceppo Farge Paver 600x600x20mm
Bianco 600x600x20mm
Farge 600x600x20mm
Grigio 600x600x20mm
Lifetime Guarantee
3
gaden
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: External
Nominal sizes: 450x900x20mm
Application: Floor
Slip resistance: Wet pendulum test: P4
Lifetime Guarantee
stocked

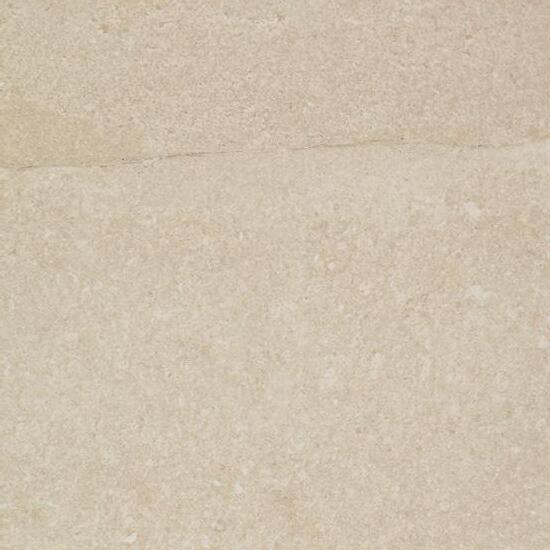

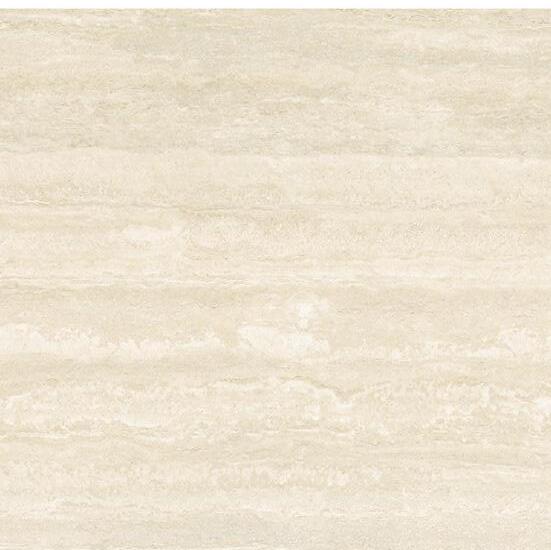

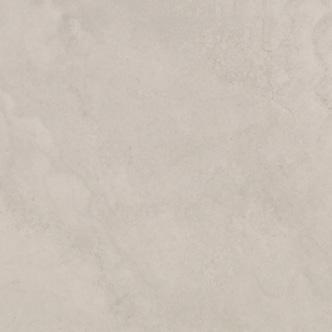

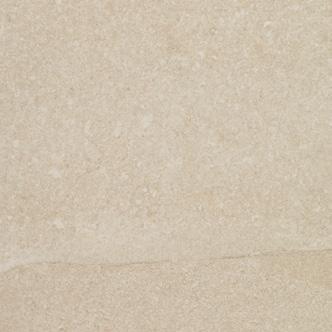

Paver: Gaden Perla 450x900x20mm
Perla 450x900x20mm

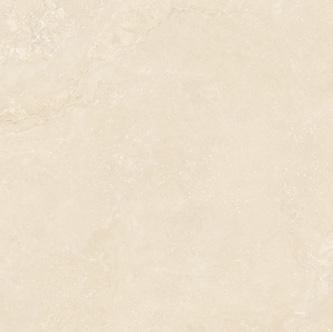

Beige 450x900x20mm
4
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: Grip
Nominal sizes: 600x600x20mm
Application: Floor
Slip resistance: Wet pendulum test: P5 Wet barefoot inclining platform test: A
Oil-wet inclining platform test: R11
Coal
Grey
Ash
Smoke
stocked

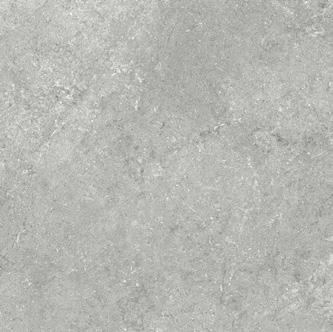

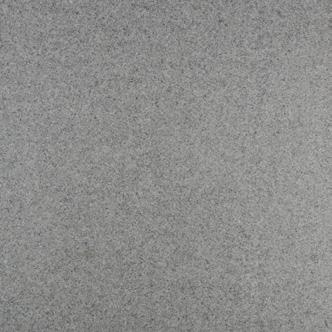

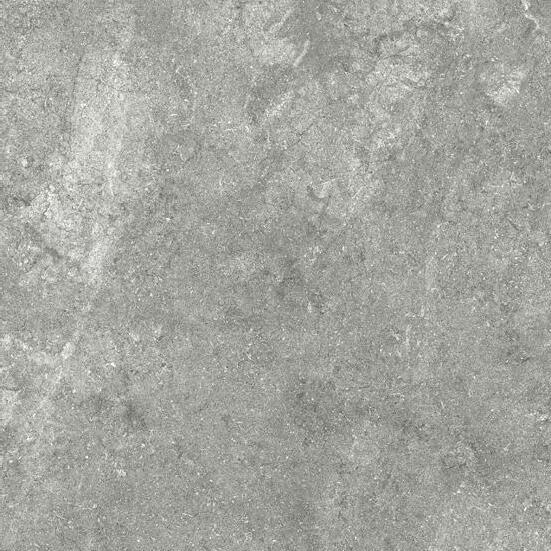

Paver: Mineral Grey 600x600x20mm
600x600x20mm
600x600x20mm
600x600x20mm
600x600x20mm
5
Lifetime Guarantee mineral
toorak
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: External
Nominal sizes: 600x600x20mm
Application: Floor
Slip resistance: Wet pendulum test: P4
Oil-wet inclining platform test: R11
Lifetime Guarantee

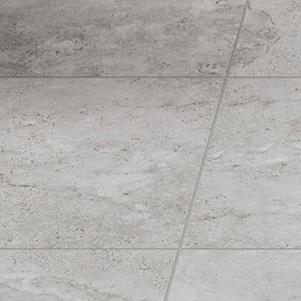

Paver: Toorak Titanium 600x600x20mm
stocked
Titanium 600x600x20mm
6
stone age
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: External
Nominal sizes: 600x600x20mm
Application: Floor
Slip resistance: Wet pendulum test: P4
Oil-wet inclining platform test: R11
Lifetime Guarantee
stocked

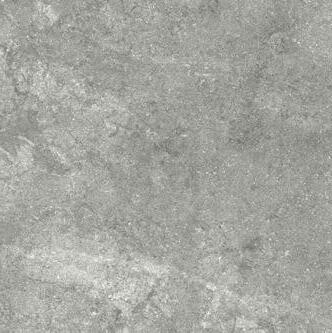

Paver: Stone Age Alloy 600x600x20mm
Iron 600x600x20mm
Alloy 600x600x20mm
Sand 600x600x20mm
7
stone union
Product Specifications
Material: Porcelain
Edge: Rectified
Surface finish: Grip
Nominal sizes: 600x600x20mm
Application: Floor
Slip resistance: Wet pendulum test: P5
Lifetime Guarantee
stocked
Paver: Stone Union Bianco 600x600x20mm
Bianco 600x600x20mm
Grigio 600x600x20mm
Flint 600x600x20mm
8
available for our porcelain pavers
bullnose finishes
half bull-nose
Simple round edge profile which suits just about any application. Economical and quick to manufacture, it is by far our most popular edging. Pool builders and designers love it, it’s perfect for stair nosing, skirting tiles and pool edging.
full bull-nose (20mm pavers only)
If your theme is uncluttered and minimalist, then this may be the profile for you. This neat, fully rounded edge is designed to both soften the tile edge and also give the option of creating a small overhang to add a simple but effective feature.
laminated full bull-nose
A chunkier, traditional profile for those who prefer a thicker and more prominent style. As with all of our laminated products, a strip of the same tile is bonded to the underside of the tile edge, then bull-nosed with either a honed or polished finish.
mitred edge (50mm drop-down)
Our mitred edges provide an accurate, clean cut finish for when two tiled surfaces need to meet at a right angle. Our perfectly machined mitres will eliminate the slow and tedious process of hand mitring by trades people on site. Each piece is cut at a perfect 45 degree angle and are guaranteed to be free of chips and rough edges.
9

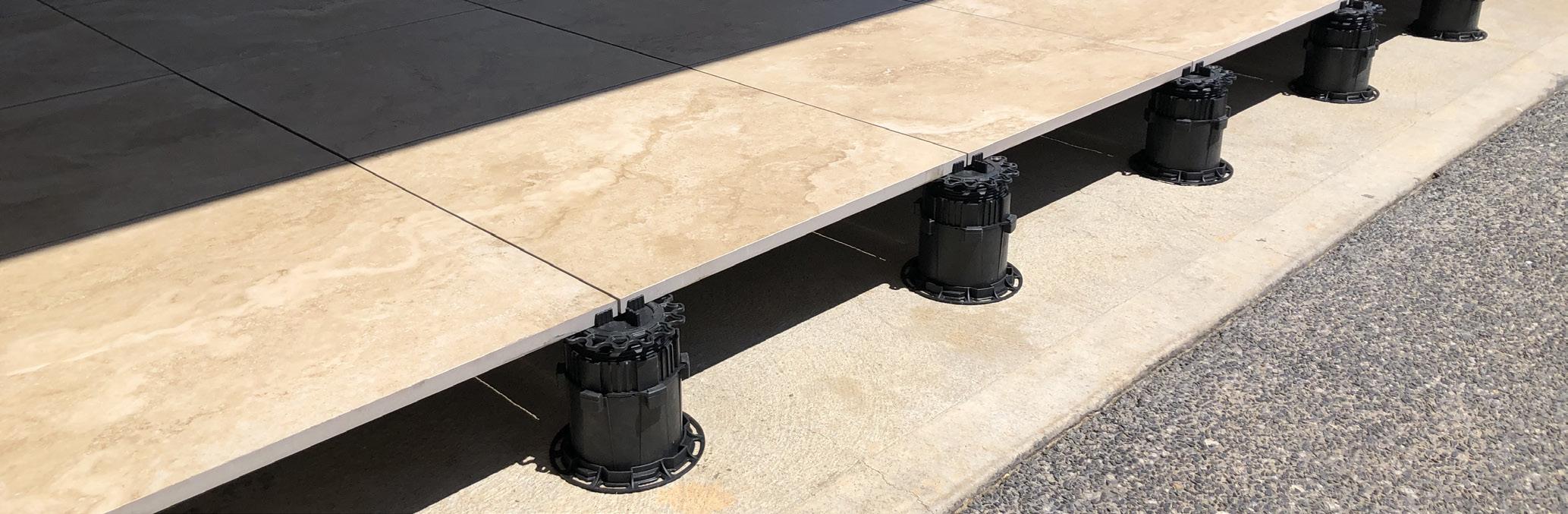

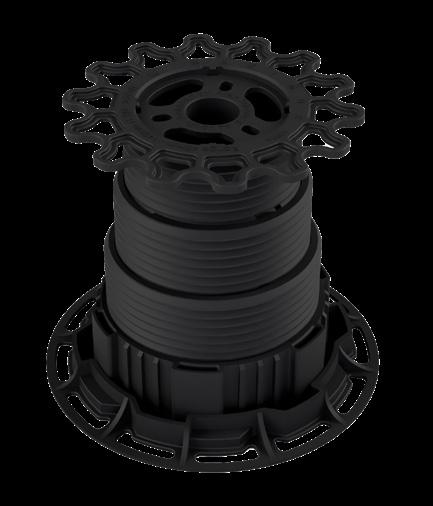

maximus pedestal system
adjustable pedestal support system for raised indoor and outdoor floor coverings application.
10
joint filling information
When porcelain pavers are installed as sand set installations, you may fill the 4mm paver joints with:
• Dry traditional sand - traditional sand is swept into the open joints until they are completely filled. Excess sand should be swept o the pavement. Keep in mind that sand joints may in time have to be re-sanded as wind and rain can cause some erosion.
• Cement blended sand - dry cement blended sand (typical 3 parts sand to 1 part cement) is swept into the open joints until they are completely filled. Excess cement blended sand is swept o of the pavement. It is extremely important that all of the excess sand and dust be swept from the surface (blowers can be used for final dust removal), as any residual dust or sand can stain the surface. After joints are full and the surface is clean the pavement is misted with water to activate the cement and the curing of the mixture.
• Polymeric sand - polymeric is a manufactured sand that is blended with polymers that harden when subjected to moisture. The sand is swept into the open joints until they are completely filled. Like cement blended sand, it is extremely important that all excess sand and dust be swept from the surface (blowers can be used for final dust removal), as any residual dust or sand can stain the surface. After joints are full and the surface is clean, the pavement is misted with water to activate the polymer and curing of the mixture.
Installation recommendations
Never install porcelain pavers without the required 4mm spacing between them. The porcelain pavers should never be installed with porcelain to porcelain contact. 4mm spacers should be used on sand set and permeable installations.
nationaltiles.com.au
11
